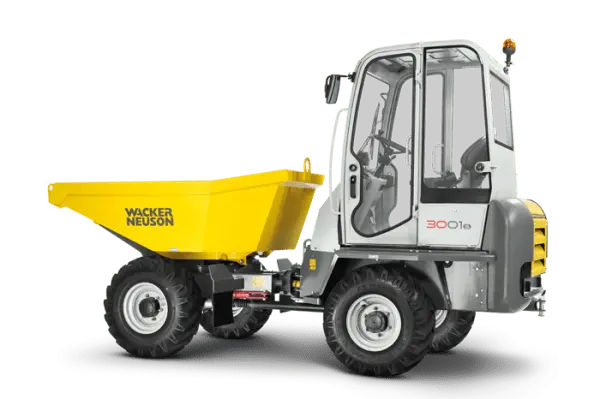

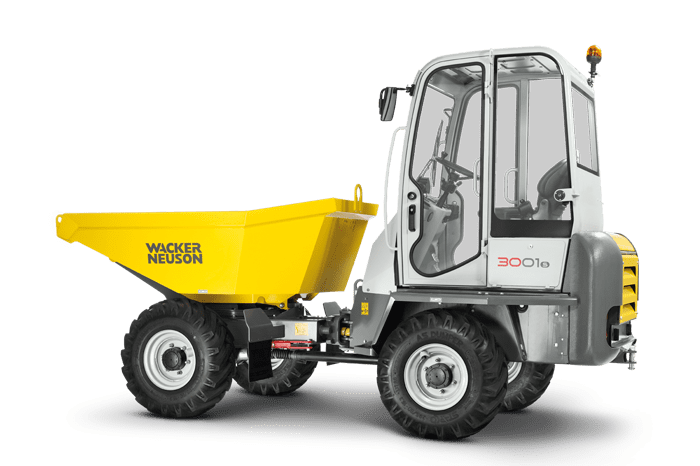

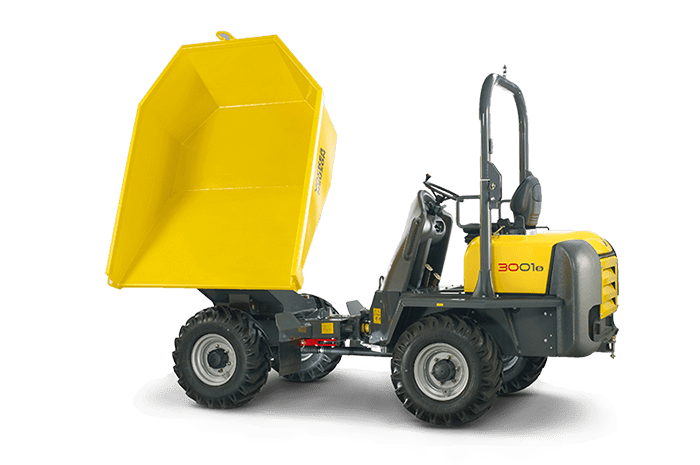

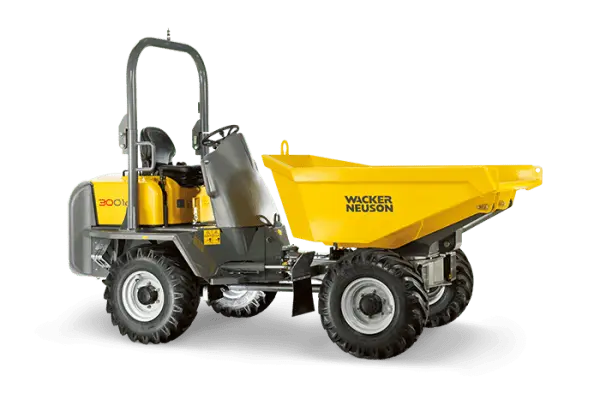

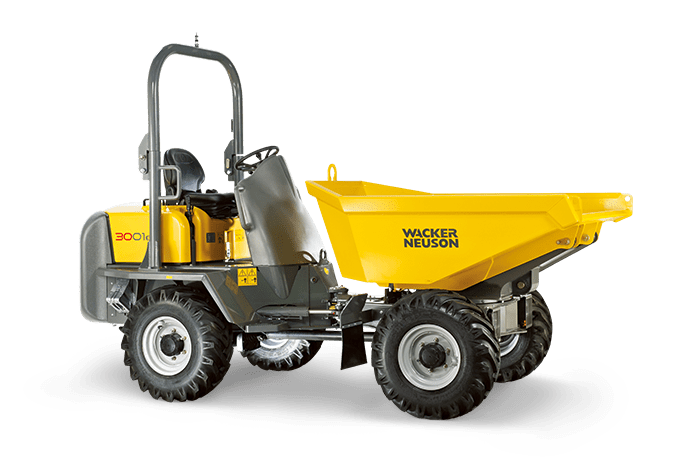

3001 Wheeled Dumper – ROPS

SKU 1000106830.99 Category Tag

With its three different types of skip (incl. lower dumping height), a top speed of 25 km/h, high ground clearance and excellent off-road capability the 3001 is top of the class. Simply complete and completely simple.

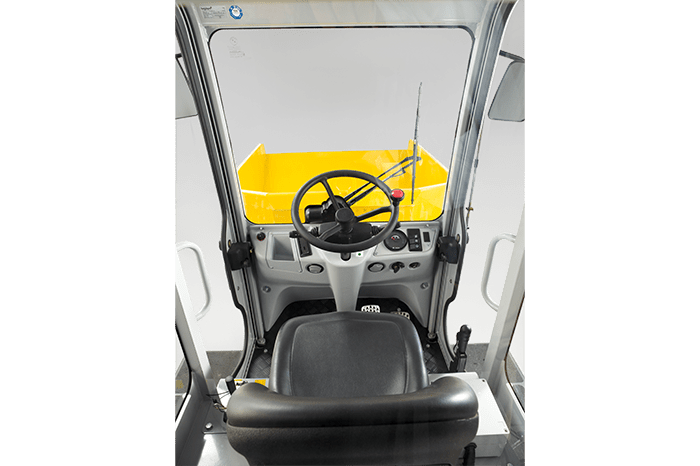

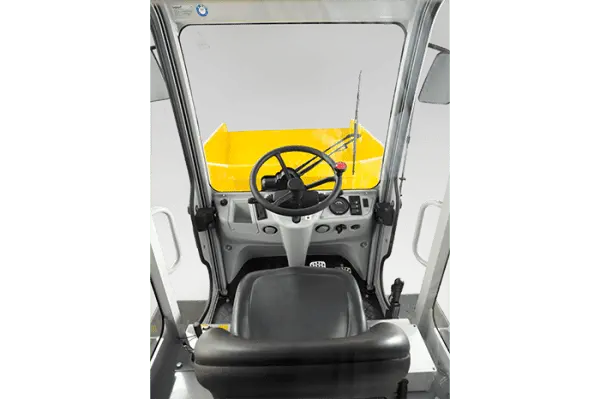

– Low maintenance hydrostatic four-wheel drive, maximum payload 3,000 kg, optional cab available ex-works.

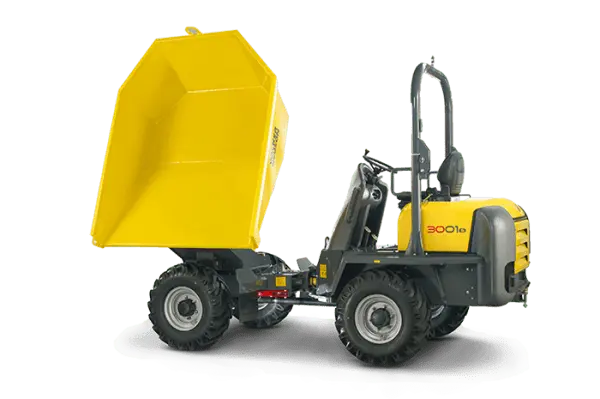

– 3 types of skip: Front tipping skip (standard), swivel tipping skip (optional); skip with lower dumping height (2,200 mm).

– High ground clearance.

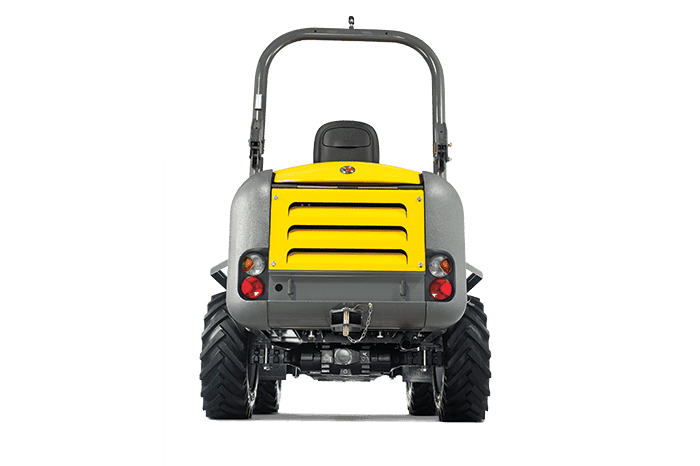

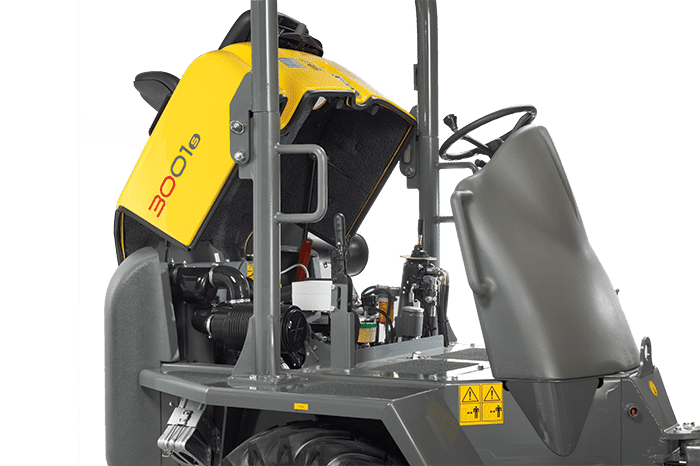

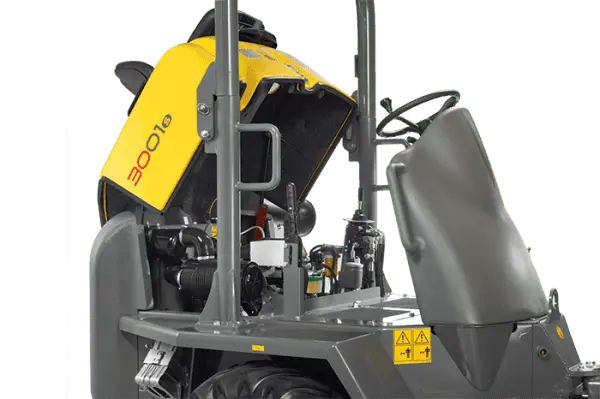

– Large service and maintenance access with through hinged one-piece engine hatch.

– A top speed of 25 km/h gets transport jobs done fast.

Front tip skipSwivel tip skipLow skip

Operating data

Payload3,000 kg3,000 kg2,600 kg
Shipping weight2,410 kg2,550 kg2,410 kg
Skip capacity (level)1,500 L1,300 L1,020 L
Skip capacity (heaped)1,850 L1,750 L1,300 L
Skip capacity (water level)1,160 L900 L820 L

Engine / Motor

Engine / Motor manufacturer YanmarYanmarYanmar
Engine / Motor model3TNV883TNV883TNV88
Engine / Motor typeDieselDieselDiesel
Engine performance acc. to ISO 3046/126 kW26 kW26 kW
Displacement1,642 cm³1,642 cm³1,642 cm³
Engine RPM2800 rpm2800 rpm2800 rpm
Travel speed22 km/h22 km/h22 km/h
Articulation angle37 °37 °37 °
Pendulum angle15 °15 °15 °
Turning radius3,650 mm3,650 mm3,650 mm
Gradeability 50 %50 %50 %
Tires 11.50/80-15.311.50/80-15.311.50/80-15.3
Dimensions (L x W x H)3980 x 1785 x 2670 mm4140 x 1785 x 2670 mm4205 x 1785 x 2670 mm
Steering pump axial piston pumpaxial piston pumpaxial piston pump
Flow rate47 L/min47 L/min47 L/min
Operating pressure360 bar360 bar360 bar
Duty pump gear pumpgear pumpgear pump
Flow rate47 L/min47 L/min47 L/min
Operating pressure220 bar220 bar220 bar
Sound level (LwA)101 dB(A)101 dB(A)101 dB(A)

Hydrostatic all-wheel drive

  • total focus on the job, no busy shifting of gears

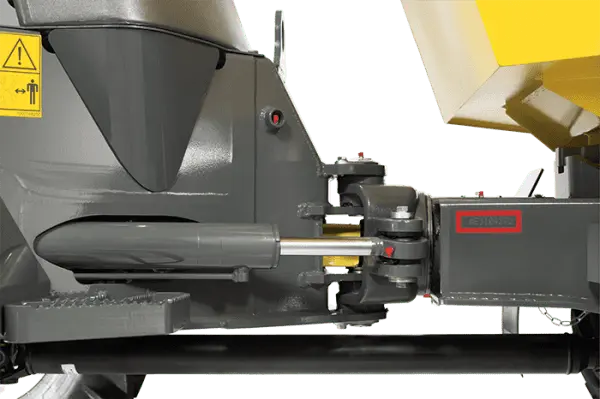

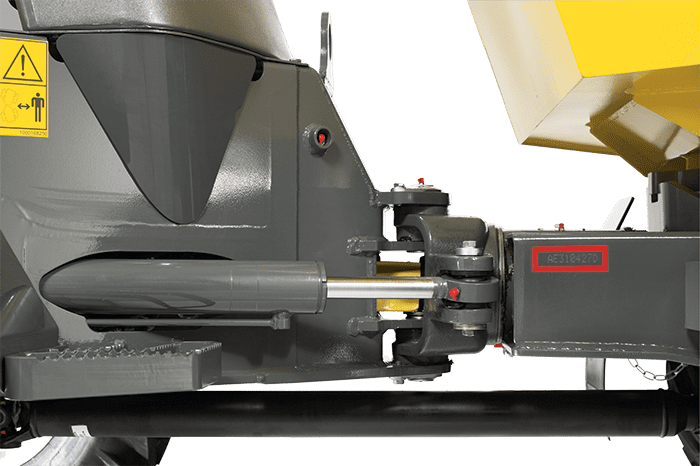

  • one central hydraulic engine drives both axles via a cardan shaft

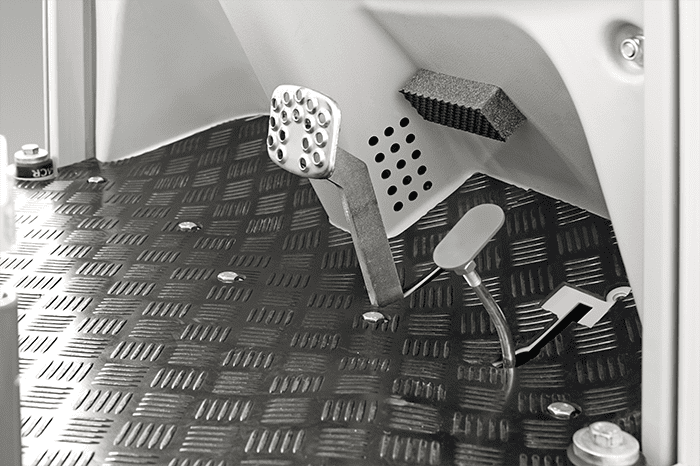

  • hydrostatic braking effect as soon as the foot is taken off the accelerator pedal
  • low-wear drive for reduced service and maintenance costs
  • controlled delay for regulated switching, thus no abrupt change of drive
  • accelerate from 0 to maximum speed of 28km/h without traction loss
Hydrostatischer Allradantrieb
