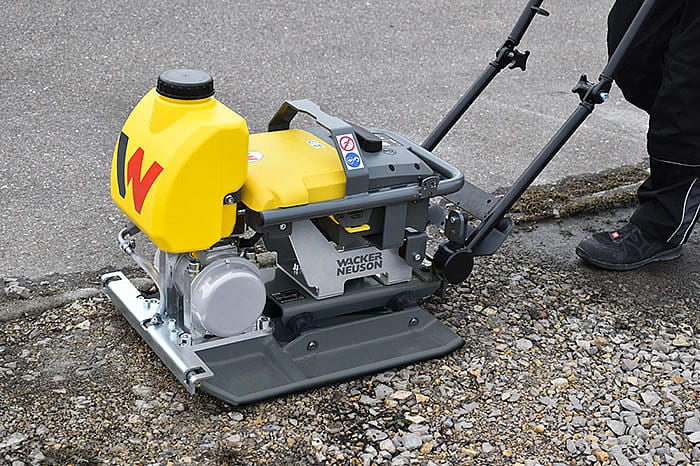

AP1850EW – Battery Vibrating Plate
Home>Compaction>Single Direction Vibrating Plates - Soil & Paving Compaction>AP1850EW – Battery Vibrating Plate
SKU
5100038311
Categories Single Direction Vibrating Plates - Asphalt Compaction, Single Direction Vibrating Plates - Soil & Paving Compaction
Tag No Price

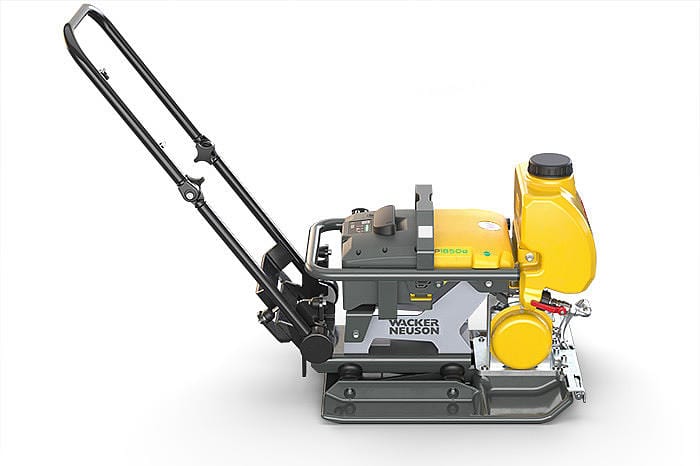

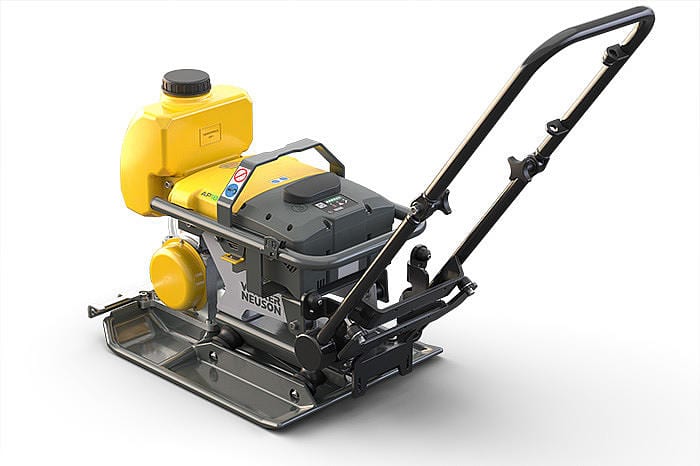

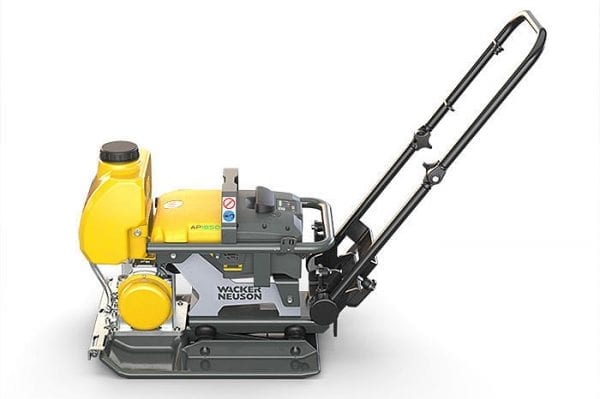

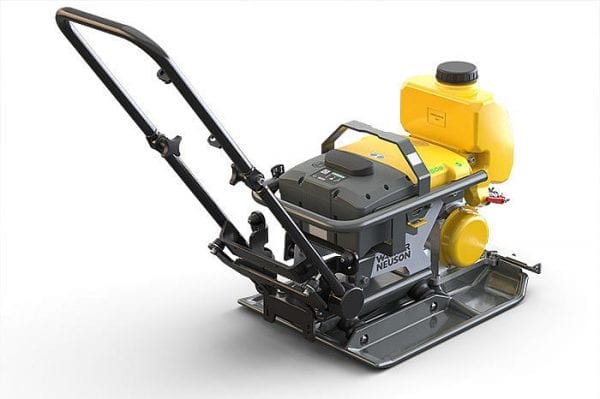

With the AP1850e and the AP1840e, Wacker Neuson offers the world’s only battery-operated and thus wireless vibratory plates for completely emission-free compaction operation. With a battery runtime, that is sufficient for the compaction work on a full working day the AP1850e and AP1840e open up new areas of applications. They are in no way inferior to their conventionally operated relatives in terms of performance. The battery plates are available with or without water tank and sprinkling system.
– Large area compaction capacity (> 800 m²), one battery charge last for a full working day.
– Proven electric motor without V-belt – so completely maintenance-free and therefore cost-saving.
– Emission-free operation protects the operator on all construction sites and opens new fields of applications in the interior and in emission-regulated areas (inner city districts).
– Low energy costs: savings of around 70% compared to a gasoline plate of the same weight class.
– Battery and charger are modular and can also be used for our battery rammers.
Operating data

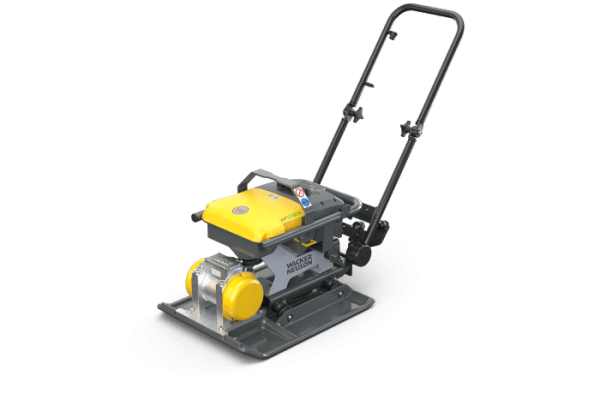

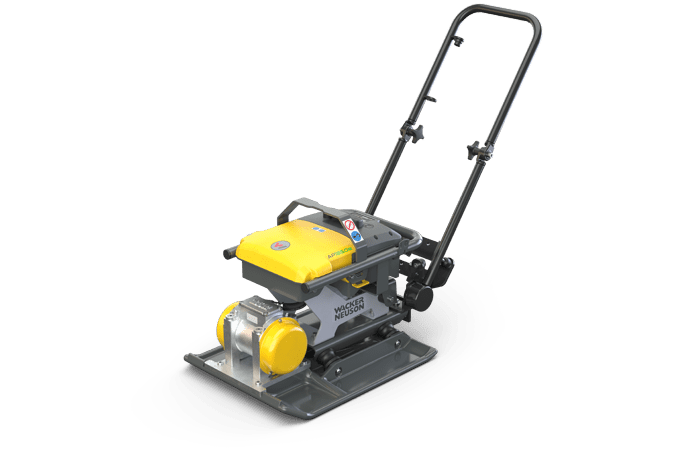

AP1850EW – with water tank | AP1850EW – without water tank | |
Operating weight (kg) | 111 | 101.4 |
Centrifugal force (kN) | 18 | 18 |
Operating width (mm) | 500 | 500 |
Frequency (Hz) | 98 | 98 |
Hand-arm vibrations (m/s²) | 4 | 4 |
Advance travel (m/min) | 27 | 27 |
Surface capacity (m²/h) | 810 | 810 |
Battery BP1000 | ||
Type of battery | Li-Ion | Li-Ion |
Weight (kg) | 9.4 | 9.4 |
Dims L x W x H (mm) | 220 x 290 x 194 | 220 x 290 x 194 |
Rated voltage (V) | 51 | 51 |
Energy content (Wh) | 1,008 | 1,008 |
Capacity (Ah) | 20 | 20 |
Charge current max. (A) | 32 | 32 |
Discharge current max. (A) | 160 | 160 |
savings operating costs: ca. 70 % | charging time: ca. 80 min. with quick charger ca. 4 h. with standard charger |
Emission-free compaction opens up new fields of application:
- Trenches, construction sites in tunnels and interiors
- Construction projects with strict environmental regulations / guidelines for emission values such as city centers and public large-scale projects
- Water protection areas and nature reserves, where no internal combustion engines may be used.
One battery – two machines
The powerful rechargeable battery is charged quickly and changed in a few seconds. It fits into both our battery rammers and the battery vibratory plate – once purchased, used twice, saved a lot.
Comfortable operation:
- Easily accessible start button and always visible charging indicator of the battery.
- The battery can be removed without tools in a few steps.
- The protective frame shape allows a pleasant operation from the side.
- Low transport dimensions by foldable guide handle.
