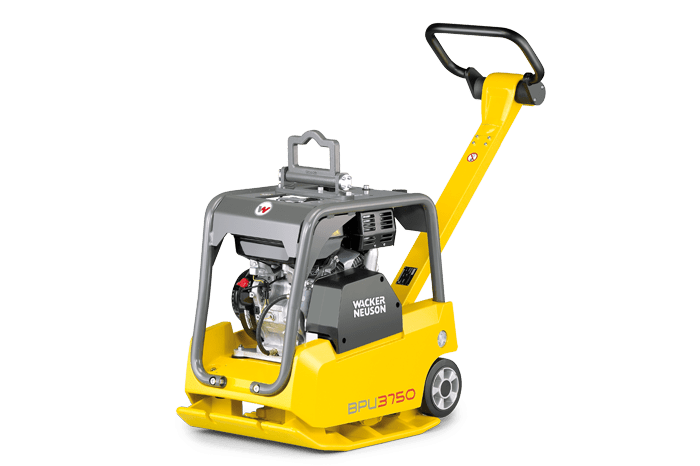

BPU3750ATS - Vibrating Plate - Petrol

Thanks to its fast forward travel speed, the BPU3750Ats is ideal for compacting interlocking paving stones, horticulture and landscaping, and for the maintenance of roads, paths and parking lots. It comes with a robust integrated wheel set, like all Wacker Neuson vibratory plates in the 25 – 37 kN class. The machines of this class offer a kind of job site mobility that is unique in the market. Thanks to its great agility and compact design, the BPU3750ATS is perfectly suited for the compaction of sidewalks, trenches and other confined areas. A multitude of well thought out features make it the ideal choice for professionals who need a continuous use compactor.

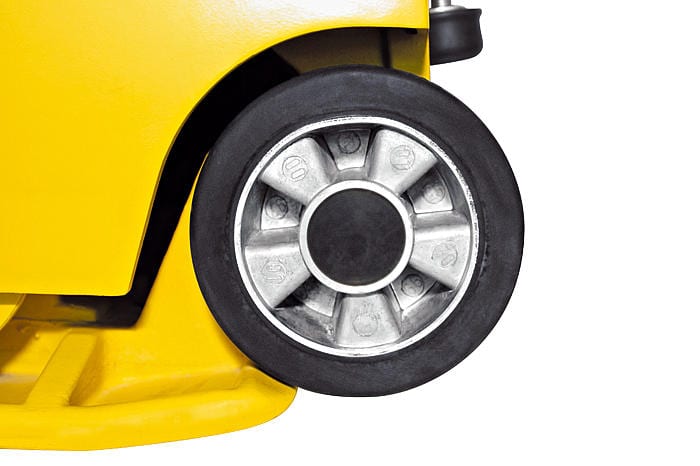

– That is unique! Integrated and extremely robust wheel set: Even hot asphalt or cumbersome curbs cannot harm the wheels.

– Exceptionally long service life even with the toughest jobs: GJS-700 base plate; the optimal combination of break and wear resistance.

– Guide handle shock mount and integrated lateral guiding systems enable effortless and precise work.

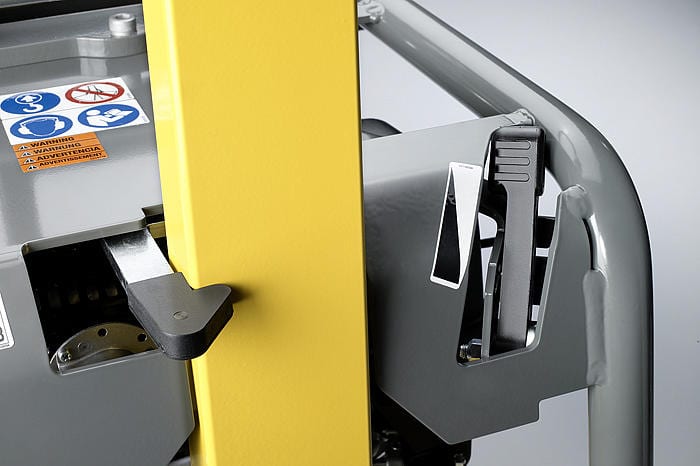

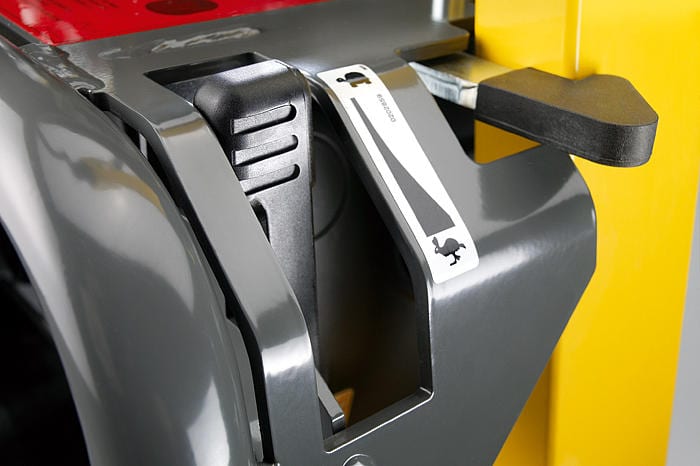

– The automatic locking mechanism of the guide handle has no play, ensuring safe transport.

– Honda gasoline engine with great reserve capacity.

Operating data

Operating weight240 kg
Centrifugal force37 kN
Base plate size (W x L)500 x 703 mm
Base plate thickness10 mm
Height (without guide handle)777 mm
Operating width (without extension plate)500 mm
Frequency90 Hz
Hand-arm vibrations2.5 m/s²
Advance travel max. (depending on soil and environmental factors)24 m/min
Surface capacity max. (depending on soil and environmental factors)720 m²/h

Engine / Motor

Engine / Motor typeAir-cooled single-cylinder, four-cycle gasoline engine
Engine / Motor manufacturerHonda
Engine / Motor modelGX 270
Displacement270 cm³
Engine performance (operating performance)4.6 kW
at rpm2,600 rpm
Fuel consumption1.6 L/h
Fuel tank capacity5.3 L
Fuel typeGasoline
