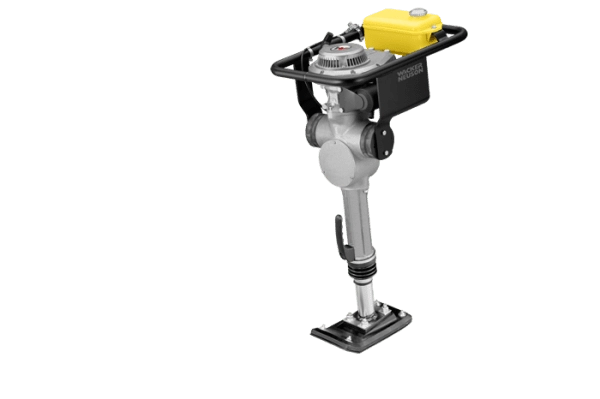

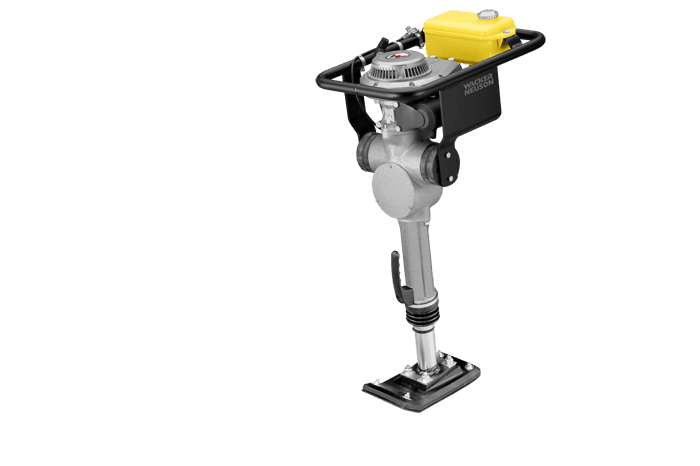

BS30-2 – Vibratory Rammer, 2-Stroke
BS30 is the specialist rammer to compact pipe supports in trenches professionally. The low weight, compact dimensions and the ability to perform at full capacity in a tilted position make the BS30 the only choice for these jobs. It is powered by the exclusive Wacker Neuson WM80 motor.
– The two-cycle engine enables operation at every angle. (Four-cycle engines can only be tilted up to a maximum of 20°).
– The low weight and compact dimensions make handling easier, especially when used at an angle and in confined spaces.
– The BS30 is also suitable for: Reinforcing the edges of sidewalks and bike paths, installing drainage systems.
Operating data | |
| Operating weight | 32 kg |
| Ramming shoe size (WxL) | 150 x 264 mm |
| Dimensions (L x W x H) | 620 x 370 x 980 mm |
| Percussion rate max. | 820 blows/min |
| Stroke at the ramming shoe | 42 mm |
Engine / Motor | |
| Engine / Motor type | Air-cooled single-cylinder two-cycle gasoline engine |
| Engine / Motor manufacturer | Wacker Neuson |
| Engine / Motor | WM80 |
| Displacement | 80 cm³ |
| Fuel consumption | 0.9 L/h |
| Rated performance | 1.5 kW |
| at rpm | 4,400 rpm |
| Tank capacity | 2.2 L |
| Gasoline / oil mixture | 1:50 |
