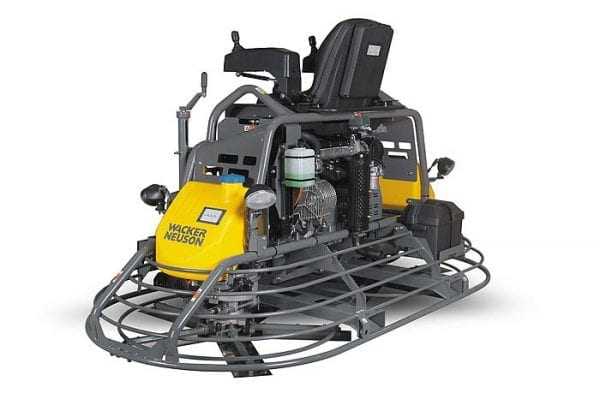

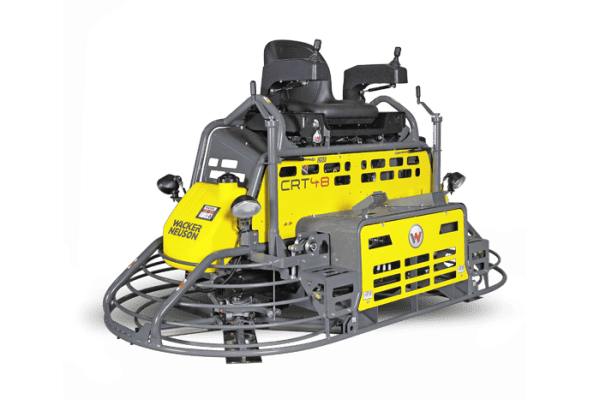

CRT48-35L-PS - Ride-On Trowel 48" - Diesel - Joystick Controls

SKU 5000620900 Category Tag

Thanks to its optimal maneuverability and high surface capacity as well as its balanced power-to-weight ratio, the CRT 48-PS achieves highest productivity levels with best results. The electro hydraulic control concept with two joysticks enables accurate maneuvering and virtually fatigue-free working. Controlled by the joystick modulations the valves of the hydraulic control cylinder are triggered by electrical signals. The CRT 48-PS offers a choice of two control modes to accommodate individual preferences and different site conditions.

– Electro hydraulic control concept

– Very precise operation

– Virtually fatigue-free operation possible

– Choice of two control modes

– Wacker Neuson has been manufacturing troweling machines for over 80 years.

Technical Specifications

Dimensions (L x W x H): 2566 x 1295 x 1473 mm

Operating weight: 635 kg

Troweling diameter: 1,220 mm

Quantity of blades: 10

Blades: 457 x 152 mm

Combination blades: 457 x 203 mm

Combination blades: 457 x 254 mm

Pitch range: 0 – 25 °

Rotor speed (min. / max.): 25/150 rpm

Engine / Motor: Liquid-cooled four-cylinder four-cycle diesel engine

Engine / Motor manufacturer: Kohler

Displacement: 1,370 cm³

Operating performance: 26.0kW (35.0hp)

RPM / speed: 3,800 rpm

Fuel consumption: 10L/h

Tank capacity: 24.6 L/h


Innovative 2-level control

Mode 1

Suitable for big concrete areas and for users who tend to operate the joystick with larger movements. In Mode 1 the signals are filtered and overmodulation of the machine prevented.

Mode 2

Suitable for tighter areas, demanding more intensive maneuvering, and for users who tend to operate the joystick with finer movements. Mode 2 enables direct and precise control.
