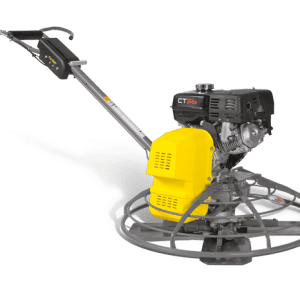

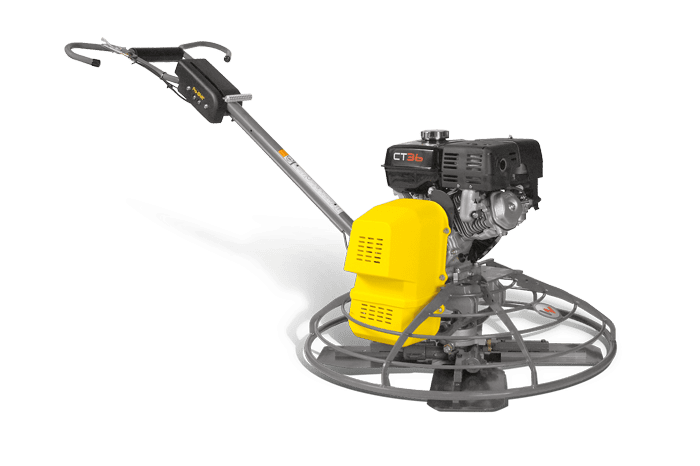

CT36-8A-V – Trowel 36″ -Petrol (Inc. Handle & Lifting Bracket)

SKU 5000009442 Category

The models of the CT36 trowel range feature a trowel diameter of 915 millimeters – ideal for finishing medium areas. The trowels are optimally balanced, therefore they can be effortlessly controlled in the wide range of speeds. The transmission brake, electronic safety switch and engine speed sensor offer additional triple protection for the user. In an emergency situation the device will simply switch off and the handle will come to a stand-still after no more than a three-quarter turn. Furthermore, the unit will only start if the throttle lever is set to zero. This prevents an inadvertent rotation of the handle on start-up.

– Performance classes from 5.7 to 9 hp

– Different engine options

– Variable speeds: Low speeds for floating, high speeds for polishing

– Blade pitch up to 30°

– Emergency shutdown



L x W x H (with handle, fixed version)2005 x 915 x 1040 mm
Weight (without handle)94 kg
Troweling diameter915 mm
Pitch range0 – 30 °
Rotor speed (min. / max.)20/200 rpm
Quantity of blades4
Engine / Motor Air-cooled single-cylinder four-cycle gasoline engine
Engine / Motor manufacturer Honda
Engine / Motor type GX 240
Displacement245 cm³
Engine performance (DIN ISO 3046)6.7kW (9hp)
at rpm3,800 rpm
Operating performance (DIN ISO 3046)6.7kW (9hp)
at rpm3,800 rpm
Fuel consumption2.7 L/h
Tank capacity6 L
