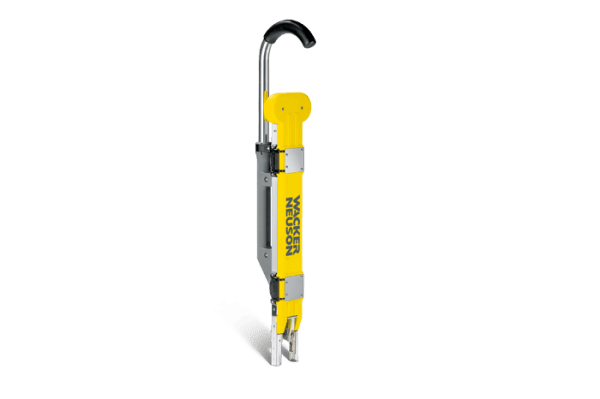

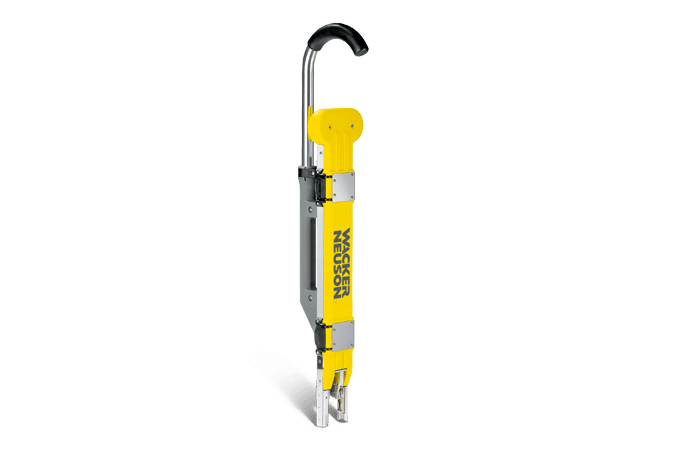

DF16 - Rebar Tier
SKU 5000610299
Category Rebar Tier
$1,832.95 Incl GST

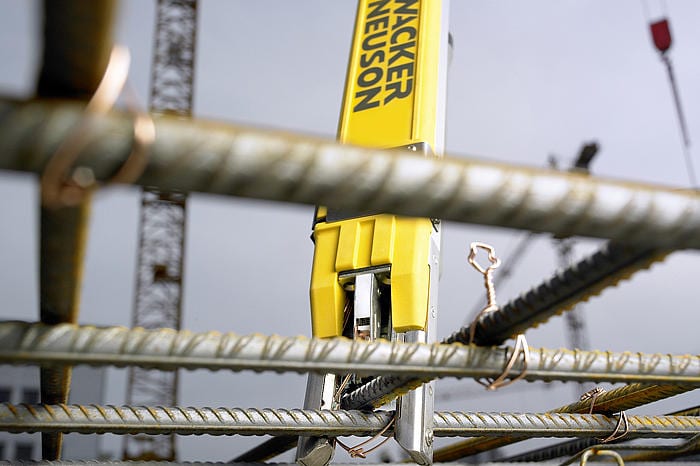

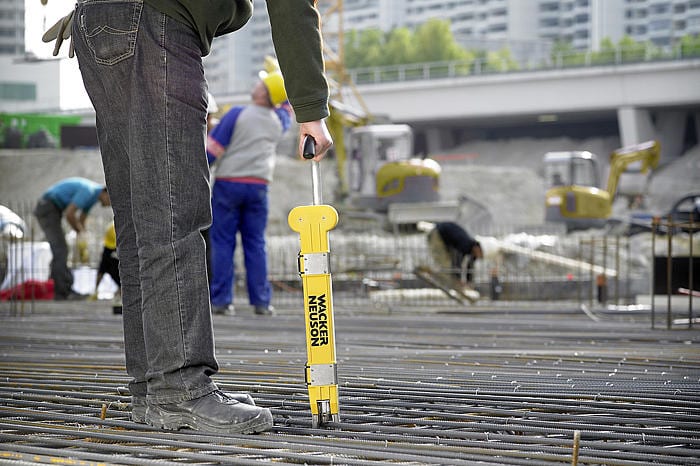

The rebar tier DF 16 offers labor relief well worth having. The mechanical device uses a proven twin wire mechanism which ties up to 1,000 uniform and firmly tied knots per hour. The times when reinforcing steel was tied bending down with pliers are over, because the DF 16 is easily operated with just one hand and in an upright position. A professional tool for traditional rebar jobs as well as for fastening plastic ducts for the activation of construction components.
– Up to 1,000 knots per hour.
– Mechanical device concept: Independent of battery life and recharging times.
– No scrap wire to dispose of.

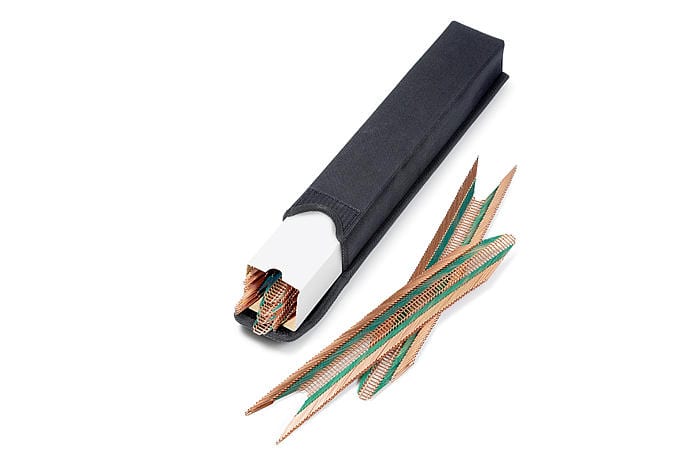

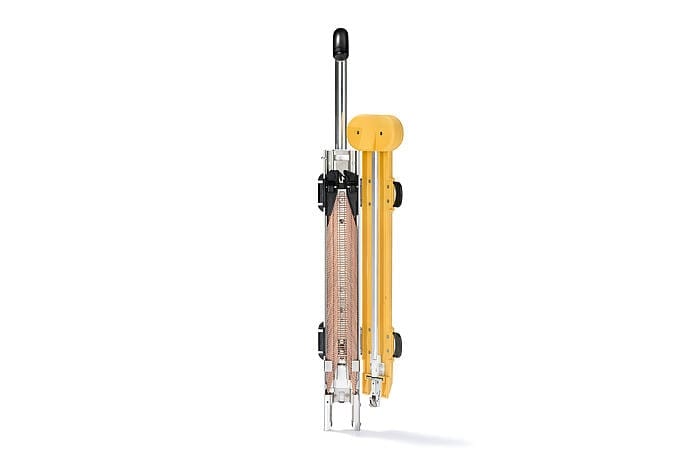

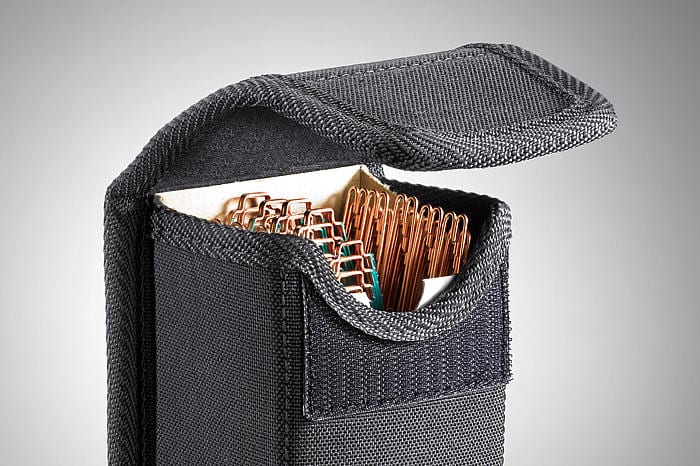

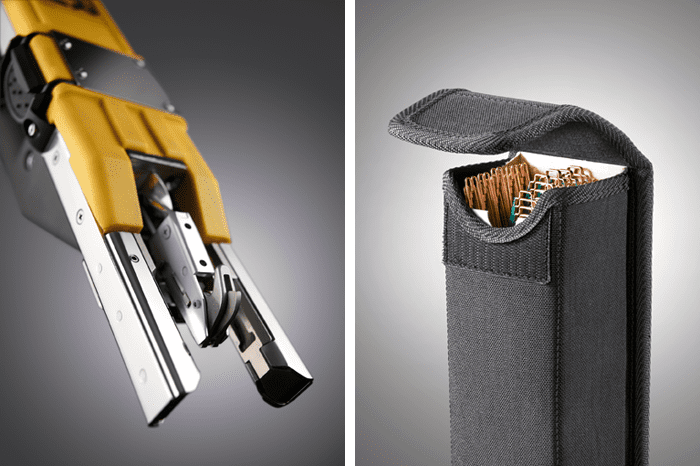

– The magazine of 77 single ties is changed easily.
– Also suitable for the activation of construction components.
Dimensions with handle retracted (L x W x H ): 656 x 164 x 118 mm
Dimensions with handle extended (L x W x H ): 883 x 164 x 118 mm
Weight: 2.2 kg

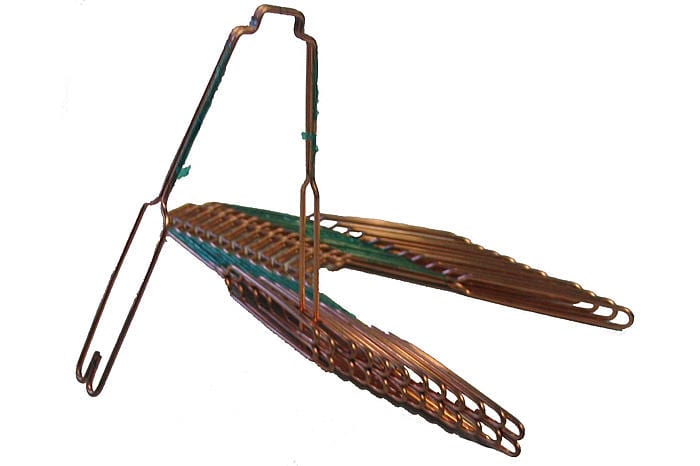

Quantity of ties per tie strip: 77
Tie wire material: Copper-plated wire
Diameter of the tie wire: 1.1 mm
Tying speed: approx. 1000 knots/h
Time required per knot: 0.8 sec
Diameter of the round materials to be fastened (min.): 6 + 6 mm
Diameter of the round materials to be fastened (max.): 16 + 16 mm
Order quantities of the ties: Box = 7700 pieces, pallet = 138600 pieces
The tying technique of DF 16:

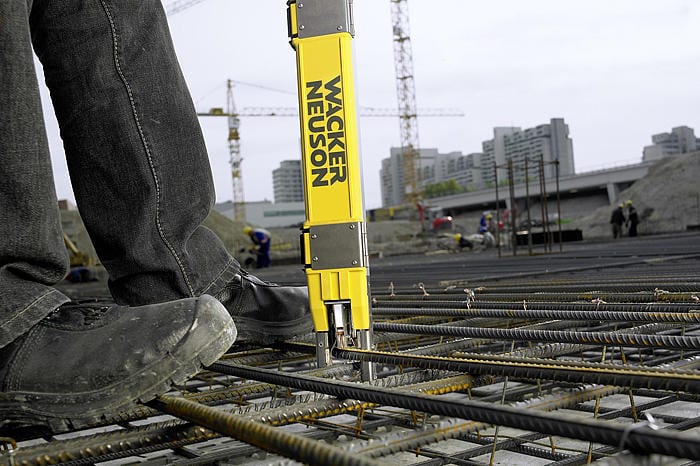

1. Place the device vertically | 2. Push down without force: The tie wraps around the rebar | 3. Pull evenly: The tie twists |
![]() ![]() | ![]() ![]() | ![]() ![]() |
4. Continue to pull until the automatic trigger point is reached: The knot is tied firmly | 5. The knot is done | |
![]() ![]() | ![]() ![]() |
