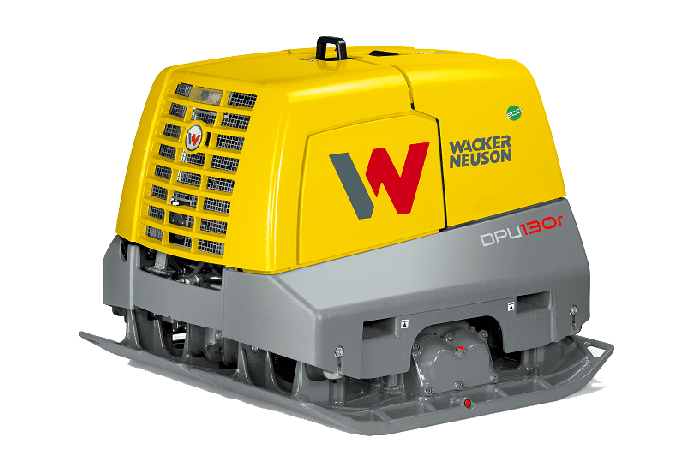

DPU130 - Remote Controlled Vibrating Plate, Key Start, Diesel

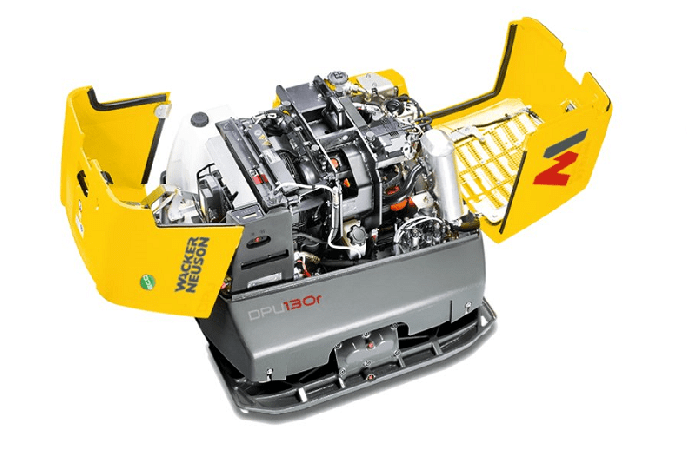

The DPU130r is the most powerful vibratory plate in the market. With its 130 kN centrifugal force and operating width of 120 cm, it easily reaches the productivity of a 7 t roller – but is much more cost-effective, thanks to the lower purchase and operating costs. Wacker Neuson have developed this remote-controlled vibratory with its practical operation on the construction site in mind. Its pioneering design concept has won two innovation awards.

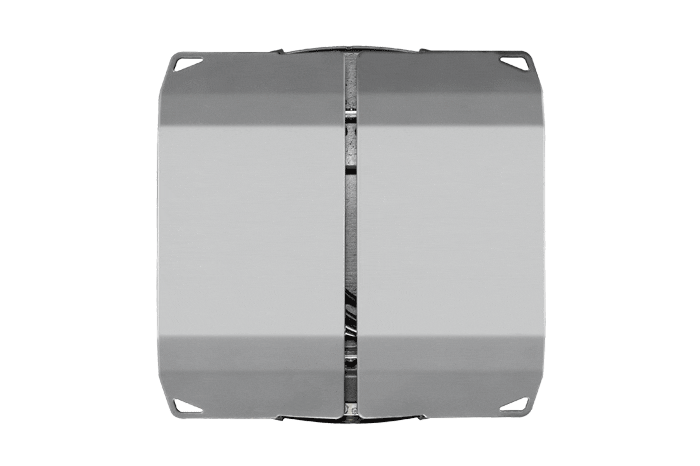

– The unique concept of a split base plate makes maneuvering easy. There is no need for time-consuming moving backwards and forwards around obstacles and recesses

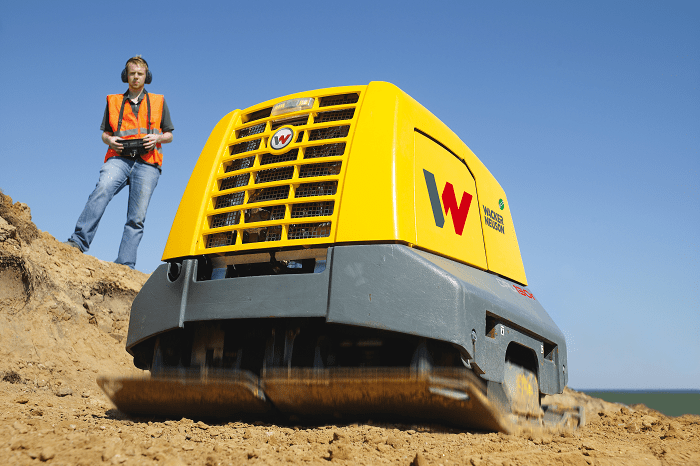

– The infrared remote control system provides maximum safety: The operator is protected from vibrations, noise and dust. The machine can only be operated if line of sight is intact. In case of a loss of control the proximity recognition sensor keeps the operator safe.

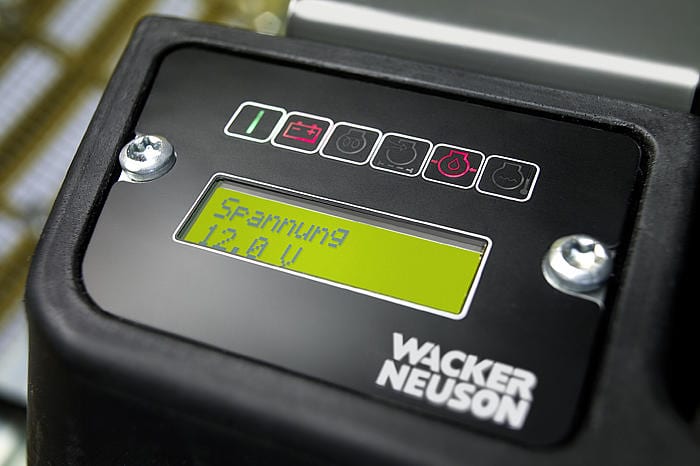

– The sophisticated on-board computer offers unrivaled levels of comfort, such as use of a PIN to prevent theft, operating hour meter, temperature gauge and comprehensive diagnostic functions.

– An overload sensor protects the machine from damage if the surface under its base plate is too hard.

– Easy to transport: The DPU130r can be transported easily on the back of a small truck. There is no need for a flat bed truck, as there would be for a roller.

Operating data

Operating weight1,185 kg
Centrifugal force130 kN
Base plate width1,200 mm
Base plate length1,186 mm
Base plate thickness14 mm
Height988 mm
Operating width1,200 mm
Frequency58 Hz
Advance travel max. (depending on soil and environmental factors)31 m/min
Surface capacity max. (depending on soil and environmental factors)2,232 m²/h
Transport height1,157 mm
Transport length1,328 mm
Transport width1,260 mm

Engine / Motor

Engine / Motor typeWater-cooled 4-cylinder aspirated diesel engine
Engine / Motor manufacturerKohler
Engine / MotorLDW 1404
Displacement1,372 cm³
Engine performance max. (DIN ISO 3046)24.5 kW
at rpm3,600 rpm
Operating performance max. (DIN ISO 3046)16 kW
at rpm2,700 rpm
Fuel consumption4 L/h
Fuel tank capacity18 L
Power transmissionHydrostatic, electronically controlled, dual-circuit system.



DPU130 wins German Industry Innovation Award

INNOVATION AWARD OF THE GERMAN ECONOMY
First innovation award in the world®

CONSTRUCTION MACHINE AWARD 2012
Winner in the “Innovation of the year” category
(Baublatt, Austria)
