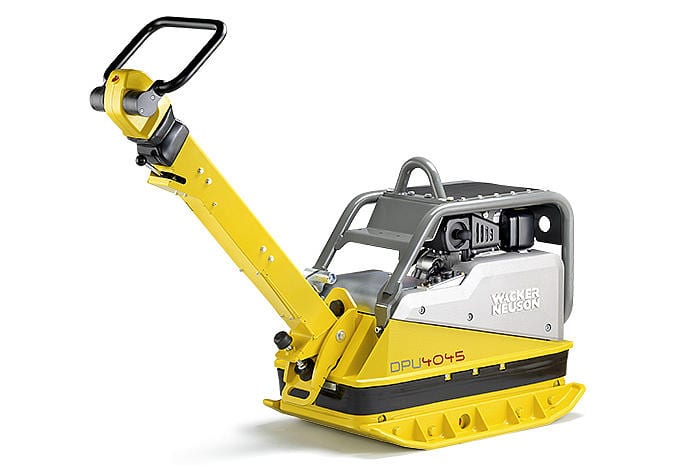

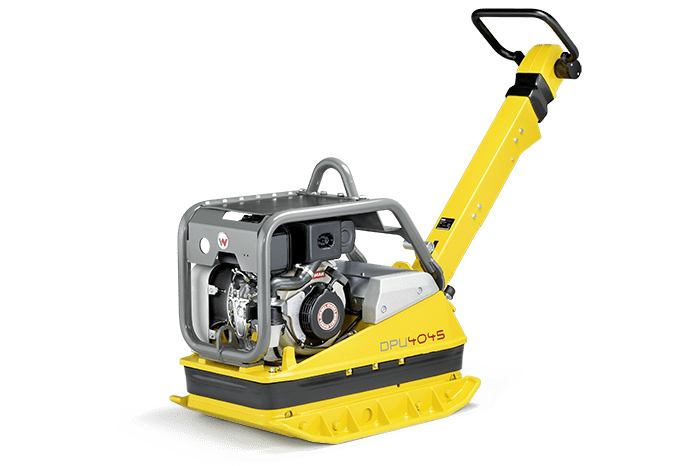

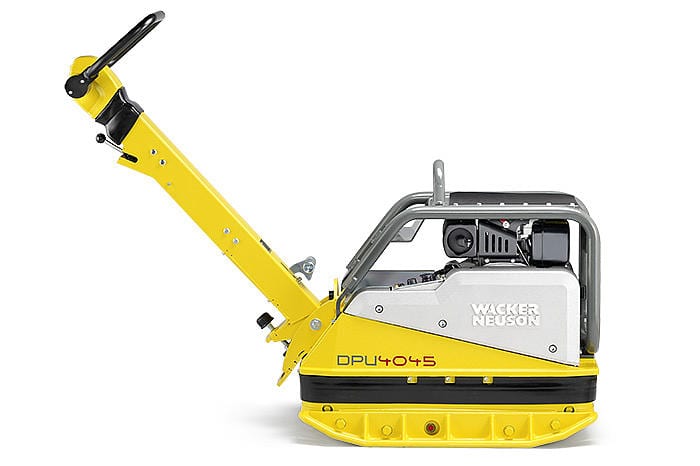

DPU4045Y - Vibrating Plate - Key Start, Diesel, C/W Low HAV Handle

Thanks to its excellent compaction force combined with a quick forward and reverse travel direction, the DPU4045 offers a high level of productivity. It is equipped with a Yanmar diesel engine and is an all-rounder for all job sites where high demands are placed on the performance efficiency of a unit. In addition, it offers excellent characteristics in terms of service life and operating comfort. Optimal application areas are the compaction of frost coverings and sub-bases in street, path and parking lot construction as well as back-filling buildings. Thanks to a frequency of 69 Hz, the DPU4045 is universally applicable and even reliably compacts medium-weight interlocking paving stones.

– The new center pole reduces hand-arm vibration (HAV) to a minimum and therefore offers a high level of operating comfort at full compaction performance. No restriction for the time of operation and no documentation effort.

– A dead man function prevents the operator from being trapped between the equipment and an object when working in reverse.

– All maintenance points are quickly and easily accessible. Extensive comfort functions: such as low oil shutdown, self-tightening V-belt, maintenance-free alternator, pull-out external jump-start connection that is accessible from outside.

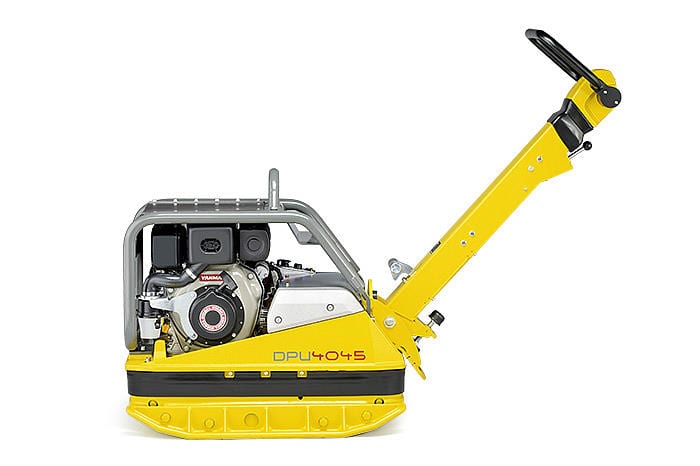

– A large dimension Yanmar diesel engine offers sufficient power reserves and ensures for a high level of efficiency and long service life.

– New positioning of the operator’s controls in a sturdy housing — better protection against dirt accumulation and damage.

Operating data

Operating weight 376 kg
Centrifugal force 40 kN
Base plate size (W x L)440 x 900 mm
Base plate thickness 12 mm
Height (without center pole)764 mm
Operating width (with extension plate)600 mm
Frequency 69 Hz
Hand-arm vibrations < 2.5 m/s²
Advance travel max. (dependent on soil and environmental impacts)24 m/min
Surface capacity max. (dependent on soil and environmental impacts)870 m²/h

Engine / Motor

Engine / Motor typeAir-cooled single cylinder four-cycle diesel engine
Engine / Motor manufacturer Yanmar
Engine / Motor modelL70N
Displacement 320 cm³
Engine performance max. (DIN ISO 3046 IFN)4.5 kW
at rpm 3,000 rpm
Operating performance max. (DIN ISO 3046 IFN)4.3 kW
at rpm 3,000 rpm
Fuel consumption 1.4 L/h
Fuel tank capacity 3.3 L
Power transmission From the drive motor via the centrifugal clutch and V-belt directly to the exciter
Fuel type Diesel

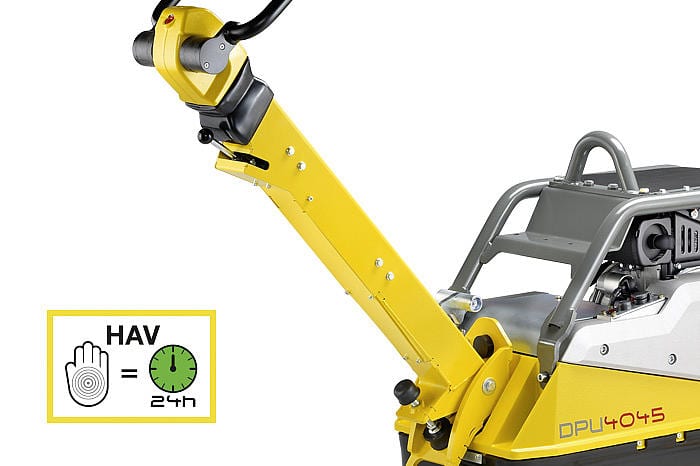

Very low hand-arm vibration (HAV)

The specially designed center pole from Wacker Neuson generates very low hand-arm vibration (HAV) below 2.5 m/s².

This allows for a continuous operation all day long without impairment and without hazard to the end user.

All documentation requirements are omitted if an operator works only with equipment that has acceleration values below 2.5 m/s².


Intuitive control handle design

The speed is regulated and the travel direction is changed through the forward and backward movement of the handle.


The control panel

  • Built to be sturdy and therefore well-protected against dirt and moisture.
  • All functions and displays in view and easily accessible: Ignition lock, operating light, charge control lamp, jump start pin, operating hour meter (optional) and Compatec (optional).

Compatec – the compaction control

  • If the number of lights no longer increases, then the maximum soil compaction possible with this unit has been achieved.
  • Available directly ex works

Jump start pin

  • Very easy to access for easy charging of the battery, for example after a winter break.
  • No risk of dirt accumulation. The jump start pin is protected and is only pulled out if necessary.



Pinpoint compaction
With Compatec, you are shown when the ground has been sufficiently compacted. Over-compaction and overload are therefore avoided.
Transport in no time
Whether on the job site or in a vehicle: Sophisticated details make transporting the vibratory plates convenient and easy.
Low hand-arm vibrations (HAV)
Low hand-arm vibrations (HAV) are essential, especially during long-time application. Our reversible vibratory plates can be used without a time restriction,largely even without a documentation requirement.
Integrated operator comfort
All of the Wacker Neuson models can be comfortably operated for particularly pleasant work.
Diesel or gasoline drive system
High power reserves and a long service life characterize the engines of all of the models, and they are optionally available as a gasoline or diesel drive system.
