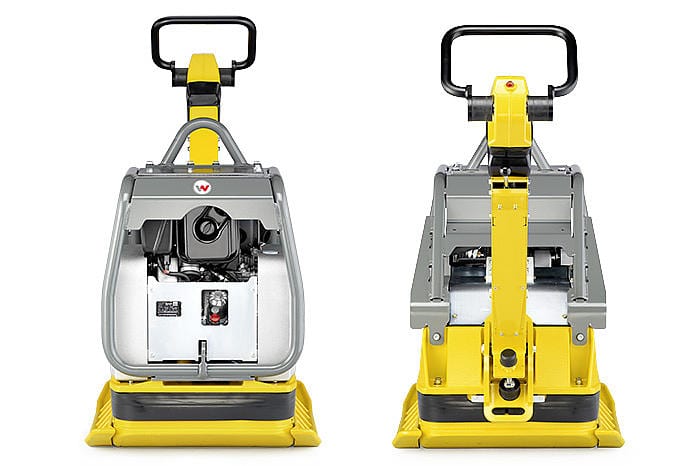

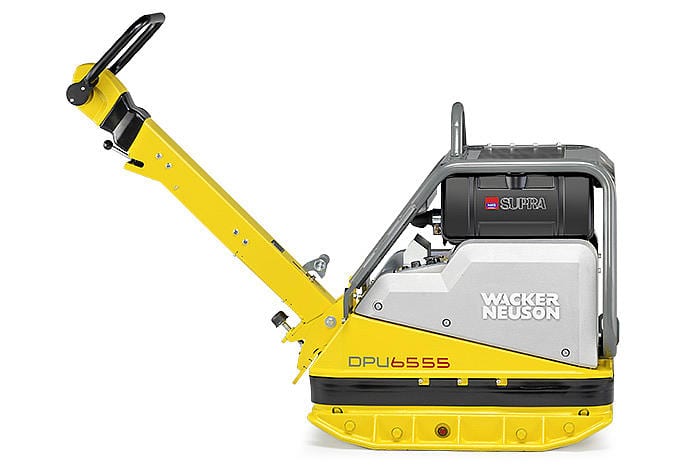

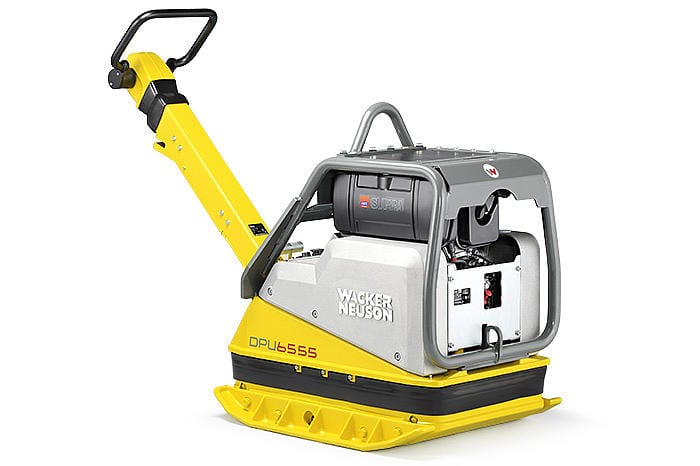

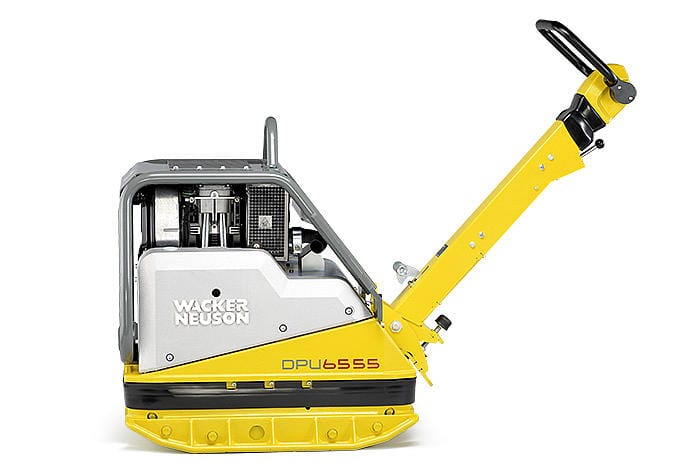

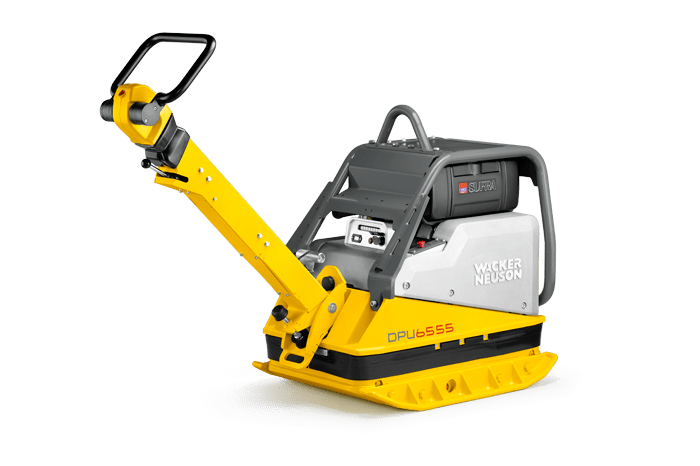

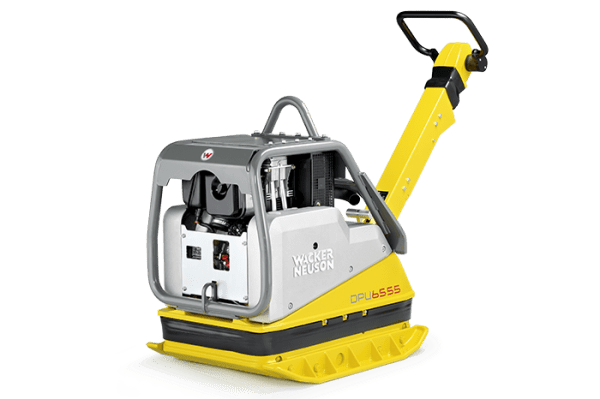

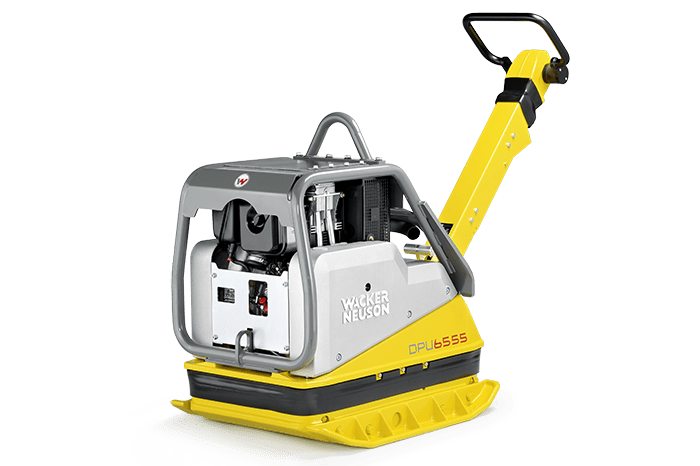

DPU6555HEC - Vibrating Plate- Key Start, Diesel, Compatec

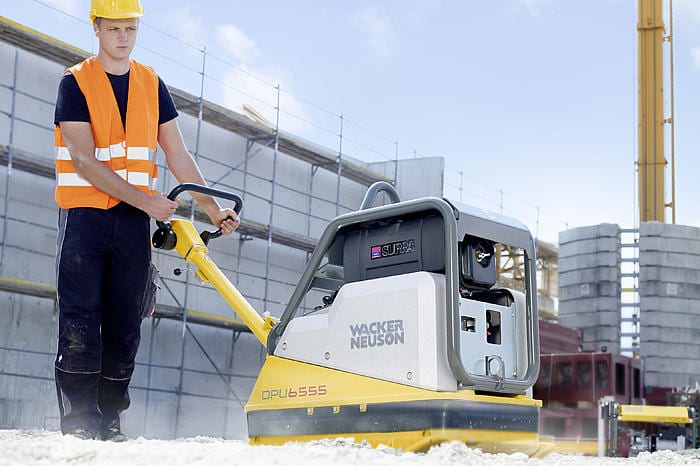

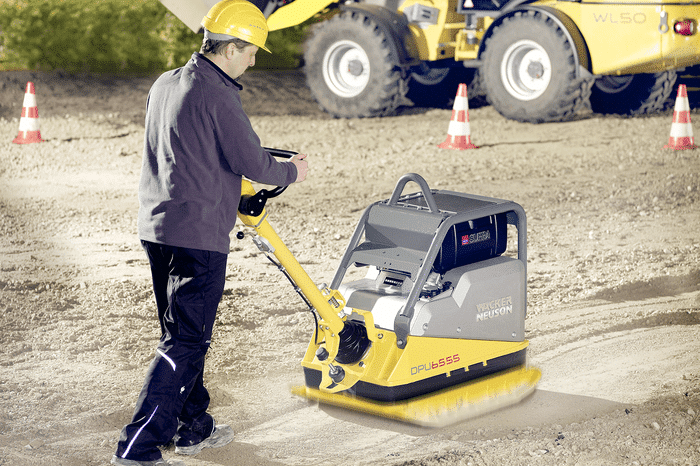

Thanks to great compaction force, combined with rapid forward and return travel, the DPU6555Hec offers an high level of productivity. It’s a versatile machine for all construction sites where extreme demands are placed on performance efficiency. In addition, it offers excellent service life and operating comfort. Optimal application areas are the compaction of bearing layers in street, path and parking lot construction, as well as backfilling buildings. With a 69 Hz frequency, the DPU6555Hec even reliably compacts heavy interlocking paving stones. The DPU6555Hec is equipped with Compatec, the compaction control by Wacker Neuson. Compatec ensures maximum compaction without the guesswork. Compatec is also available as a retrofit kit for all DPU6555He models starting from 2011.

– The innovative guide handle provides for very low hand-arm vibrations and optimizes the user-friendliness.

– An operator-present system prevents the operator from being trapped between the unit and an object when working backward.

– Smart features, such as low oil shutdown, self-adjusting V-belts, maintenance-free alternator.

– A powerful diesel engine offers high power reserves and ensures for a high level of efficiency and long service life.

– Compatec: Easy to read display of the relative compaction progress. Warning for overload and overcompaction. Brightness adjustment of the lights to the ambient light. Extremely robust and reliable.

Operating data

DPU6555HDPU6555HeDPU6555HecDPU6555Heap
Operating weight (kg)      480495497518
Centrifugal force (kN)65656565
Base plate size (W x L) (mm)550 x 900550 x 900550 x 900550 x 900
Base plate thickness (mm)12121212
Height (ground clearance) (mm)861861861861
Operating width (with extension plates) (mm)710710710860
Frequency (Hz)69696969
Hand-arm vibrations (m/s²)< 2.5< 2.5< 2.5< 2.5
Advance travel max. (dependent on soil and environmental influences) (m/min)28282828
Surface capacity max. (dependent on soil and environmental influences) (m²/h)1,2001,2001,2001,445
Gradeability (%)46.646.646.646.6
Transport height (mm)1,5211,5211,5211,521
Transport length (mm)1,0601,0601,0601,060
Transport width (mm)780780780780
Shipping weight (kg)484501502530


Engine / Motor

Engine / Motor type Air-cooled single cylinder four-cycle diesel engineAir-cooled single cylinder four-cycle diesel engineAir-cooled single cylinder four-cycle diesel engineAir-cooled single cylinder four-cycle diesel engine
Engine / Motor manufacturer HatzHatzHatzHatz
Engine / Motor model 1D81S1D81S1D81S1D81S
Displacement (cm³)667667667667
Engine performance max. (DIN ISO 3046 IFN) (kW)10.110.110.110.1
at rpm3,6003,6003,6003,600
Engine performance (rated power) (DIN ISO 3046 IFN) (kW)9.69.69.69.6
at rpm2,8002,8002,8002,800
Operating performance (DIN ISO 3046 IFN) (kW)6.86.86.86.8
at rpm3,0103,0103,0103,010
Fuel consumption (L/h)1.91.91.91.9
Fuel tank capacity L6666
Power transmission From the drive motor via centrifugal clutch and V-belt directly to the exciter.From the drive motor via centrifugal clutch and V-belt directly to the exciter.From the drive motor via centrifugal clutch and V-belt directly to the exciter.From the drive motor via centrifugal clutch and V-belt directly to the exciter.
Fuel type DieselDieselDieselDiesel

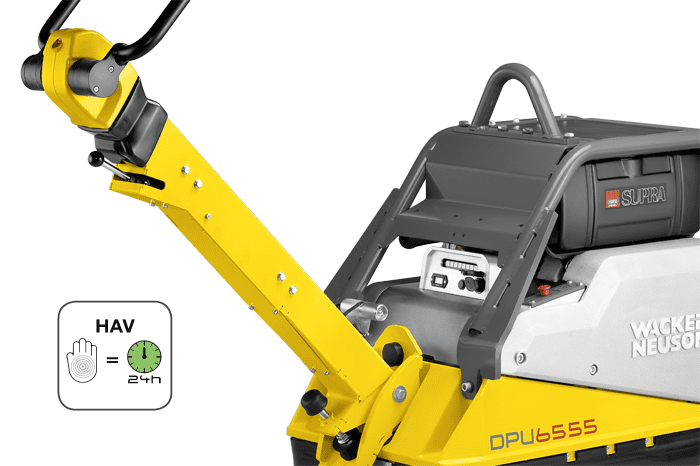

Very low hand-arm vibration (HAV)

The specially designed center pole from Wacker Neuson generates very low hand-arm vibration (HAV) below 2.5 m/s².

This allows for a continuous operation all day long without impairment and without hazard to the end user.

All documentation requirements are omitted if an operator works only with equipment that has acceleration values below 2.5 m/s².


Intuitive control handle design

The speed is regulated and the travel direction is changed through the forward and backward movement of the handle.

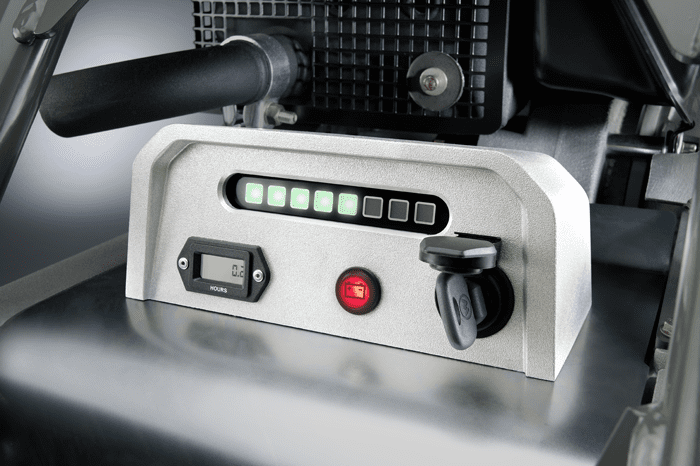

The control panel

  • Built to be sturdy and therefore well-protected against dirt and moisture.
  • All functions and displays in view and easily accessible: Ignition lock, operating light, charge control lamp, jump start pin, operating hour meter (optional) and Compatec (optional).

Compatec – the compaction control

  • If the number of lights no longer increases, then the maximum soil compaction possible with this unit has been achieved.
  • Available directly ex works

Jump start pin

  • Very easy to access for easy charging of the battery, for example after a winter break.
  • No risk of dirt accumulation. The jump start pin is protected and is only pulled out if necessary.



Pinpoint compaction
With Compatec, you are shown when the ground has been sufficiently compacted. Over-compaction and overload are therefore avoided.
Transport in no time
Whether on the job site or in a vehicle: Sophisticated details make transporting the vibratory plates convenient and easy.
Low hand-arm vibrations (HAV)
Low hand-arm vibrations (HAV) are essential, especially during long-time application. Our reversible vibratory plates can be used without a time restriction,largely even without a documentation requirement.
Integrated operator comfort
All of the Wacker Neuson models can be comfortably operated for particularly pleasant work.
Diesel or gasoline drive system
High power reserves and a long service life characterize the engines of all of the models, and they are optionally available as a gasoline or diesel drive system.
