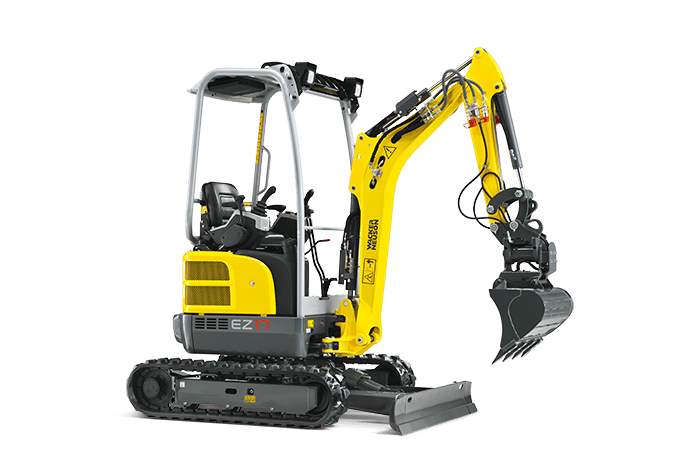

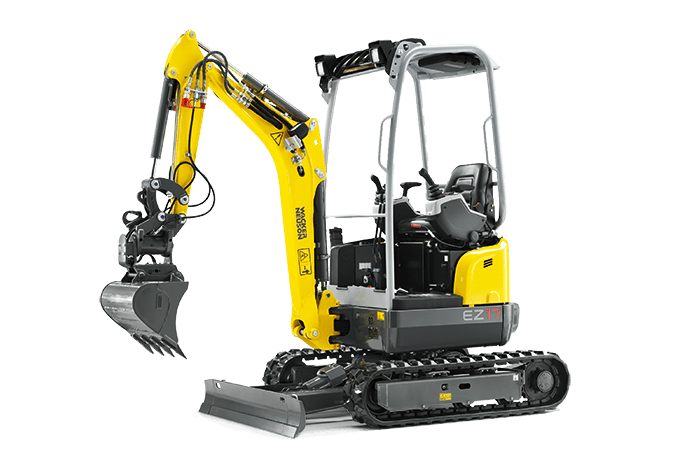

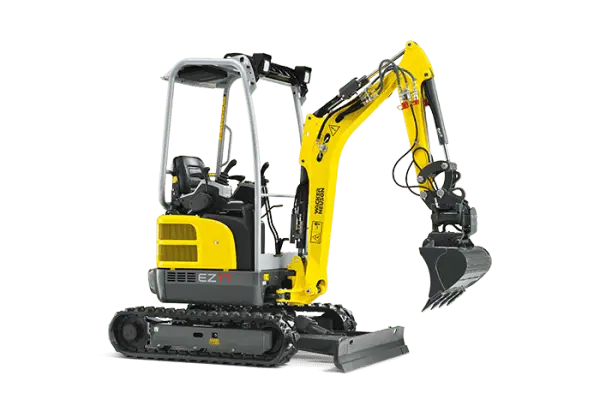

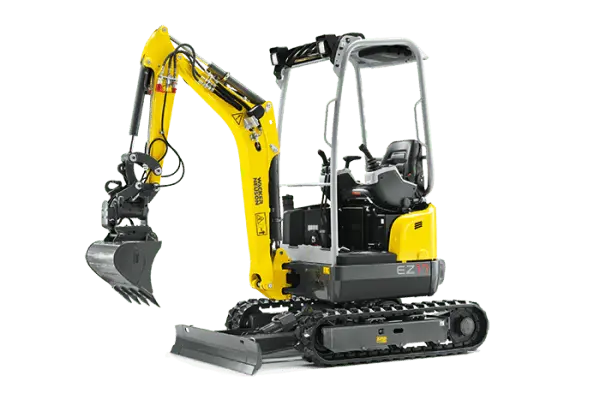

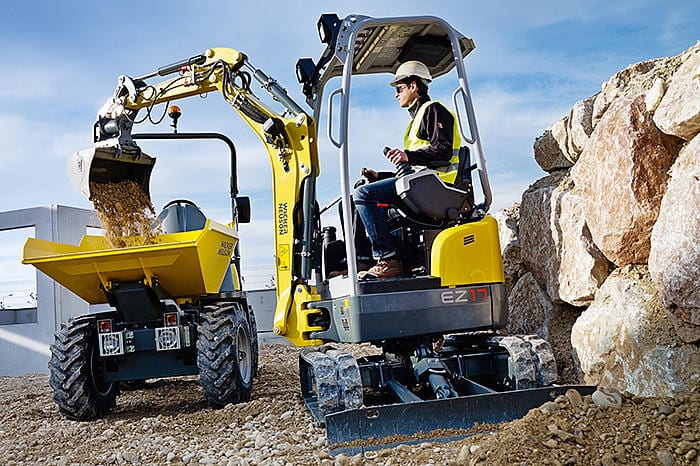

EZ17 Tracked Excavator – Zero Tail Swing – Half Hitch Ready PCP

SKU 1000380327.01 Category Tag

The EZ17 compact excavator is the best performance Zero Tail model in its class. The large volume diesel engine combined with LUDV (Load Sensing System) and the new cooling system promise high performance and efficiency. The compact and robust design ensures longer operating life. The EZ17 guarantees the perfect full 360-vision – upward as well as downward – and offers an extremely large field of vision.

– Best performance Zero Tail model in its class with a large volume diesel engine and LUDV (Load Sensing System).

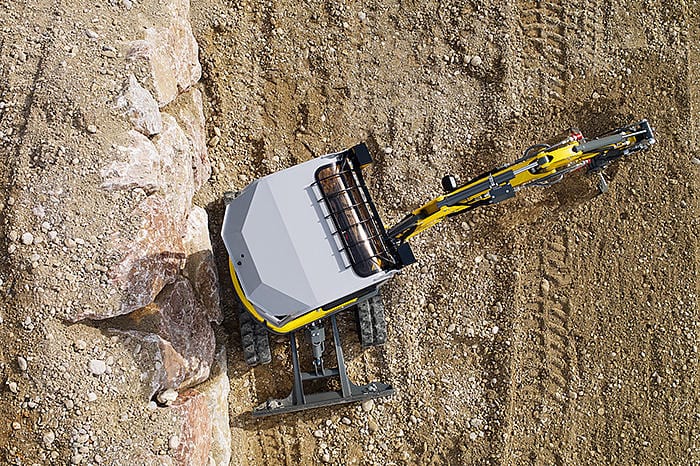

– Zero tail swing for working in tight and confined spaces.

– New cooling system promise high performance also in high surrounding temperatures of up to 45 °C.

– Compact, robust design ensures longer operating life.

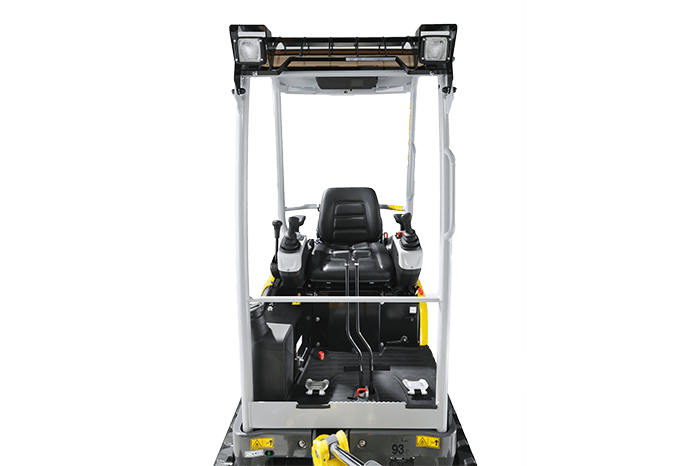

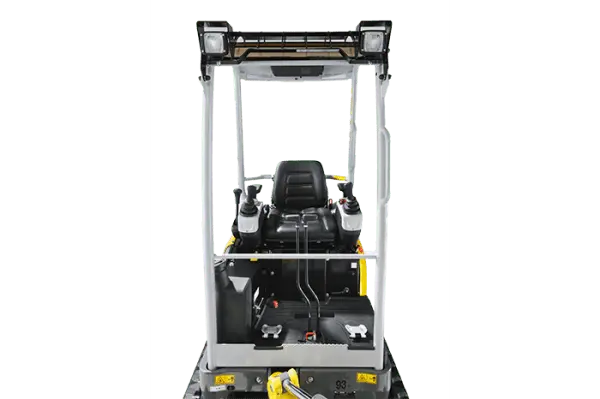

– Extremely large field of vision through top window.

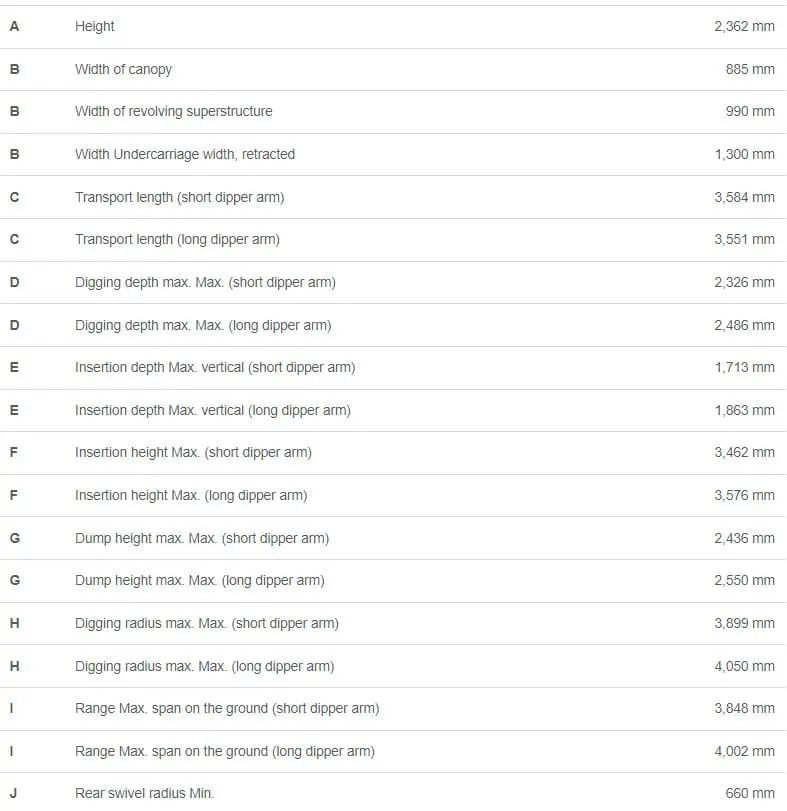

Operating data

Operating weight 1,724 – 1,950 kg
Biting force max. 9.1 kN
Breakout force max. 18.7 kN
Digging depth max. 2,486 mm
Dumping height 2,436 – 2,550 mm
Digging radius max.4,050 mm
Superstructure slewing speed 10 rpm
Dimensions (L x W x H) 3,584 x 990 x 2,362 mm

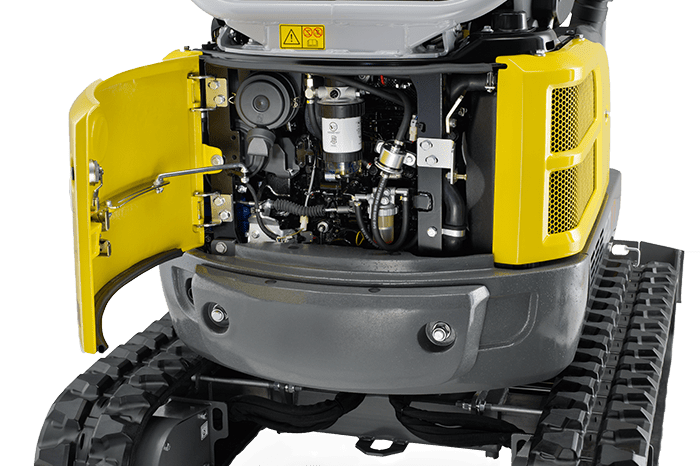

Engine / Motor

Engine / Motor manufacturer Yanmar
Engine / Motor model3TNV76
Engine / Motor typeWater-cooled 3-cylinder diesel engine
Displacement1,116 cm³
Operating speed2,200 rpm
Engine performance output to ISO13.4 kW
Battery 44 Ah
Tank capacity 22 L

Hydraulic system

Flow rate 39.6 L/min
Operating pressure for working and traction hydraulics240 bar
Operating pressure slewing gear150 bar
Hydraulic oil tank 21 L

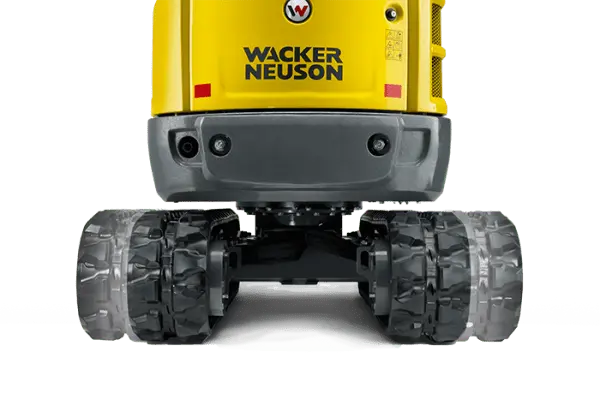

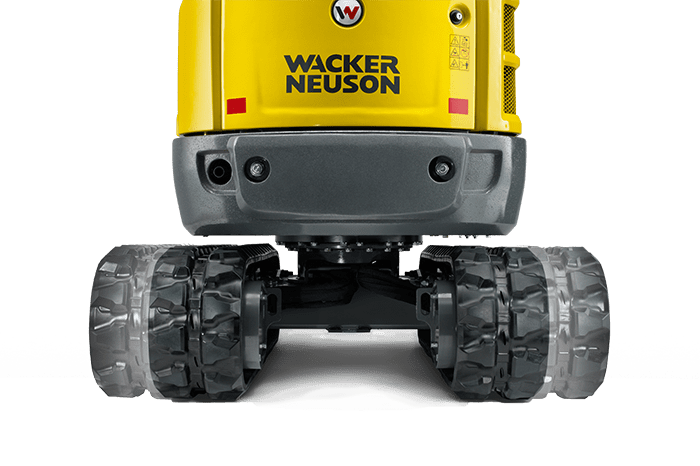

Undercarriage

Travel speed max.4.8 km/h
Chain width 230 mm
Ground clearance 156 mm

Dozer Blade

Width 1,300 mm
Height 230 mm

Sound level

Sound level (LwA) acc. to 2000/14/EC93 dB(A)
Cabin – specified sound pressure level LpA acc. to ISO 639479 dB(A)
