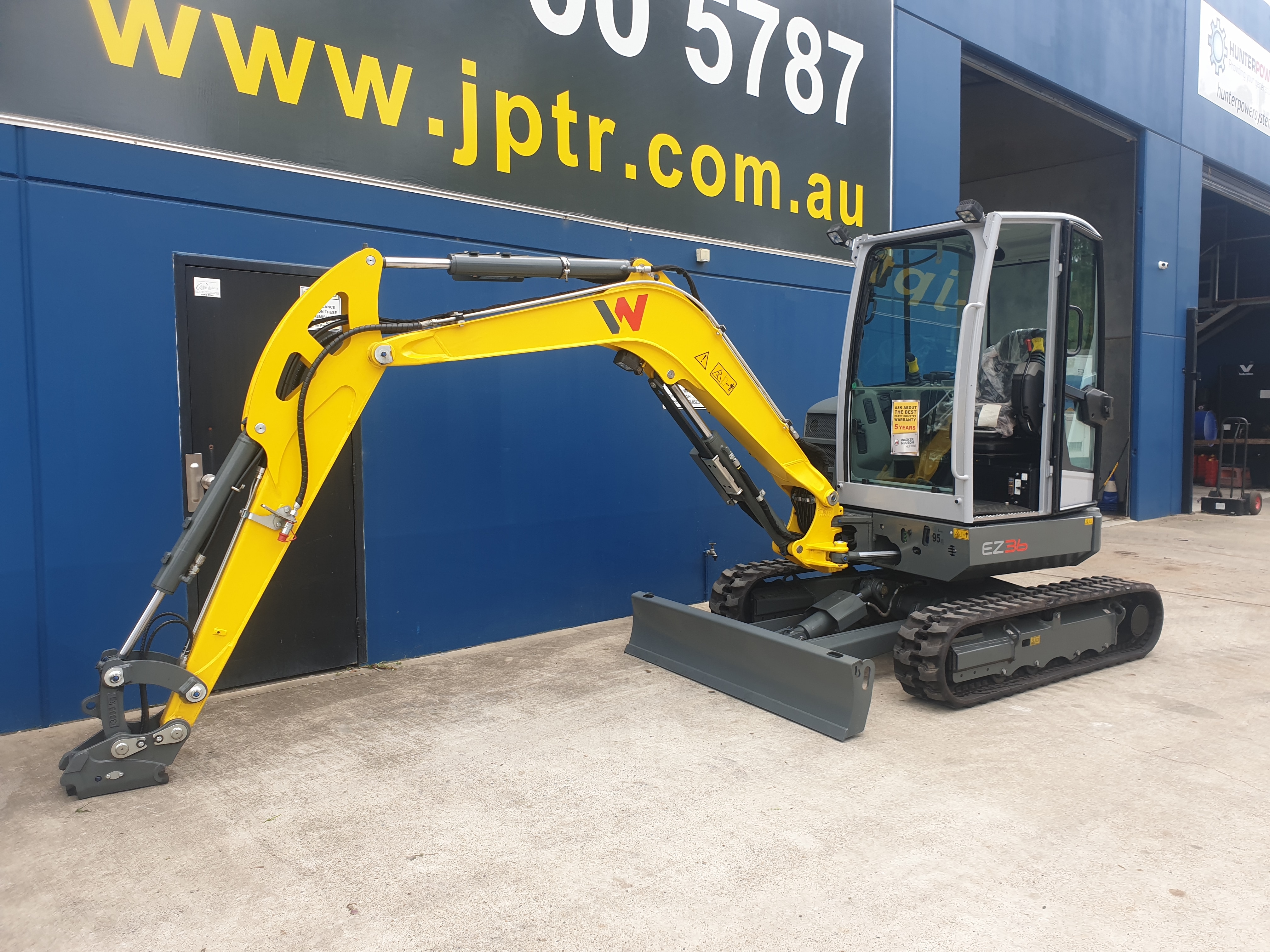

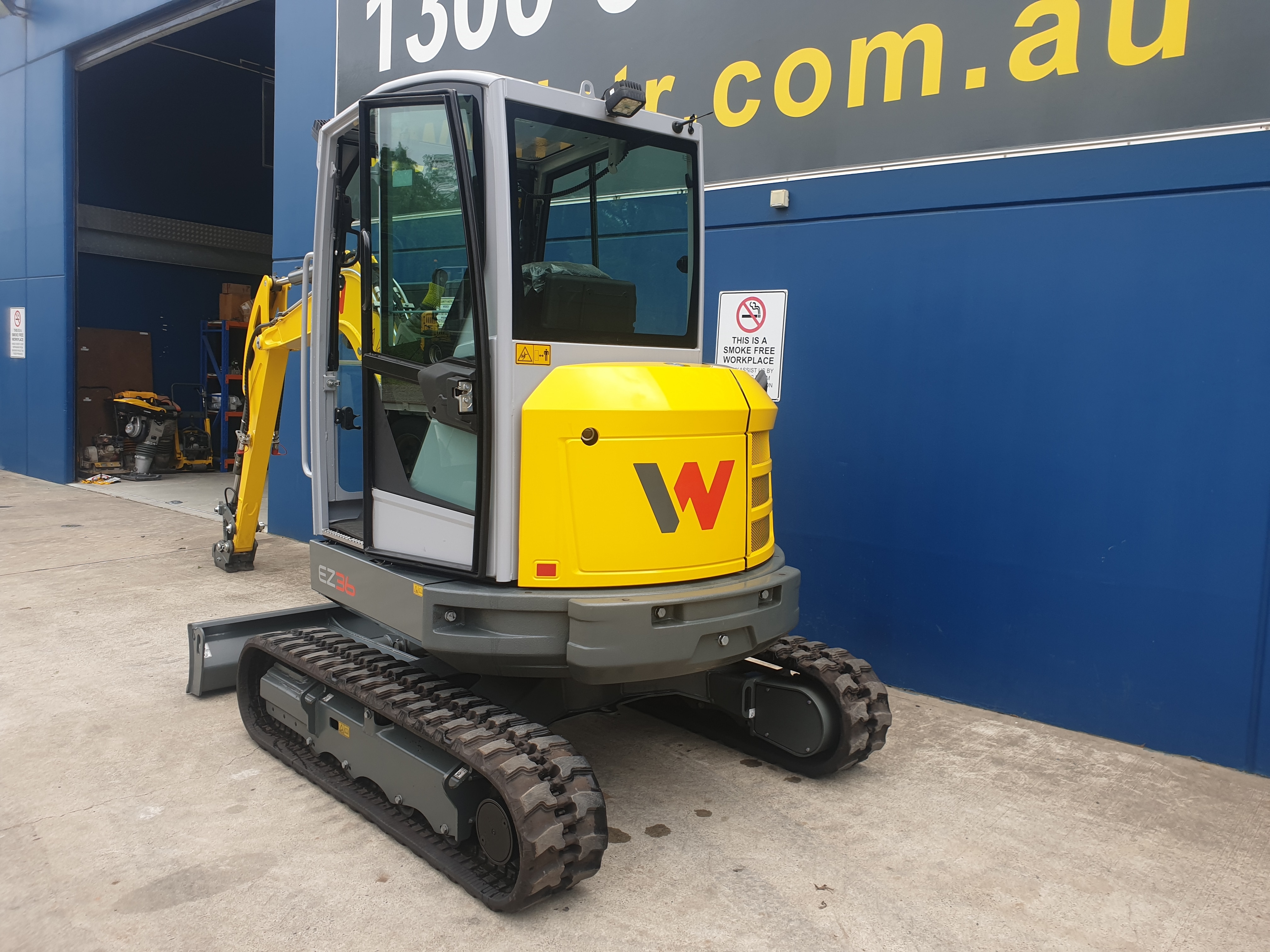

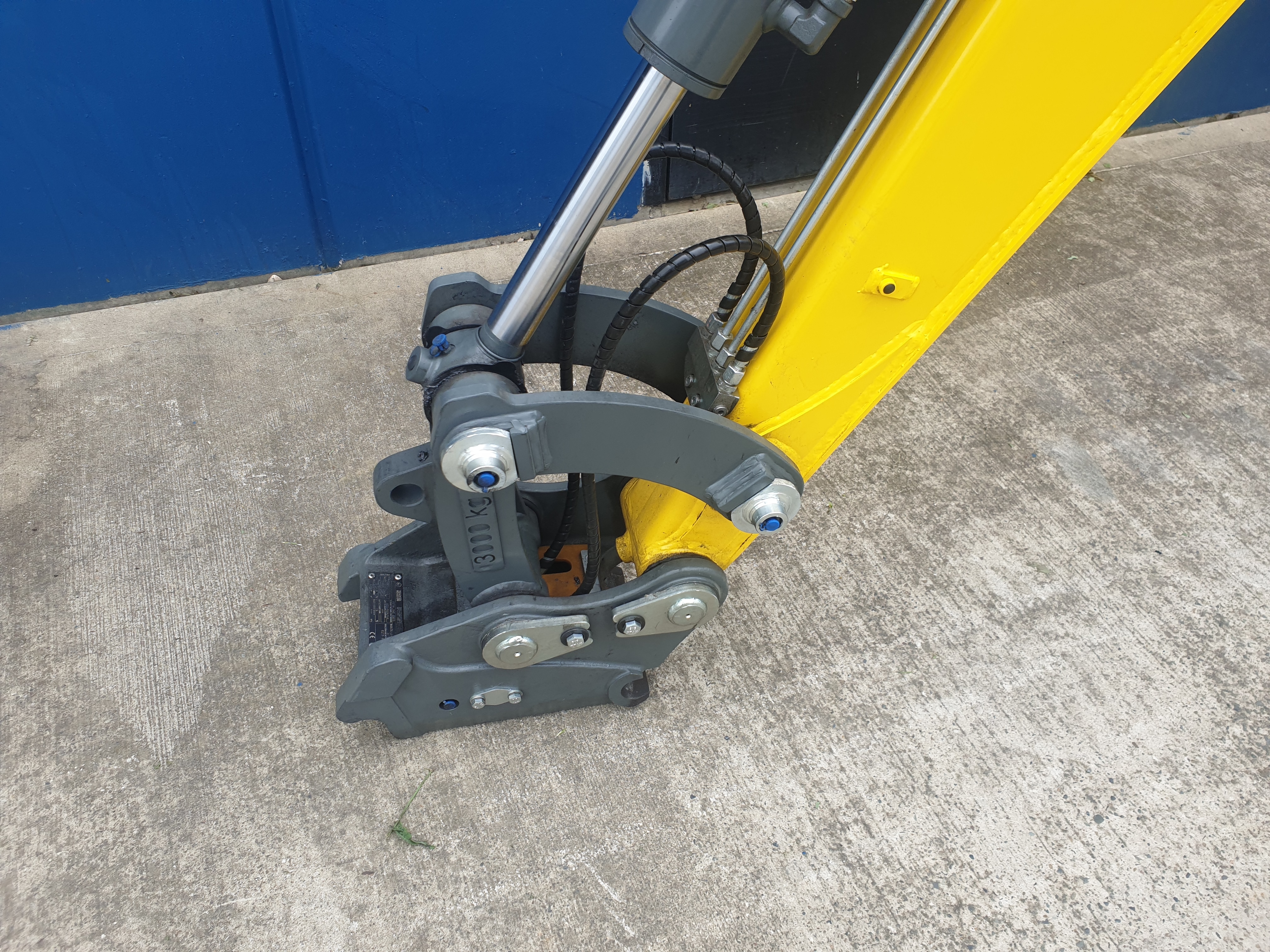

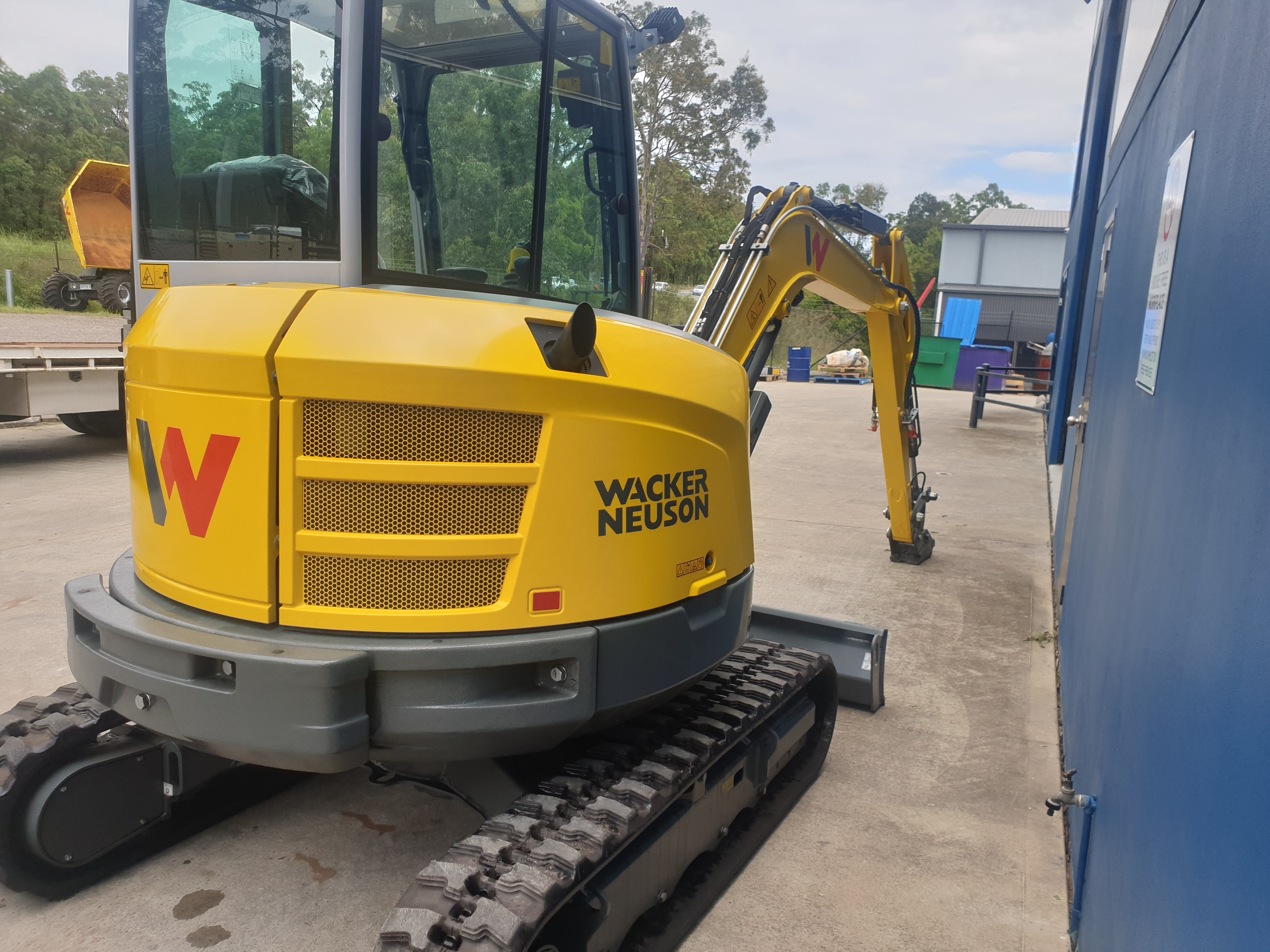

EZ36 Tracked Excavator - Zero Tail Swing - Incl. Easy Lock Hitch
The EZ36 is full of detailed solutions that increase productivity and make working for the operator even more enjoyable and efficient. The intuitive operating concept, combined with precise control, shortens working cycles and saves time and money. In addition, many options can be installed ex factory.
- Performance meets maximum efficiency

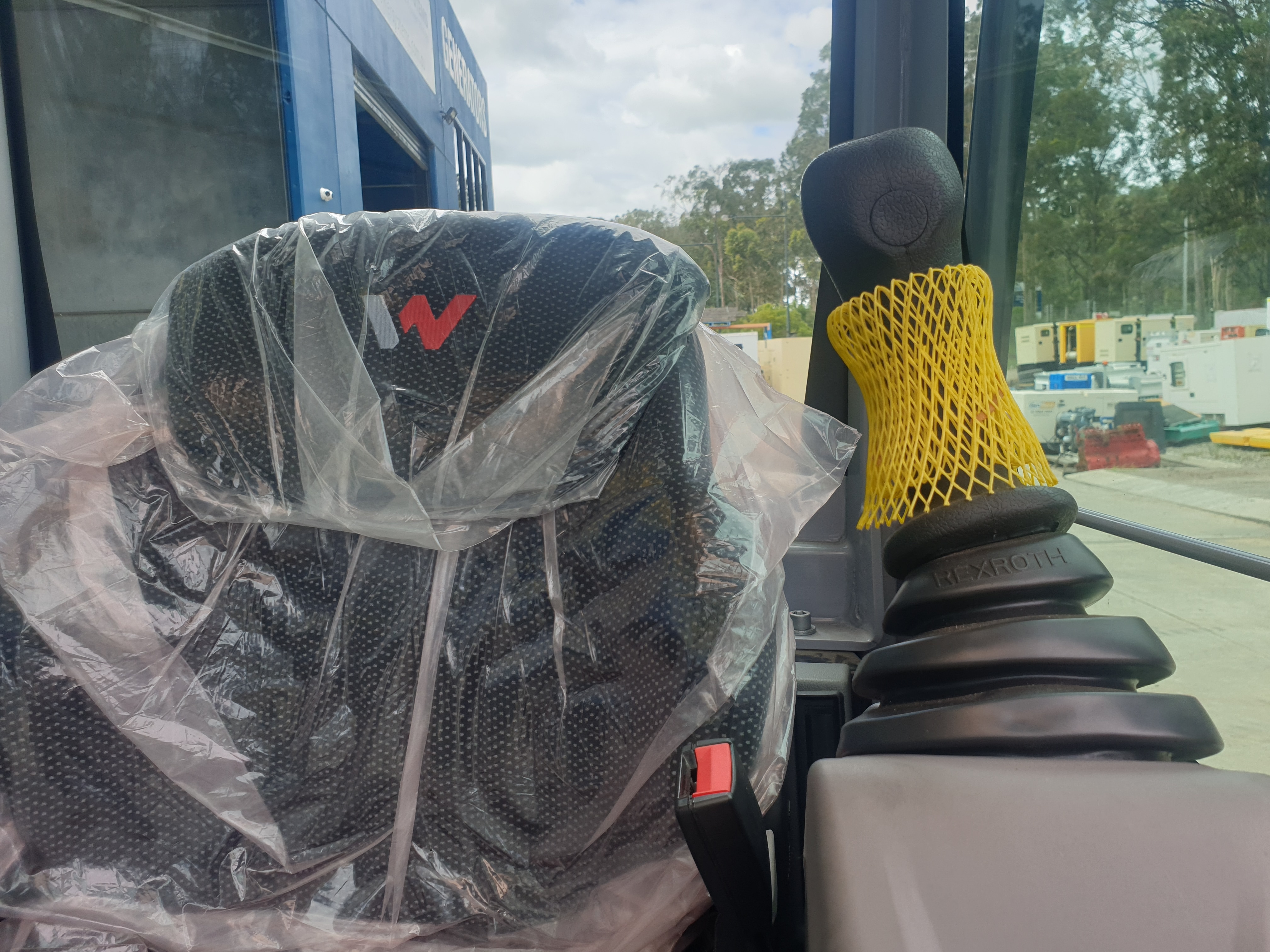

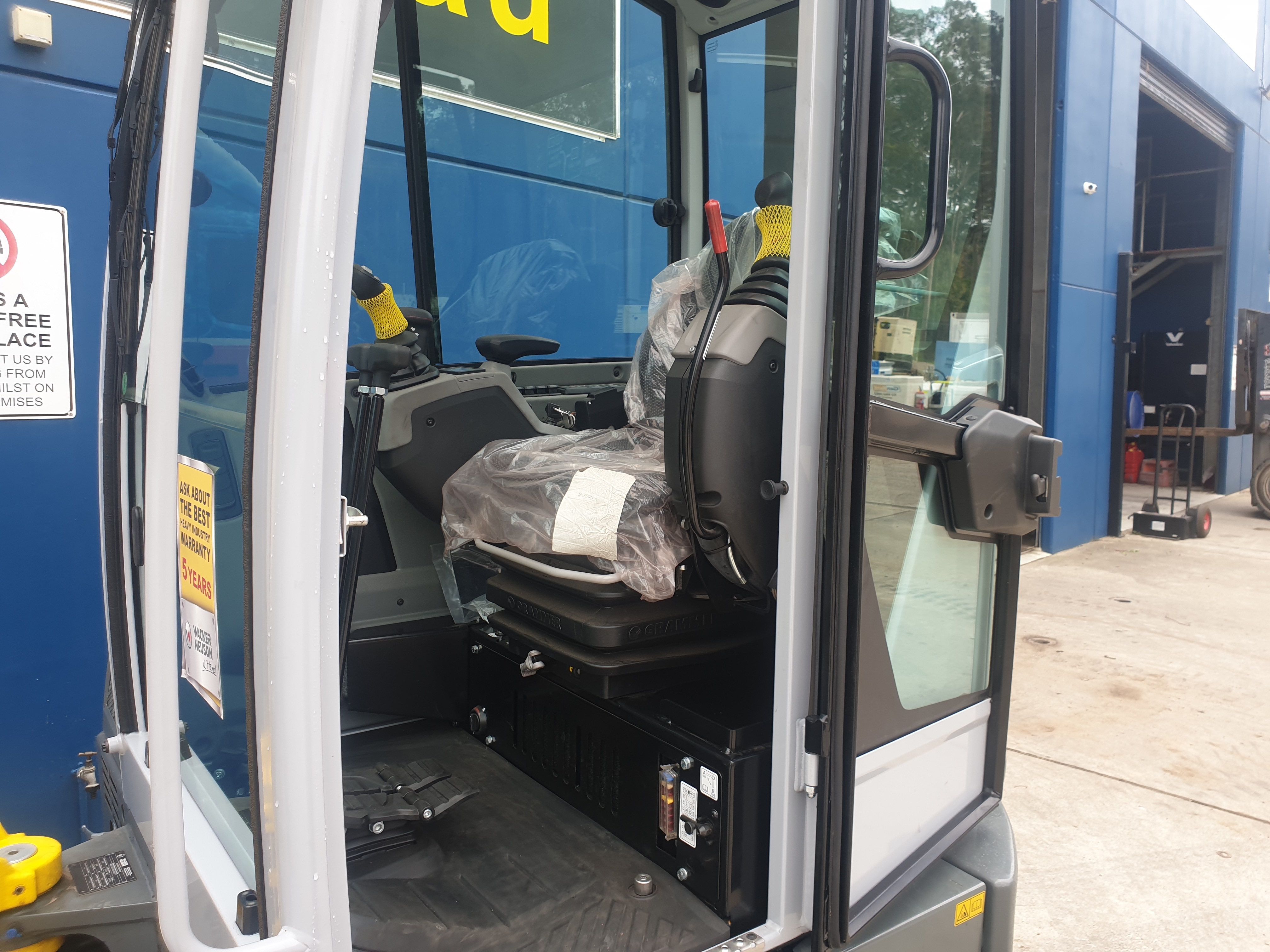

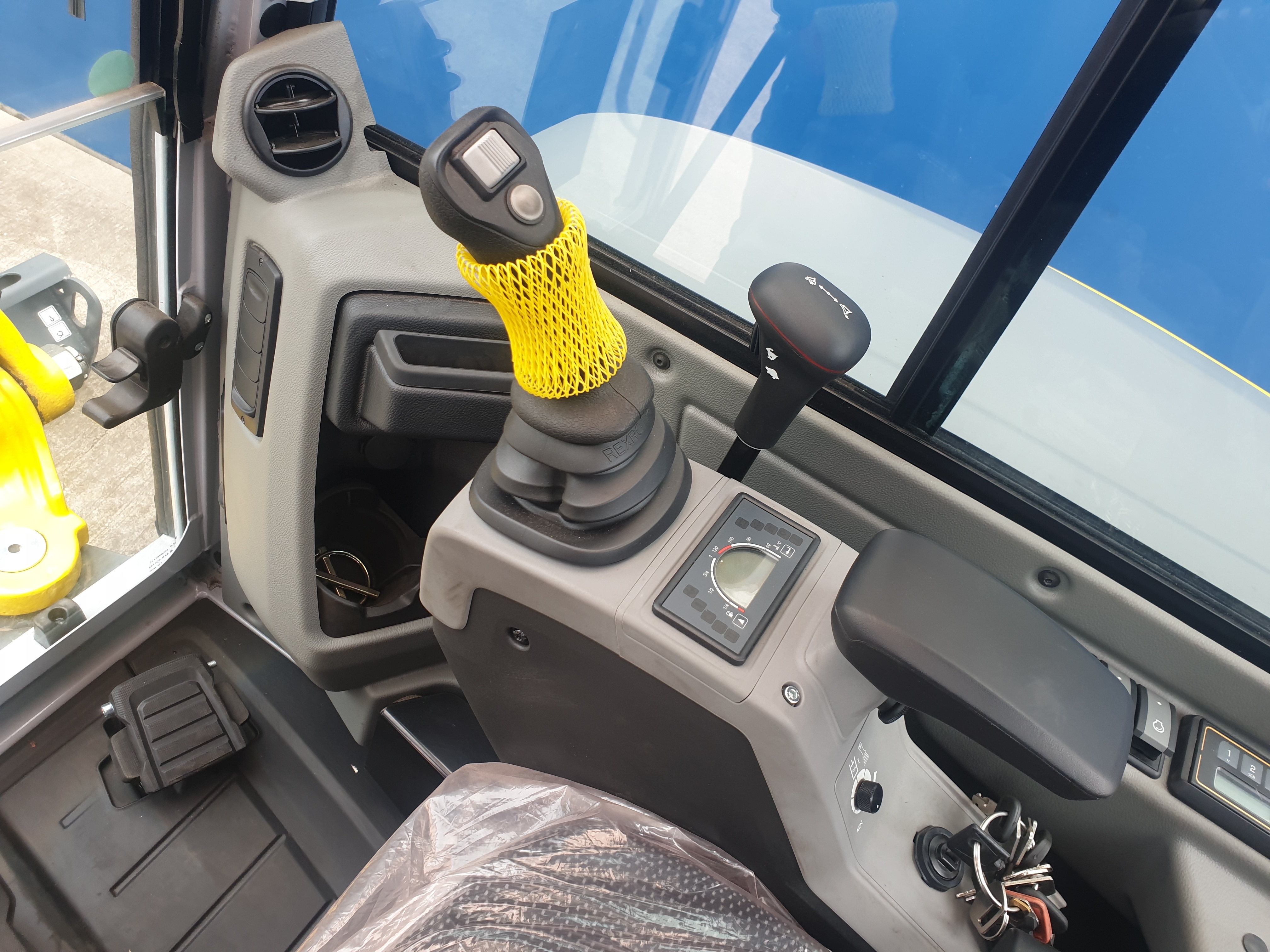

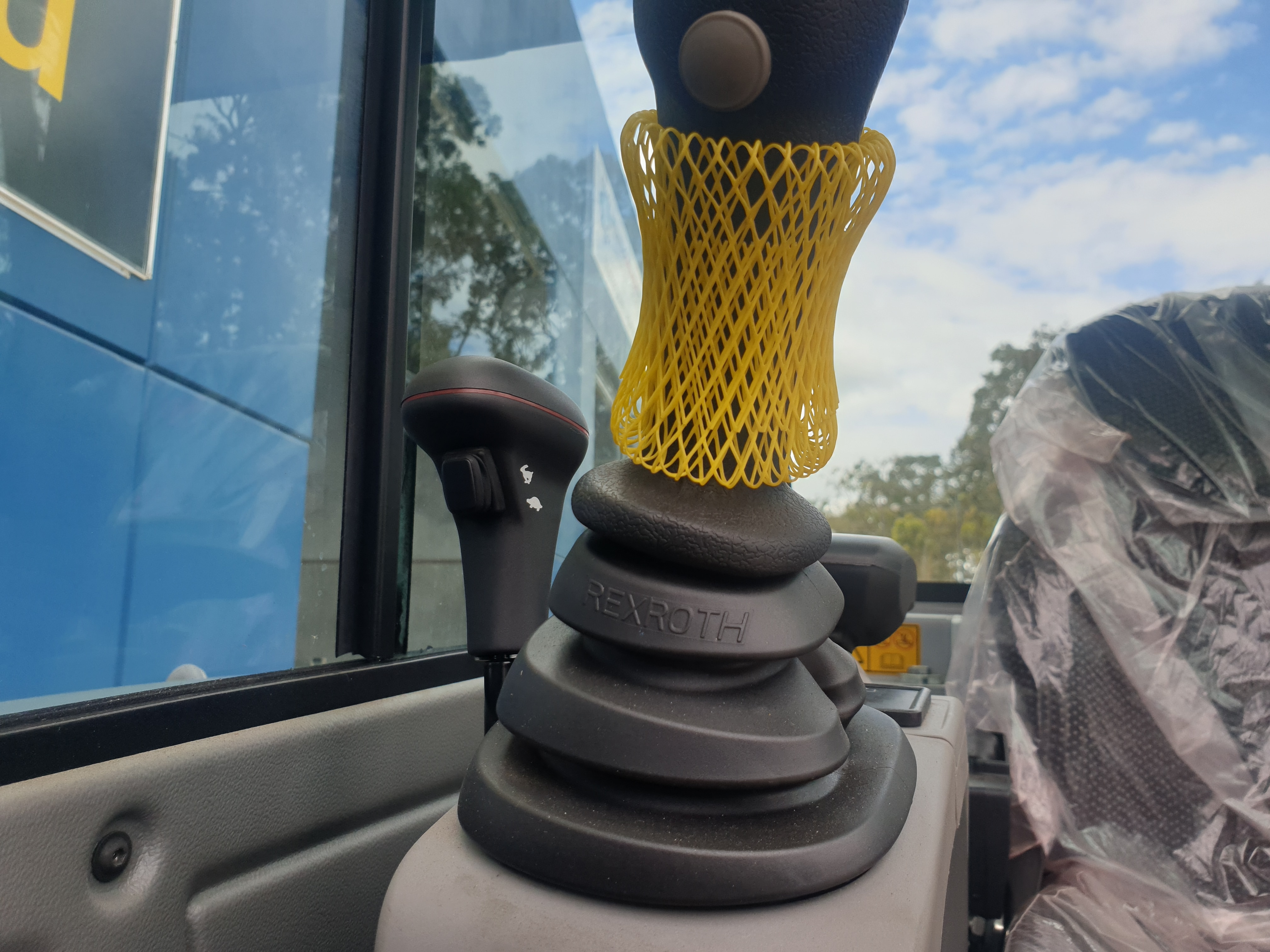

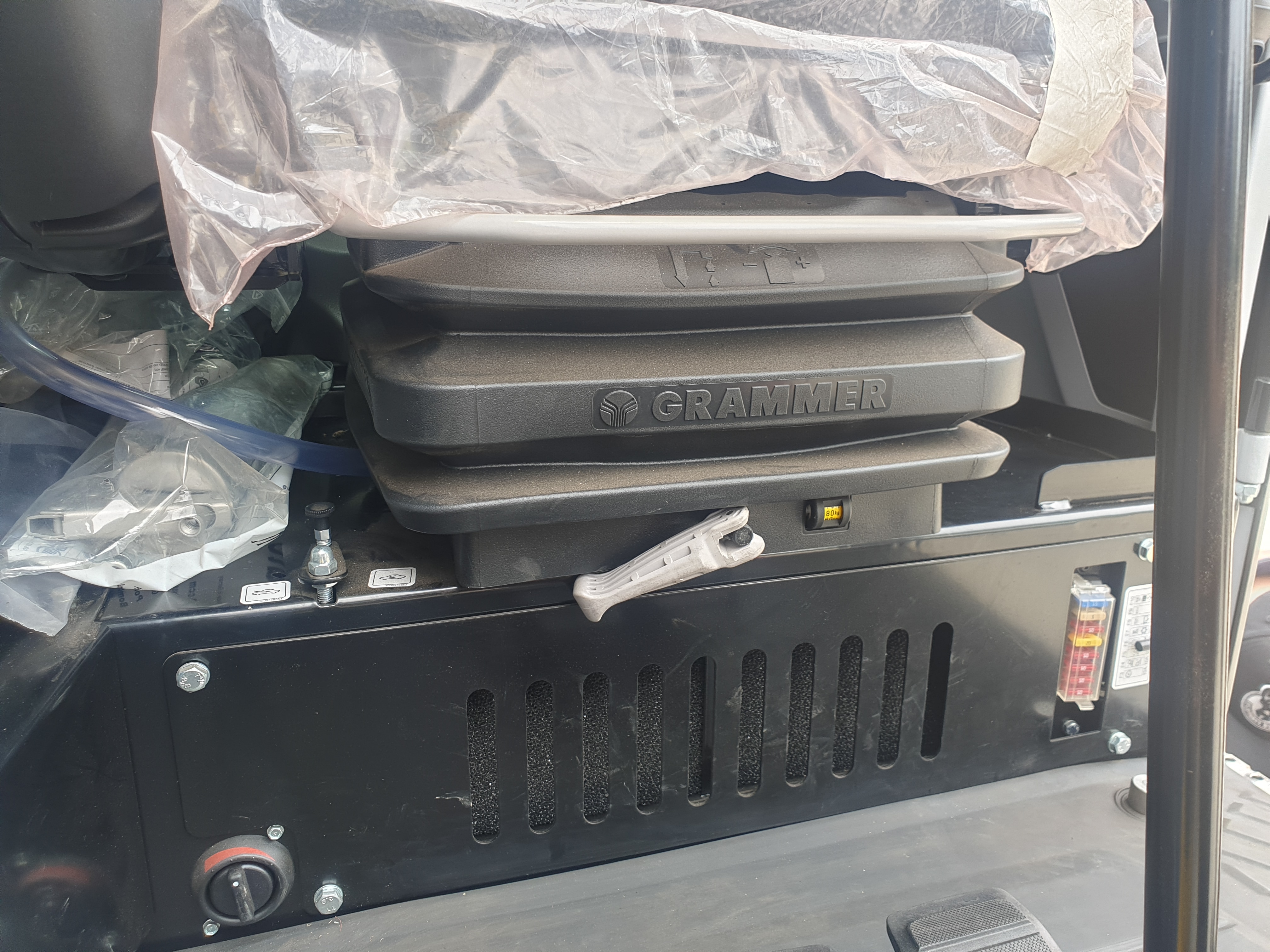

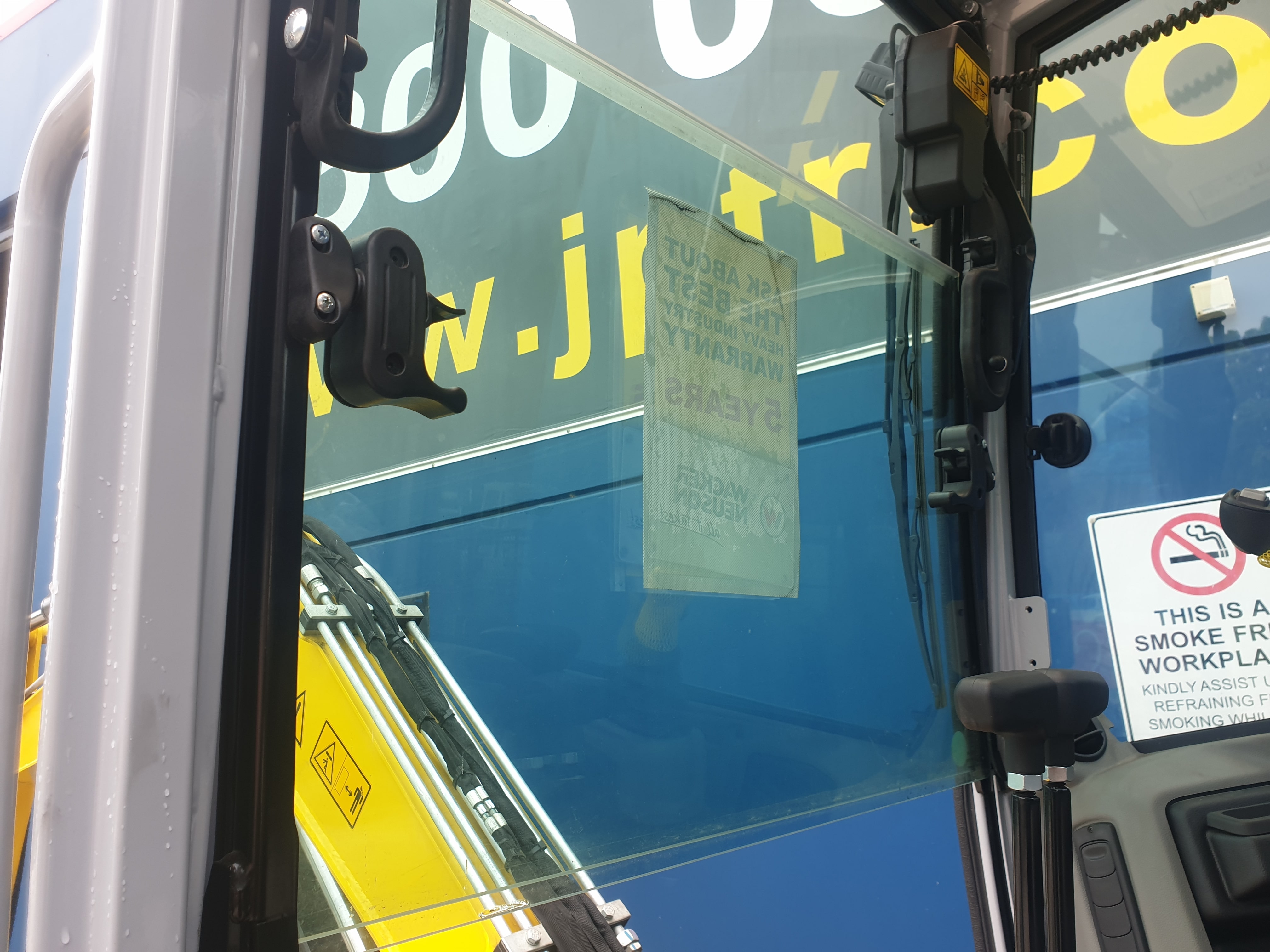

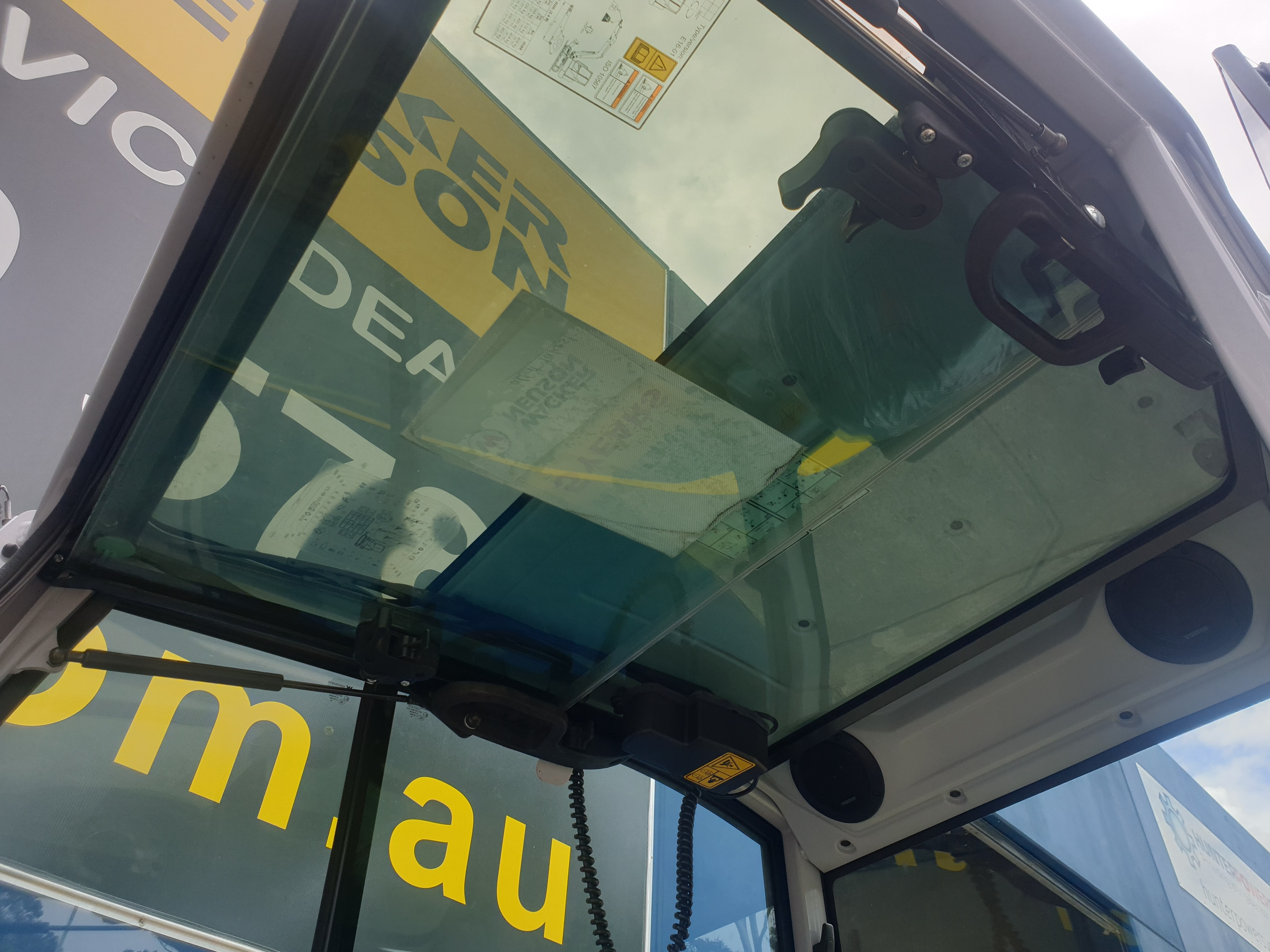

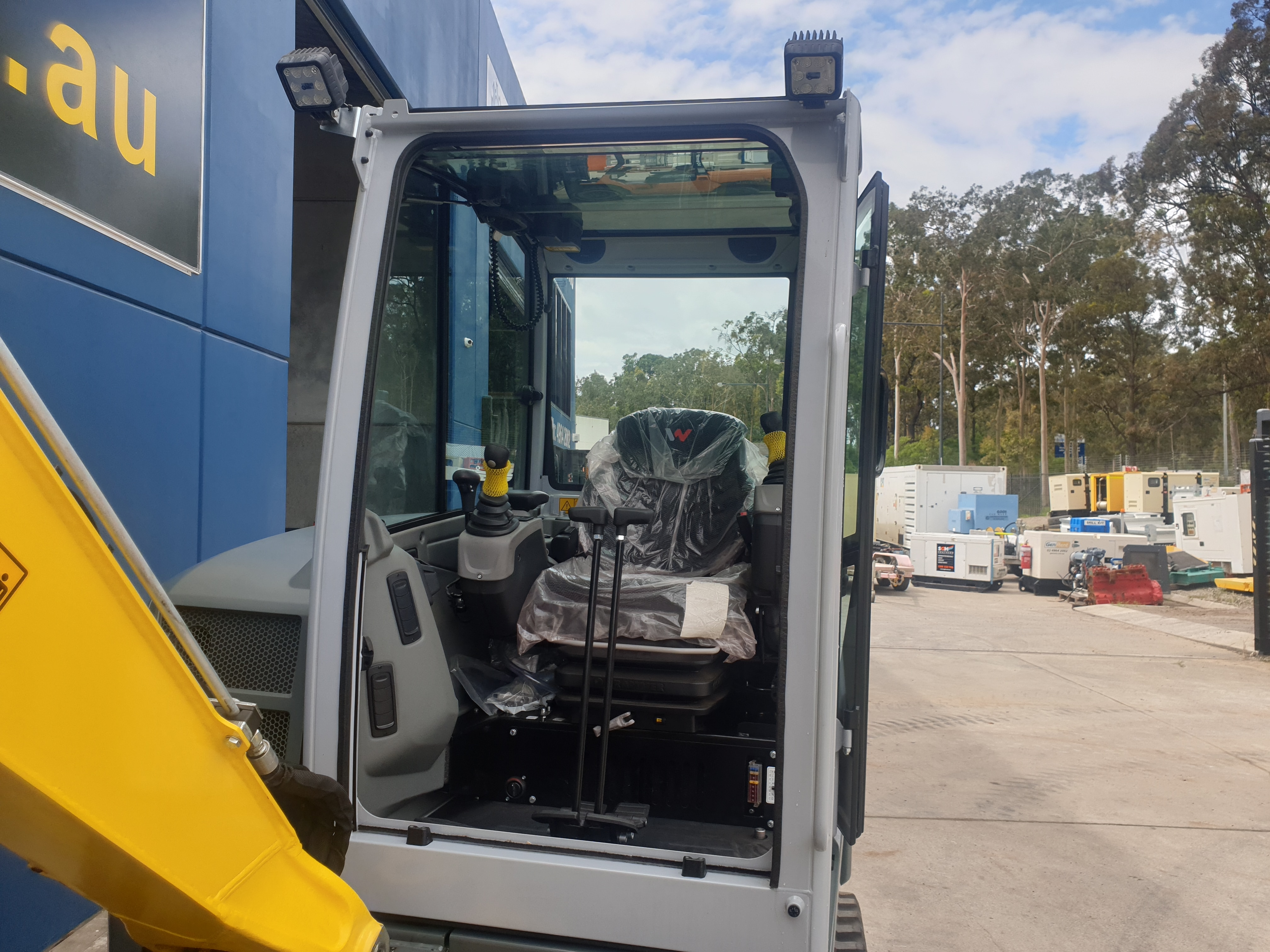

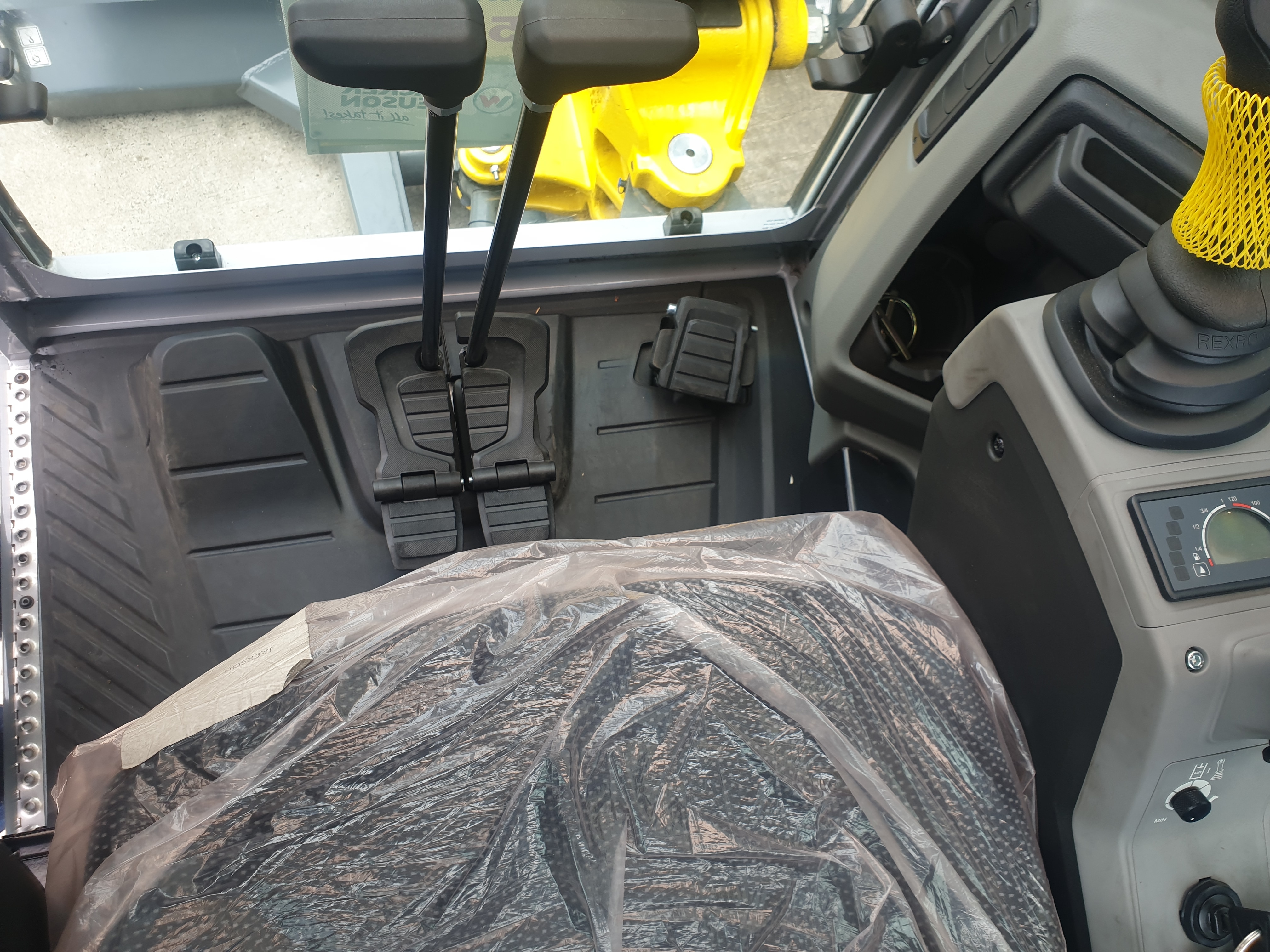

- User-friendly operating concept and comfort cabin
- VDS – Working in the slope – without coming to falter

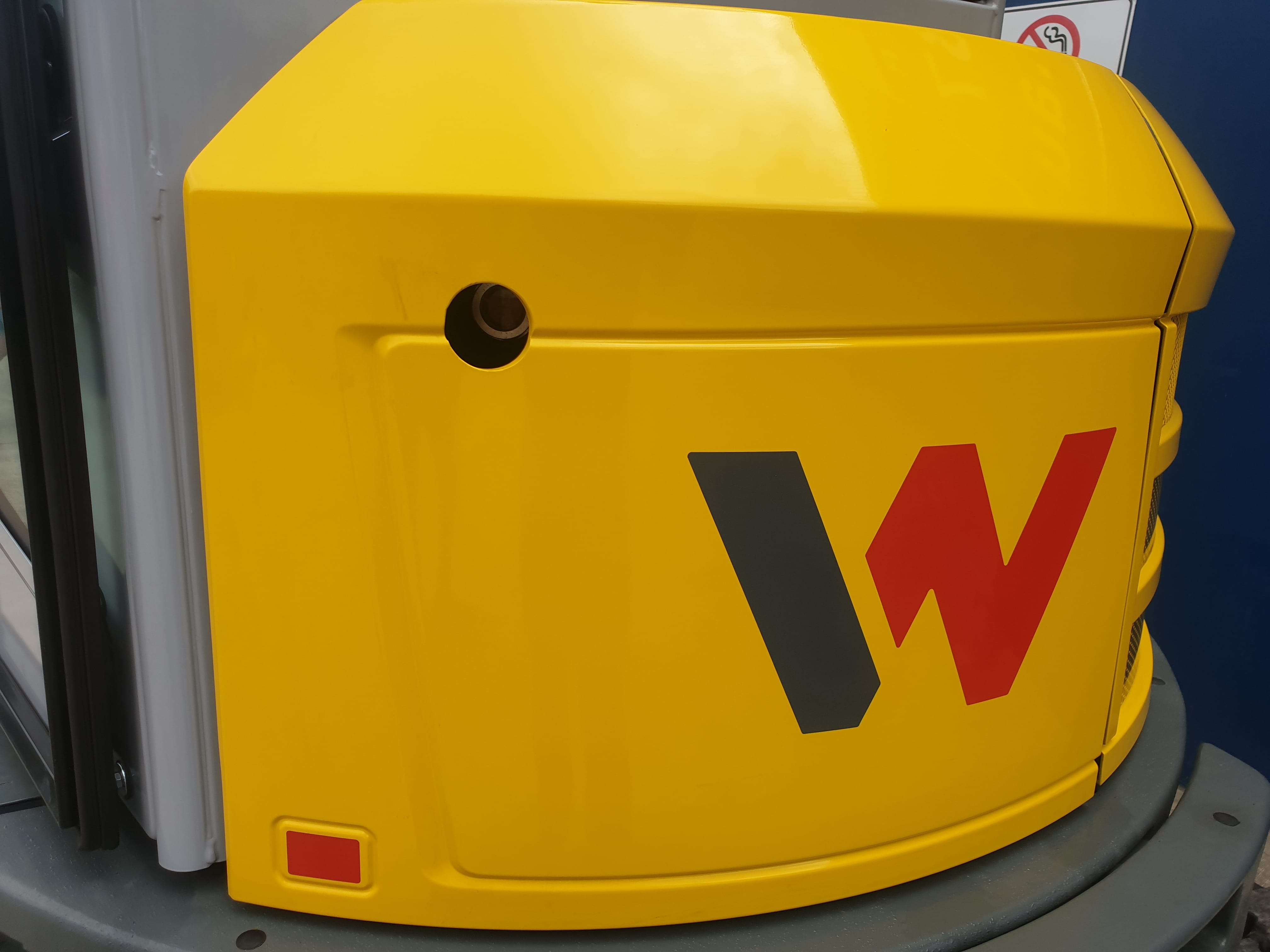

- Zero Tail – when it gets tight

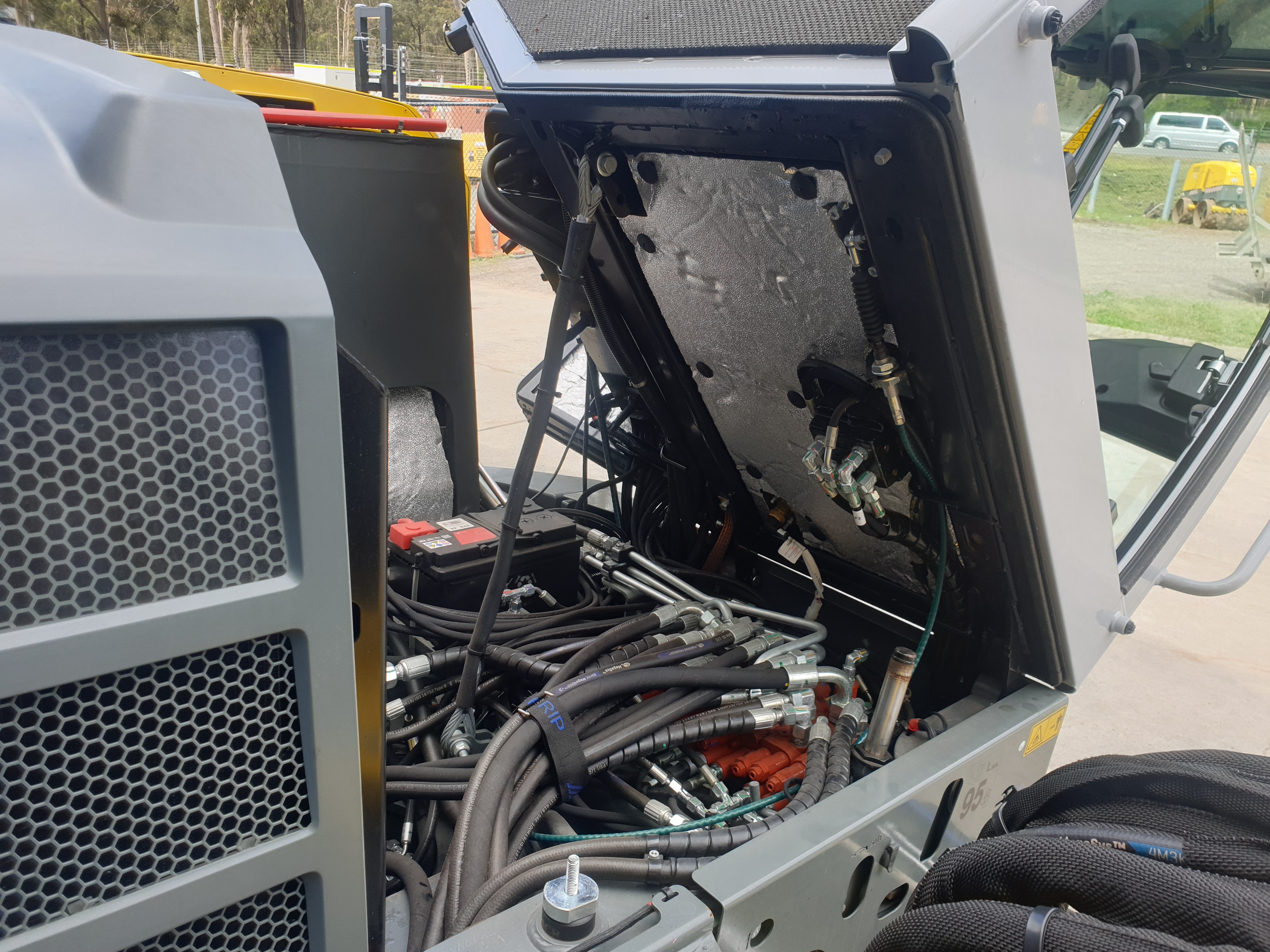

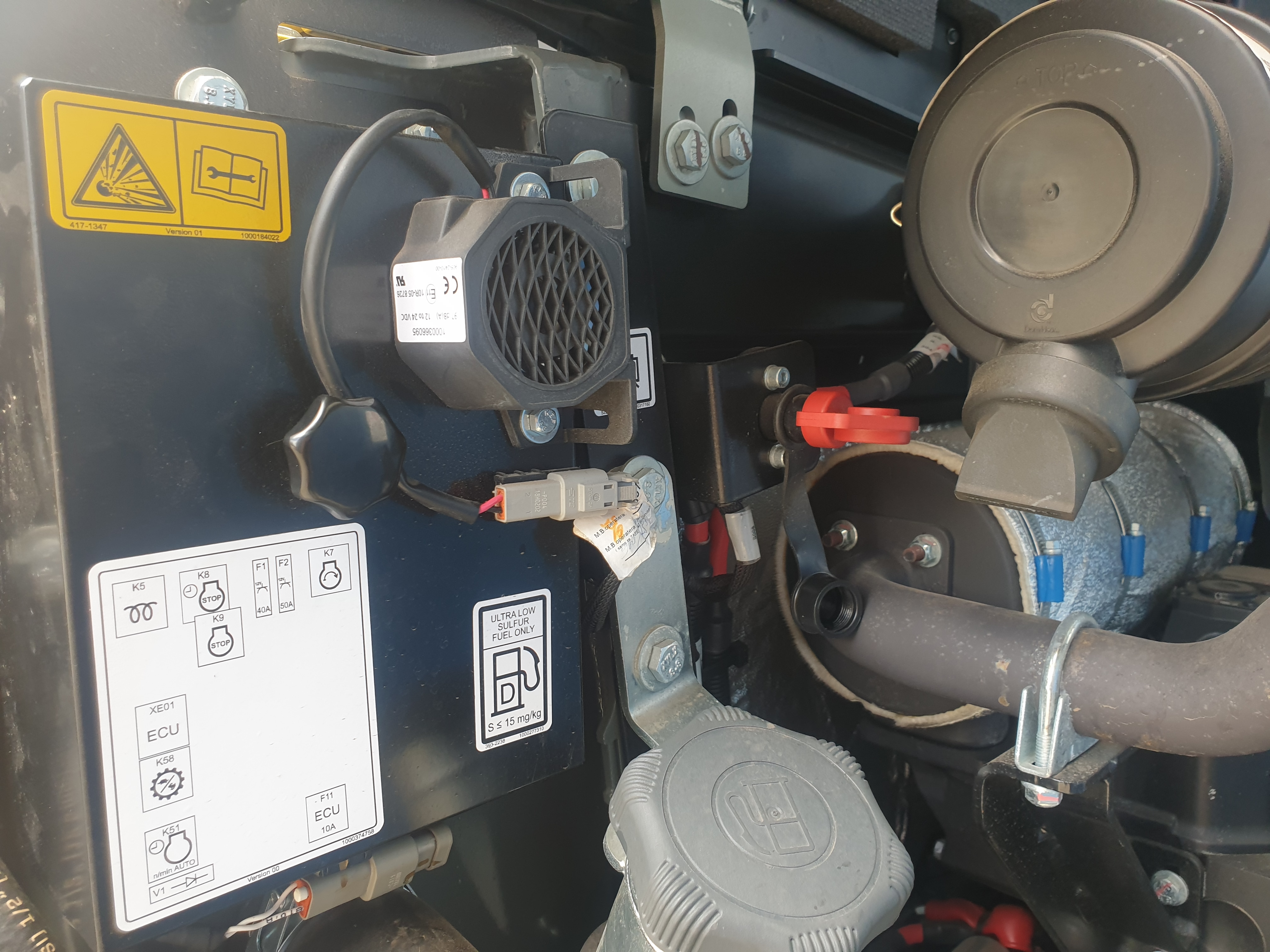

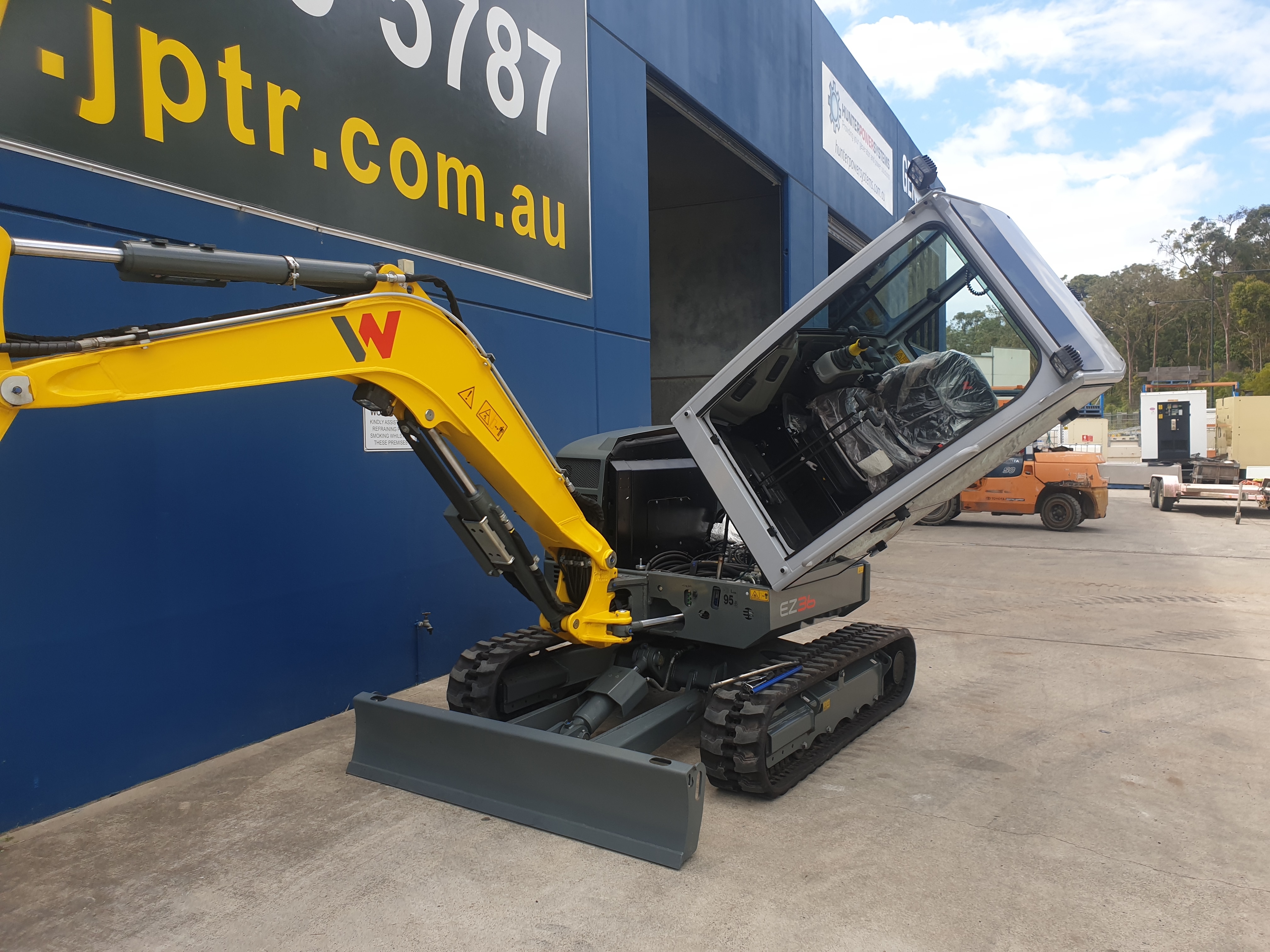

- Unrestricted maintenance and service access
Operating data Tier 3 Tier 4 Final | ||
| Shipping weight min. kg | 3,530 | 3,530 |
| Operating weight kg | 3,720 – 4,636 | 3,720 – 4,636 |
| Biting force max. kN | 21.1 | 21.1 |
| Breakout force max. kN | 35 | 35 |
| Digging depth max. (long dipperstick) mm | 3,497 | 3,497 |
| Dumping height mm | 3,336 – 3,336 | 3,336 – 3,336 |
| Digging radius max. (long dipperstick) mm | 5,743 | 5,743 |
| Superstructure slewing speed 1/min | 9.5 | 9.5 |
| L x W x H mm | 5,503 x 1,750 x 2,491 | 5,503 x 1,750 x 2,491 |
| Fuel tank capacity l | 44 | 44 |

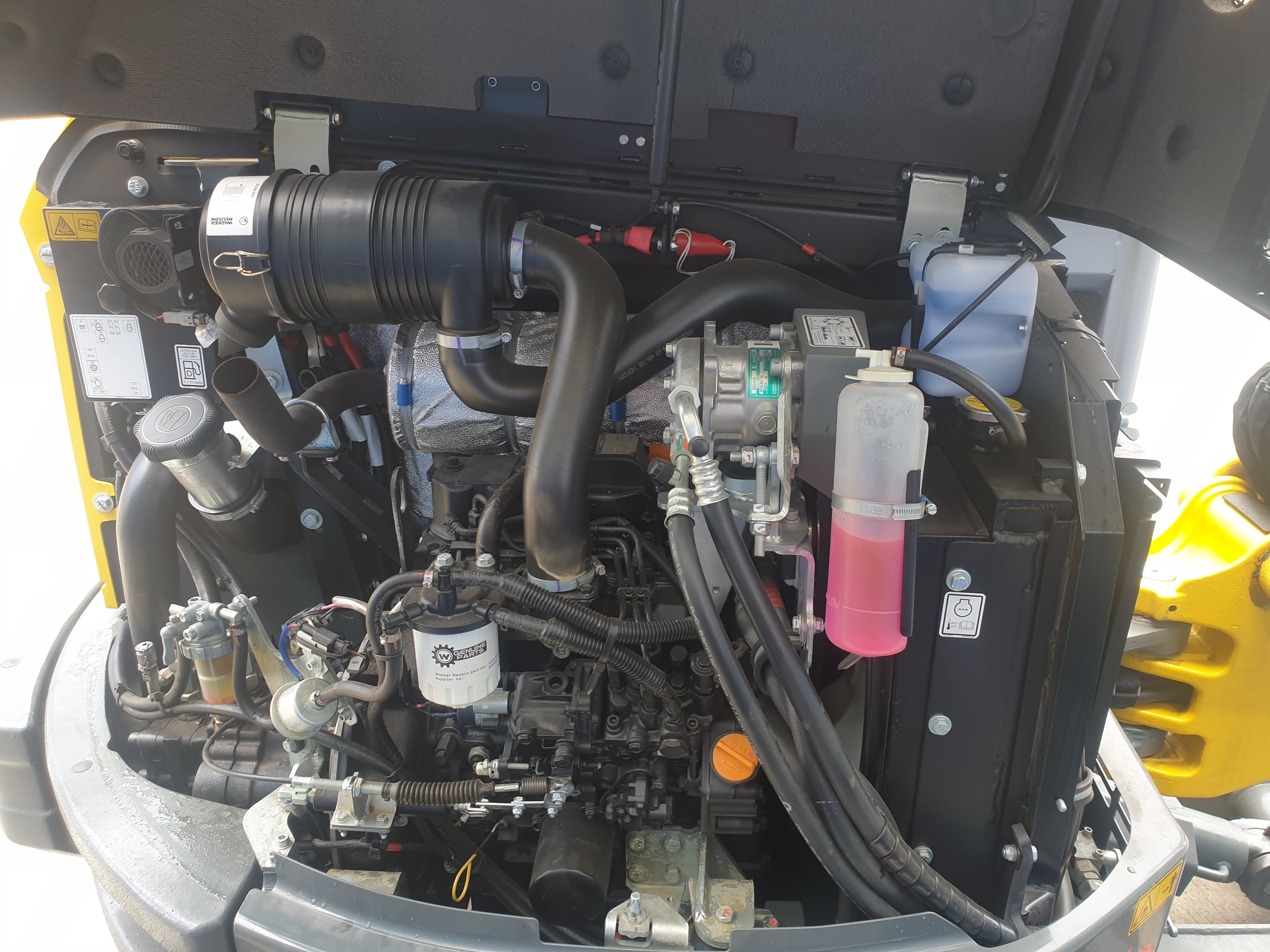

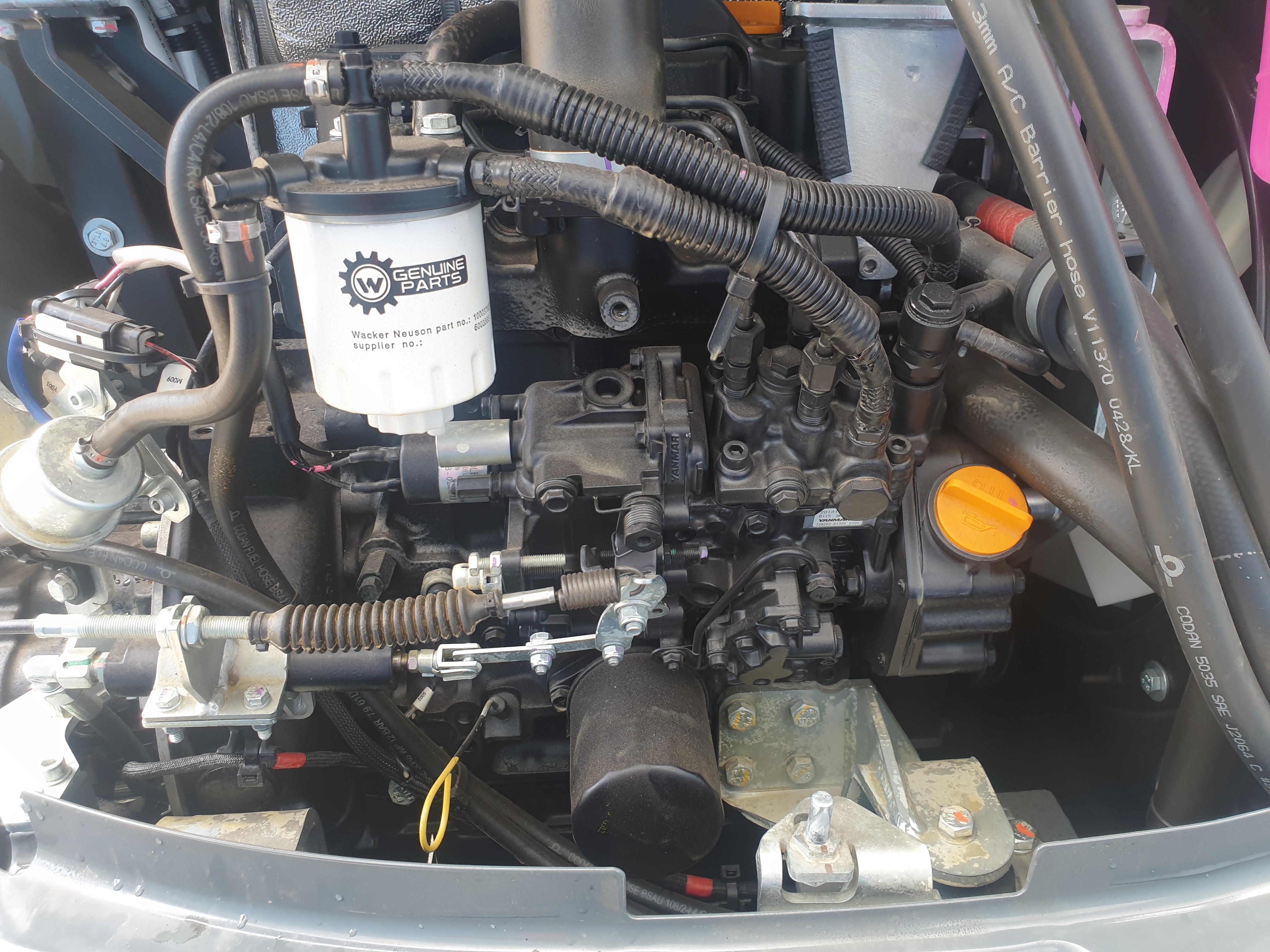

Engine / Motor | ||
| Engine / Motor manufacturer | Yanmar Diesel engine | Yanmar Diesel engine |
| Engine / Motor type | 3TNV88-BPWN | 3TNV88F-EPWN |
| Engine / Motor | water-cooled 3-cylinder suction engine | water-cooled 3-cylinder suction engine |
| Displacement cm³ | 1,642 | 1,642 |
| RPM / speed rpm | 2,500 | 2,430 |
| Engine performance POWER Mode kW | 22.2 | 18.2 |
| Engine performance ECO mode kW | 17.8 | |

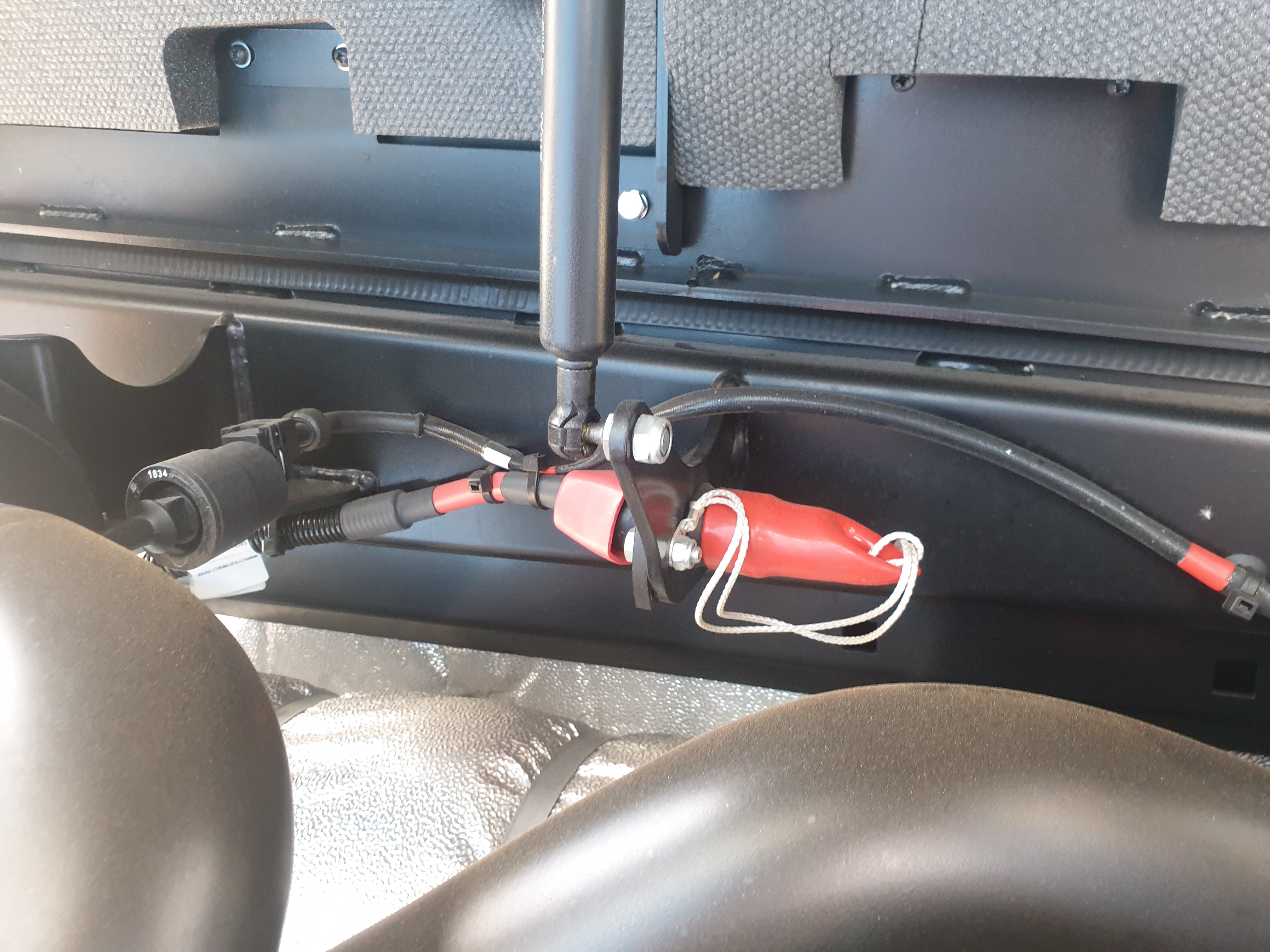

Battery | ||
| Battery Ah | 71 | 71 |

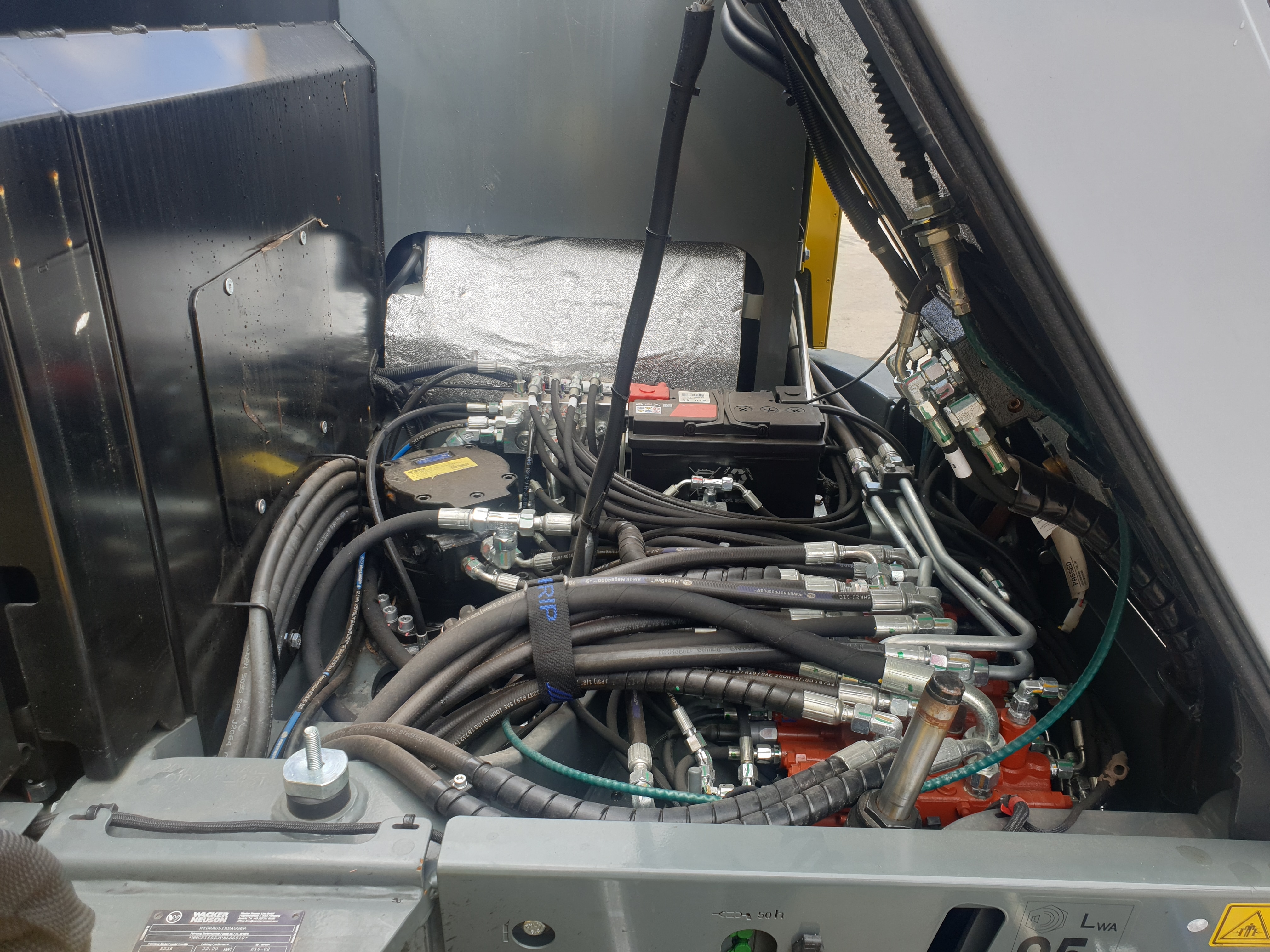

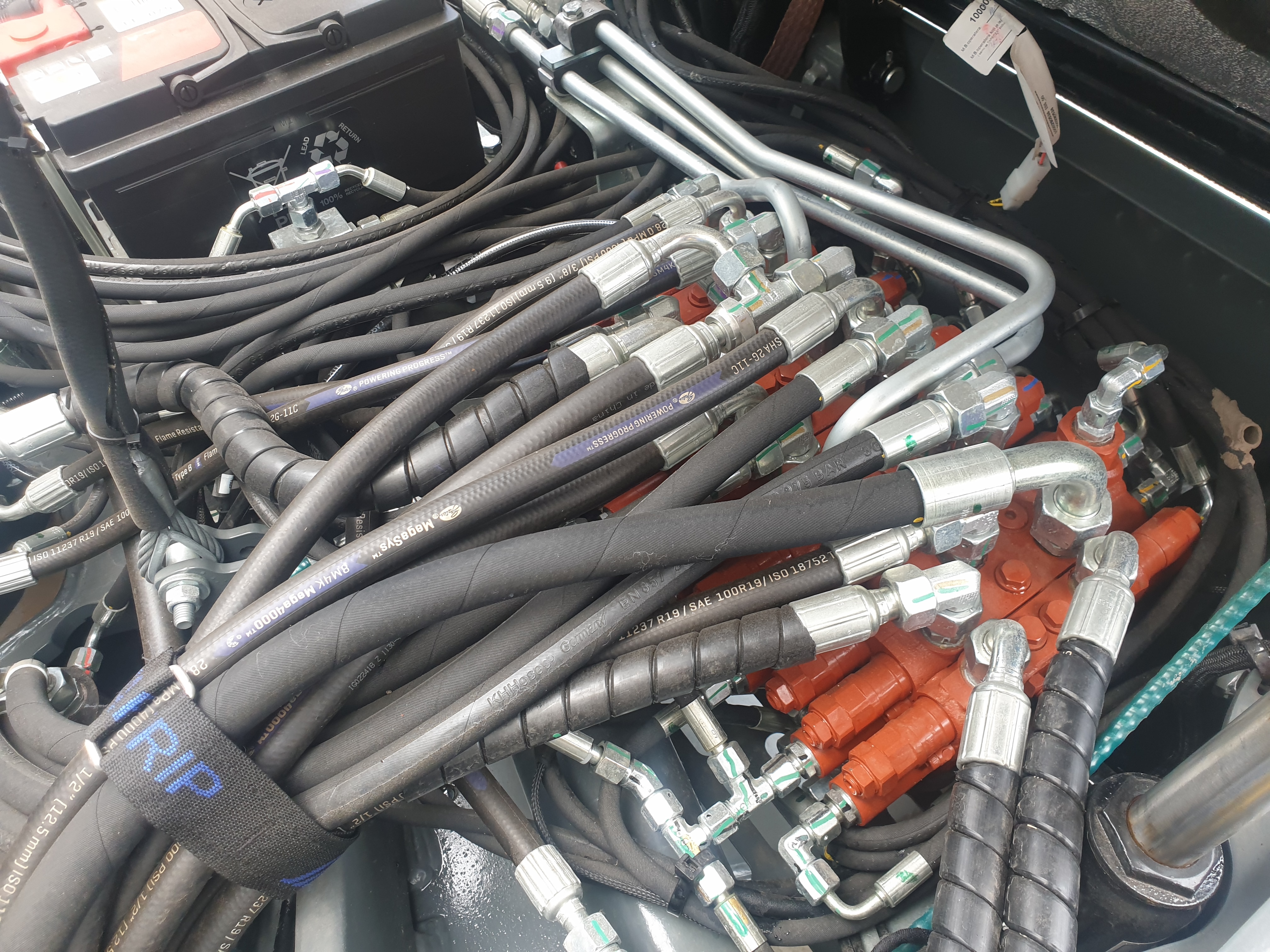

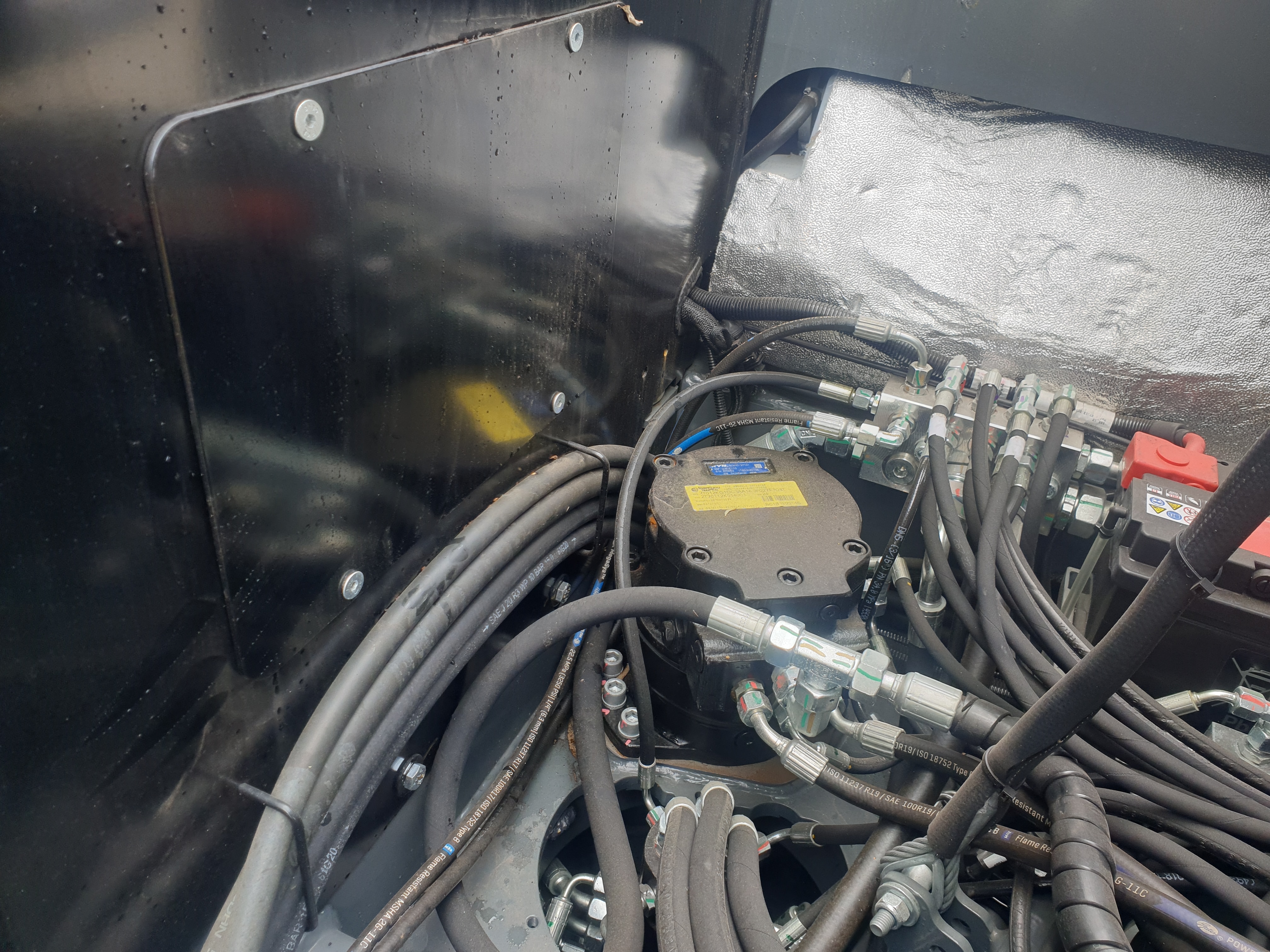

Hydraulic system | ||
| Duty pump | 2 axial piston pumps / 2 gear pumps | 2 axial piston pumps / 2 gear pumps |
| Max. flow rate l/min | 42.5 + 42.5 | 42.5 + 42.5 |
| Max. flow rate l/min | 23.8 + 11.3 | 23.8 + 11.3 |
| Operating pressure for working and driving hydraulics bar | 240 | 240 |
| Operating pressure Drehwerk bar | 195 | 195 |
Undercarriage | ||
| Travel speed max. km/h | 4.7 | 4.7 |
| Chain width mm | 300 | 300 |
| Ground clearance mm | 251 | 251 |

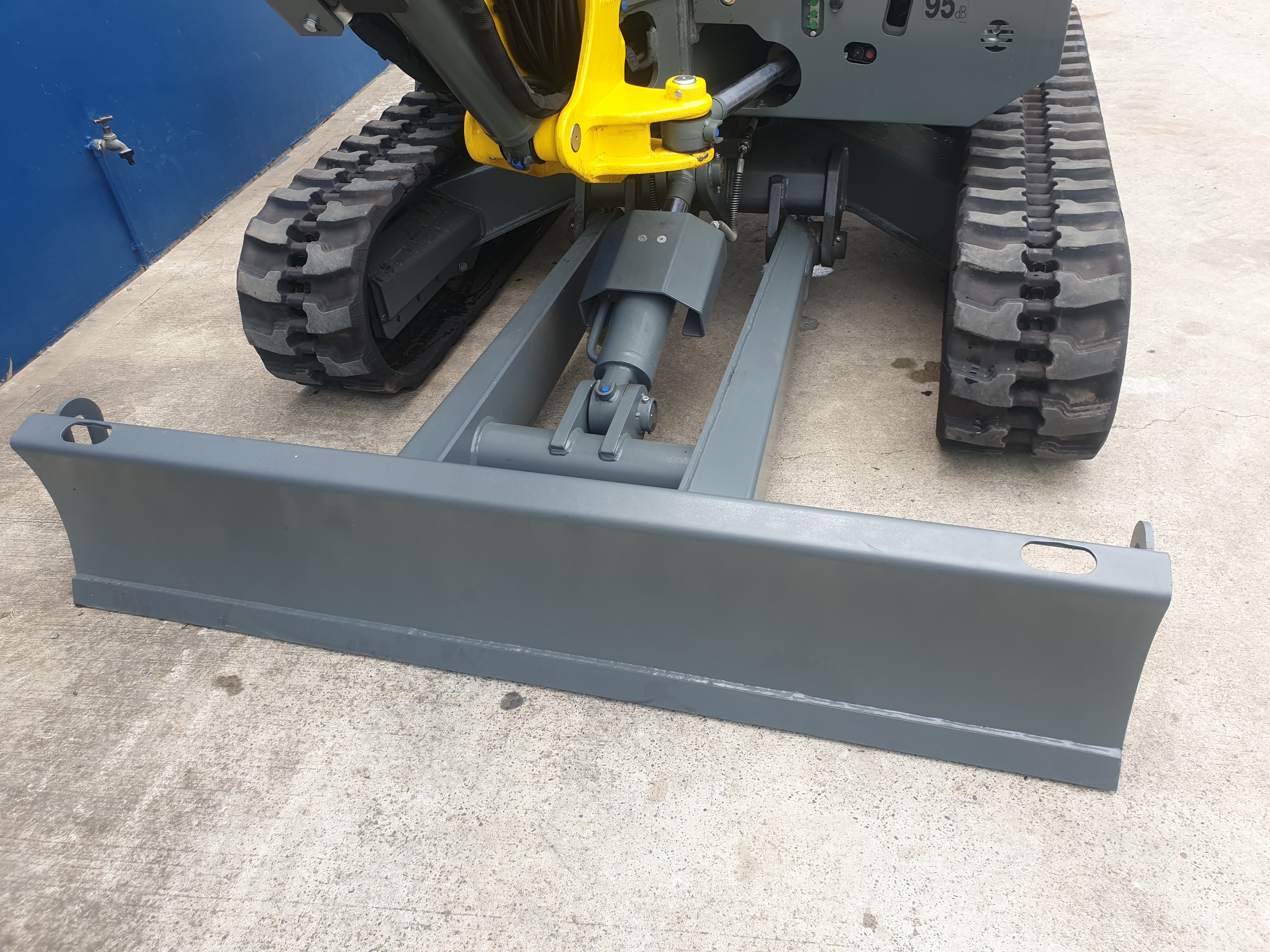

Dozer Blade | ||
| Width mm | 1,750 | 1,750 |
| Height mm | 357 | 357 |
| Stroke dozer blade above ground mm | 393 | 393 |
| Stroke dozer blade below ground mm | 505 | 505 |
