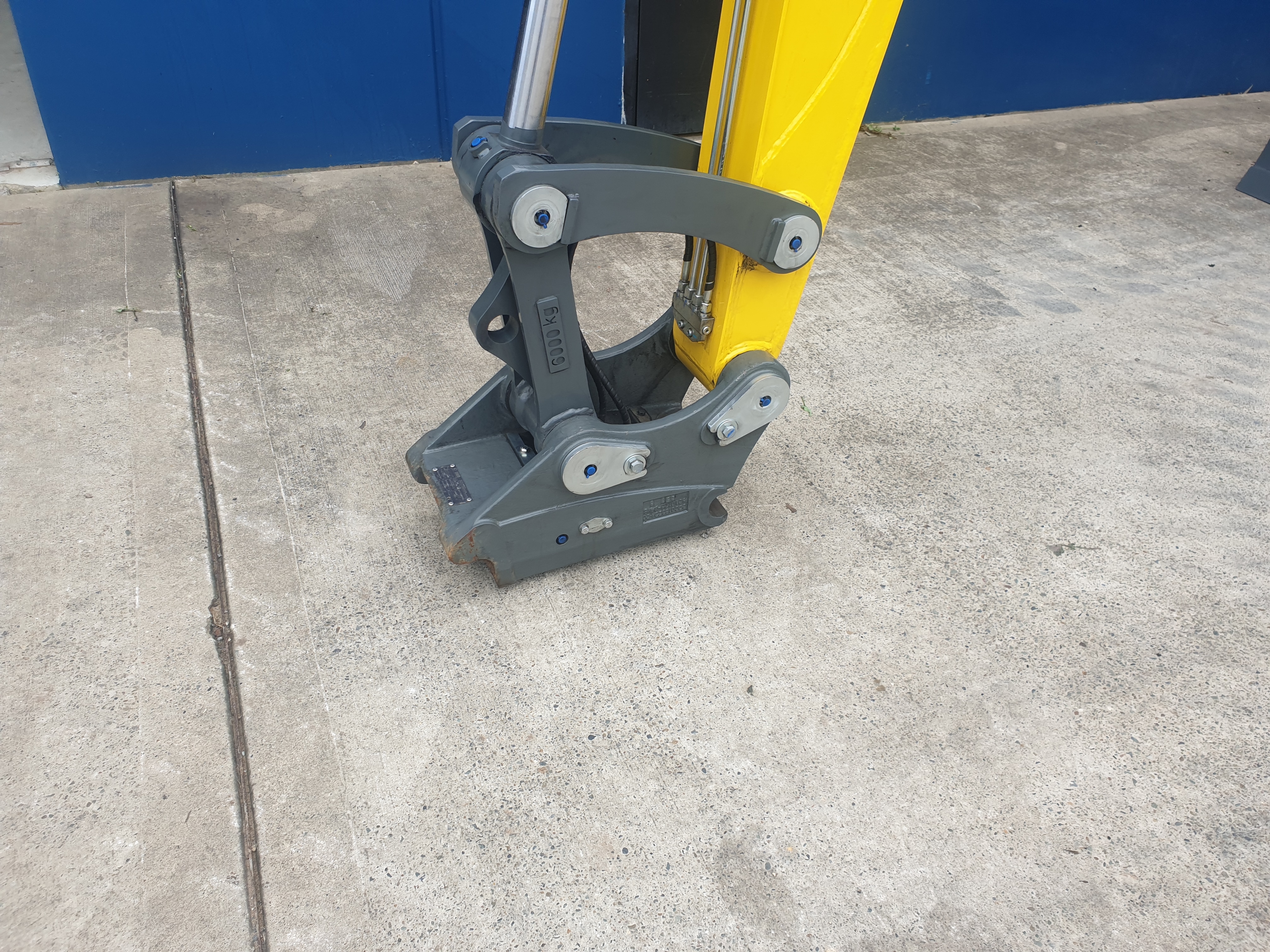

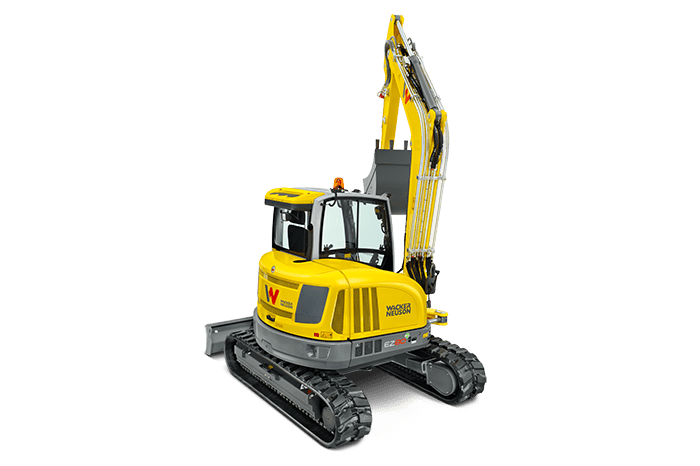

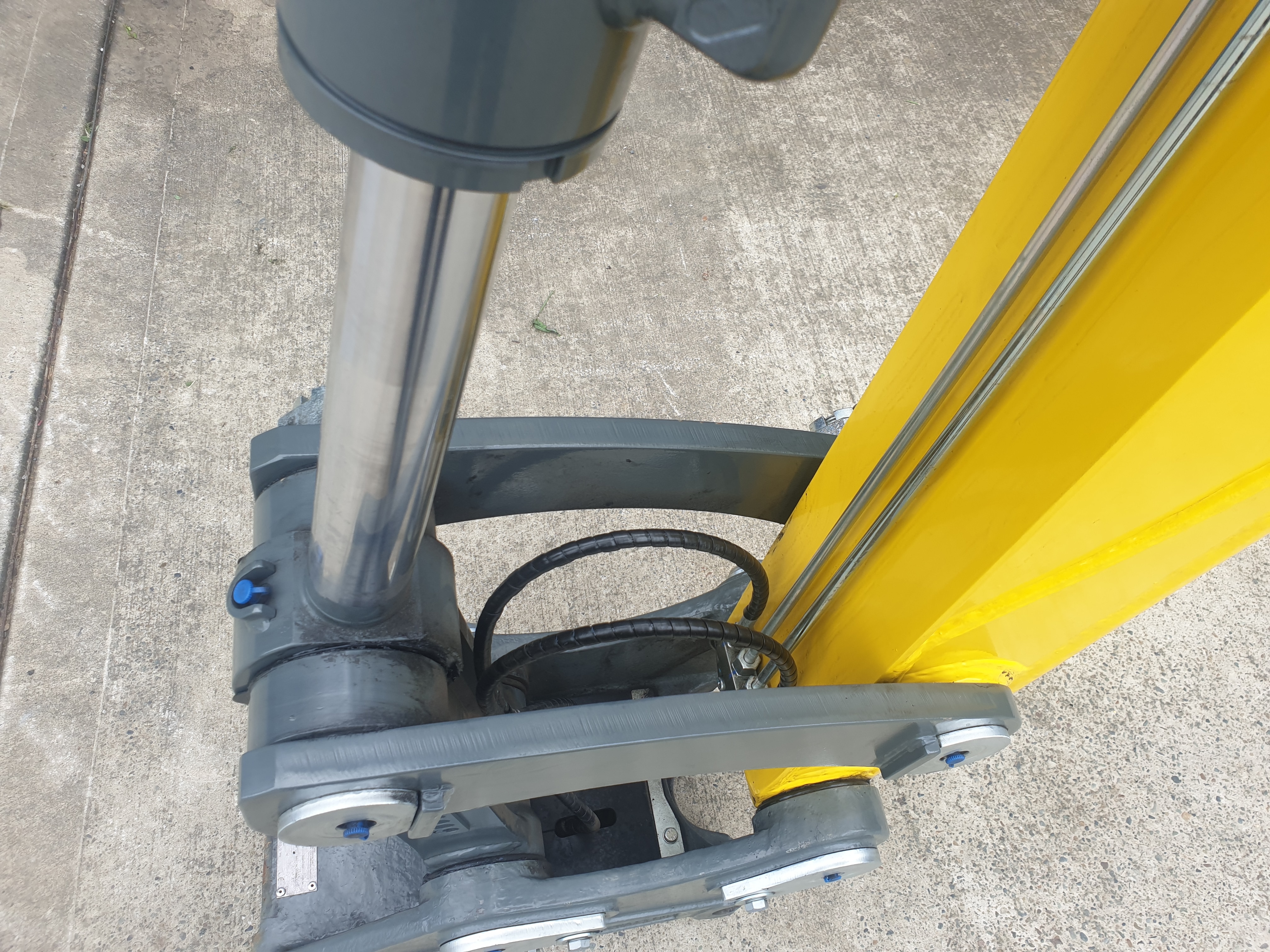

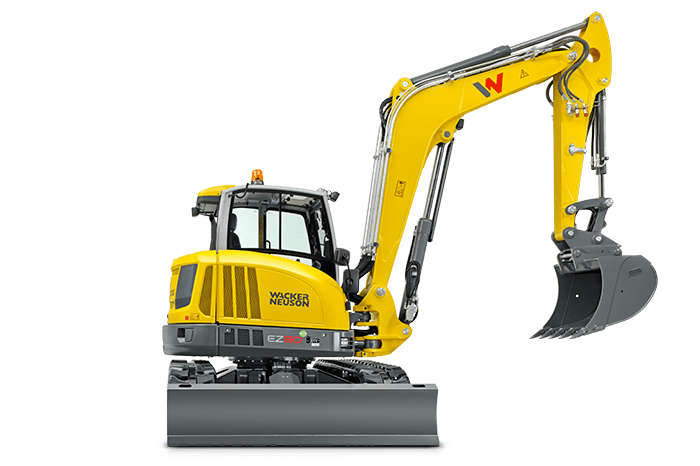

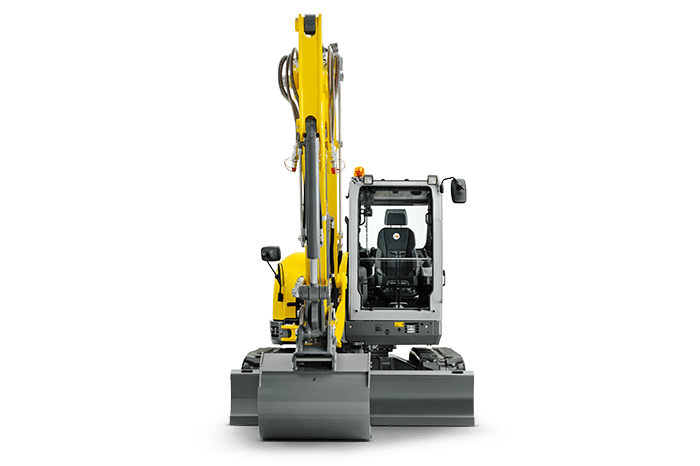

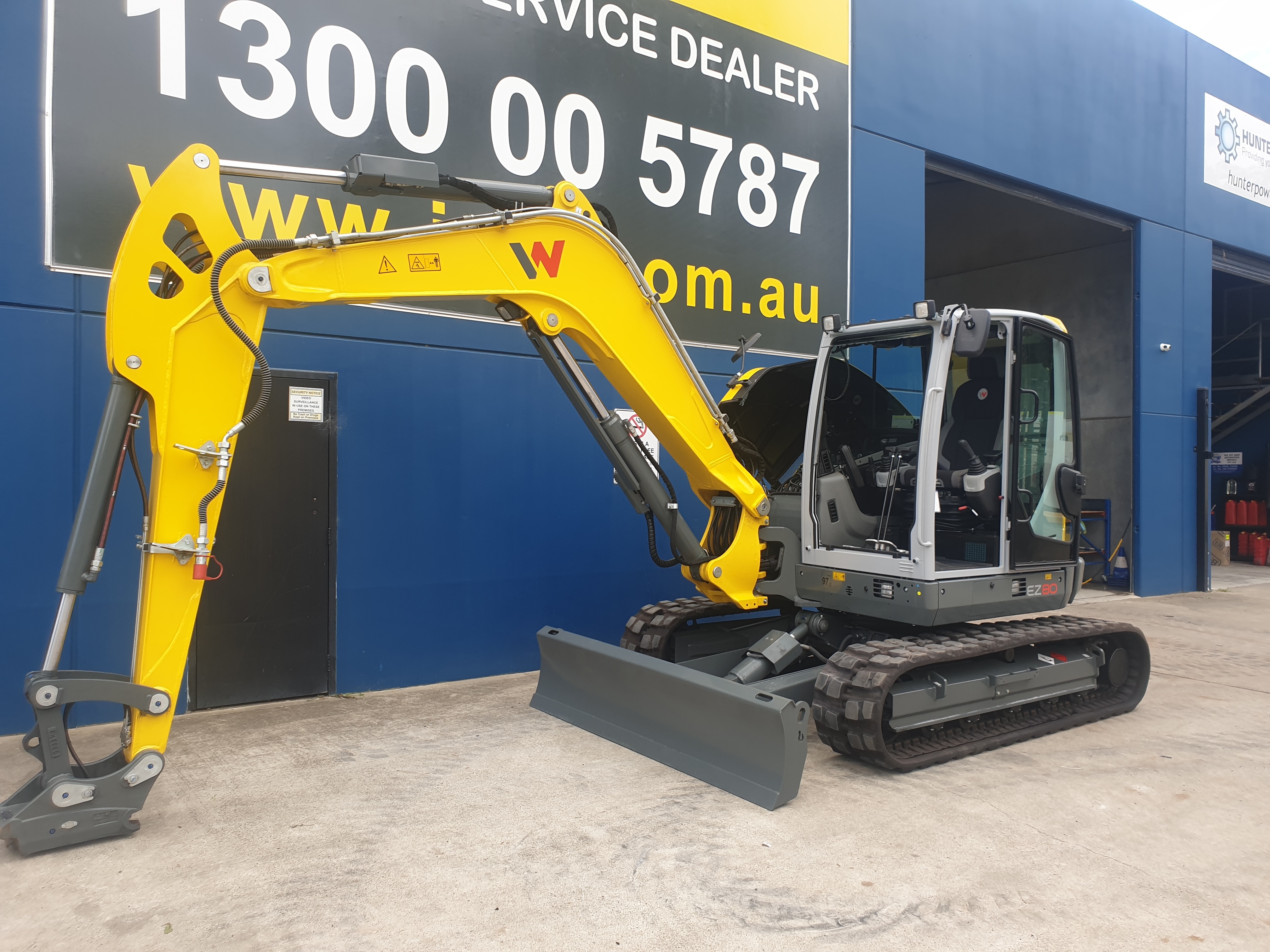

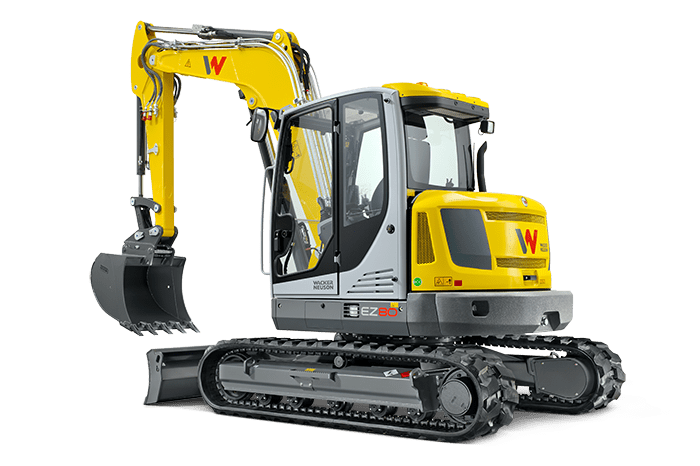

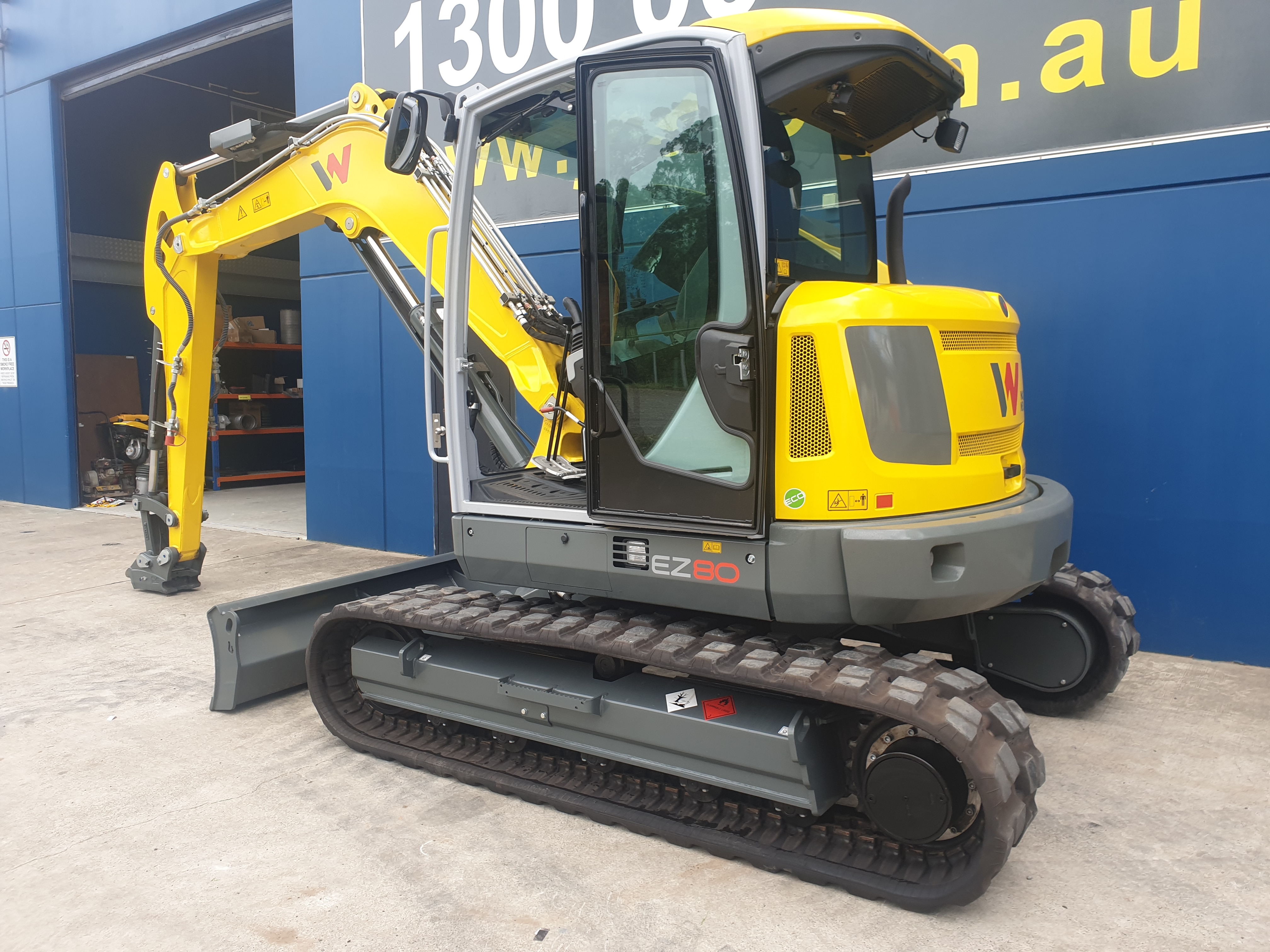

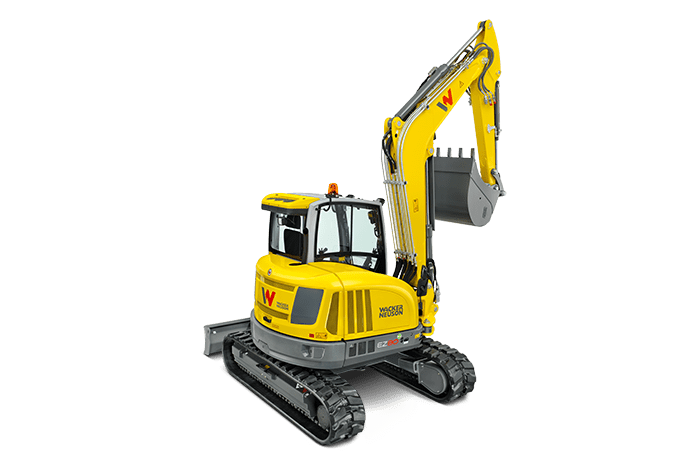

EZ80 Tracked Excavator – Zero Tail Swing – Incl Easy Lock Hitch

SKU 1000303779.01 Category Tag

The EZ80 is the biggest zero tail excavator from Wacker Neuson. Compact dimensions, reduced fuel consumption and high performance are united in one machine. With a digging depth of more than 4 meters and an efficient digging power, excavation jobs are completed quickly. Working close to walls or other environmental obstacles provides no issue for this zero tail machine in any operating position. This and its compact design make the EZ80 the first choice excavator when it comes to narrow inner city job sites. On top of that the EZ80 also convinces with up to 20% less fuel consumption and thus significantly reduced operating costs.

– Precise and sensitive operation thanks to the Load Sensing Hydraulic system with LUDV (load-independent flow control).

– Programmable presets by pressing a button, jog dial control system for float volumes per attachment tool – safe and recall.

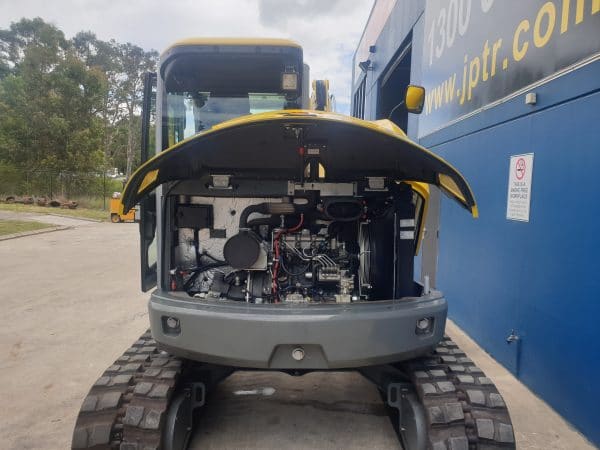

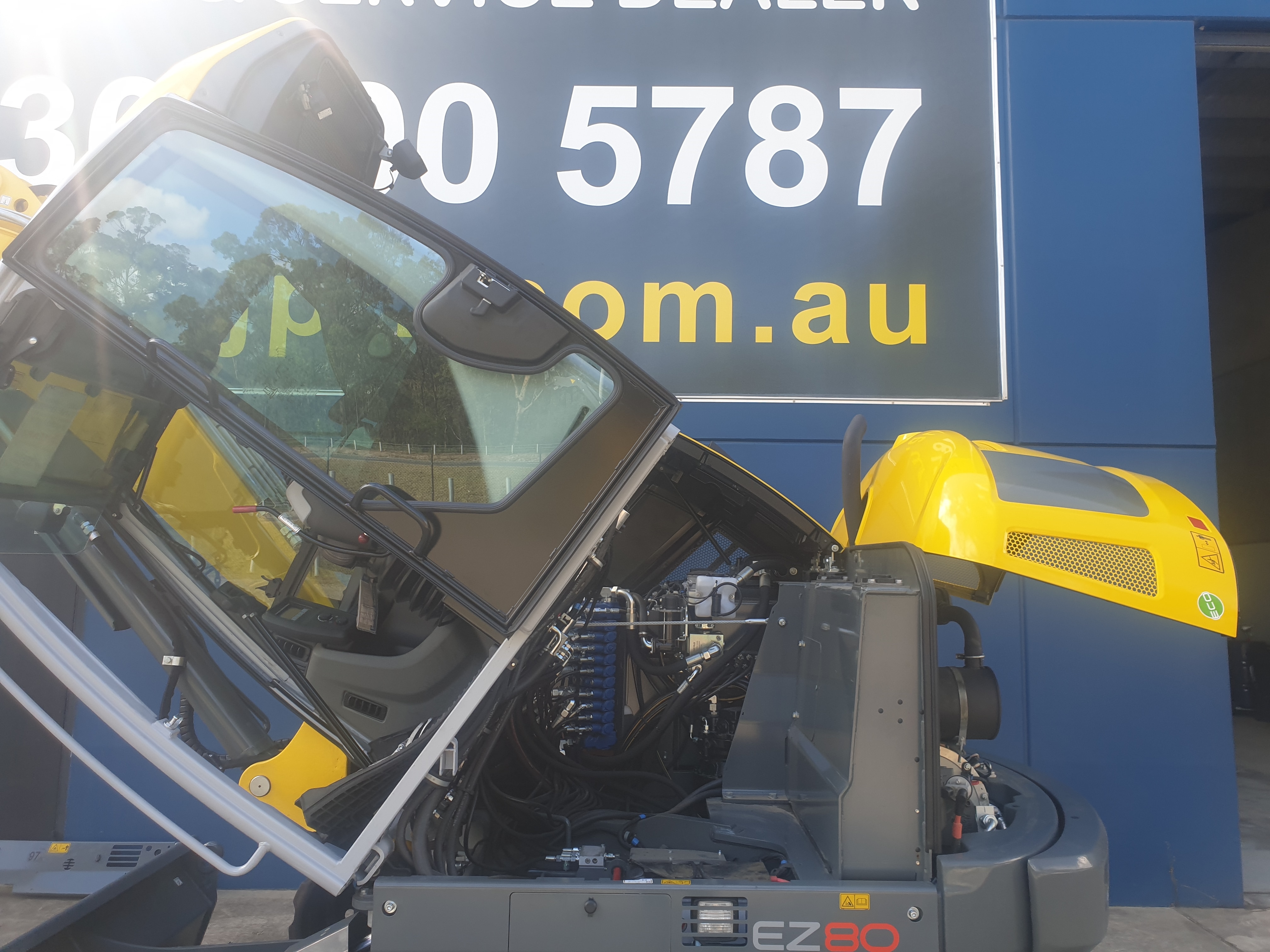

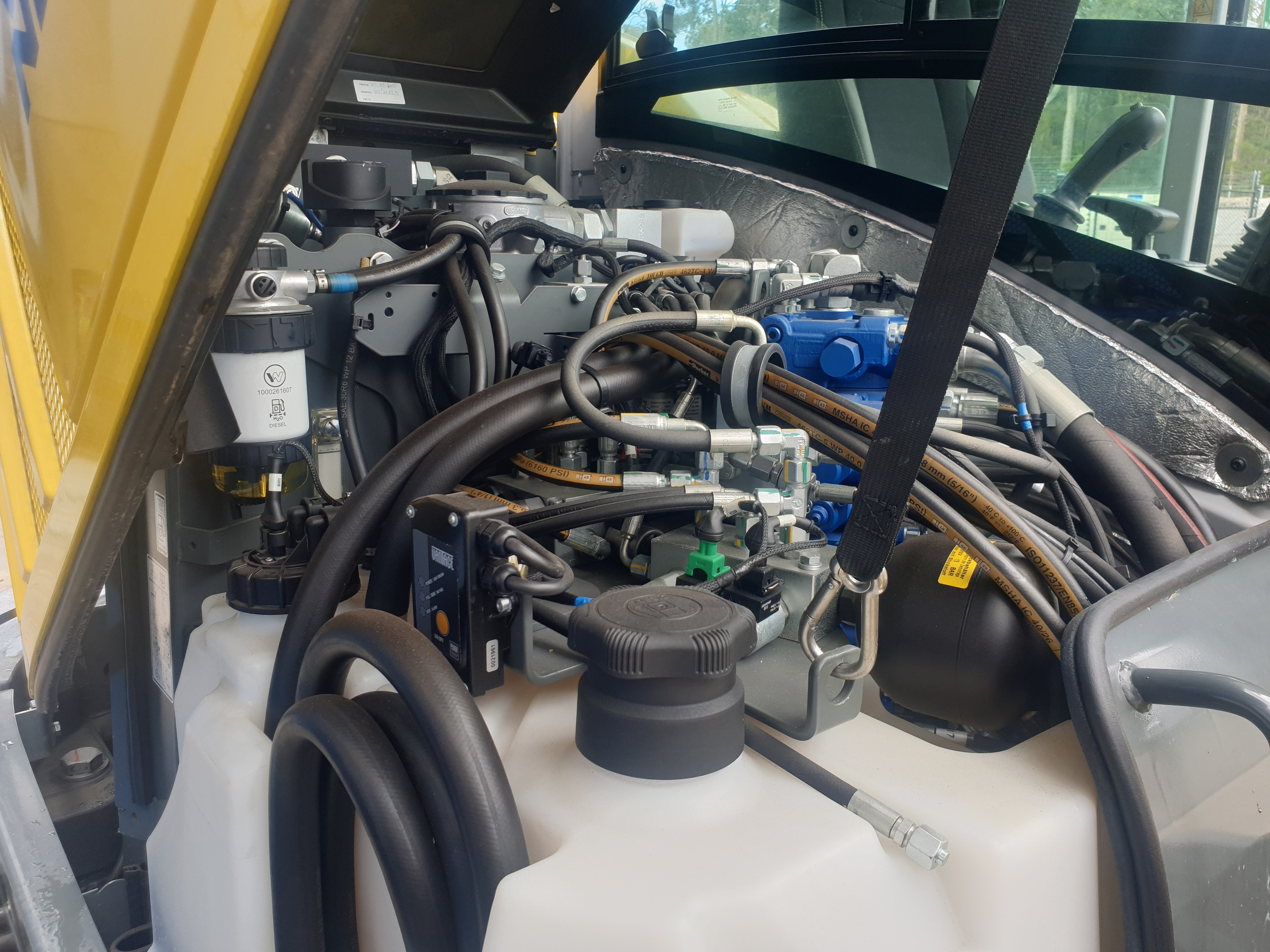

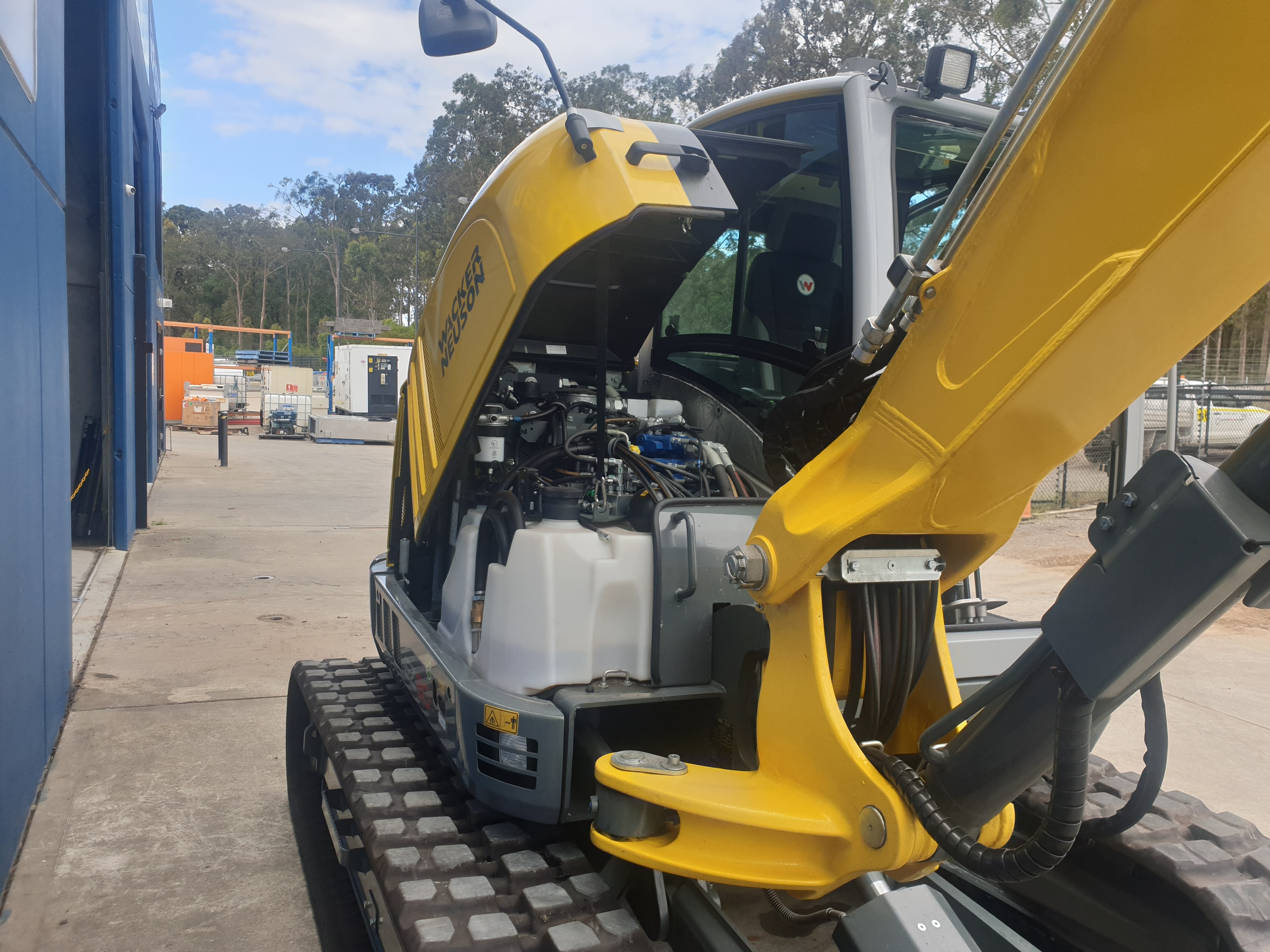

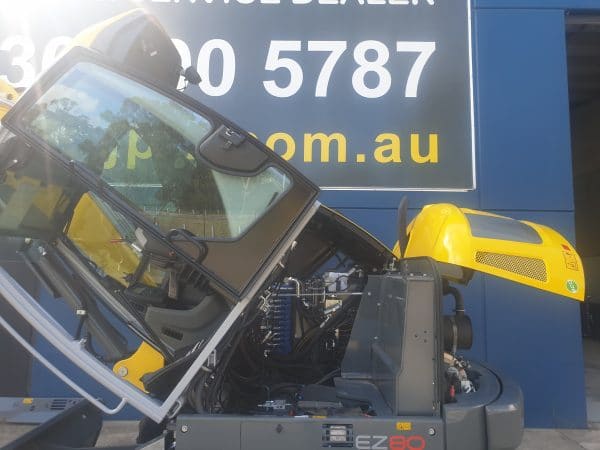

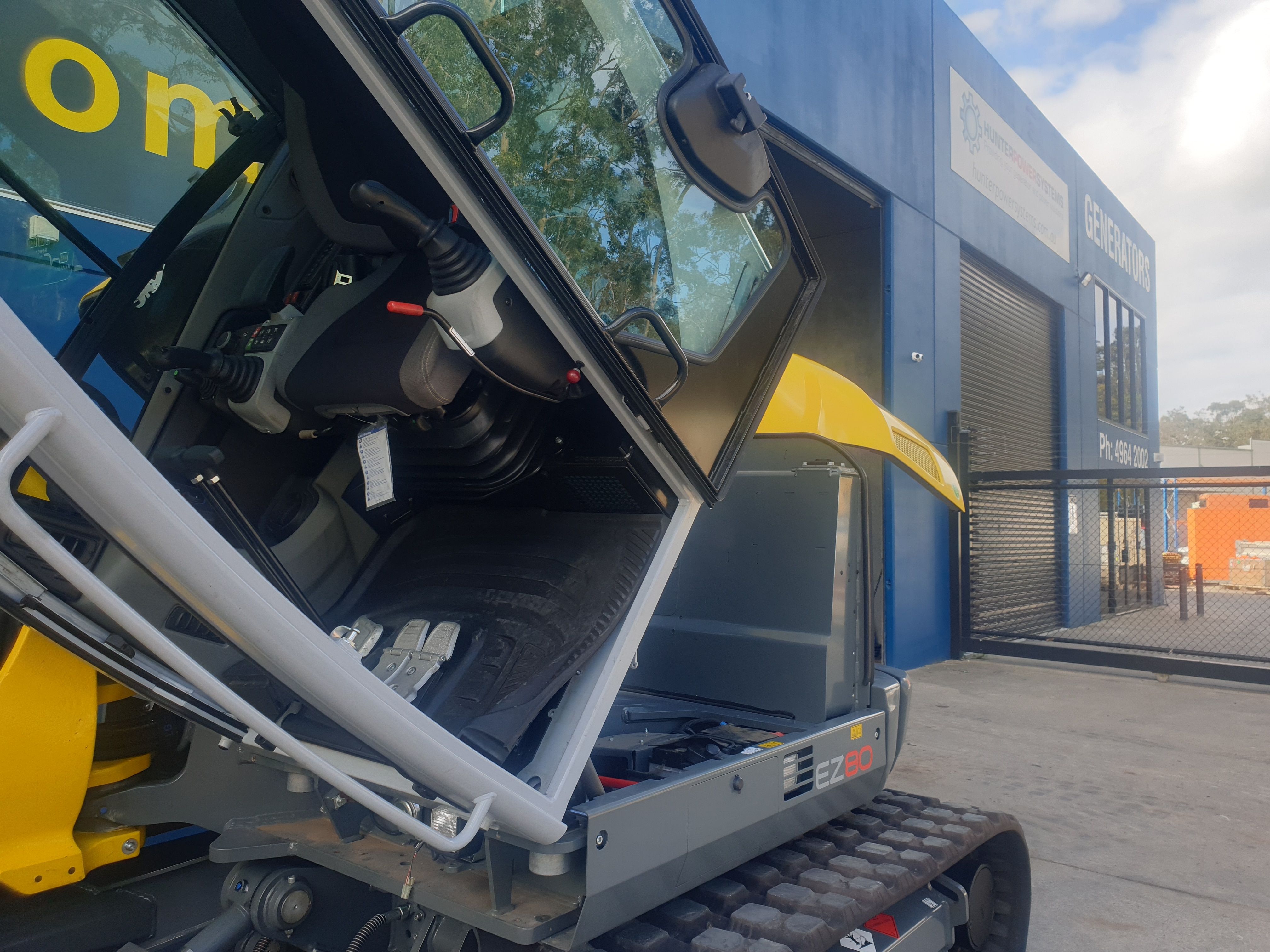

– Maintenance made easy: the tiltable cabin and the removable chassis cover provide quick and easy access, diagnostic tools offer further support.

– Meets highest quality standards: High-quality materials and excellent workmanship ensure a long service life.

Operating data

Operating weight 7,918 – 9,208 kg
Biting force max. 43.7 kN
Breakout force max. 68 kN
Digging depth max.4,169 mm
Dumping height 4,587 – 4,749 mm
Digging radius max. 7,190 mm
Superstructure slewing speed 9 rpm
Dimensions (L x W x H)6,939 x 2,250 x 2,562 mm

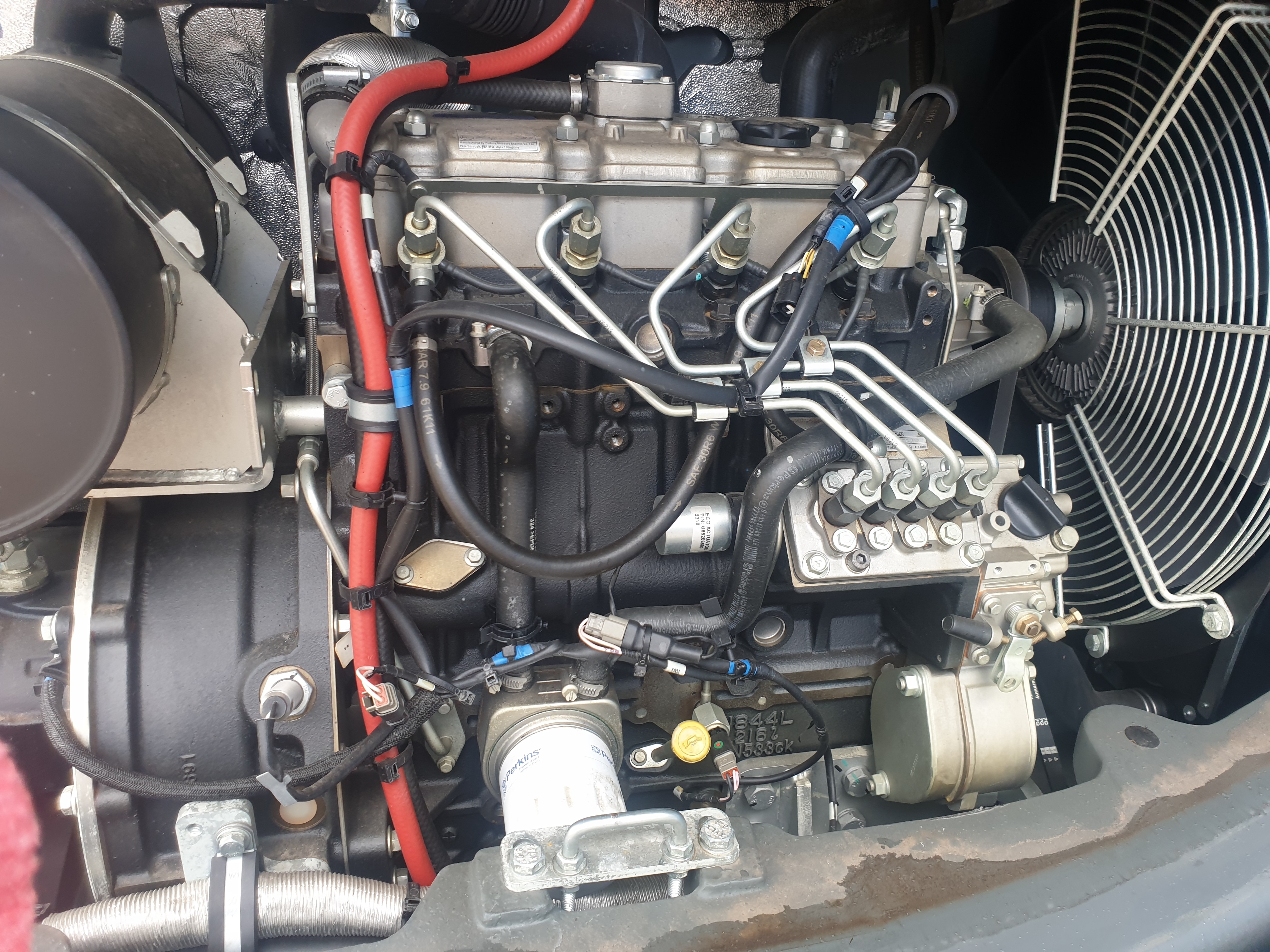

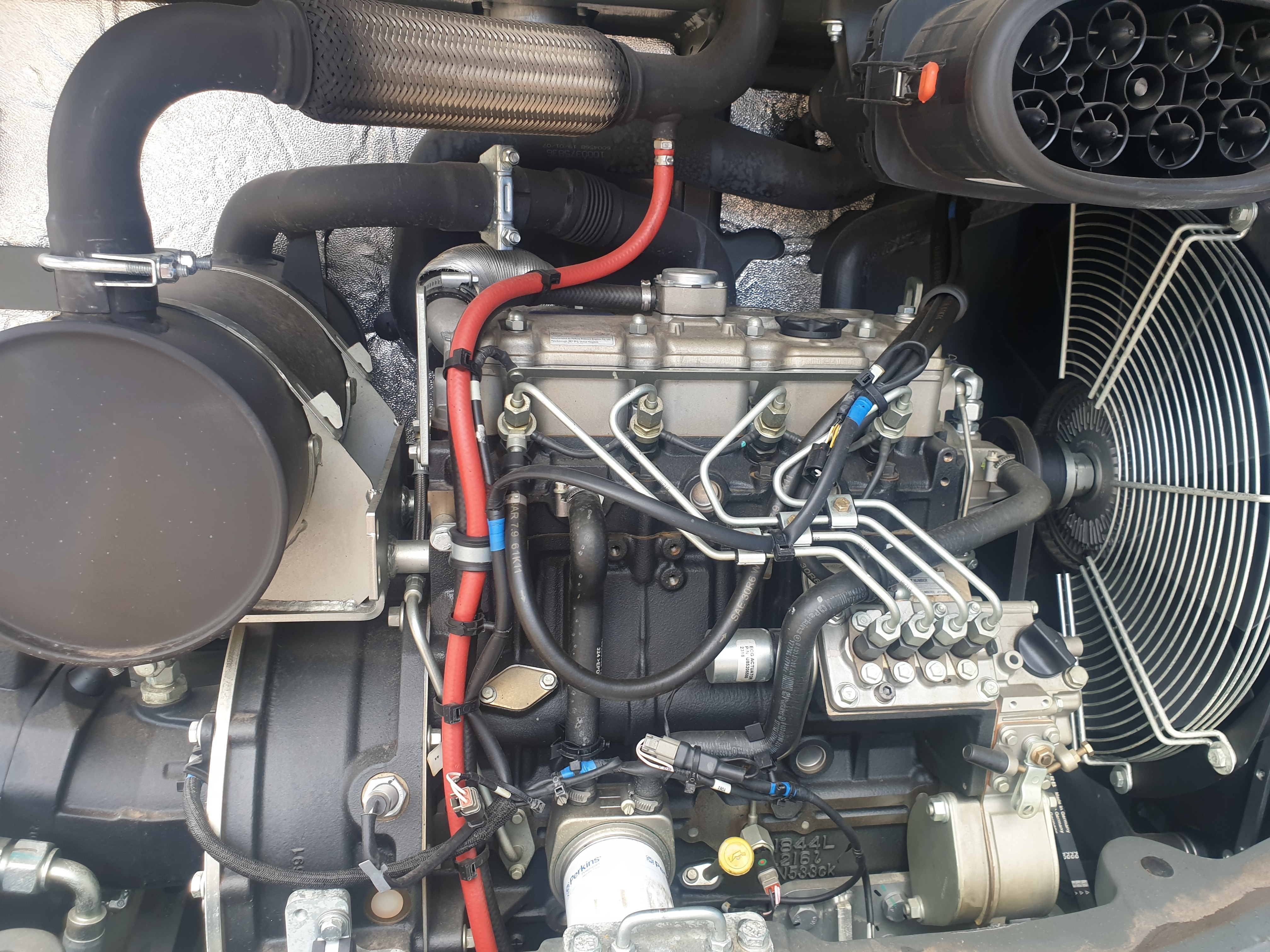

Engine / Motor

Engine / Motor manufacturer Perkins
Engine / Motor model404D-22T
Engine / Motor typeWater-cooled 4-cylinder turbo diesel engine
Displacement 2,216 cm³
Operating speed 2,500 rpm
Engine performance acc. to ISO36.4 kW
Battery 88 Ah
Fuel tank capacity 85 L

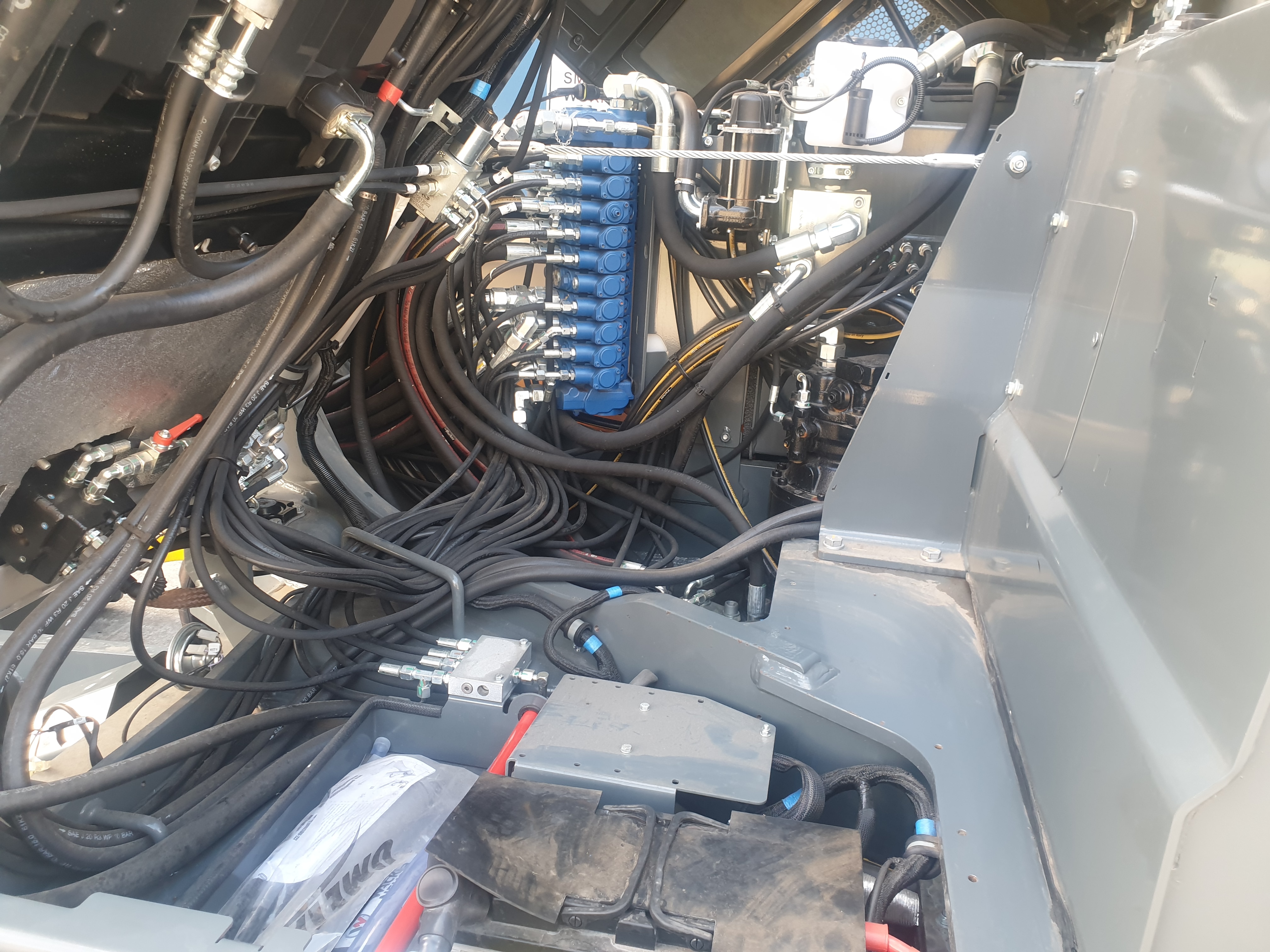

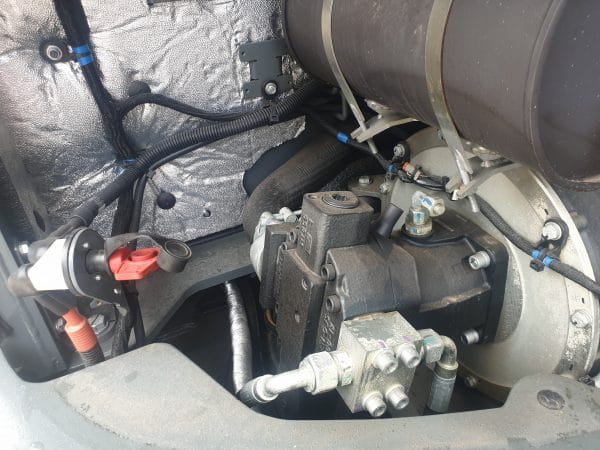

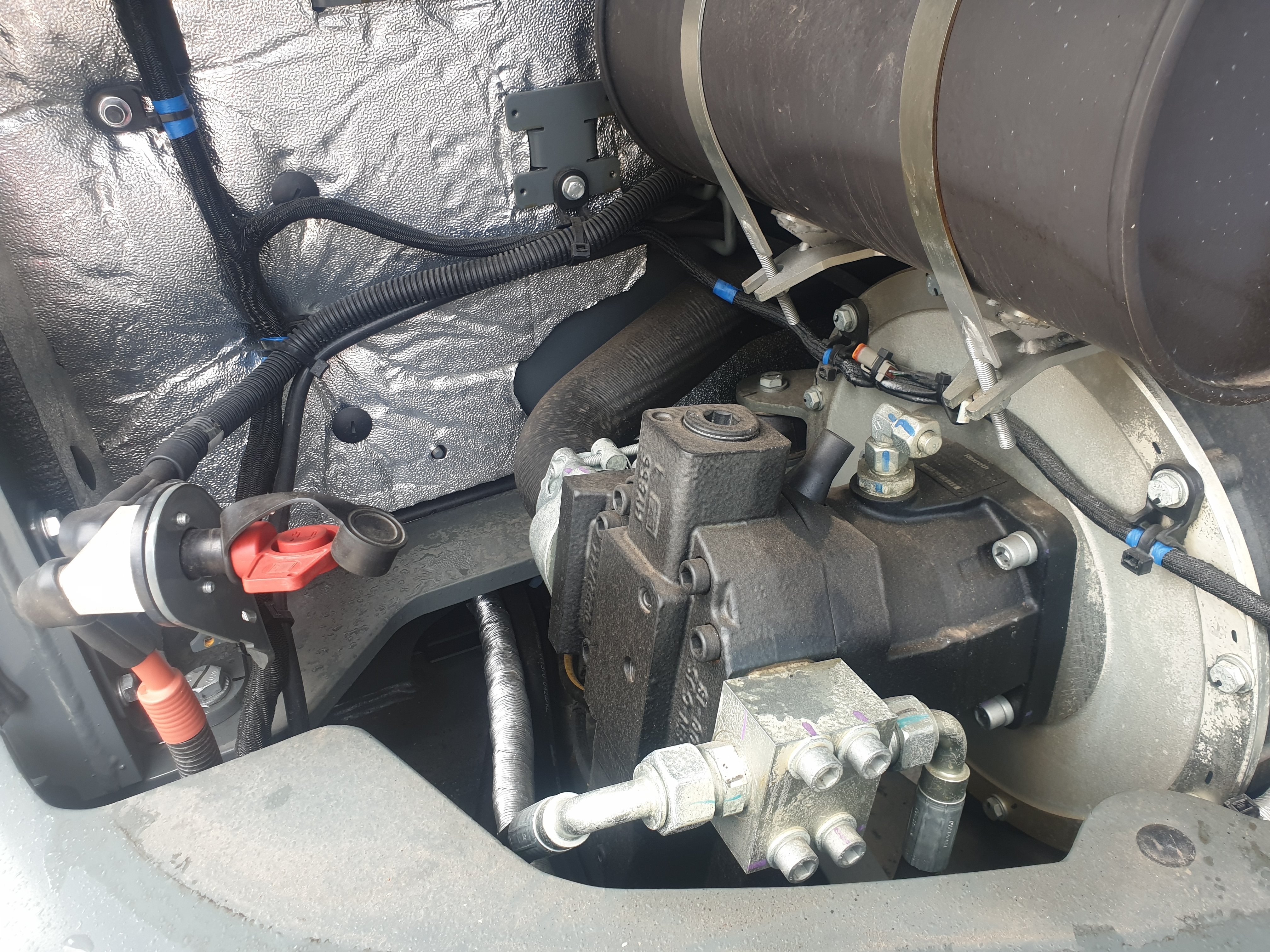

Hydraulic system

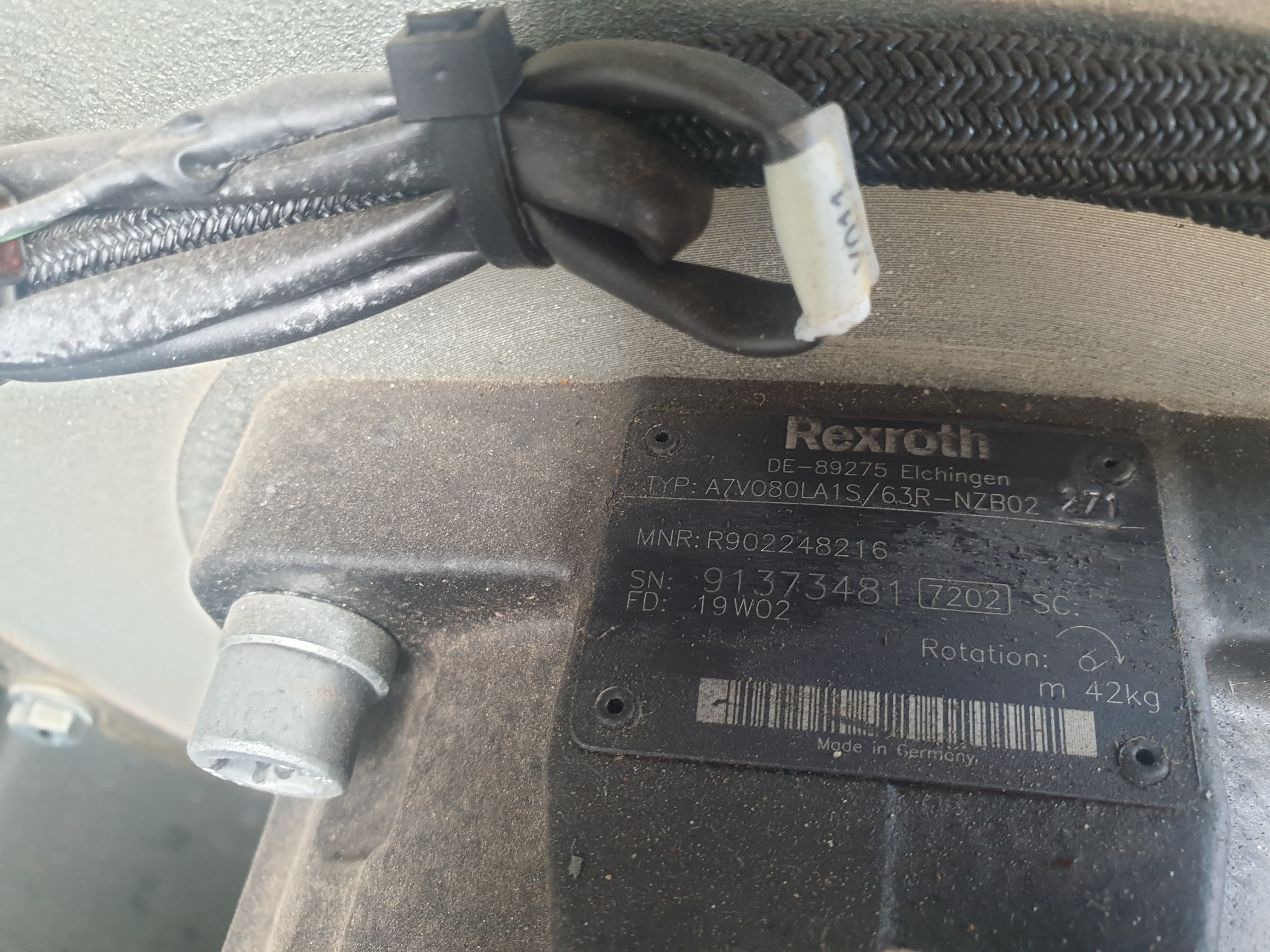

Duty pump axial piston pump
Flow rate 160 L/min
Operating pressure for working and traction hydraulics300 bar
Operating pressure slewing gear240 bar
Hydraulic oil tank 92 L

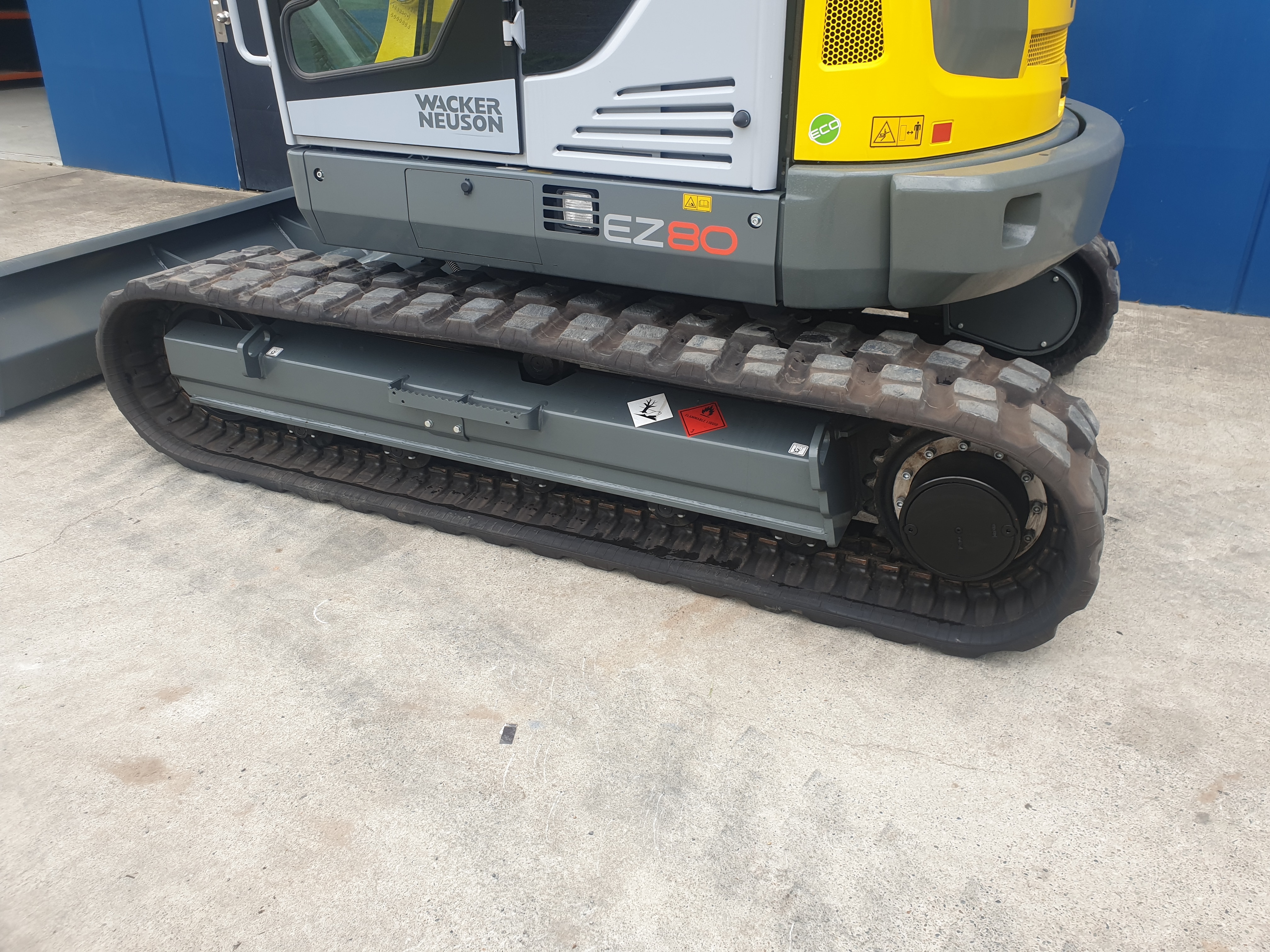

Undercarriage

Travel speed max.4.4 km/h
Chain width 450 mm
Ground clearance 357 mm

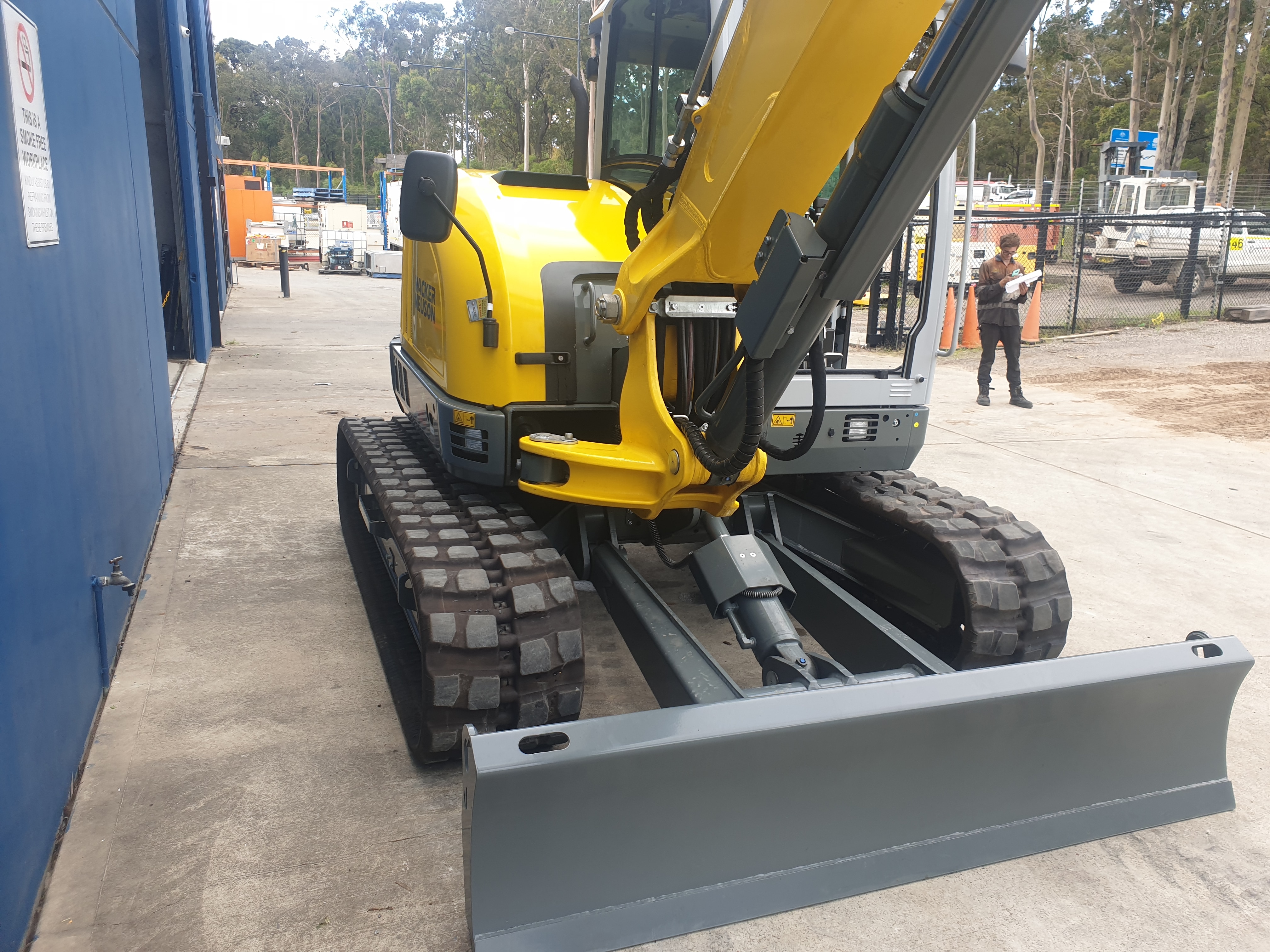

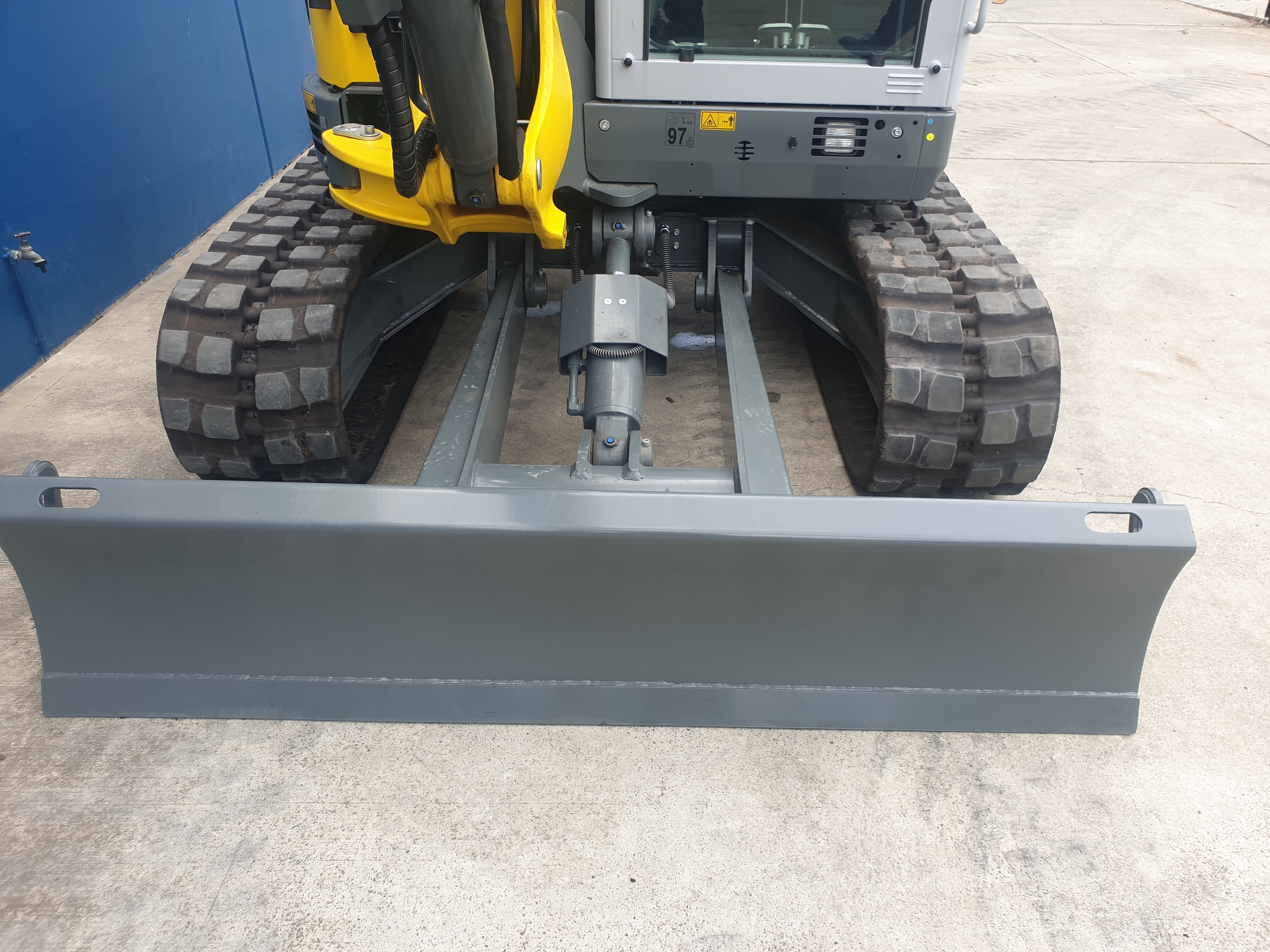

Dozer Blade

Width 2,250 mm
Height 504 mm
Stroke above ground474 mm
Stroke below ground523 mm

Sound level

Sound level (LwA) acc. to 2000/14/EC97 dB(A)
Cabin – specified sound pressure level LpA acc. to ISO 639479 dB(A)



Reduced dimensions

  • Significantly lower height and width than comparable competition models
  • Easily master tight construction sites and low passages
  • Higher level of stability due to the low center of gravity
  • Easy to transport

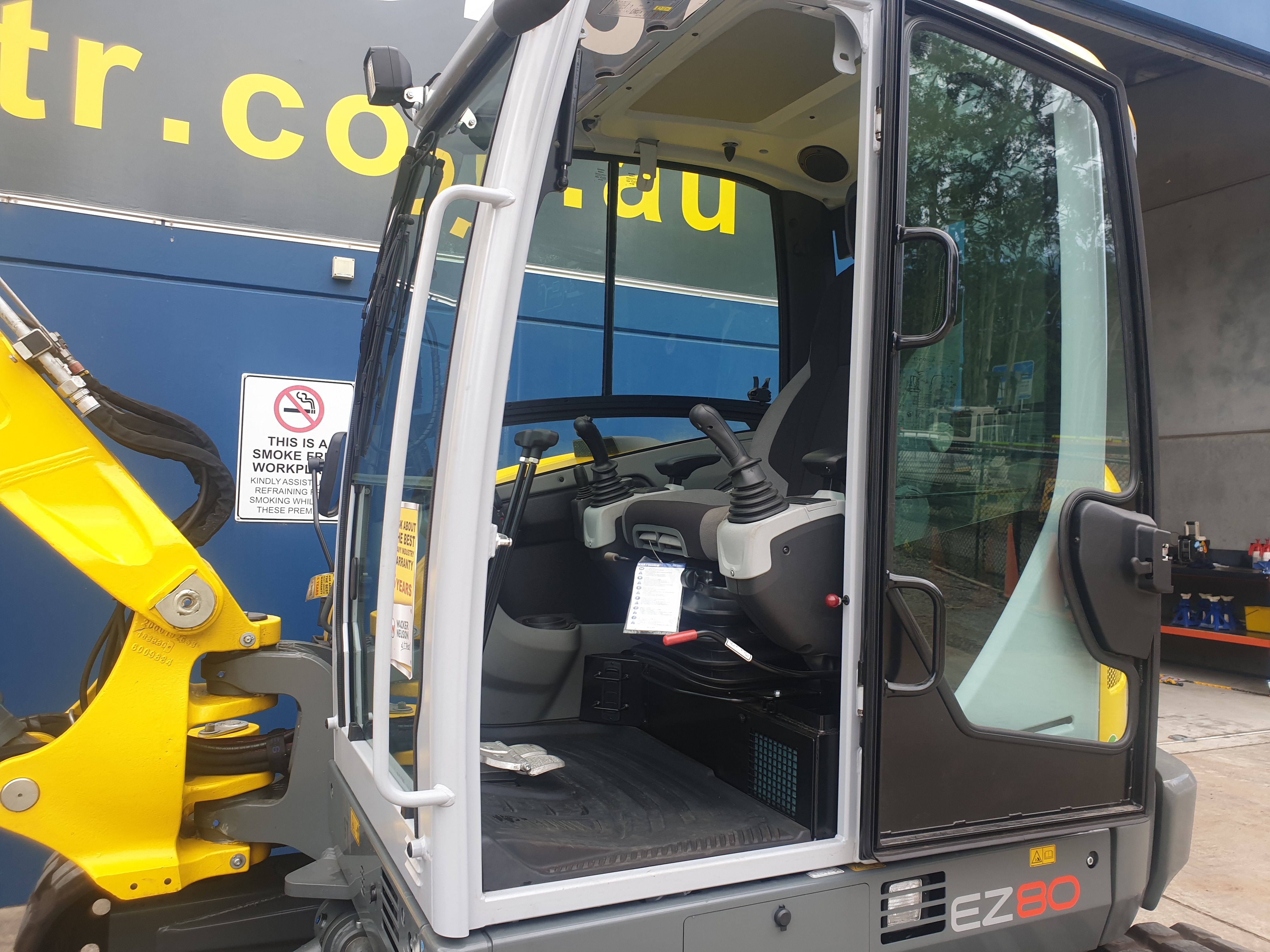

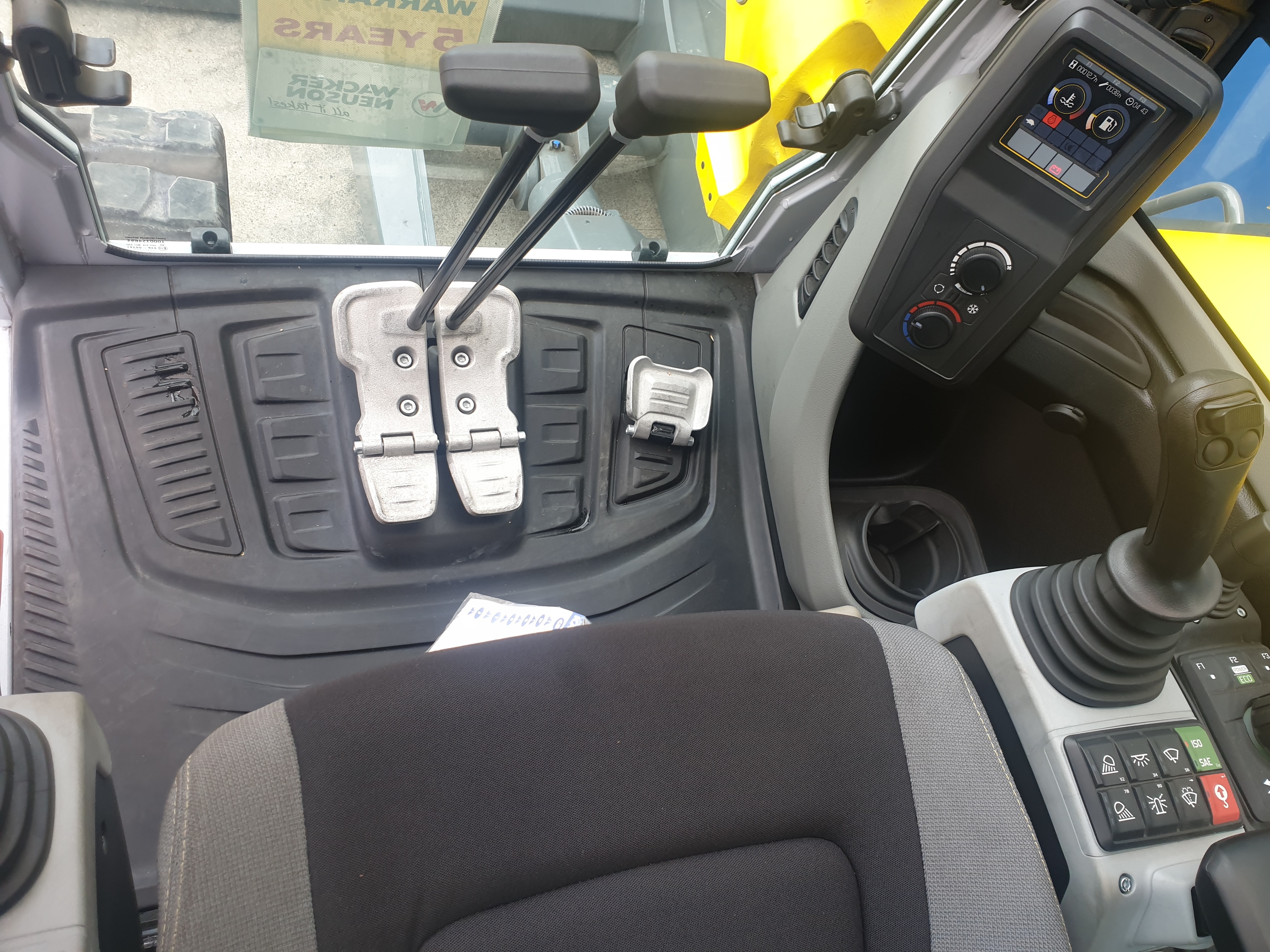

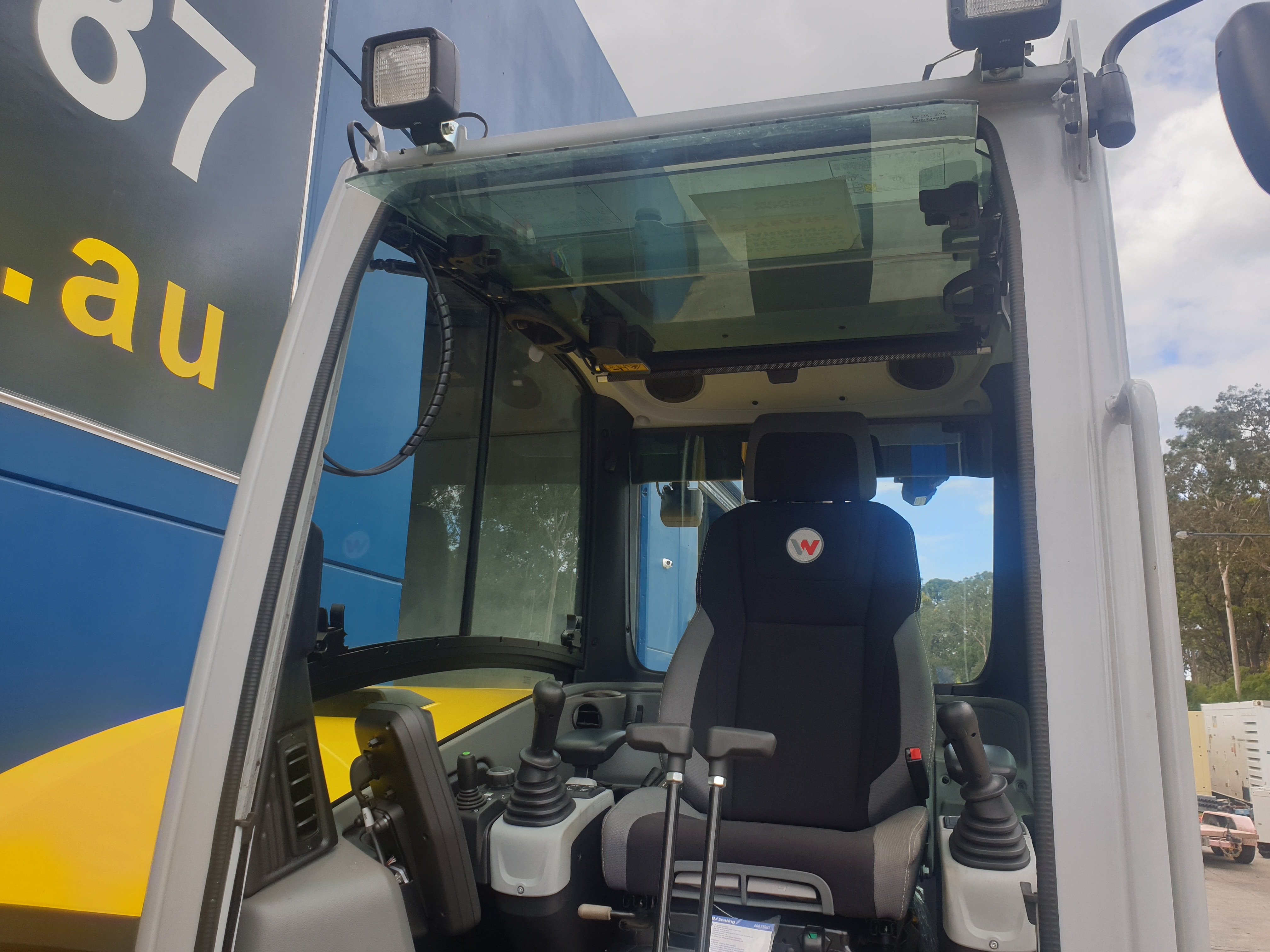

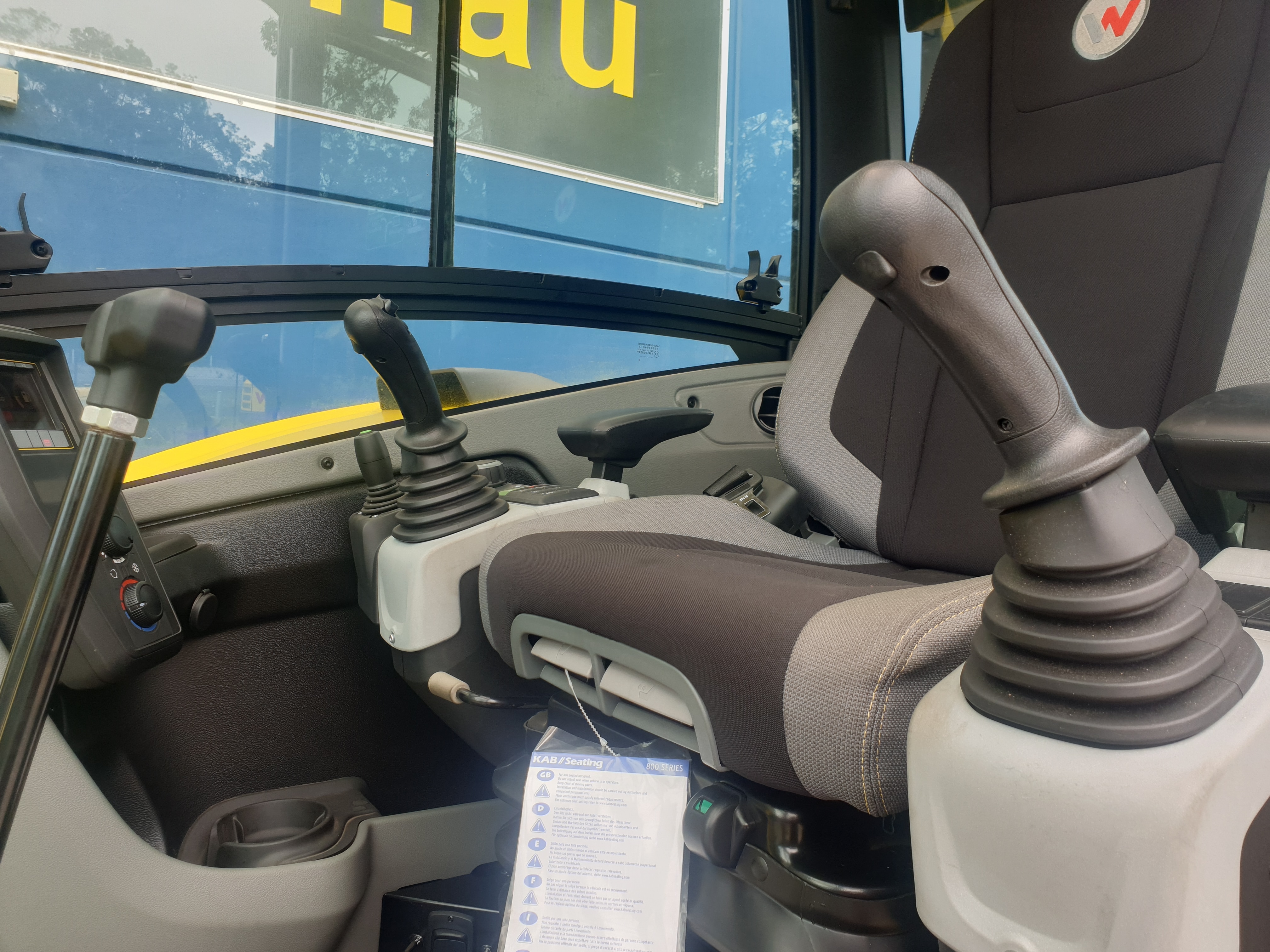

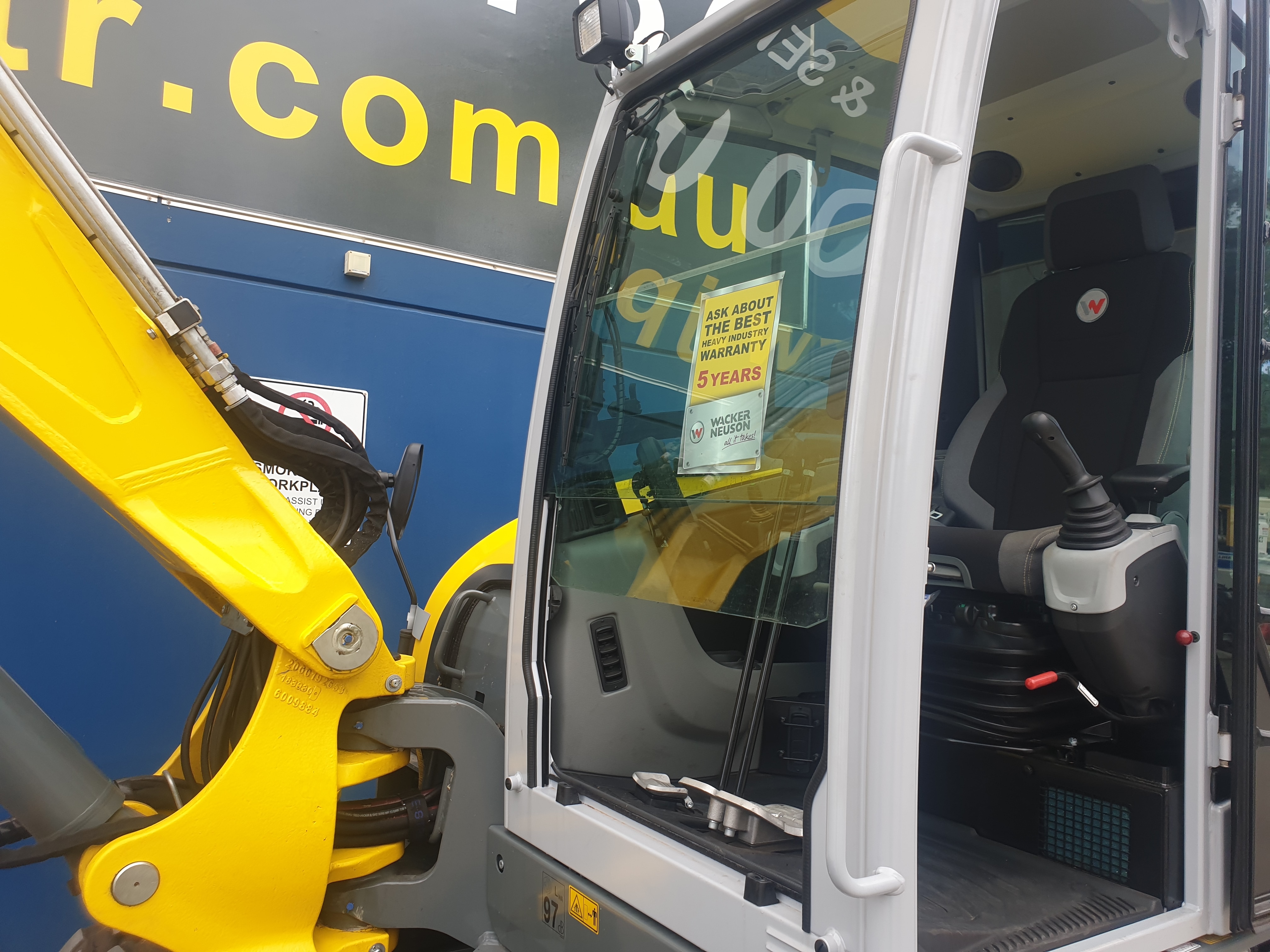

Cabin, sight and operating comfort

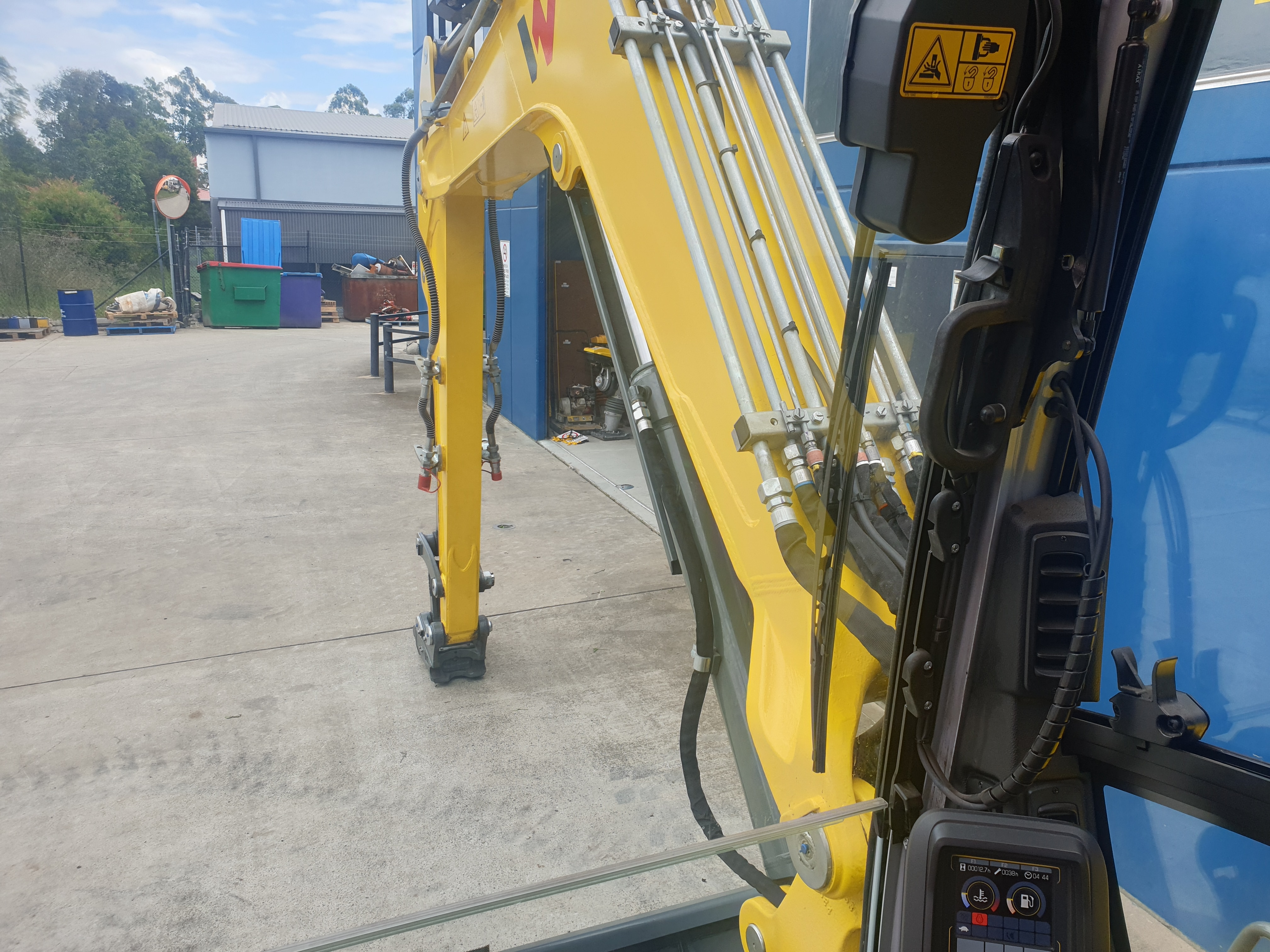

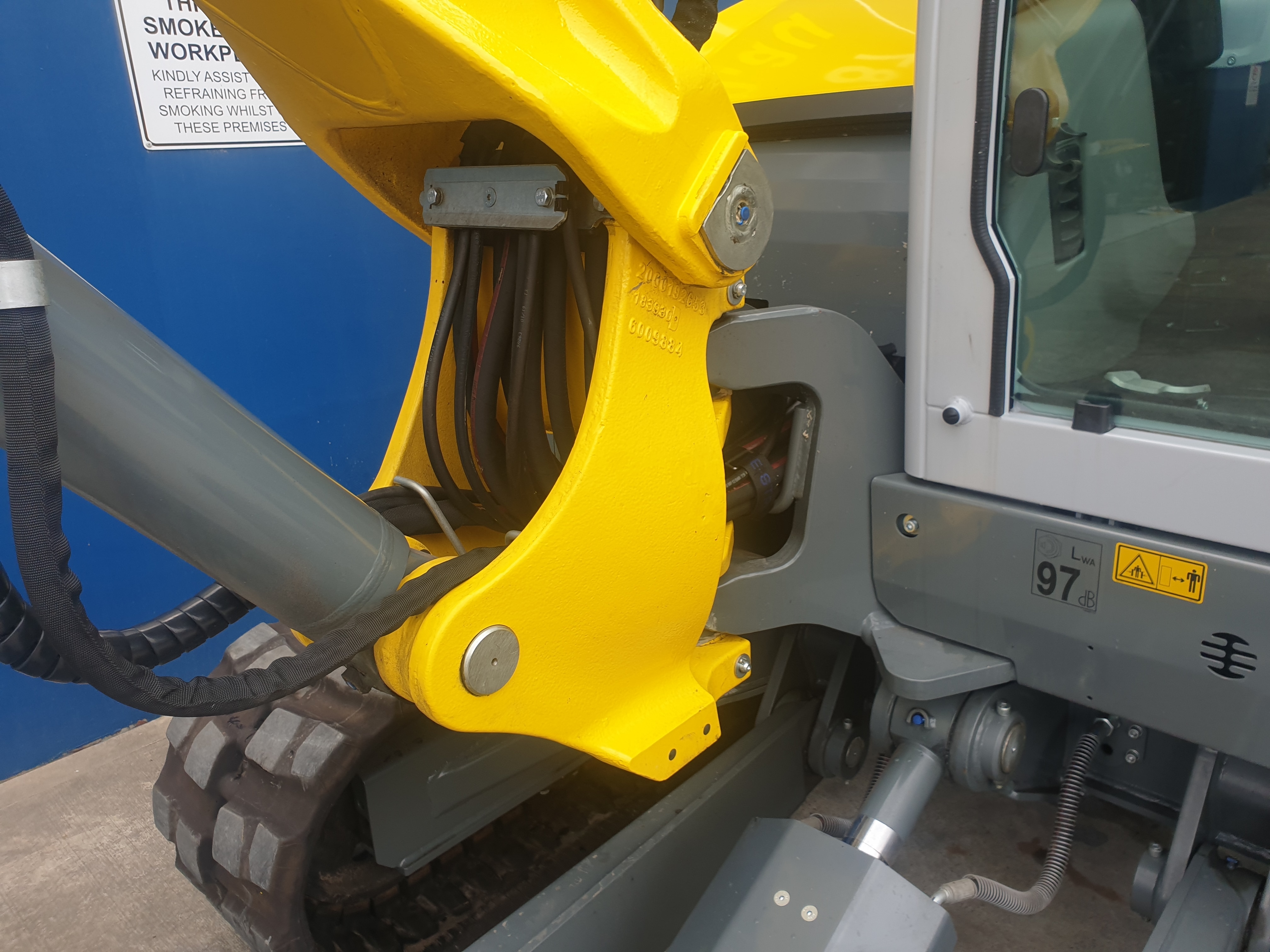

  • Innovative solution for the optimal view – boom to the right next to the cabin

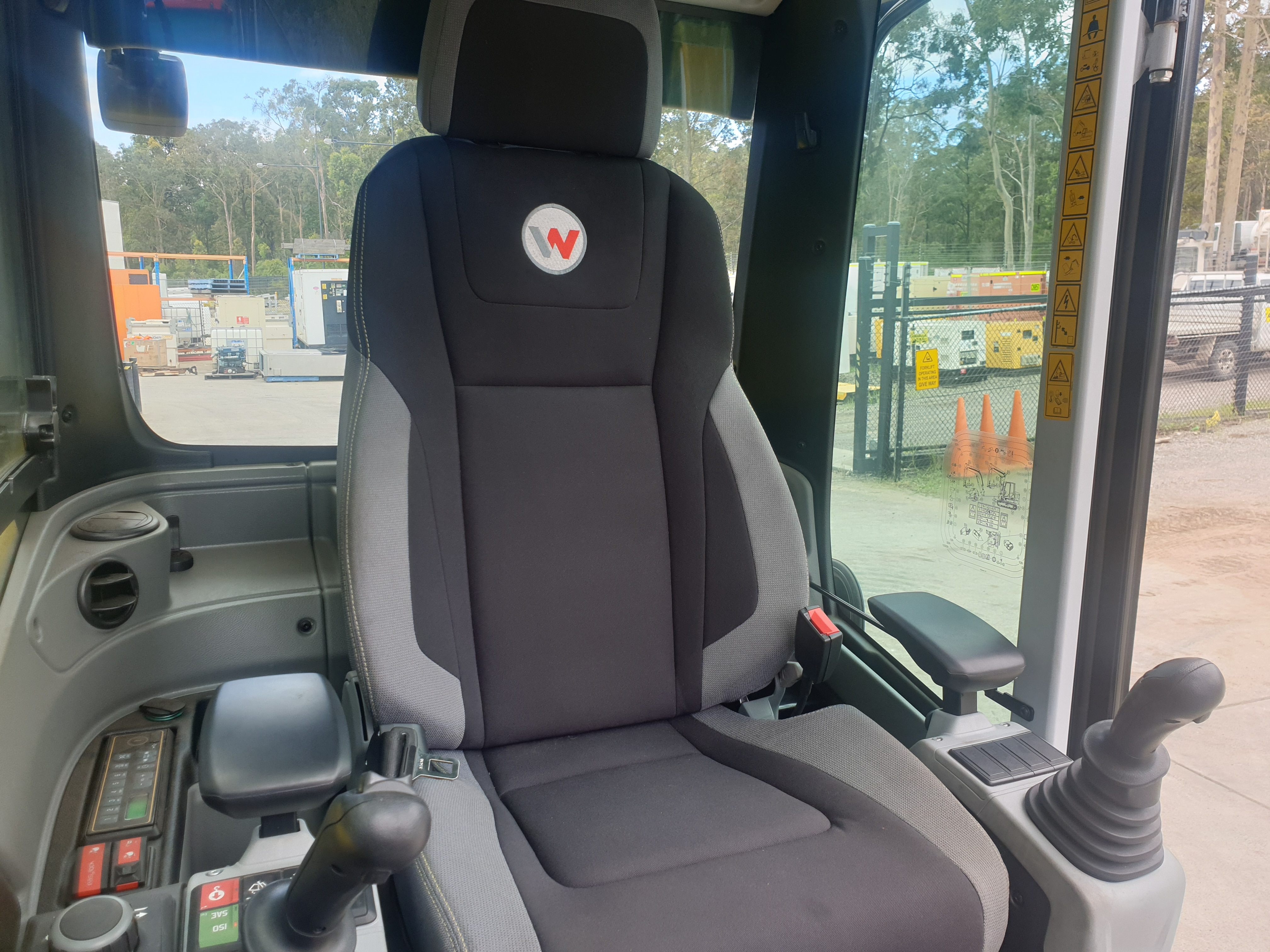

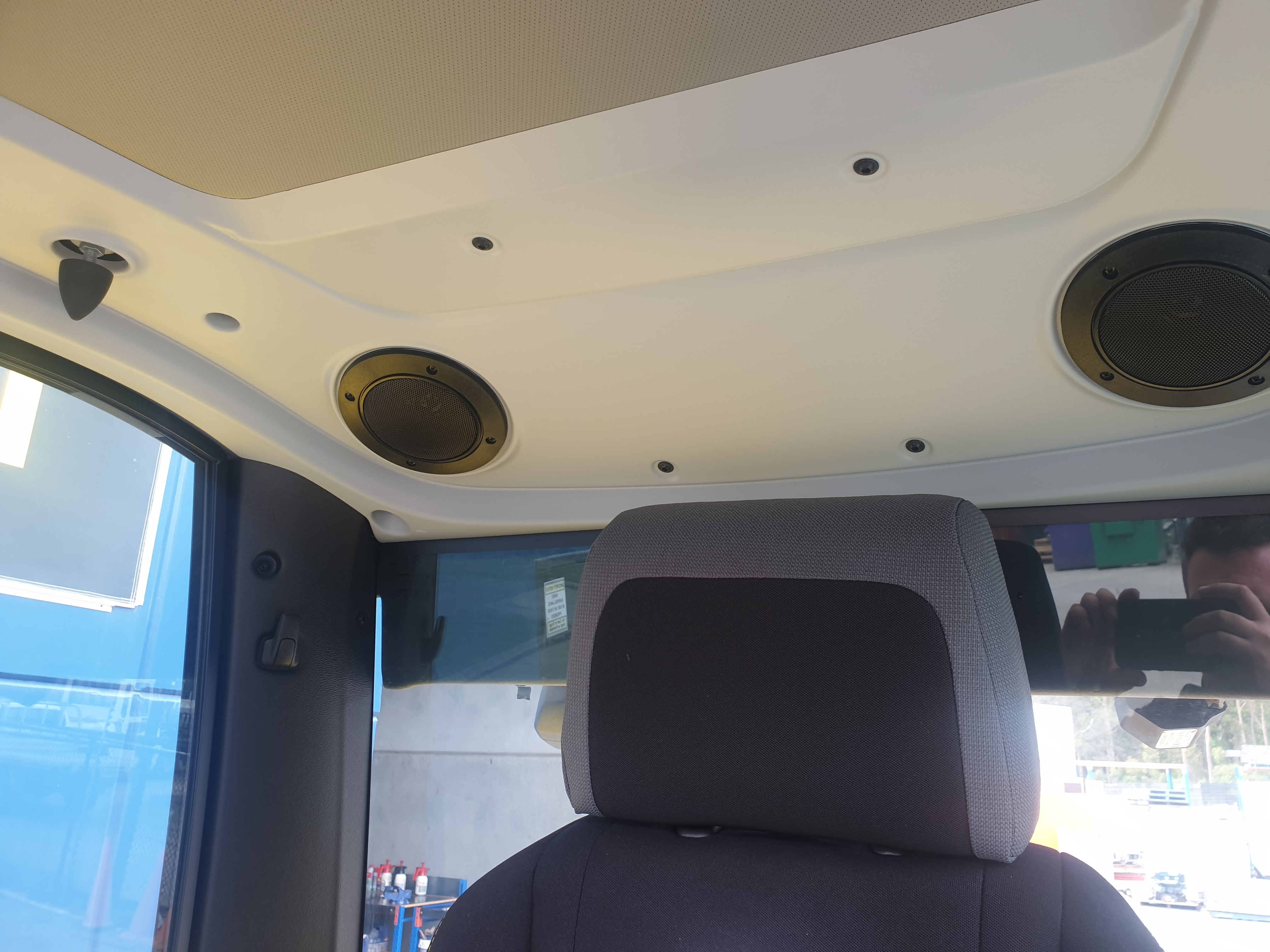

  • Operator comfort: spacious cabin, air cushioned seat and automatic air-conditioning system

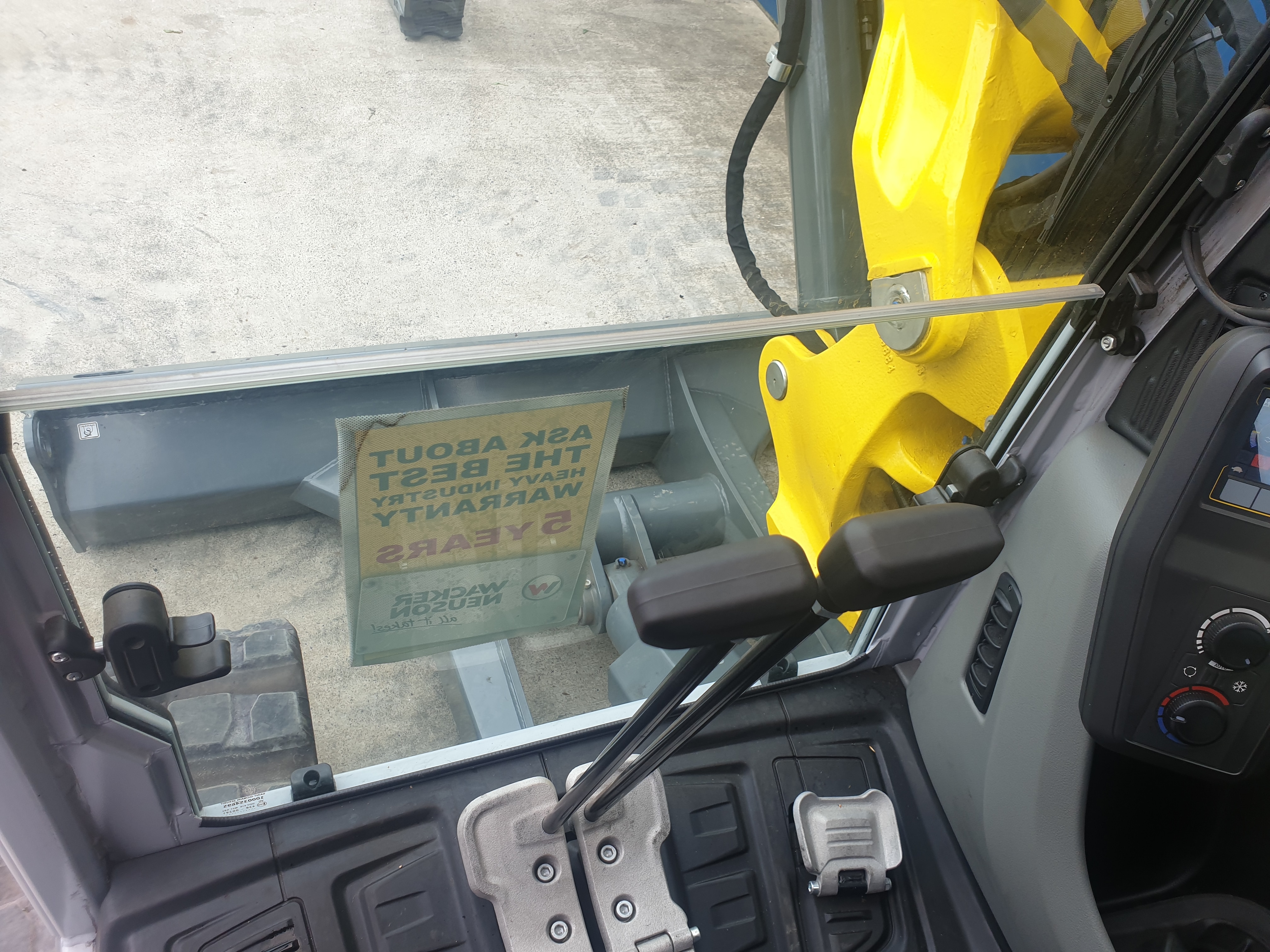

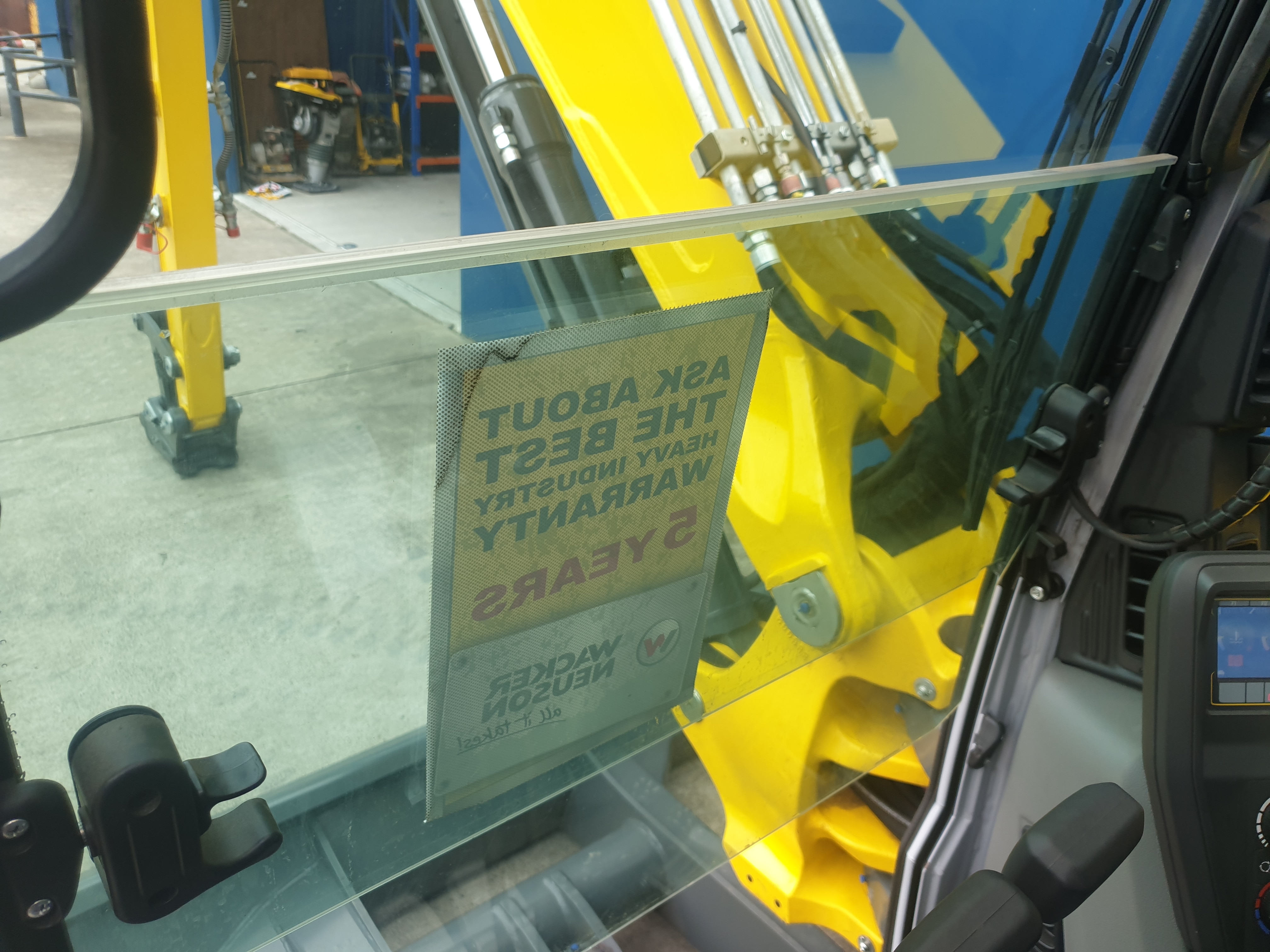

  • Innovative front windshield system: two-part windshield can be slid up and moved – rain roof position

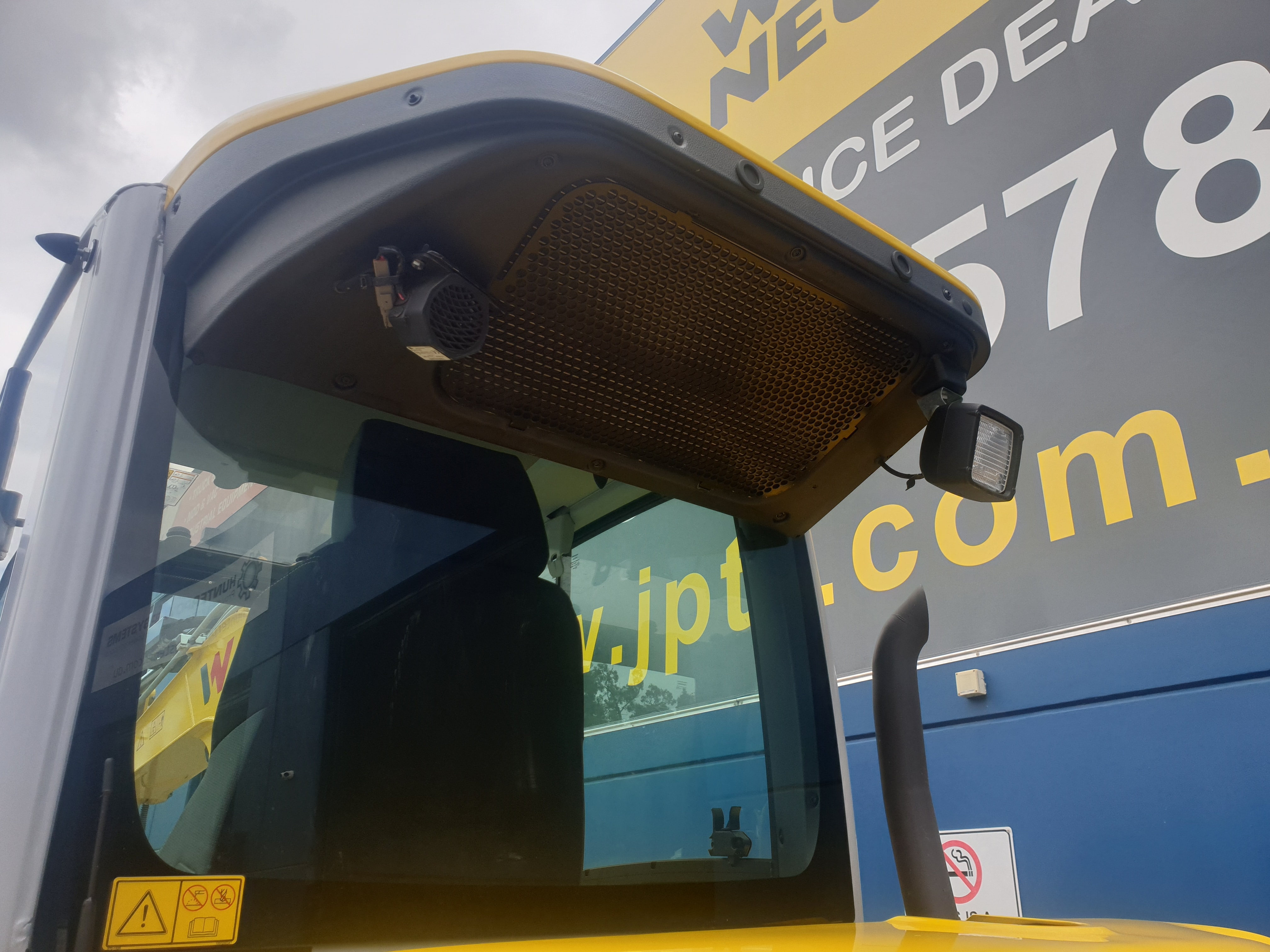

  • LED headlights for optimal illumination
  • Rear camera for more safety when in reverse operation

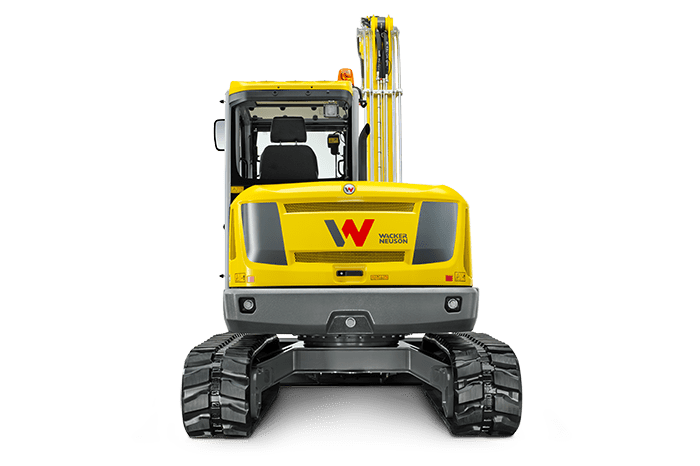

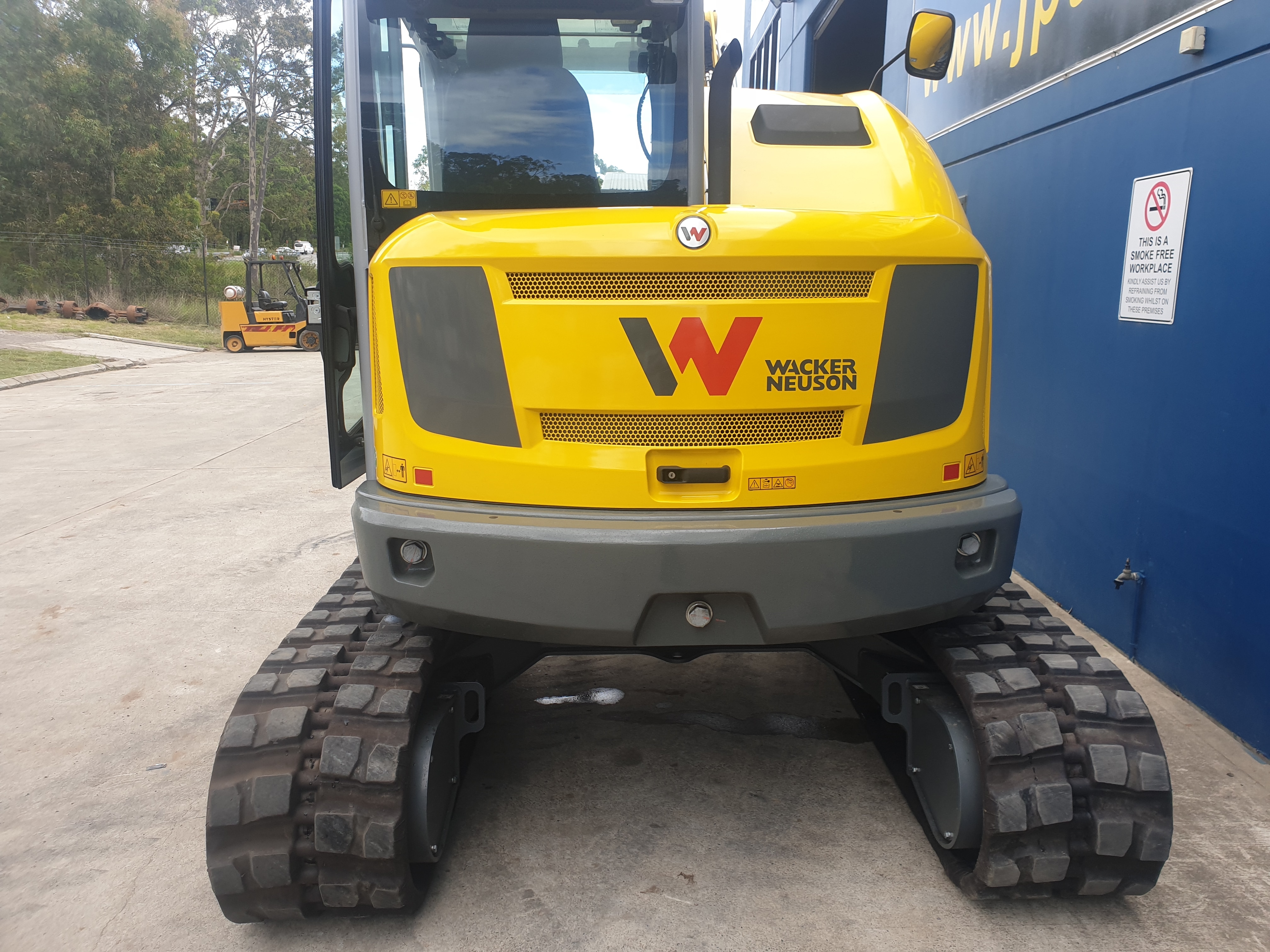

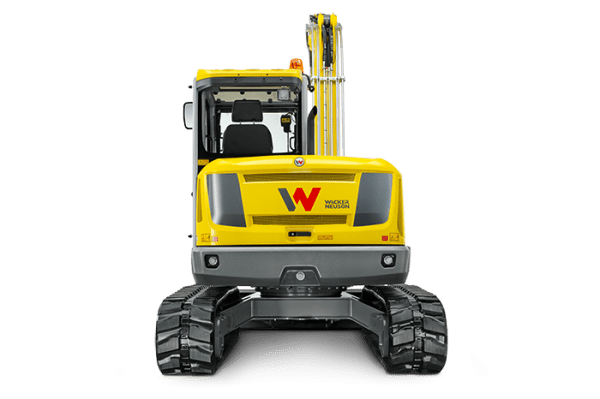

zero tail – compact all around

  • Overall compact dimensions, ideal for working in narrow spaces.
  • Zero Tail Excavator for safe operation close to walls, roads, buildings or other surrounding limitations as in inner cities or busy roads.
  • Optional counterweights improve stability.

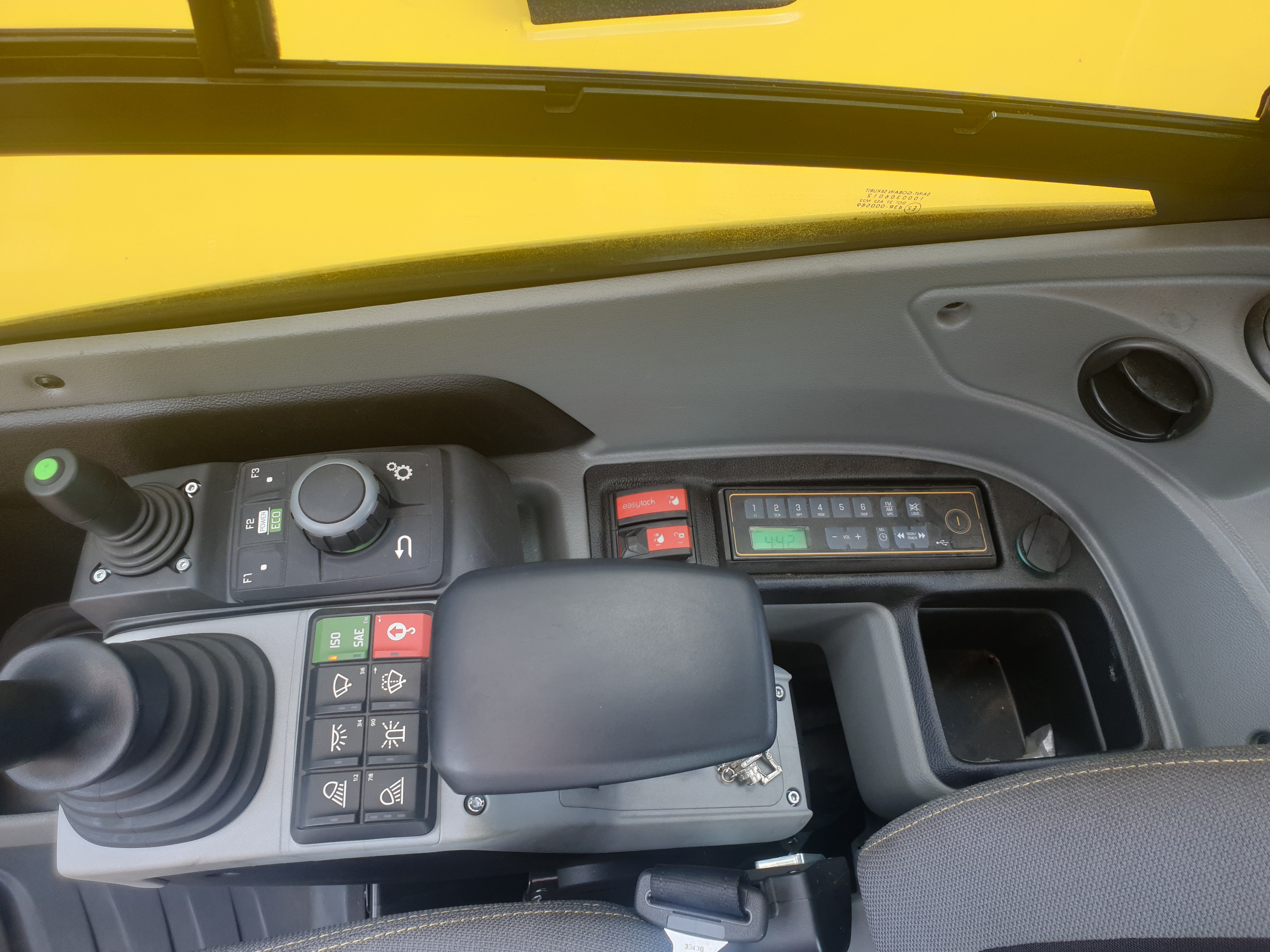

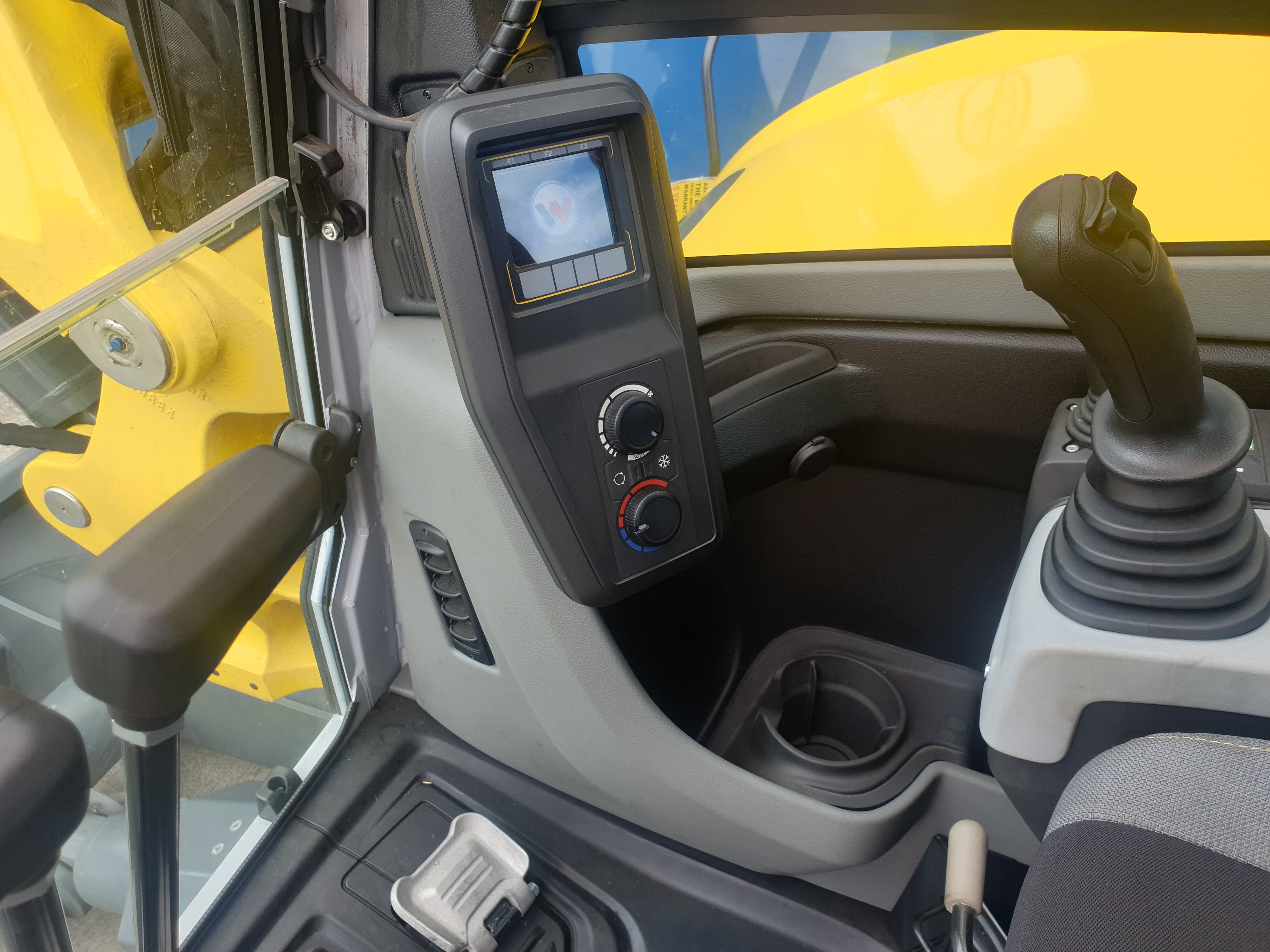

Jog dial system

  • Technology from the auto industry.
  • For the direct control of important functions
  • Intuitive to operate
