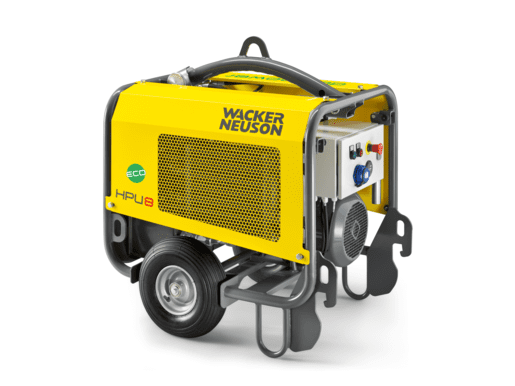

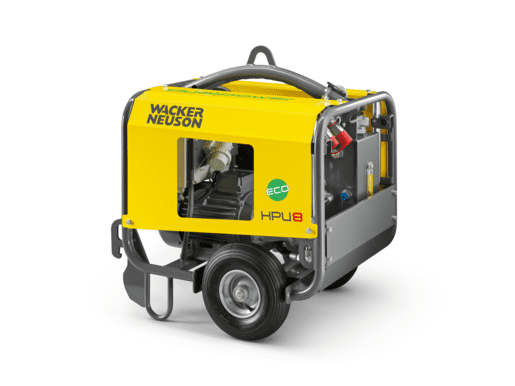

Hydraulic Power Unit HPU8 803 Dual Power

SKU 1000291913 Category Tag

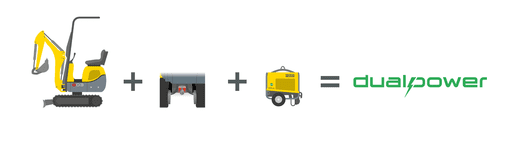

Innovative solution for emission-free auxiliary drive: for work indoors and in sensitive environments.

– Emission-free work – (indoors and sensitive environments).

– Broad range of applications with optimal equipment utilization.

– Easy to store and readily available.

– Consistent performance with both drives systems.

– Automatic low oil shutdown to protect the generator.

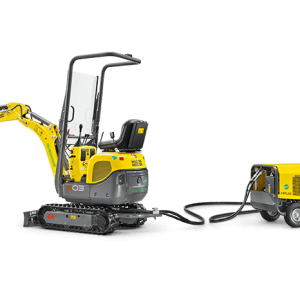

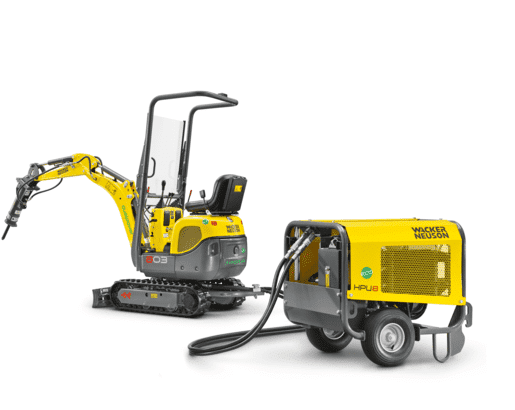

– Sturdy guide of the hydraulic hoses, 360° freedom of movement on the excavator.

– 12-meter hose for flexible storage options.

ELECTRICAL – OUTPUT DETAILS

Nominal current16 A
Phase3 ~
Nominal voltage400 V
Nominal power [P]7.5 kW

HYDRAULIC

Tank capacity9 L
Operating pressure hydraulics190 bar
Flow rate20 L/min

MECHANICAL DETAILS

Operating weight192 kg
Length930 mm
Height1,000 mm
Width720 mm
