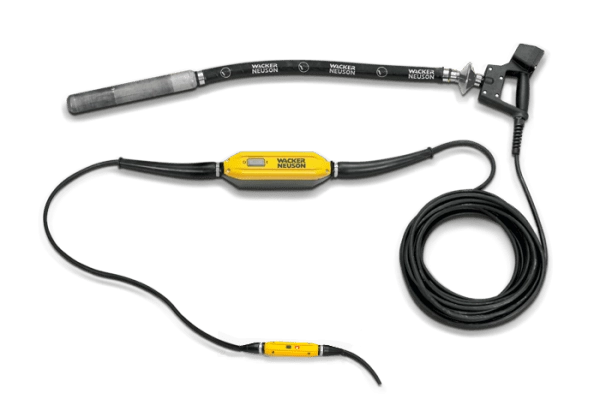

IRSE-FU45/230/08 – High Freq. Internal Vibrating Shaft – 230V, 1-Phase

SKU 5000610256 Category

Intelligent technology developed by Wacker Neuson: The integrated frequency converter of the high-frequency internal vibrator series IRSE-FU is simply convincing. It provides a much more independent operation without the necessity of an external converter. In adition the very practical guide handle of the IRSE-FU series also provides great user comfort.

   – Integrated frequency converter.
– Comfortable Low Vib guide handle.
– Sealed electronics.
– All components ‘Made in Germany’.
– Reliable operation, even if the input voltages fluctuate and when used with generators.

Diameter of the vibrator head: 45mm
Length of the vibrator head: 382mm
Weight of the vibrator head: 3.5kg
Operating weight: 15kg
Protective hose: 0.8m
Power Cable: 15m
Feed cable: 0.5m
Effective compaction diameter*: 60cm
Vibrations Per Minute (VPM): 12,000
Voltage 1~: 220-240V
Current: 4.8A
Frequency: 50-60Hz
Engine/Motor: High-frequency squirrel-cage induction motor with integrated electronic frequency converter in the switch box
Power: 0.7kW (0.9hp)
Features: Pistol grip

* This is a non binding indication, based on practical experience of our customers under certain operating conditions. For special conditions this value may vary. We recommend that you first perform a test under operating conditions.

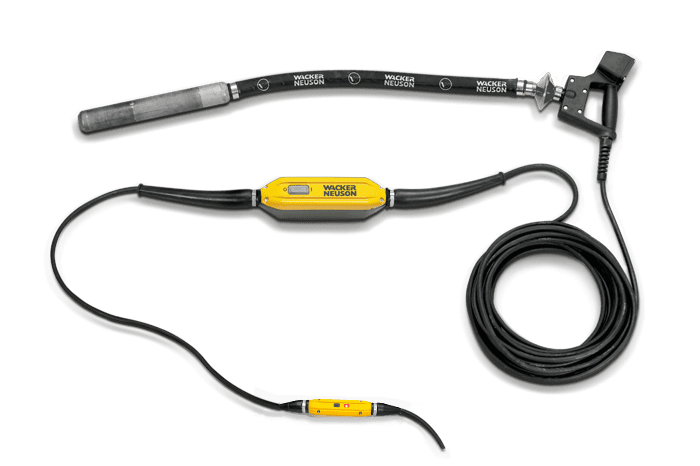

IRSE-FU in detail

Wacker Neuson BodyguardBodyguard
Safety First—the Bodyguard™ protection system offers additional safety to the operator. The Bodyguard™, which is attached at the end of a cable, controls all subsequent elements and switches the unit off within 3 milliseconds in the event of irregularities or danger of electric shock.

  • The Bodyguard is adaptable, i.e. when exchanging the cable, the Bodyguard can be connected to the new cable and thus can continue to be used.
  • Check functionality independently by using operating lights and test push buttons.

Integrated frequency converter

  • Save equipment: no additional frequency converters are necessary to operate this internal vibrator
  • Simply connect to a plug receptacle and get to work right away
  • Constant performance and high level of efficiency: reliable operation with generators and even with fluctuating input voltages
  • Work safely: no danger from current, thanks to the complete potted electronic components

Vibrator head sizes for all applications

  • Outfitted for any application – 2 vibrator head sizes available
  • Diameter 45, 58 mm

Vibrator head with cylindrical roller bearings

  • Extremely durable – completely tempered vibrator head
  • Less wear, especially with abrasive concrete aggregates
  • Plug effectively dispels shocks on the housing
  • Ideal for continuous use under construction site conditions

Practical guide handle

  • Ergonomic, low vibration handle for comfortable working when compacting large areas, such as floors and slabs

Protection hose

  • Made of sturdy, very abrasion resistant material

Power cable

  • You can’t get any more freedom of movement: Power cable with 15 meters in length
