Jetwave Cyclone+ 350-36.4 High Pressure Water Cleaner
Quick Specs
Category: Cold Water
Performance: 5,075 psi | 36.4 L/min
Drive: Petrol
Features
A decisive step into the future of water jetting technology with a product categorically developed for a mid-tier domestic /commercial pipe cleaning professional.
JetHydro dramatically improves and revolutionises the most significant aspects of a water jetting machine, and the overall experience.
It introduces innovative never seen before technology and capability on a jetting systems. The best performance, technology integration and life protection ever in such machinery. A range of endless mounting possibilities. Unified, smart LED digital display with unit protection parameters.
EFI engine
Oversized Cutting Edge Stationary Engine with EFI Technology from a global manufacturer, to assist with putting you ahead of the competition and maximise unit efficiency.
Pump, gearbox and components
The highest quality precision Italian manufactured components with enormous flow and pressure performance for the toughest blockages.

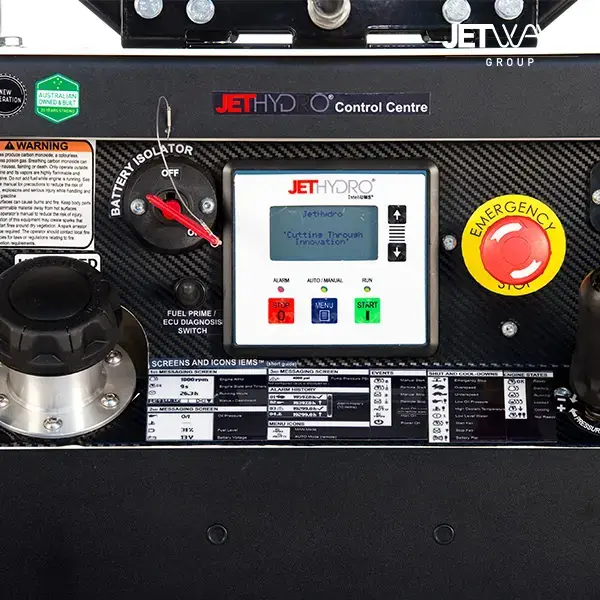

IntelliUMS™
Functional easy read LED backlit for unit data and monitoring protection and operator control.
Centralised control fascia panel
All unit controls ergonomically placed front facing for maximum mounting versatility and operator comfort.
Frame structure
Modular and compact precision CNC design incorporating provision for mounting kits.
100M capacity hose reel
NEW High quality extra heavy duty reel built to last with double ball bearing support precision, welded hub and hi-flow stainless steel swivel, in-built drag break and multi-point locking pin.
Cover protection
Sturdy industrial formed cover protection for durability and enduring component protection for the life of your investment.
Forklift integrated pockets
Easy transportation via forklift around on-site.
High/Low pressure outlets
External panel mounted for plug+play connection for multi-configuration.
Safety valve
Compliant and set valve to prevent pressure spikes and damage to the pump.
Water tank
High quality stainless-steel, sturdy and large capacity with a high flow float valve system. Detachable for water cartage tank feed / larger capacity.
Anti-vibration system
Exclusive to JetHydro this boasts life expectancy and ensures a longer, quieter unit performance.
Top lift / Tie down
Engineered certified top lifting facility for job site and ease of mobility.
Low level water cut out
To ensure pump anti-run dry protection at all times.
Heavy duty
Washable in-line stainless steel gauze water filter.
Adjustable pressure
Fascia mounted unloader valve for flexible cleaning.

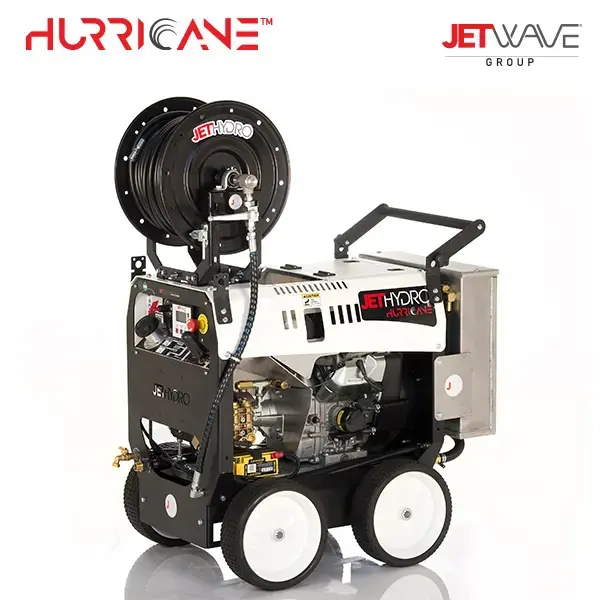

Optional trolley kit
For onsite mobility and versatility.
Optional remote start/stop
150m range with encrypted frequency and a near indestructible specially designed remote control.
Technical Specifications
Motor Features | |
| Engine type | VANGUARD Briggs & Stratton |
| Power | 33 hp |
| Capacity | 896 cc |
| Engine Control Module | EFI |
| Fuel supply | Unleaded |
| Unit Management System | InteliUMS™ |
Hydraulic Features | |
| Pump/Head/Pistons | Triplex Plunger / Brass / Ceramic / SS |
| Motor pump coupling | Gearbox |
| Pump speed | 1450 rpm |
| Unloader valve | E/Z Start brass adjustable |
| Safety valve | Yes |
Hero Innovations
InteliUMS
World first LCD back-lit screen provides integrated operator control, monitoring and protection.
EFI Motor
The BIG BLOCK™ V-Twin petrol engine delivers some of the best power, performance and reliability in its class. With its automotive style EFI closed loop technology it optimises all engine speeds and loads.
Cover Protection
The semi-enclosed industrial formed steel cover design provides enduring weather protection to the entire machine and importantly its critical working components in the harsh elements due to the unforgiving outdoor working conditions.
Auto Speed Technology (AST)
Auto-speed technology, a JetHydro exclusive, provides a link from pump to engine, in effect when jetting is not taking place the engine will decrease to idle RPM speed and back up to optimal RPM full speed to achieve working pressure and flow for the Jetting process. Allowing you to get more out of your equipment putting it to work for longer ultimately effecting positively your bottom line.
Centralised Control
Front facing and panel mounted controls for easy accessibility to all controls and adjustment components that ensure that equipment delivers correctly and to adapt to your jetting job at hand in order to maximise blockage clearing efficiency, effectiveness and operator friendliness.
Typical Applications
– PVC Pipes
– Sewer Lines
– Branch Sewer Lines
Stormwater Pipes
– Sinks & Vanities
– Bathtubs
– Roof Drains
– Shower Stalls
– Yard & Lot Drains
– Floor Drains
– Toilets Urinals
