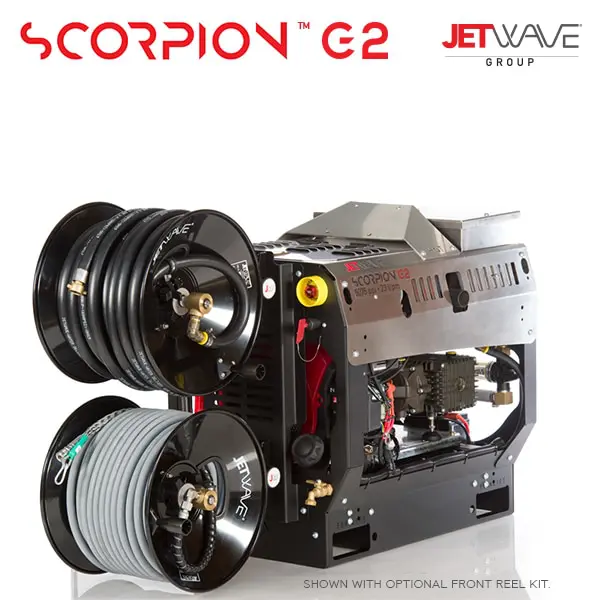

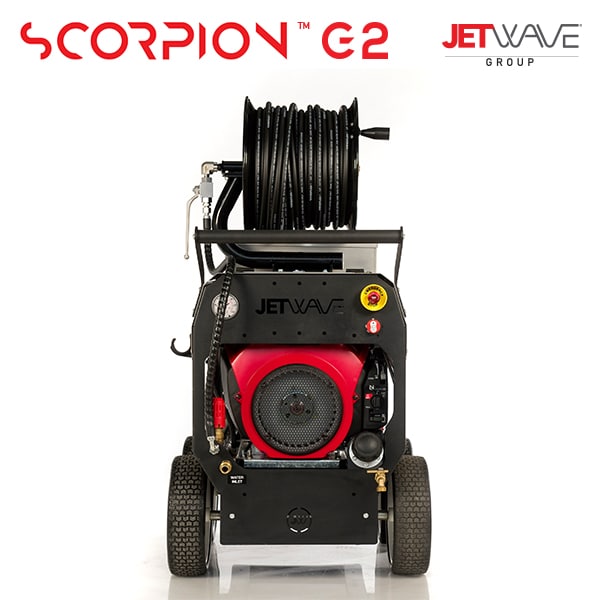

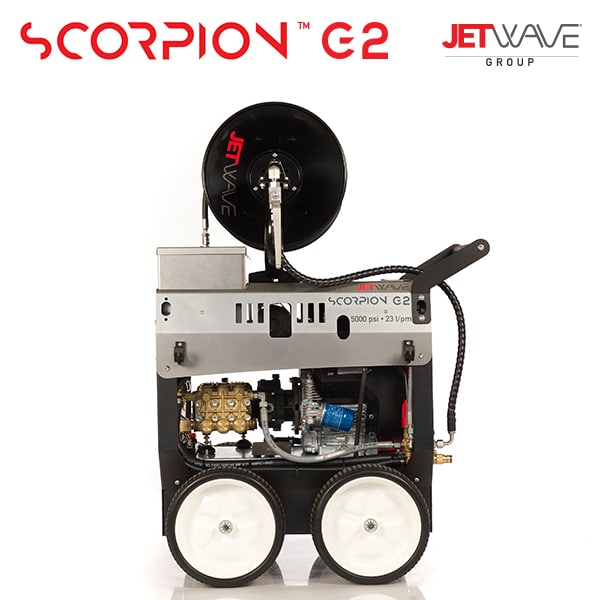

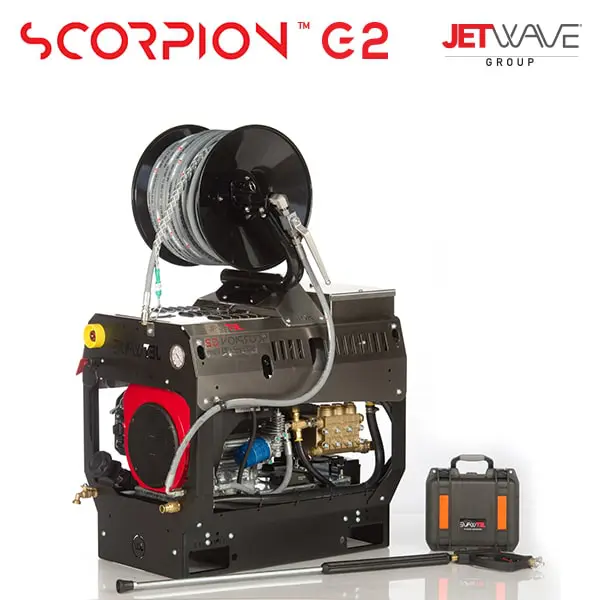

Jetwave Scorpion G2 300-26 High Pressure Water Cleaner

Category

Quick Specs

Category: Cold Water
Performance: 4,350 psi | 26 L/min
Drive: Petrol



Features

The Jetwave® Scorpion™ G2 heavy duty professional cold water petrol powered by HONDA™ drain cleaner is revolutionary in its design and innovation. Australian engineered and assembled using only the best quality Italian and global components; it offers world first cover protection to maximise efficiency safety and minimise downtime.



JW professional Italian triplex plunger pump delivers performance and longer life.

Low speed professional pump for increased reliability and longer maintenance intervals.

V-TWIN HONDA™ GX690 Industrial Series OHV Engine.

Dual M22 screw hose quick coupling system.

Heavy duty washable inlet water filter.

Battery Isolator.

Jetwave Safety System™ (JSS) thermal & safety valve to prevent overheating in excessive bypass and over pressurisation.

Integrated accessory storage for gun and lance.

Professional line accessories.

Stainless steel pressure gauge.

Brass adjustable unloader valve.

Emergency stop.

Forklift pockets.

Technical Specifications

CategoryCold Water
Pressure (working)4,350 psi
Flow Rate26 L/min
DrivePetrol
Usage FrequencyDaily

Motor Features

EngineHONDA™ GX690  (4 stroke, air cooled)
Fuel SupplyUnleaded
Fuel Capacity25 L
Low Oil ShutdownYes
Starting SystemElectric Key Start

Hydraulic Features

Pump/Head/PistonsJW® Triplex Plunger / Brass / Ceramic
Motor Pump CouplingGearbox Drive
Pump Speed1,450 rpm
Unloader ValveIndependent
Orifice/Nozzle Size45

Typical Applications

Plumbing Businesses and Contractors

Tree Roots and Debris Removal

Grease, Sludge & Dirt Removal

Municipality Contractors

State and Local Councils



Protection
The semi-enclosed industrial formed steel cover design provides enduring weather protection to the entire machine and importantly its critical working components in the harsh elements due to the unforgiving outdoor working conditions.

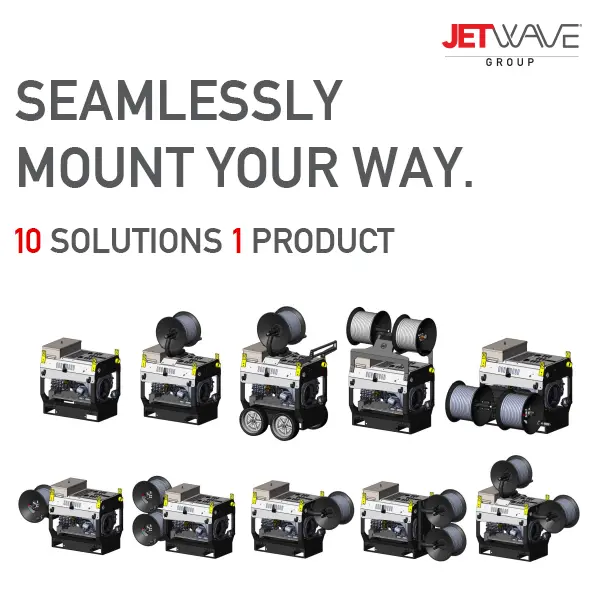

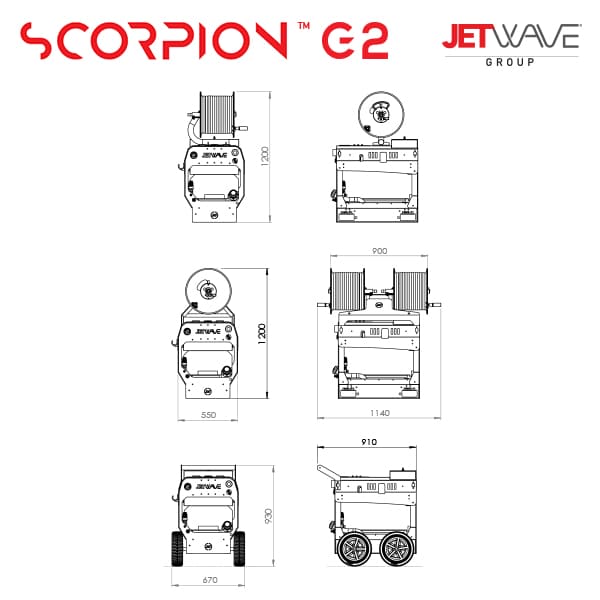

Multi-Configuration
Industry first customisable modular build with precision heavy gauge, steel chassis. Versatility for almost any mounting arrangement you can imagine.

Centralised Control
Front facing and panel mounted controls for easy accessibility to all controls and adjustment components that ensure that equipment delivers correctly and to adapt to your jetting job at hand in order to maximise blockage clearing efficiency, effectiveness and operator friendliness.

Anti-Vibration Protection System
The AVPS (Anti-Vibration Protection System) contributes to a quieter performance. It has a heavy duty steel motor plate to separate vibration frequency created from the power plant via high duro rubber and enforced steel dampeners.

Skid Configuration with Top Lift Points
The skid design ensures the unit remains well planted at all times, preventing run-aways. For transportation the forklift pockets and top lift access provide safety and convenience.
