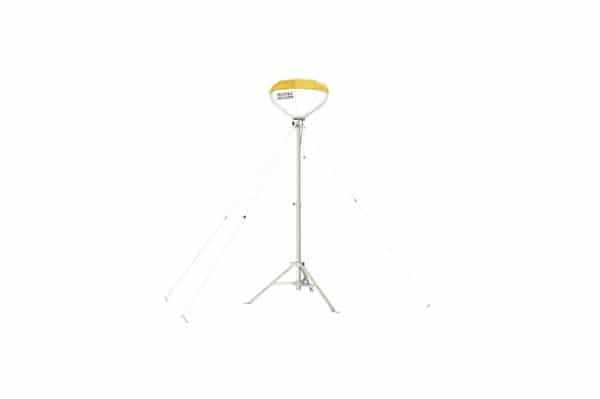

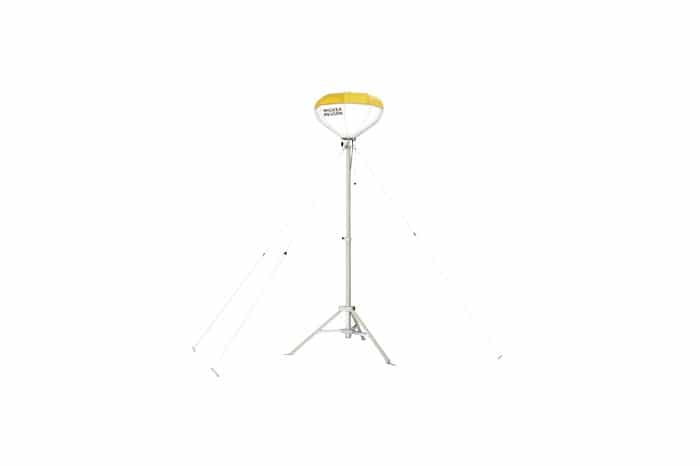

Light Balloon LB50H/230/50 230V 2000W 5m
SKU
5100005847
Category Lighting
$2,953.00 Incl GST
Package includes the below Light Balloon, Tripod, Anchor Set, & Carry Case

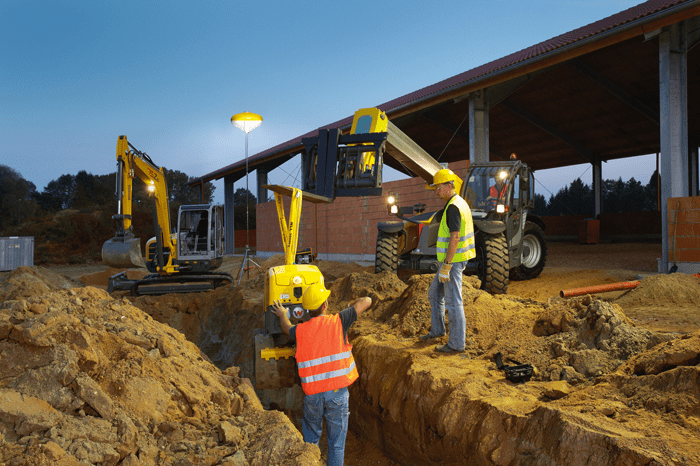

With the flexible and compact light balloon module system from Wacker Neuson, you quickly have a light balloon that is perfectly adapted to your light needs. Thanks to a simple design, the set-up of the light balloon is quick and easy.
The 80,000-lumen metal halide lamp and the 50,000-lumen halogen lamp both offer a very bright light, but without the glare. This makes it particularly suitable for use in road traffic.
Two tripods to choose from and a variety of accessories complete the overall package and provide light exactly where you need it.
– Metal halide lamps (HQI) or halogen lamps are optionally available. Both offer glare-free light.
– 2 tripods to choose from with a light source height of 3.4 or 5 meters.
– Attractive accessories for more comfort during transport and set-up.
– With weighing plates wind stable in operating conditions up to 100 km/h (assuming a secure base of the light balloon on solid, level ground and a constant wind direction).
Balloons | |
Illumination coverage* | 154 m² |
Luminous flux | 50,000 lm |
Lamp type | Halogen |
Lamp output | 2,000 W |
Dimensions Ø x H | 1,000 x 700 mm |
Diameter | 1,000 mm |
Height | 700 mm |
Operating weight | 8.6 kg |
Operating temperature (min.) | -25 ° C |
Operating temperature (max.) | 40 ° C |
Voltage | 230 V |
Operating current | 8.7 A |
Frequency | 50 Hz |
Cable length (balloon to ballast) | 5.6 m |
Transport dimensions (L x W x H) | 1,350 x 230 x 452 mm |
*With at least 20 foot-candles; light at 5 meters height |

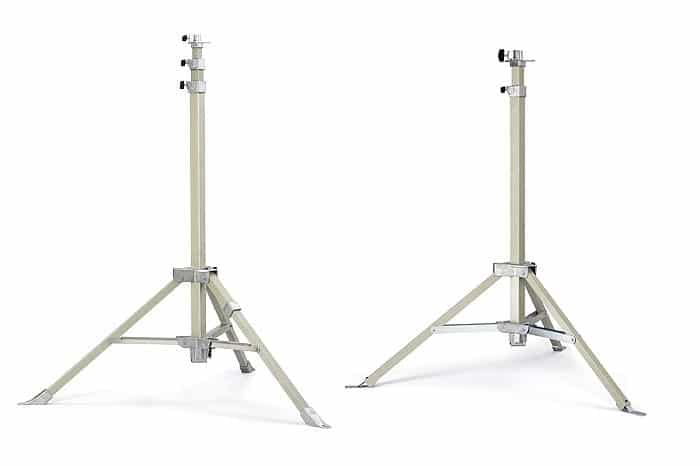

Tripods | ||
Tripod Pro | Tripod Compact | |
Dimensions (L x W x H) | 1620 x 1435 x 1920 – 4618mm | 1590 x 1430 x 1840 – 3106mm |
Height Light point (min.) | 2.3 m | 2.2 m |
Height Light point (max.) | 5 m | 3.4 m |
Weight | 17 kg | 14.6 kg |

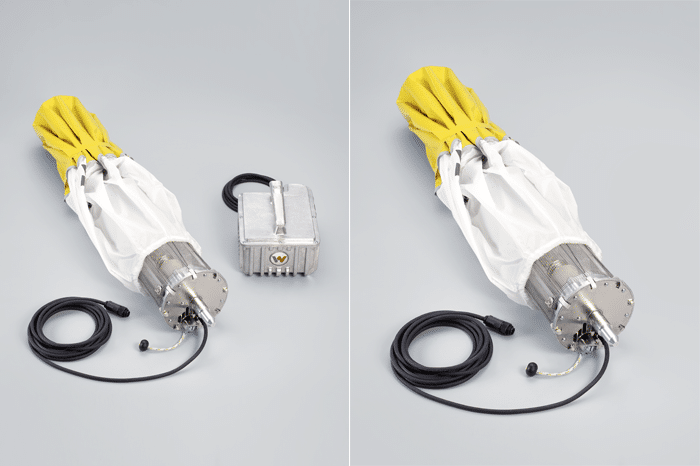

Mountable light balloons | |
![]() ![]() | ![]() ![]() |

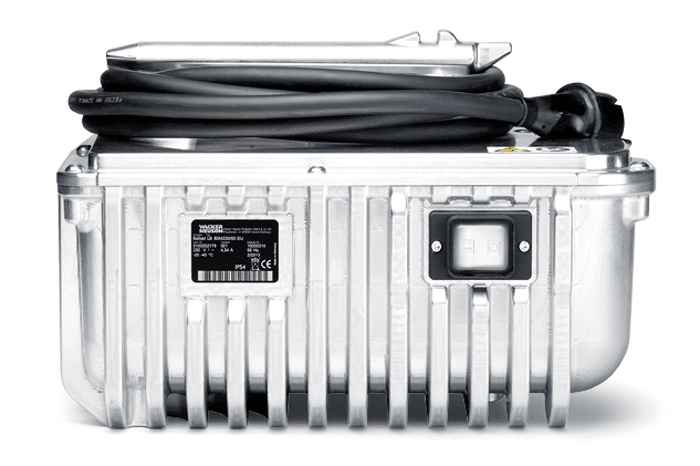

HQI lamp with 80,000 lumens and ballast | Halogen lamp (operation without ballast): 100% luminance intensity directly after switching on |

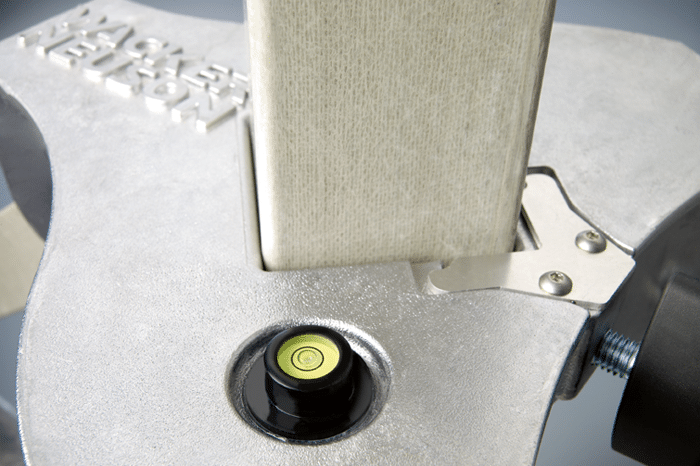

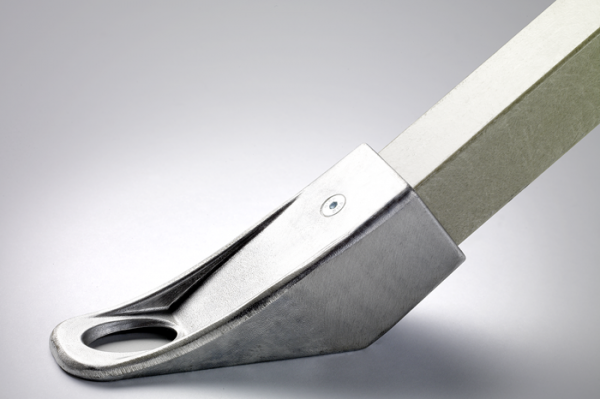

Sturdy tripods | |
![]() ![]() | ![]() ![]() |
Tripod Pro: Light source height of 5 meters | Tripod Compact: Light source height of 3.4 meters |
Convenient accessories | ||
![]() ![]() | ![]() ![]() | ![]() ![]() |

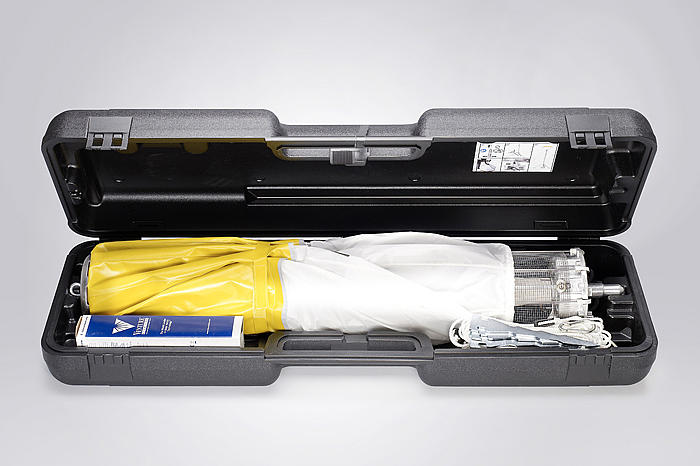

Carry case | Carry bag | Strap |
![]() ![]() | ![]() ![]() | ![]() ![]() |

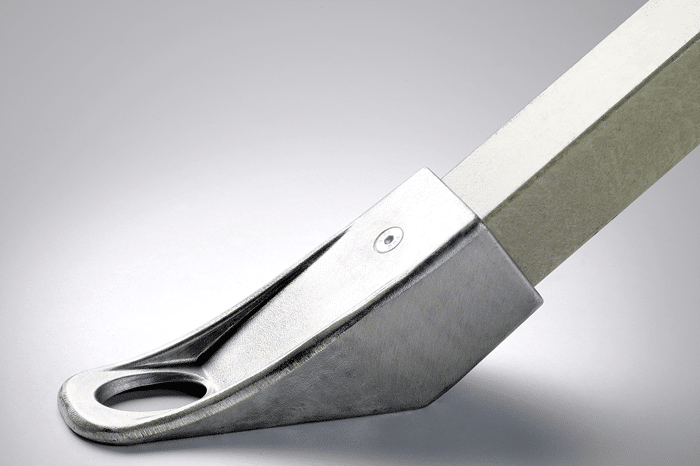

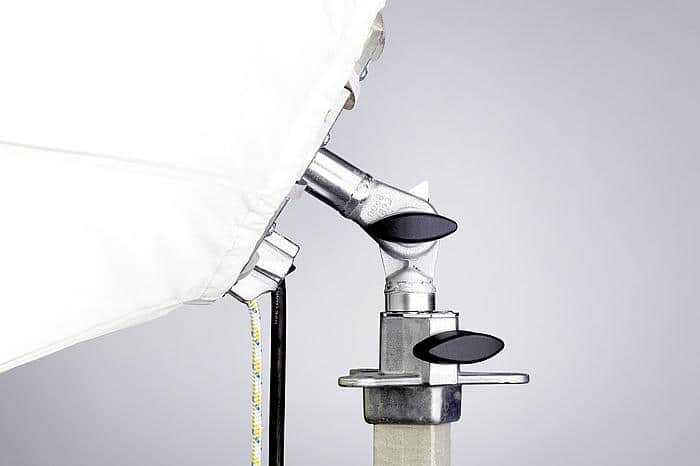

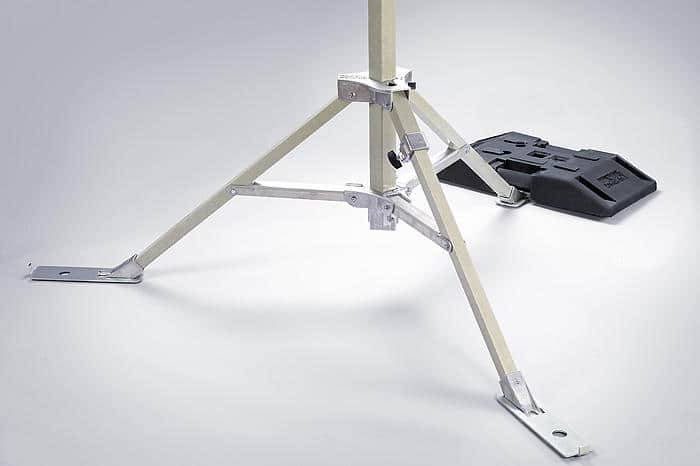

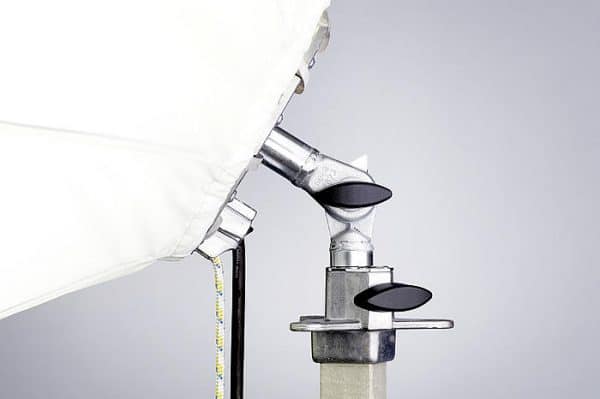

Anchoring set | Adapter for weighting elements | Joint: Ideal, for example, for lighting wall |
Illumination areas | ||
![]() ![]() | ![]() ![]() | ![]() ![]() |
Illumination with HQI lamp with 5 meter tripod height | Illumination with halogen lamp with 5 meter tripod height | Illumination with halogen lamp with 3.4 meter tripod height |
