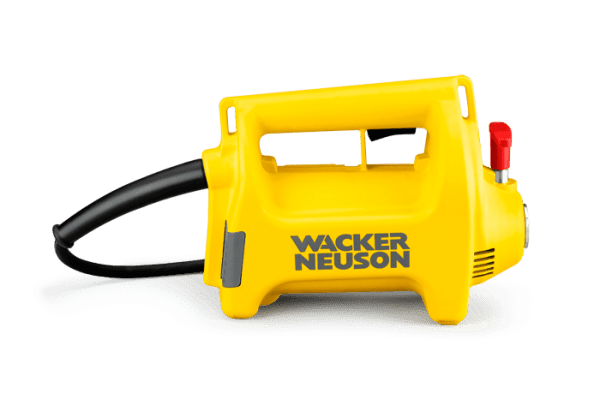

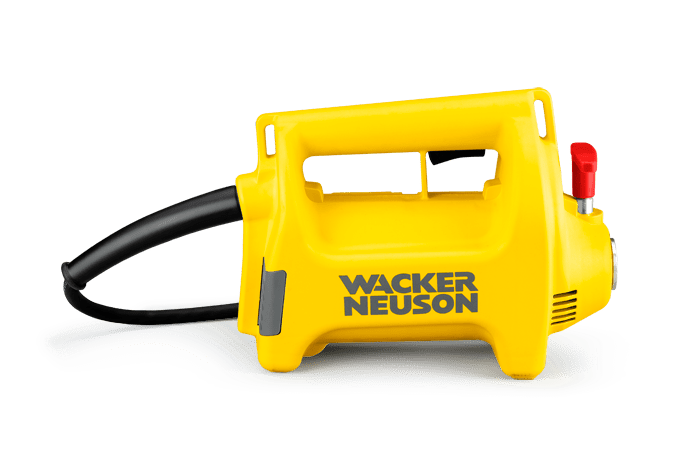

M2500 – Drive Unit – Electric



– Wide range of components: Flexible shafts 0.5–9m, vibrator heads 25–65mm, diesel, gasoline and electric motors.

– Serviceability: Low cost and time effort for maintenance jobs.

– Durable components: Hardened vibrator head, durable housing, reinforced protection hose.

– Reliable and strong performance: High-quality engines for productive work with a high-quality result.

– Housing made of high-strength, break-proof synthetic material, compactly and ergonomically shaped.

   – Protected against splash water from all directions (IP24).

– Extremely long service life of the carbon brushes (up to 500 operating hours).

– Air cleaner replacement from the outside.

– Rapid action coupling for tool-free connection of the flexible shaft.

MOTOR
Nominal speed: 12,000rpm
Motor type: double insulated universal motor
Nominal power: 1.8 kW
Idle speed: 16,000rpm

ELECTRICAL – OUTPUT DETAILS
Nominal voltage: 230V (single phase)
Nominal current: 7.8A
Nominal frequency: 50 – 60 Hz

ELECTRICAL SYSTEM
Cable definition: CEE 7/17
Reserve: CEE 7/17 (5.0 m)
Remote Control Bat. Capacity: CEE 7/17
Light cone: 5.0m
Kind of plug: CEE 7/17
Operating elements: 5.0m
Cable length: 5.0m

MECHANICAL DETAILS
Dimensions: 312mm (L) x 230mm (H) x 154mm (W)
Operating weight: 5.9 kg

ENVIRONMENT DATA
Sound level LpA (Standard): DIN EN ISO 11201
Protection class: II / Protective insulation
Vibration total value ahv: 5.0 m/s^2
Uncertainty in measurement HAV: 1.0 m/s^2
Sound level LpA: 85dB(A)
Vibration value ahv (Standard): DIN EN ISO 20643
Degree of protection: IP24
