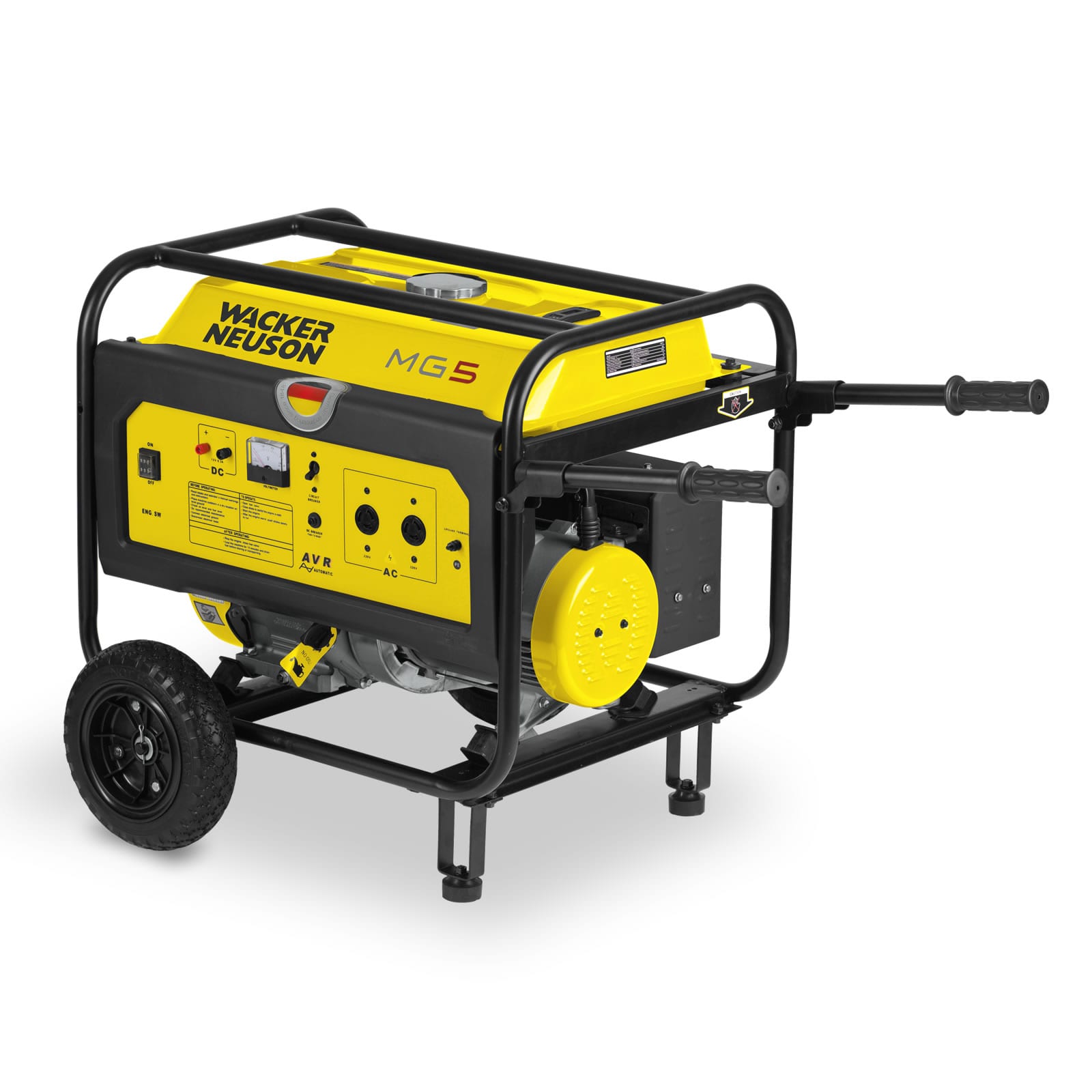

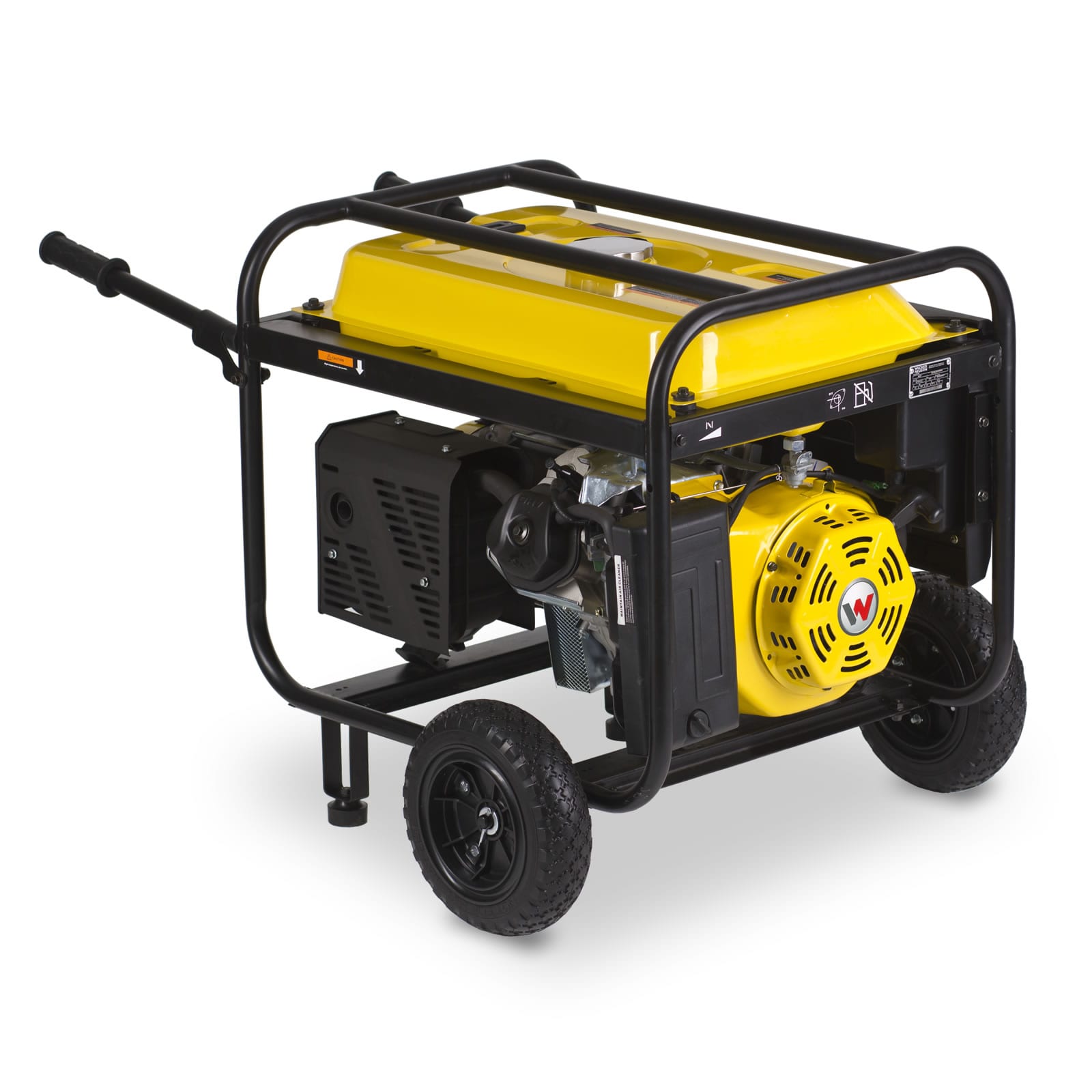

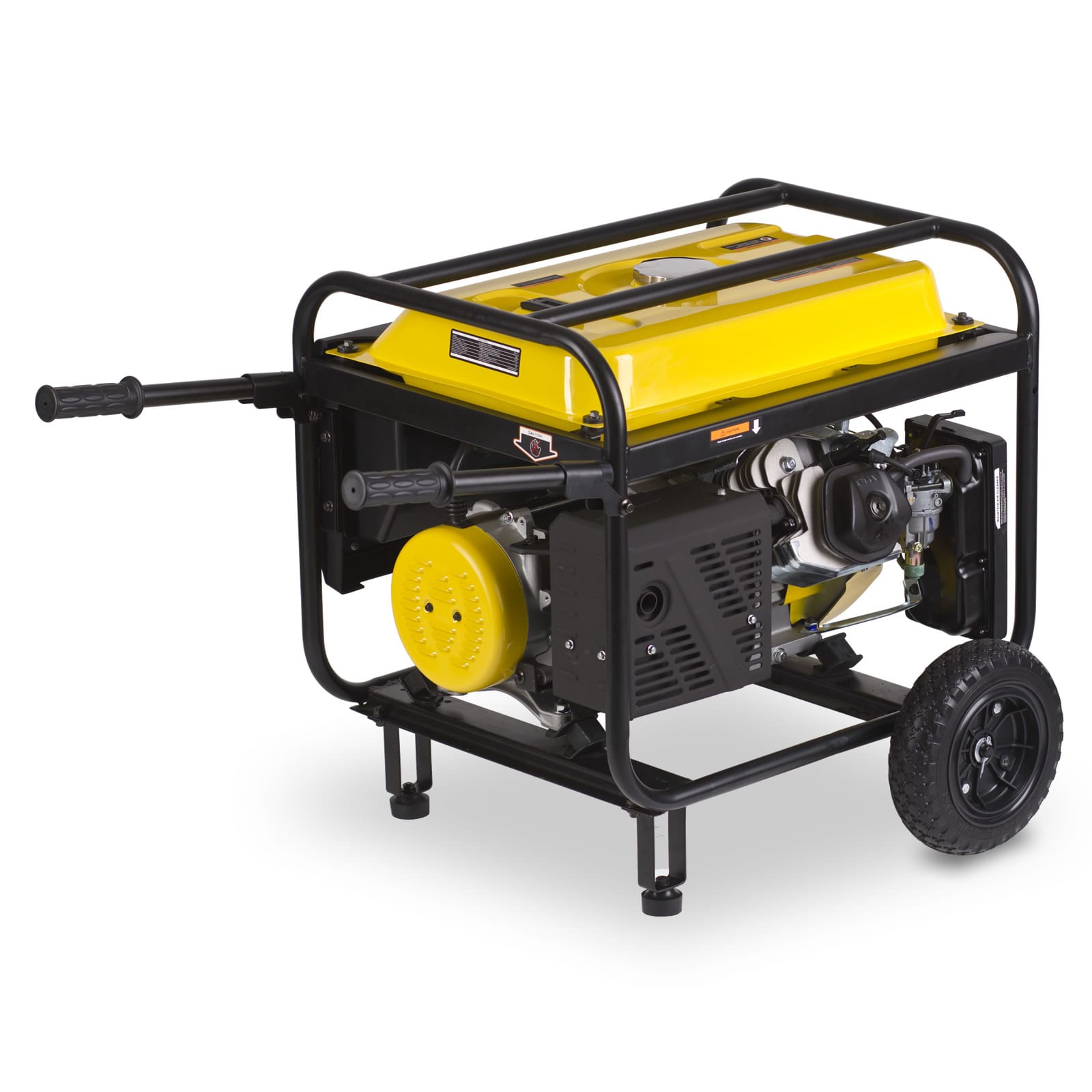

MG5-AU – Generator 5KVA – Petrol

SKU 0630393 Category

Economical generators for reliable job site power. This economical, yet rugged portable generator series is designed to fit every job site and every budget. These units provide hours of reliable job site power and performance. Ideally suited for construction, industrial, commercial, domestic and farm applications.

– A fully wrapped frame with heavy duty steel bars protects the generator under rugged job site conditions and superior performance shock mounts minimize vibration for longer machine life.

– Maintenance-free wheel kit with non-inflatable tires and foldable handles make it easy to move around on site.

– All units feature a Wacker Neuson 4-stroke gasoline engine for reliable power.

– Unique diversion trench fuel tank design for increased safety and user-friendliness.

– Extra durable fuel tank made from strengthened steel.

Technical Specifications

Dimensions (L x W x H): 683 × 540 × 552 mm
Net weight (without fuel): 82 kg
Operating weight (fuel tank half full): 94 kg
Output performance (max.): 5.5 kW
Output performance (rated): 5.0 kW
Rated voltage (single-phase): 220 V
Frequency: 50/60 Hz

Engine / Motor

Engine / Motor type: air-cooled, 4-stroke, single cylinder with recoil starter
Engine / Motor: Wacker Neuson WN13
Displacement: 389cm³
Operating performance: 7.5kW
at rpm: 3,000 rpm
Fuel tank capacity: 25 L
Run time: 8 hrs
