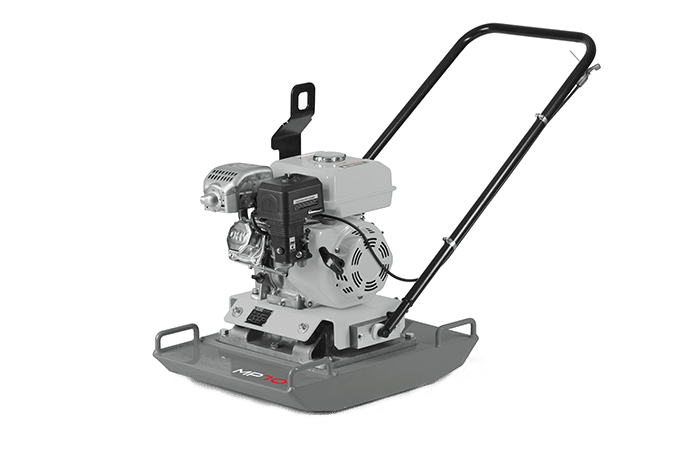

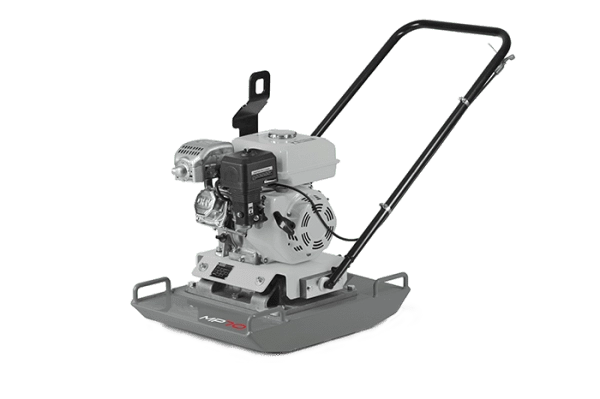

MP70 - Vibrating Plate - Petrol
SKU 630243
Category Single Direction Vibrating Plates - Soil & Paving Compaction
$1,598.11 Incl GST
With a powerful Wacker Neuson petrol engine, low weight, compact dimensions and low-maintenance design, the MP70 Vibratory Plate is ideal for the compaction of sand, crushed rock, granular materials and segmental brick paving.
– Compact design with centrally mounted, fully enclosed exciter for an even spread of compaction force over the whole base plate.
– Sturdy 4-stroke petrol engine with recoil starter is isolated from vibration by rubber dampers.
– Vibration isolated reversible handle with throttle control for ease of operation and reduced operator fatigue.
– Conveniently placed lifting handles, and a central lifting point for safe and easy handling.
– Low maintenance design.
Operating data
Operating weight (without fuel): 76 kg
Centrifugal force: 15 kN
Base plate size (W x L): 460 x 610 mm
Advance travel max. (depending on soil): 30 m/min
Surface capacity max. (depending on soil): 830 m²/h
Engine / Motor
Engine / Motor type: Air-cooled, single cylinder, 4-cycle gasoline engine
Engine / Motor manufacturer: Wacker Neuson
Engine / Motor model: WN6
Displacement: 179 cm³
Engine performance (max.): 4.2 kW
at rpm: 3,600 rpm
Fuel consumption: 1.27 L/h
Tank capacity: 3.6 L
