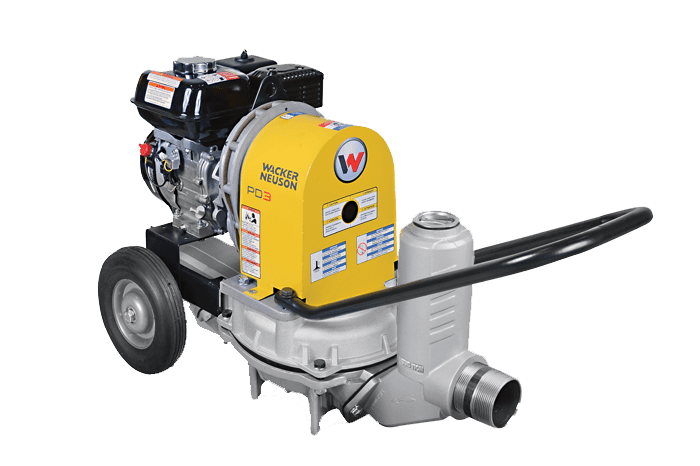

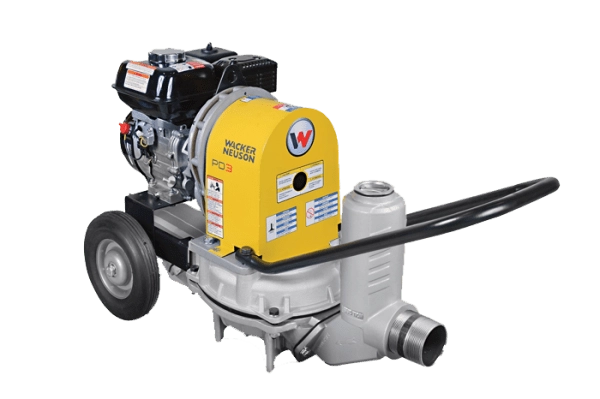

PDI3A – Diaphragm Pump 3″ – Petrol

SKU 5000620776 Category

Wacker Neuson’s diaphragm trash pumps can move almost anything that flows. The direct water flow design minimizes down times caused by blockages and permits unsupervised operation. The high-quality components of these machines guarantee optimal performance and a long service life. PDI pumps can handle the removal of liquids containing solids up to 45 mm, ideal for dewatering mud slurries and sumps.

– Safe to run dry: No damage is caused in “snore mode”, i.e. running intermittently due to lack of water.

– The surge chamber at the inlet absorbs pressure surges. That ensures a smooth pumping action and minimizes wear and tear.

– Oil-bath lubrication constantly greases all parts of the transmission system, thus reducing both maintenance costs and down time.

Technical Specifications

Dimensions (L x W x H)1067 x 457 x 589 mm
Diameter suction and discharge75 mm
Operating weight63 kg
Discharge head7.6 m
Discharge capacity333 L/min
Suction height lift7.6 m
Solids diameter max. size41 mm

Engine / Motor

Engine / Motor type Air-cooled, single-cylinder
Engine / Motor manufacturer Honda
Engine / Motor modelGX 120
Displacement118 cm³
Max engine speed3600 rpm
Operating speed2800 rpm
Power (max. rated)2.6 kW
Engine oil0.6 L
Fuel type Petrol
Fuel consumption1.1 L/h
Fuel tank capacity2.5 L
Run time2.2 hrs
