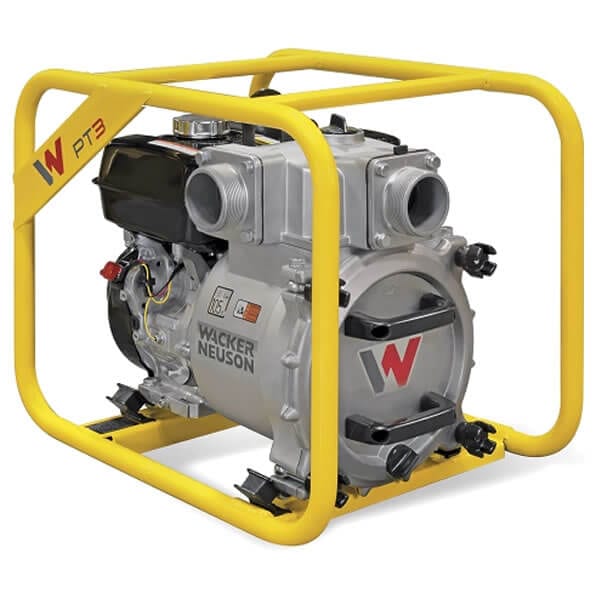

PT3H – Self Prime Trash Pump 3″ – Diesel

SKU 5000009103 Category

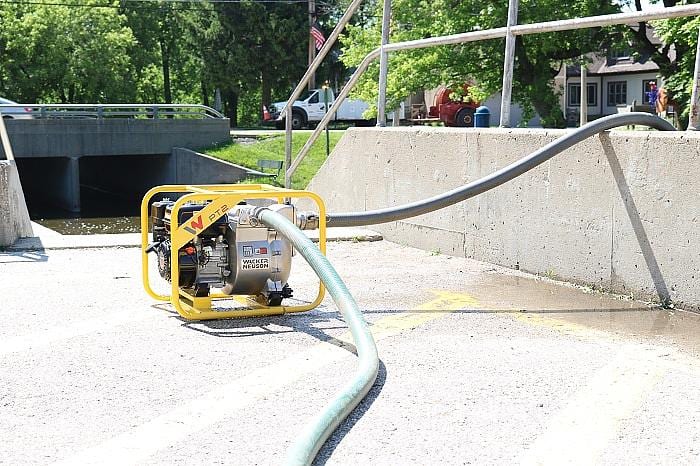

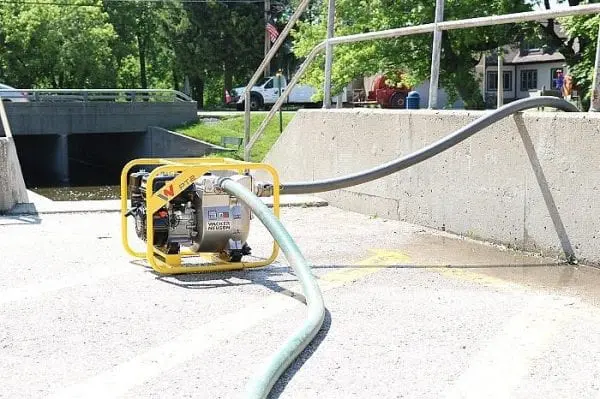

The trash water centrifugal pumps from Wacker Neuson have proven their worth on construction sites around the world. These high-performance, self-priming pumps can handle solids up to 25, 40 or 50 mm in size. They deliver an outstanding performance by their high volume capacities and large discharge head. PT pumps are perfectly suited for construction sites that need to be dewatered quickly.

– Robust and durable, ideally suited for a variety of applications and the various conditions on a construction site.

– Very large pumping volume, ideal for quick drainage and dewatering.

– Low oil level shutdown: The automatic shutdown at low oil level prevents damage to the machine, even if oil is not refilled in time.

– Easy operation and good maintenance access.

– Large, easily accessible fill and drain plugs allow years of trouble-free operation.

Technical Specifications

Dimensions (L x W x H)673 x 505 x 569 mm
Diameter (suction & discharge)75 mm
Operating weight77 kg
Discharge head29 m
Discharge capacity1,350 L/min
Pressure3.2 bar
Suction height7.6 m
Solids diameter max.38 mm

Engine / Motor

Engine / Motor type Air-cooled, single cylinder
Engine / Motor manufacturer Hatz diesel
Displacement347 cm³
Operating speed3500 rpm
Power max. rated5.0 kW
Power rating specification SAE 3046 IFN
Fuel type Diesel
Fuel tank capacity5.0 L
Fuel consumption1.7 L/h
Run time3 hrs
