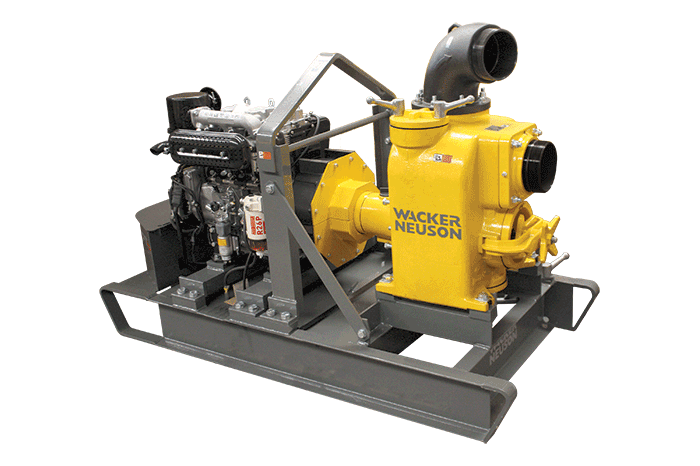

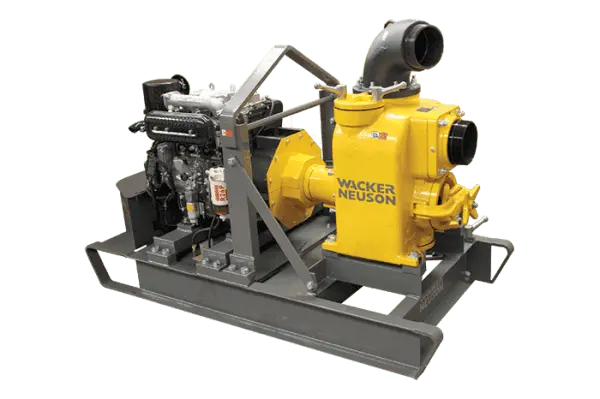

PT6LS - Self Prime Trash Pump 6" - Diesel
SKU
5200012427
Category Mobile Trash Pumps
$20,158.04 $19,150.14 Incl GST
Out of stock
6″ trash pump for your heavy duty dewatering jobs. The PT 6 self-priming centrifugal, trash pump provides fast, cost effective pumping solution for larger jobs. With the ability to move water up to 1,300 gpm (4,935 L/min) containing solids up to 2″ (50mm) big dewatering jobs are completed fast so work can continue. Featuring cast ductile iron pump housing, impeller, wear plate and volute, this durable trash pump offers a long, trouble-free service life. This high performance pump is an ideal choice where ever larger volumes of water need to be moved.
– Mixed flow impeller design produces high volume and head for increased pump capacity.
– Oil-lubricated silicone carbide seal reduces maintenance and provides seal protection.
– Discharge elbow rotates 360 degrees to accommodate various discharge angles.
– Automatic engine shutdown protects engine from damage due to low oil pressure or high cylinder
temperature.
– Liquid-cooled Tier 4 diesel engine enhances reliability and provides cleaner emissions.
Technical Specifications
Dimensions (L x W x H) | 2,007 x 889 x 1,219 mm |
Diameter (suction & discharge) | 152 mm (6″) |
Operating weight | 850 kg |
Discharge head | 30.5 m |
Discharge capacity | 4,935 L/min |
Pressure | 3 bar |
Suction height | 7.5 m |
Solids diameter max. | 50 mm |
Engine / Motor | |
Engine / Motor type | Diesel, liquid cooled |
Engine / Motor manufacturer | Kohler |
Displacement | 1.37L |
Operating speed | 2,000 rpm |
Power max. rated | 23.7 kW |
Fuel type | Diesel |
Fuel tank capacity | 106 L |
Run time | 17.3 hrs |
