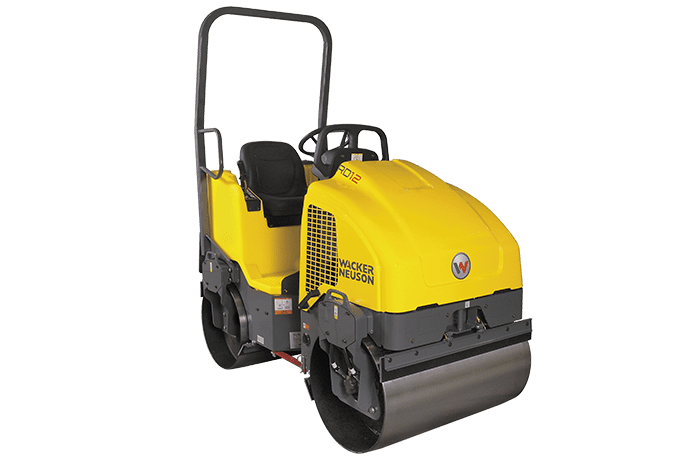

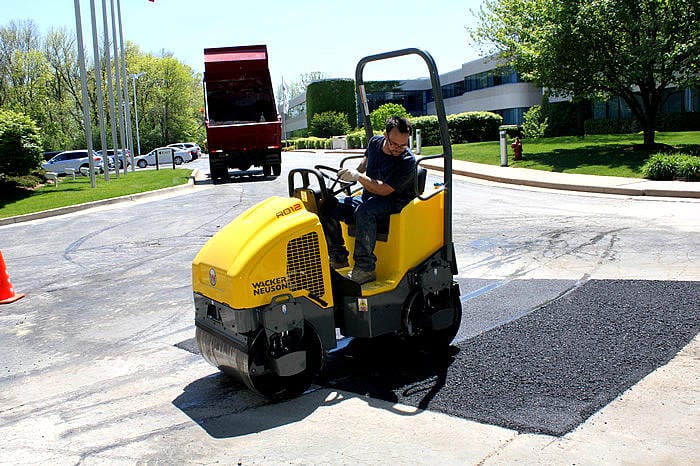

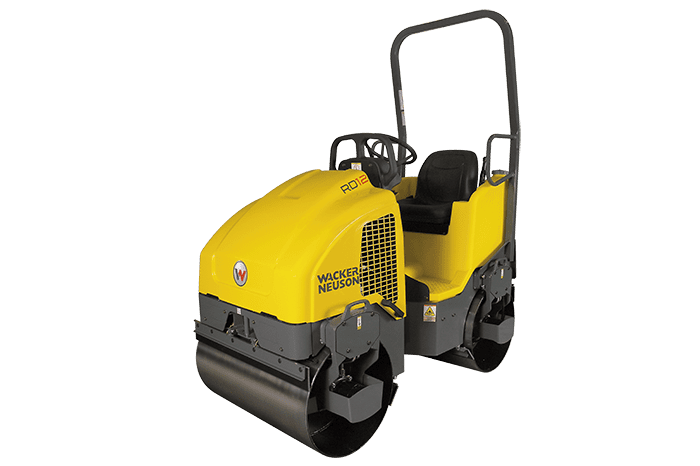

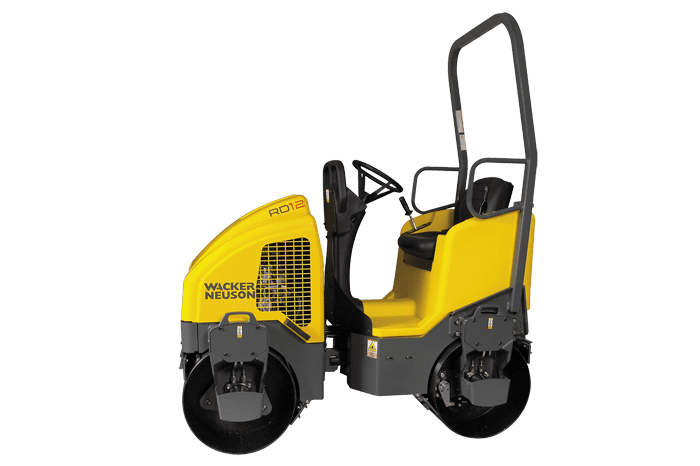

RD12A-90 - Double Drum Ride-On Roller - Petrol
The RD12 one-ton roller series features dual drum drive and articulated steering for extremely accurate control. Front drum vibration with static rear drum leaves a quality asphalt finish. Outstanding overall roller performance and a high exciter frequency allows compaction at faster speeds while still delivering even coverage and excellent results.
– Easily maneuverable units provide flush compaction to curbs and obstructions.
– Pressurized water system offers consistent water flow. An eight position timer allows the operator to adjust water flow to match conditions.
– Rear platform and front hood tilt up for easy access and improve machine serviceability.
– Rollers offer reduced sound levels; units run quieter than competitive machines in the same class.
Operating data | |
Operating weight w/ operator | 1,130 kg |
Dimensions (L x W x H) | 1,824 x 1,035 x 2,300 mm |
Drum width | 900 mm |
Drum diameter | 560 mm |
Side clearance right | 44 mm |
Side clearance left | 89 mm |
Curb clearance right | 399 mm |
Curb clearance left | 208 mm |
Centrifugal force dynamic (front drum) | 15 kN |
Frequency | 70 Hz |
Linear force – front / rear static | 4.9 / 7.2 N/mm |
Linear force dynamic (front) | 16.8 N/mm |
Travel speed forward | 8.7 km/h |
Travel speed reverse | 8.7 km/h |
Surface capacity area | 7,830 m²/h |
Gradeability max. (w/ and w/o vibration) | 30% |
Gradeability limit (engine) | 32% |
Turning radius outside | 2,451 mm |
Engine / Motor | |
Engine / Motor type | air-cooled, 2-cylinder, gasoline engine |
Engine / Motor manufacturer | Honda GX 630 |
Displacement | 688 cm³ |
RPM / speed operating speed | 3,100 rpm |
Operating performance max. rated at 3600 rpm | 15.1 kW |
Fuel consumption | 6 L/h |
Fuel tank capacity | 23 L |
Water tank capacity | 100 L |
