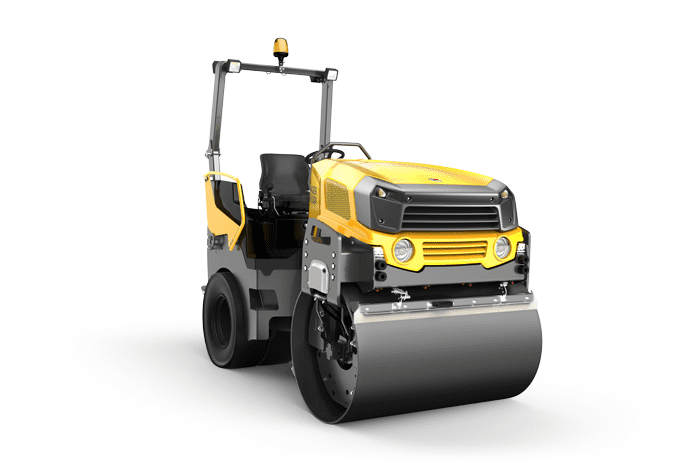

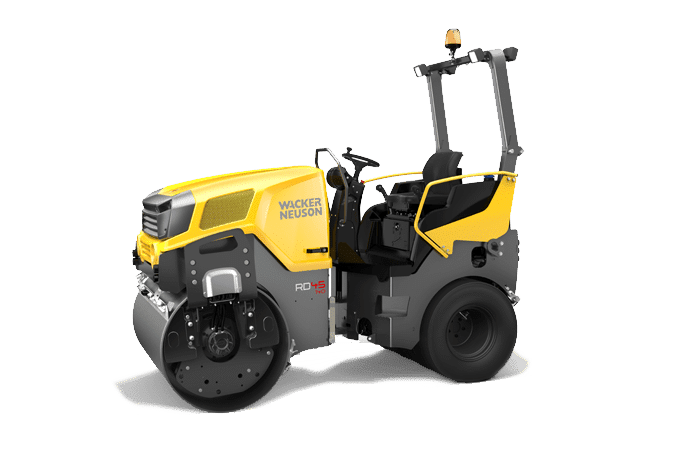

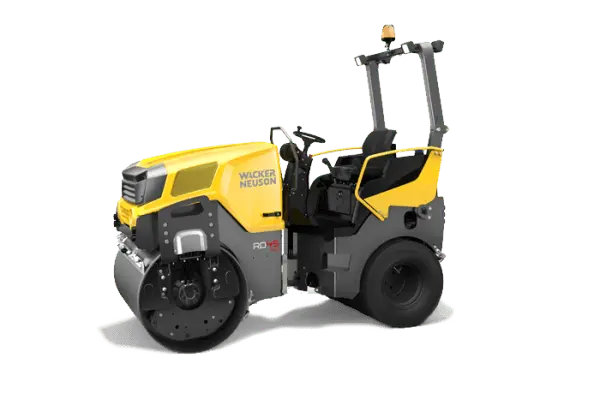

RD45-140 – Double Drum Ride-On Roller – Diesel (German Built)
Due to the low machine height, the articulated joint and the optimal view, the RD45 rollers can be used in a variety of ways.
– Installed articulated pendulum joint ensures for even compaction, a high level of maneuverability and optimal driving stability.
– Optimal visual conditions due to the slim design.
– Edge pressing and cutting equipment for a clean edge of the paths (accessory).
Operating data | |
| Operating weight with ROPS | 4,345 kg |
| Operating weight max. | 5,300 kg |
| Dimensions (L x W x H) | 2,860 x 1,506 x 2,590 mm |
| Drum width | 1,380 mm |
| Drum diameter | 900 mm |
| Operating width | 1,430 mm |
| Ground clearance middle | 305 mm |
| Drum type front | smooth / undivided |
| Drum type rear | smooth / undivided |
| Axle load front | 2,175 kg |
| Axle load rear | 2,170 kg |
| Curb clearance | 63 mm |
| Centrifugal force level I | 64 kN |
| Centrifugal force level II | 39 kN |
| Frequency level I | 60 Hz |
| Frequency level II | 51 Hz |
| Amplitude level I | 0.51 mm |
| Amplitude level II | 0.31 mm |
| Linear force – front / rear static | 15.8 / 15.7 N/mm |
| Advance travel max. | 183 m/min |
| Gradeability with vibration | 30% |
| Gradeability without vibration | 40% |
| Turning radius inside | 2,650 mm |
Engine / Motor | |
| Engine / Motor type | 4-cylinder diesel engine |
| Engine / Motor manufacturer | Kubota |
| Engine performance ISO 14396 | 34.6 kW |
| Fuel tank capacity | 73 L |
| Water tank capacity | 285 L |
Crab steering | Articulated pendulum joint |
| The drum offset allows for easy maneuvering when compacting along walls. In crab steering, the roller can be conveniently controlled in any desired direction. | Uniform compaction, optimal driving stability: The three-point articulated pendulum joint ensures a uniform weight distribution on the front and rear drum at all times. This also improves the maneuverability and provides for maximum stability when turning curves. |
Vibrating drum | Oscillating drum |
| Ideal for all traditional compaction work. The vibrating drum optimally oscillates the material to be compacted with quick successive vertical forces. The built-in eccentric weight provides for a fast rotation and an excellent compaction performance. | Flawlessly compacts even asphalt at low temperatures. Perfectly suited for the compaction of seams (hot to cold). Trouble-free operation on bridges. Rollers with an oscillating drum compact with a high efficiency, since the drums maintain permanent contact with the ground. With its two synchronous rotating eccentric weights, the drum uses forward and reverse movements to direct its entire compaction force into the ground. |
Optimal viewEverything is perfectly within view: With the specially designed, tapered design of the roller, you always have an excellent view of the drum edges, the machine environment and the job site. | |
| Service network We are always there for you: Thanks to our close-knit service network, you can always rely on our quick support. |  First-class compaction performanceRegardless of which of our models you choose – one thing is certain: You will be impressed with the compaction performance of our rollers. Guaranteed! |
| Finely tiered model selection Different tonnages and a diverse selection of tandem-axle rollers with vibration and oscillating drums as well as combination rollers: Choose exactly the model that you need for your project. |  Built-in user comfortAll of the Wacker Neuson models can be easily operated for particularly pleasant work. |
| iF Design Award 2016 The tandem roller series RD won the iF Design Award 2016 in the product category. The RD series convinced above all by the clearly structured operating elements and the intuitive handling, which is supported by the design. |
