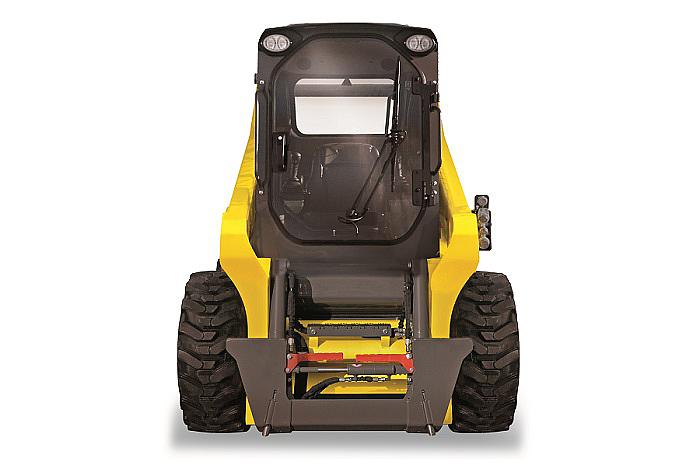

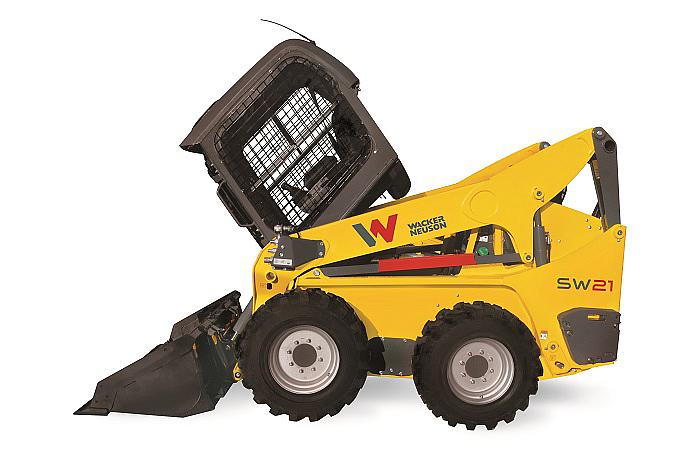

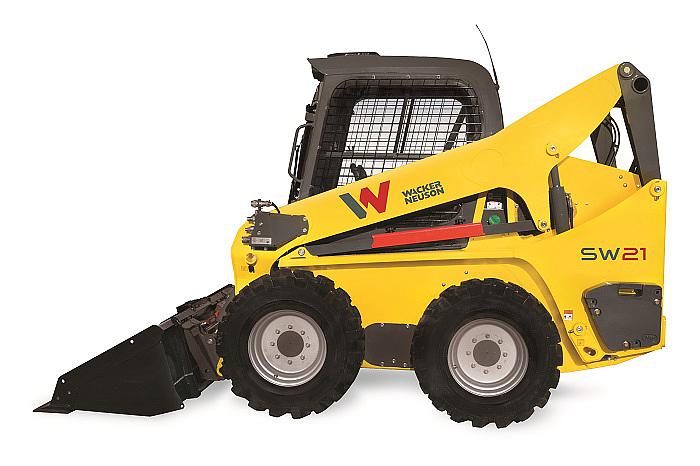

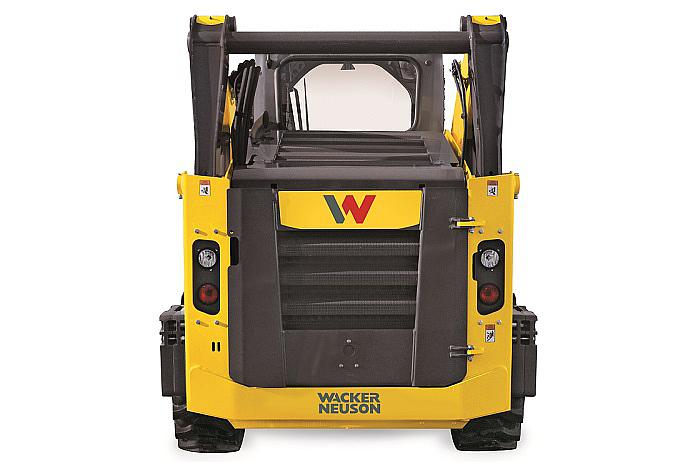

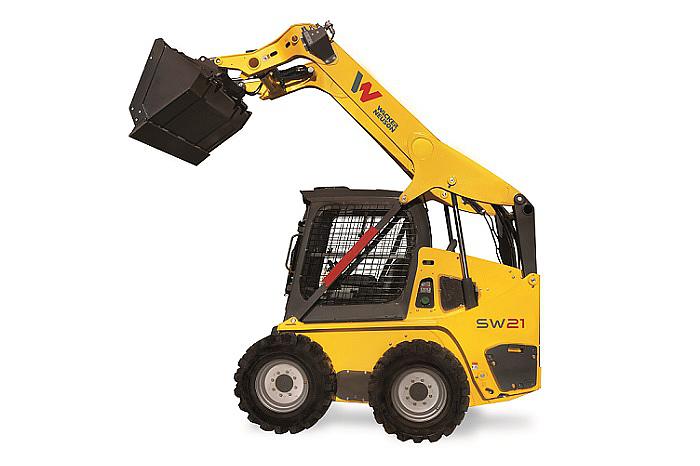

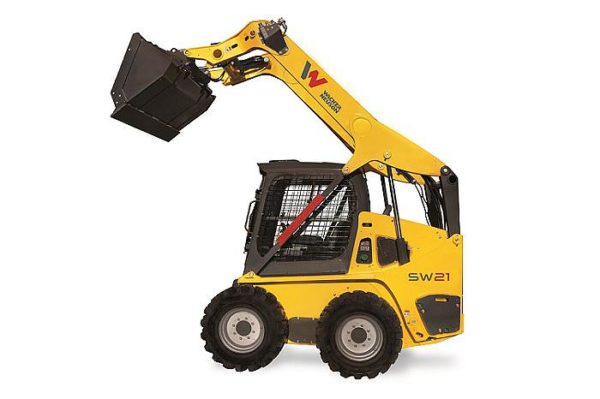

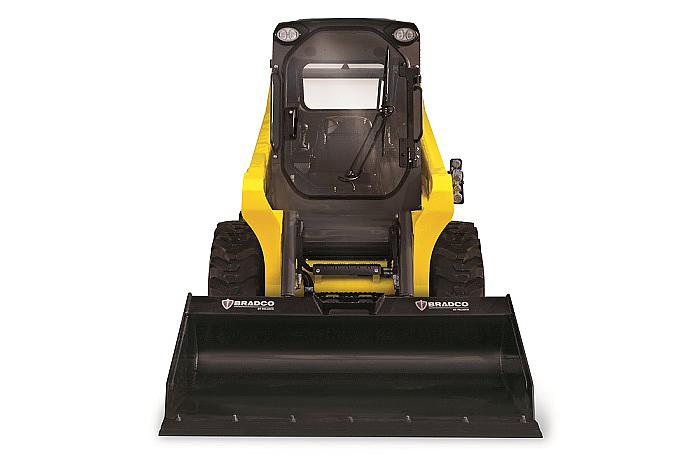

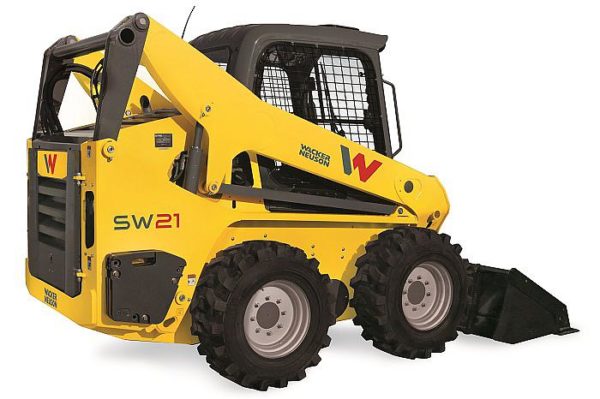

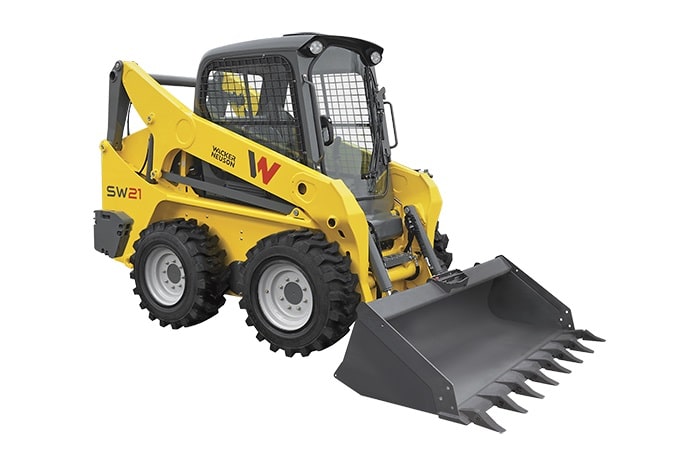

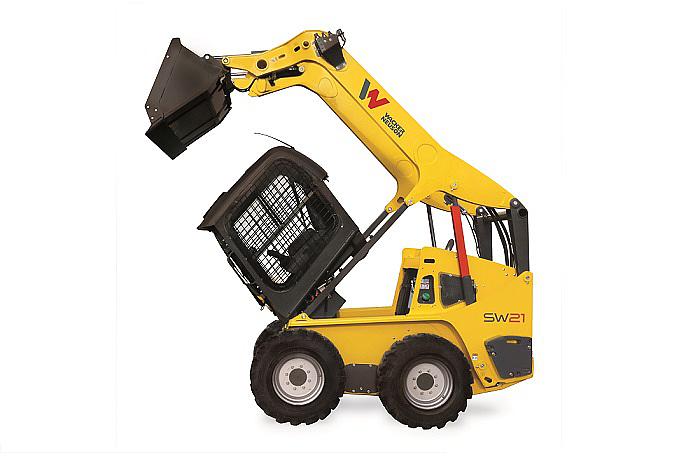

SW21 – Vertical Lift Skid Steer Loader

SKU 1000340717.01 Category Tag

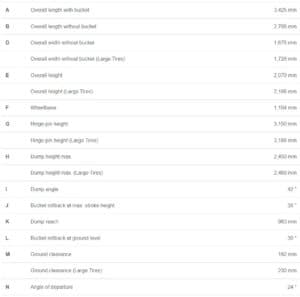

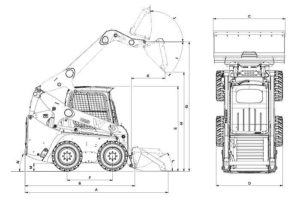

Operating data

Height Top Of ROPS2,070 mm
Overall length w/ bucket3,426 mm
Overall length w/o bucket2,708 mm
Operating weight2,954 kg
Height Hinge Pin Max3,150 mm
Rated Operating Capacity 50%953 kg
Dump reach866 mm
Dump height max. at max height2,451 mm
Angle of departure24 °
Tipping angle (Bucket dump) w/bucket at max height42 °
Ground clearance193 mm
Breakout force max. – Bucket23.6 kN
Breakout force max. – Boom22.2 kN
Width1,673 mm

Engine / Motor

Engine / Motor manufacturerKohler
Engine / MotorKDI 2504 TCR
Engine performance55.2 kW
Displacement2,482 cm³
RPM / speed2,750 rpm
Battery950 Ah
Fuel tank capacity124.1 L

Hydraulic system

Auxiliary Hydraulics- Standard Flow76 L/min
Auxiliary Hydraulics- High Flow113.6 L/min
Pressure Aux. relief241 bar

Power transmission

Travel speed (low)12.9 km/h
Travel speed (high)19.3 km/h
Standard tires10 x 16.5





Ergonomic Cab Design

– A wide door and step as well as ergonomically located handles make entry and exit easy regardless of the size of the operator.

– Large, illuminated switches give quick accessibility to controls regardless of the time of day or whether the operator is wearing gloves.

– With the low mounted tilt cylinders and the spaciously designed door, sloped rear engine compartment, and large side windows, operator visibility is maximized 360º.


– From switch location and layout to an angled foot rest in the floor board, the cab was purposefully designed to be stay in for long amounts of time and to significantly reduce operator fatigue.

– Joysticks are mounted to the suspension/air ride seat minimizing unwanted movements in rough conditions.
