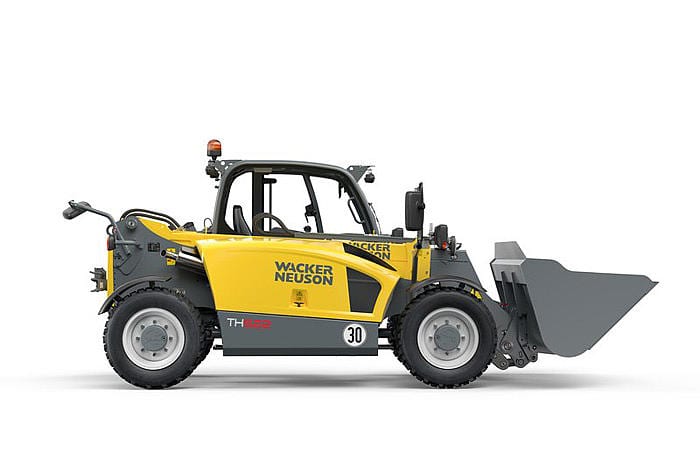

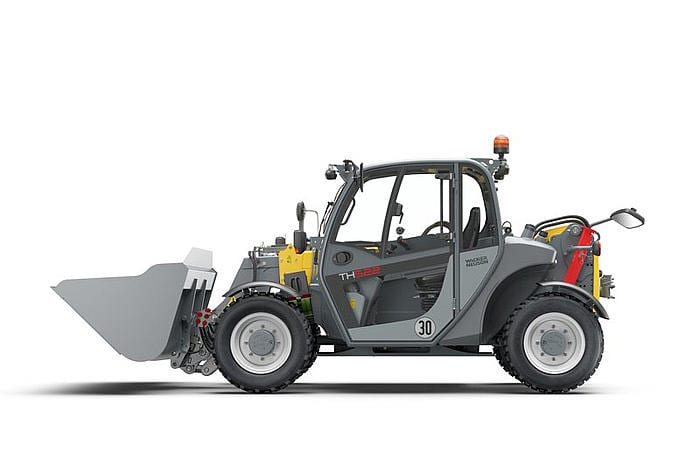

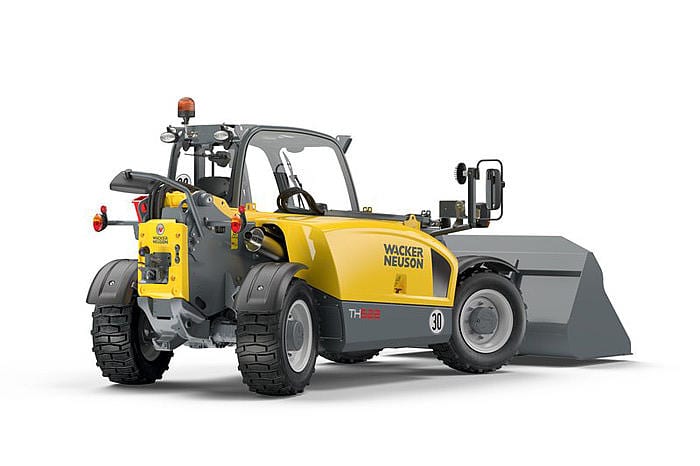

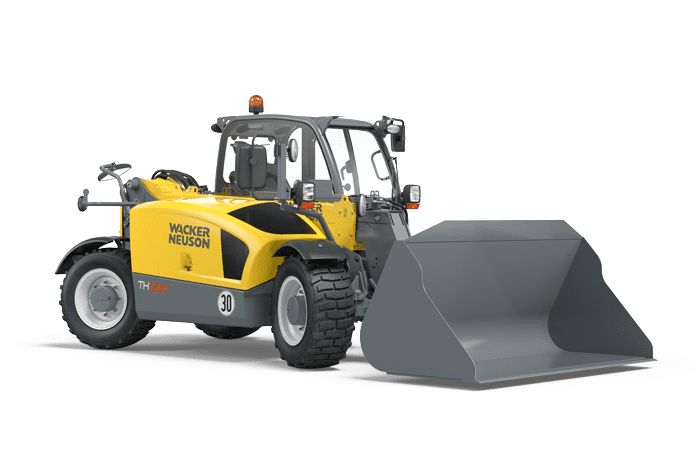

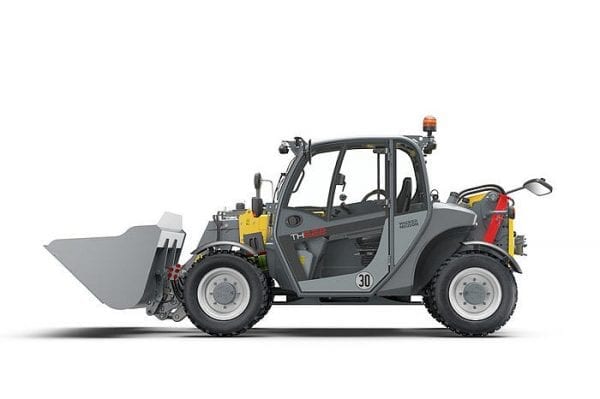

TH522 Telehandler - All Wheel Steer

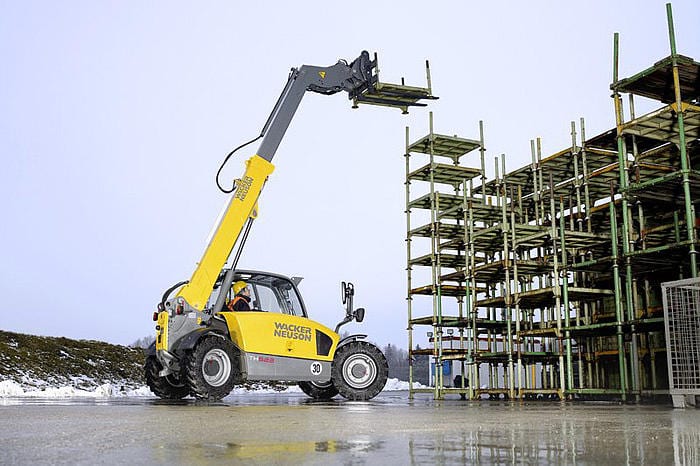

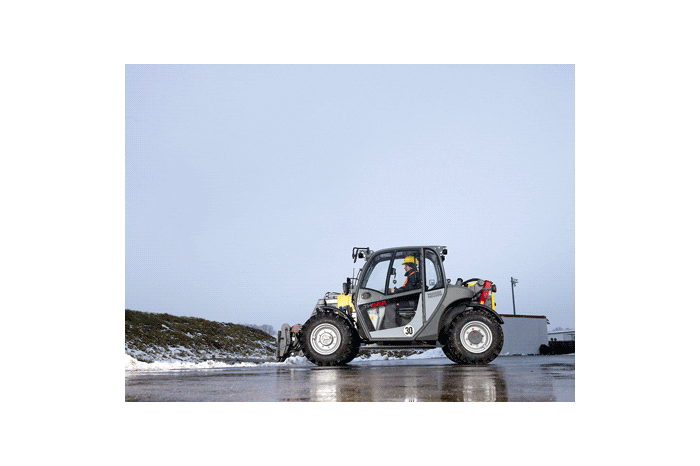

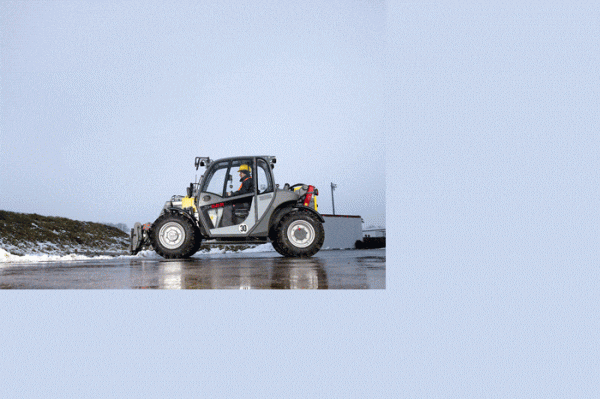

The comfortable telehandler TH522 convinces with a perfect combination of powerful engine output and a high level of maneuverability. Thanks to the all-wheel steering and the compact design, the TH522 is skillfully small Stacking and transport work can therefore be managed quickly and safely, even in a small space. Equipped with sensitive work hydraulics and a hydrostatic drive as a standard, the TH522 allows for extremely precise maneuvering.
– Innovative driver-assist system VLS (Vertical Lift System).
– Low installation height and width under 2 x 2 meters.
– Small inside radius of 1,193 mm.

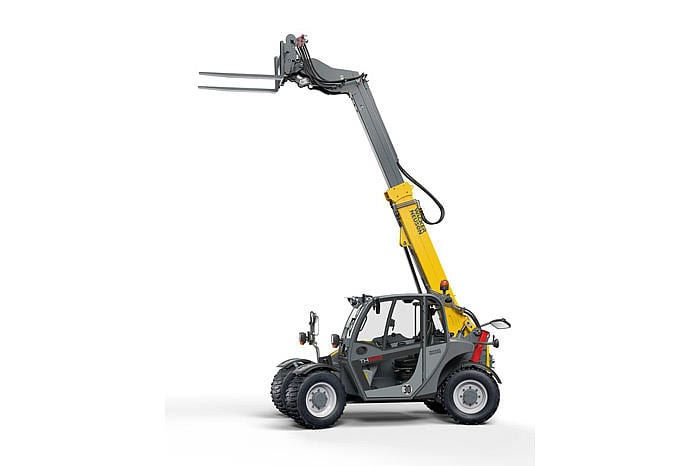

– Over 5 meters lifting height.
– Very good view of the attachment.
Operating data | |
| Lift height max. | 5,056 mm |
| Weight | 4,200 kg |
| Turning radius tires | 3,281 mm |
| Total rotation angle of the tool carrier | 144 ° |
Engine / Motor | |
| Engine / Motor manufacturer | Perkins |
| Engine performance at 2,800 rpm | 36.3 kW |
| Engine performance at 2,800 rpm | 44.7 kW |
| Emission standards stage | IIIA |
Power transmission | |
| Traction drive | Hydrostatic |
| Speed stage 1 | 0-7 km/h |
| Speed stage 2 (optional) | 0-20 (30) km/h |
| Service brake central | Parking brake on all four wheels effective |
| Standard tires | 10.5/80-18 AS ET0 |
Steering and operating hydraulics | |
| Steering angle max. | 2 x 40 ° |
| Flow rate | 70 L/min |
| Flow rate optional | 106 L/min |
Kinematics | |
| Payload max. | 2,200 kg |
Filling capacities | |
| Fuel tank capacity | 70 L |
| Hydraulic oil tank | 55 L |
