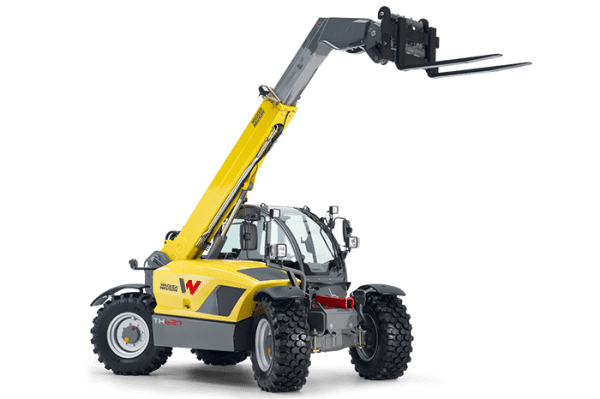

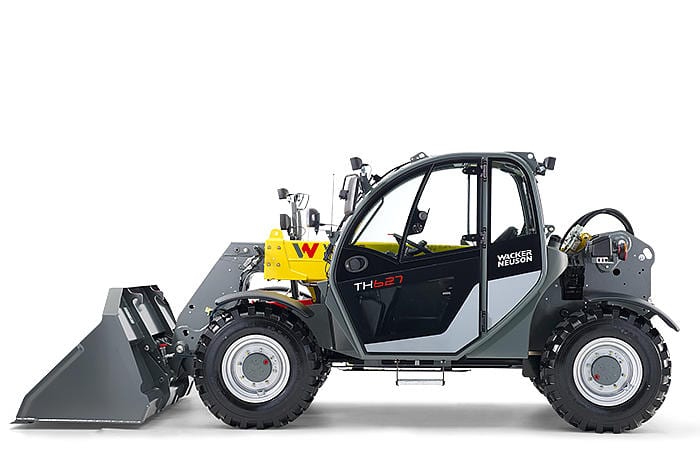

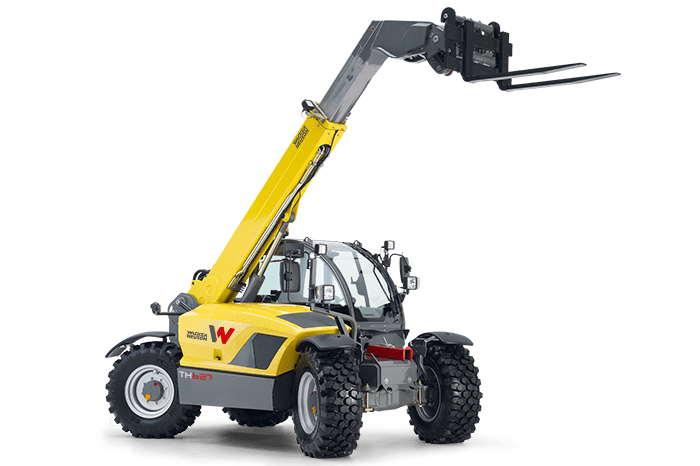

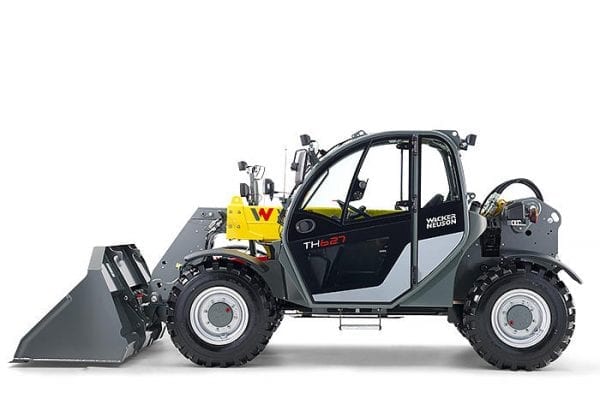

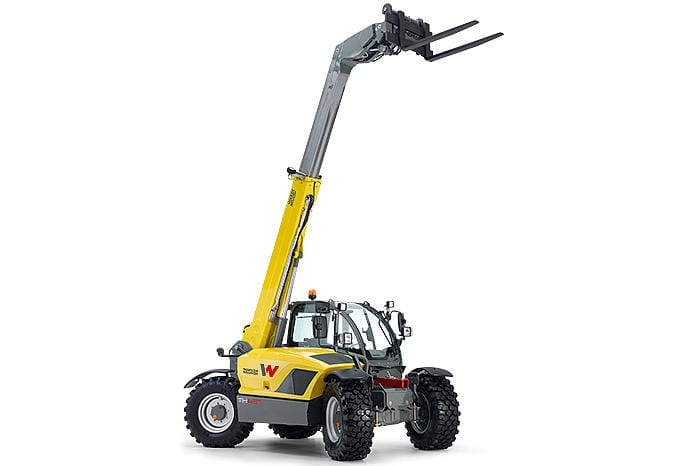

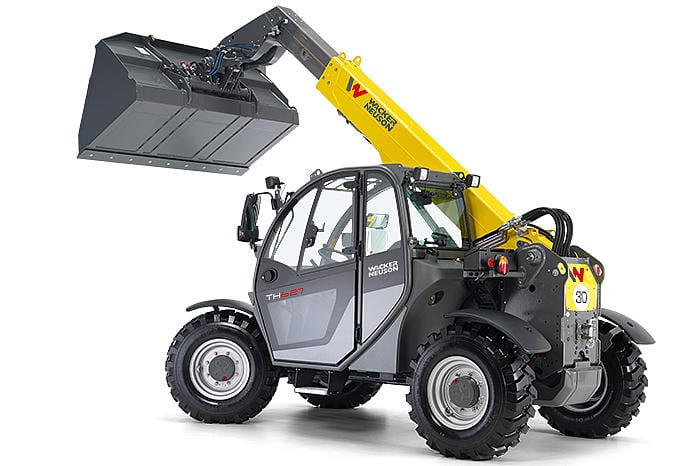

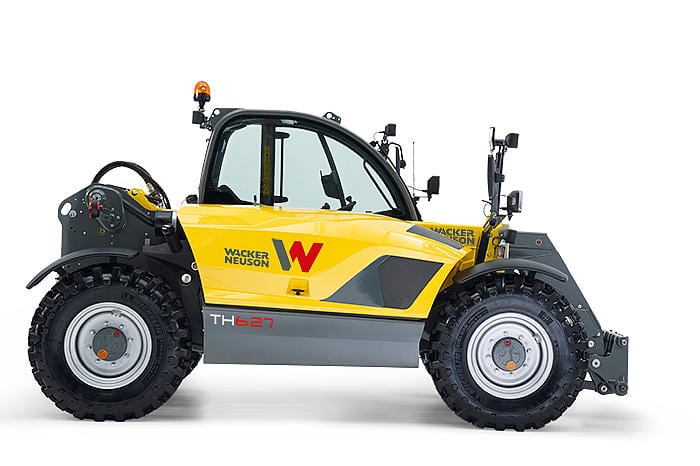

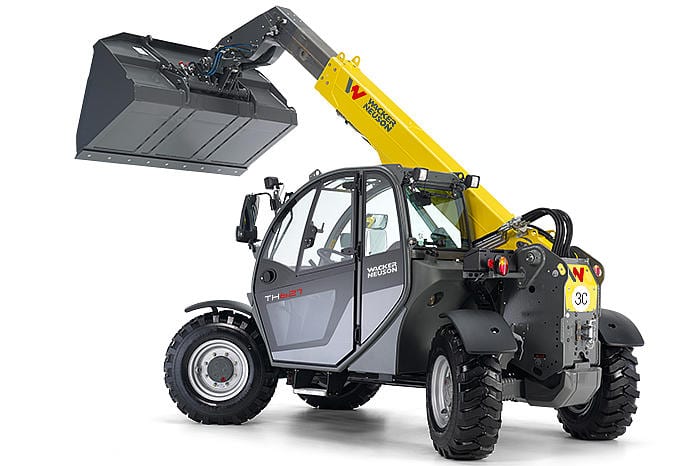

TH627 Telehandler – All Wheel Steer
The TH627 is the optimum solution for lifting heights around 6 meters. It combines agile maneuverability with powerful performance and remains in a stable position even with extreme loading.
– Exhaust emissions stage IIIB by state-of-the-art engine technology.
– Diesel particulate filter optionally available.
– Equipped as standard with three types of steering: all-wheel steering, front axle steering and crab steering.
– Comfortable operation thanks to a load-independent flow distribution of hydraulics and an electronically controlled joystick.
– Convenient bucket auto-return function for even faster operation (available as an option).
Operating data | |
| Lift height max. | 5,730 mm |
| Weight | 5,000 kg |
| Turning radius | 3,670 mm |
Engine / Motor | |
| Engine / Motor manufacturer | Kohler |
| Engine performance | 55.4 kW |
| Displacement | 2,482 cm³ |
| Emission standards stage | IIIB |
| Sound emission at the operator’s ear | 80 dB(A) |
Power transmission | |
| Traction drive | Hydrostatic |
| Speed (standard) | 0 – 20 km/h |
| Speed (optional) | 0 – 30 km/h |
| Axles | Planetary drive steering axle |
| Total pivoting angle | 20 ° |
Steering and operating hydraulics | |
| Steering angle | 2 x 38 ° |
| Duty pump | Gear pump with flow sharing |
| Flow rate | 90 L/min |
| Pressure | 240 bar |
Kinematics | |
| Bucket capacity | 0.85 m³ |
| Total rotation angle | 132 ° |
| Payload at max. lift height | 1,800 kg |
| Payload at max. reach | 1,000 kg |
| Payload max. | 2,700 kg |
| Range max. | 3,156 mm |
Filling capacities | |
| Fuel tank capacity | 100 L |
| Hydraulic oil tank | 75 L |
Two cabin heights availableThe lower cabin is ideal for low clearance heights. The elevated cabin provides even better all-around visibility and ground clearance. |  |
Three Types of SteeringWhether driving en route or for tight maneuvers: The Wacker Neuson telehandler proves what it can do with each use thanks to its three different types of steering, making child’s play out of the transport of material. | ||
| All-wheel steering: particularly maneuverable due to its 2 x 40 degree steering angle. | Front axle steering: familiar handling even when driving fast on the road. | Crab steering: ideal for parallel travel and maneuvering in the tightest spaces. |
VLS driver assistance system
| Work efficiently in complete safety — with the Vertical Lift System (VLS) driver assistance system, you will master this challenge with ease. The smooth and rapid lowering of the telescopic arm with its simultaneous semi-automatic telescopic movement allows even less-experienced operators to operate based on fluid working principles. Additionally, the virtually vertical lifting and lowering movement makes the telehandler very stable. | |
| Conventional systems (without VLS) The machines can be pushed to their tip limits purely when lowering. | Driver assistance system VLS Virtually vertical movement. Hardly any load torque shift in the longitudinal direction of the machine. Operating input Loading system response |
Telehandler expertise that provides advantages.
High payloads
Our telehandlers are designed for performance. They assure you rapid and high materials handling capacity during each use.
Work safer than ever
Safe, comfortable and efficient at the same time: In the event, for example, of a risk of overload, the innovative driver assistance system VLS (Vertical Lift System) switches on semi-automatically, intelligently intervening in the telescoping motion, and moving the load downwards in a vertical line.
More visibility, greater safety
You benefit from improved handling and greater safety while working thanks to optimal view of the attachment and work environment.
Locate telehandlers at any time
With the Global Monitoring System, you can always determine the exact location of your machines.
Small turning radius, big power output
The highly maneuverable telehandlers let you turn on a dime, thus giving you ideal maneuverability on the tightest job sites.
We distinguish particularly economical and environment-friendly products, such as the telehandler with VLS, by labelling them with an ECO seal. www.wackerneuson.com/eco

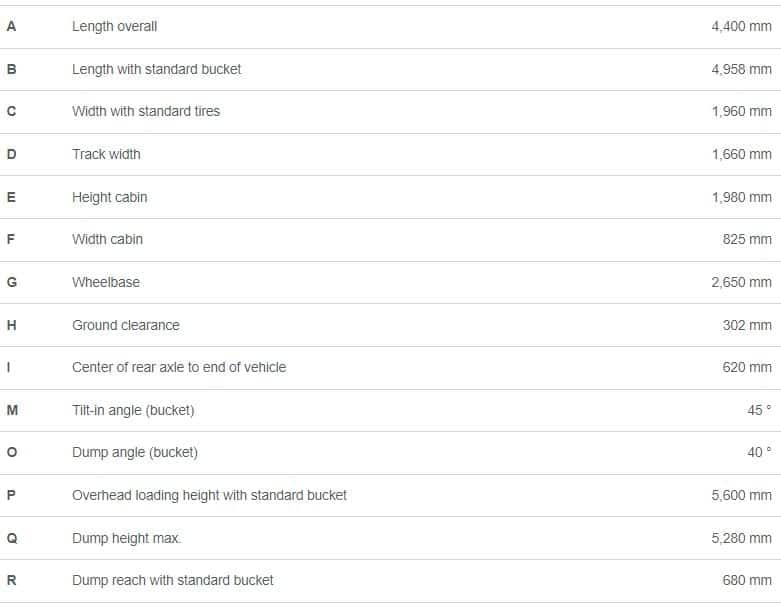

Dimensions
