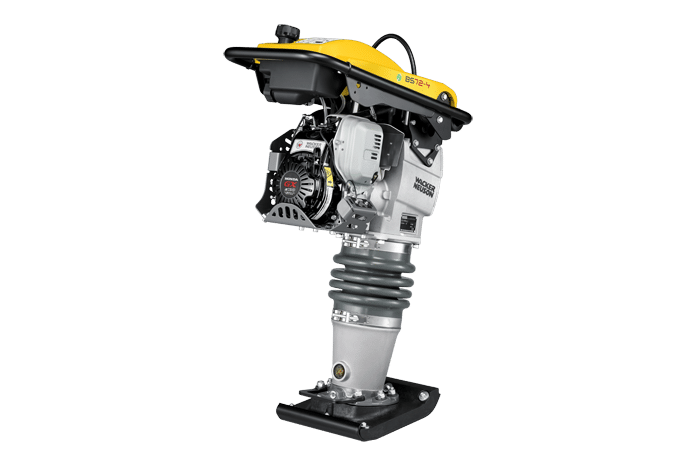

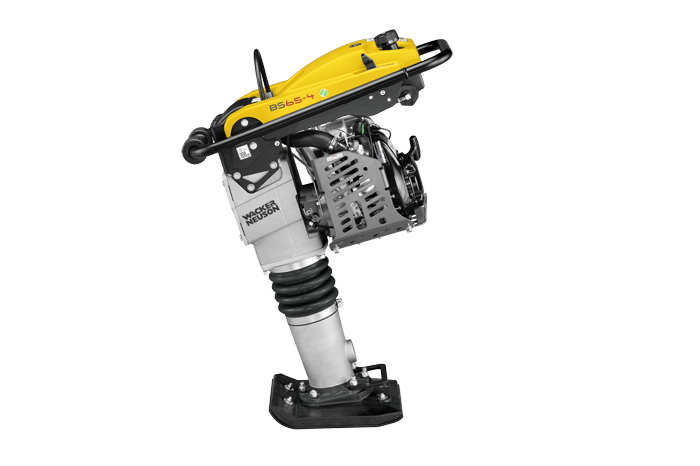

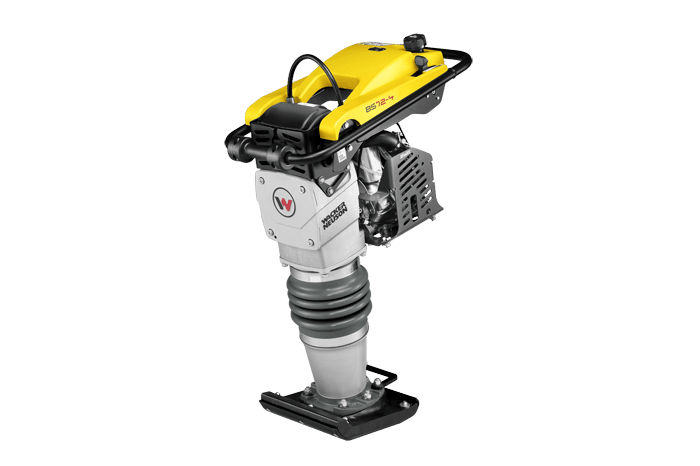

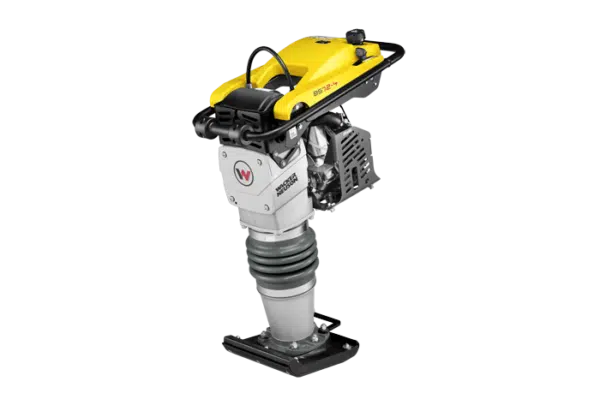

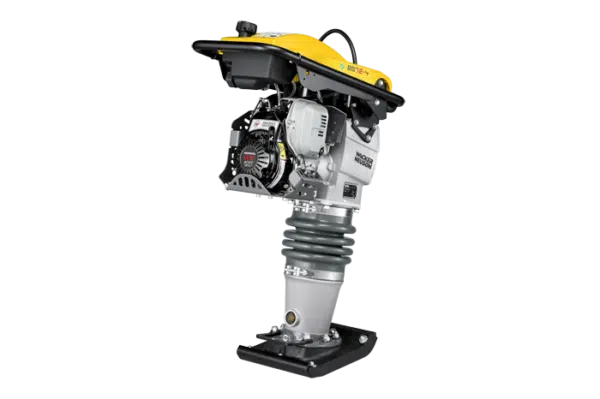

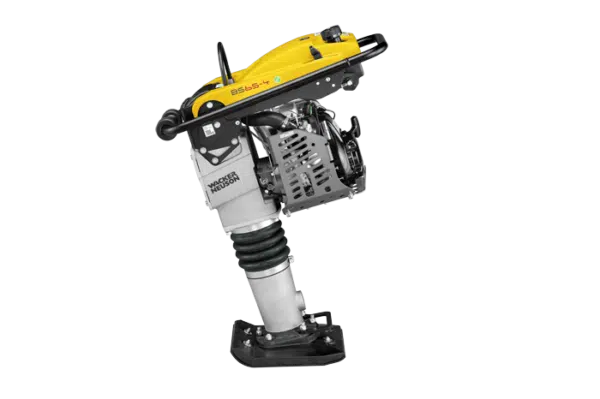

Wacker Nesuson Vibratory Rammer BS65-4As 4-stroke Petrol 65kg

SKU 5100061307 Category

$3,447.00 Incl GST

Wacker Neuson’s 4 stroke rammers are classified by an excellent performance which is sustainably convincing. The high stroke energy, high percussion rate and long shoe stroke combined with a fast advance travel achieve excellent compaction results. Well thought-out features make the use of the 4 stroke rammers even more user-friendly, extend the service life and reduce maintenance to a minimum.

– Fast starting due to a small pump to the carburetor

– Strong stroke for heavy, cohesive soils

– Premium air filter ensures an almost dust-free engine operation and provides three times longer change intervals

Operating data

Operating weight65 kg
Ramming shoe size (WxL)280 x 340 mm
Dimensions (L x W x H)673 x 343 x 940 mm
Percussion rate max.656 blows/min
Stroke on the ramming shoe61 mm
Impact force16 kN
Operating speed7.1 m/min
Surface capacity119 m²/h

Engine / Motor

Engine / Motor type Air-cooled, single cylinder, 4-stroke gasoline engine
Engine / Motor manufacturer Honda
Engine / Motor GXR 120
Displacement121 cm³
Fuel consumption1 L/h
Rated performance (DIN ISO 3046-1)2.7 kW
at rpm4,100 rpm
Fuel tank capacity2.9 L





Comfortable transport

– Large and flexible transport lug

– Easy loading and stowing by transport rollers on the handle


4-stage air filter system

– Very good filter performance thanks to 4-fold air filter (consisting of cyclone filter, paper lamella filter and double foam filter)

– Clean intake air ensures optimum engine performance

– Long service intervals due to high filter capacity

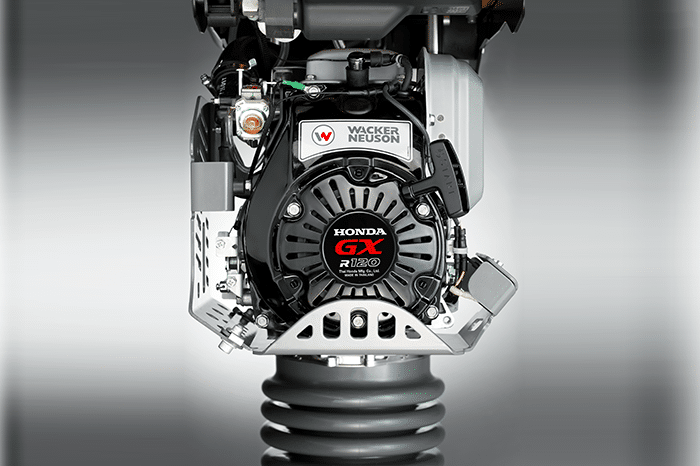

An engine with a strong reserve

The robust GXR 120 engine from Honda operates in normal operation well below its performance limit. This protects the engine and extends its service life.




Comfortable operation

– Only one lever for idling, starting and stopping
