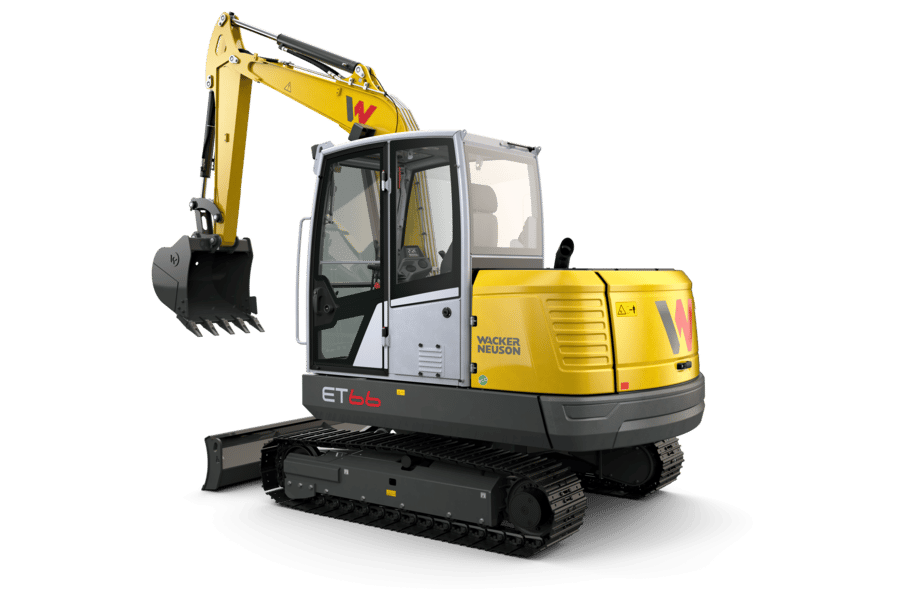

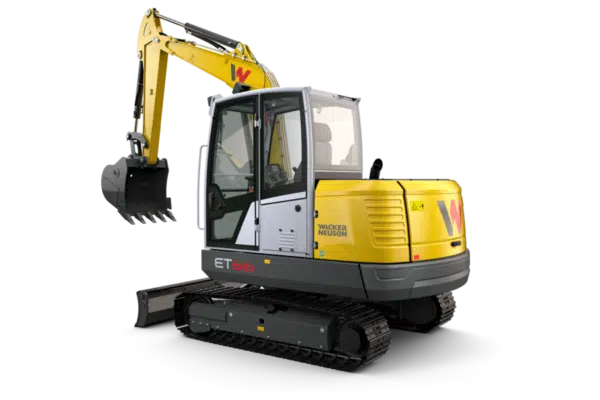

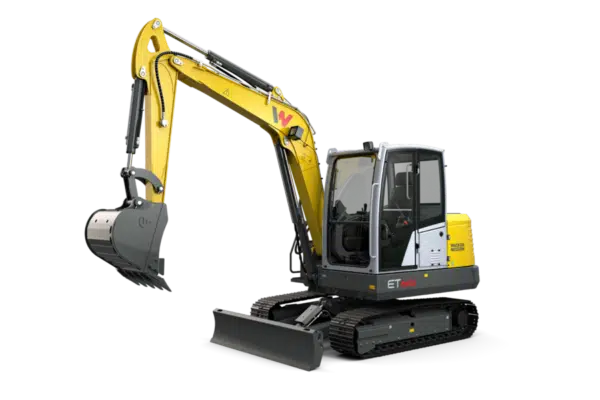

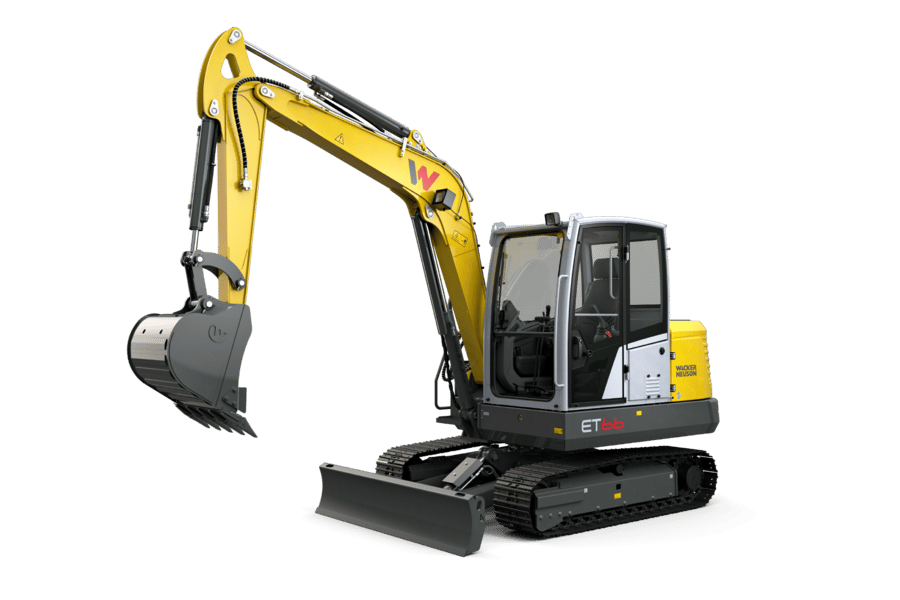

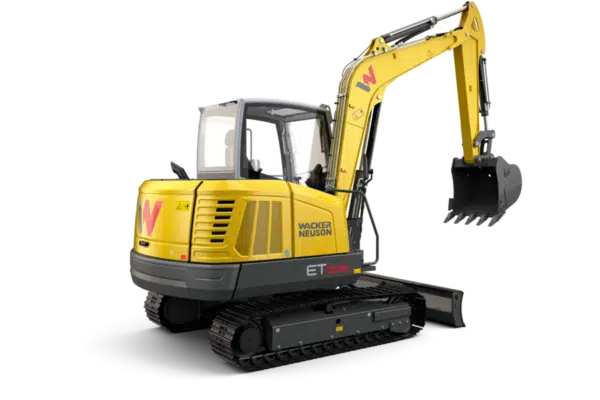

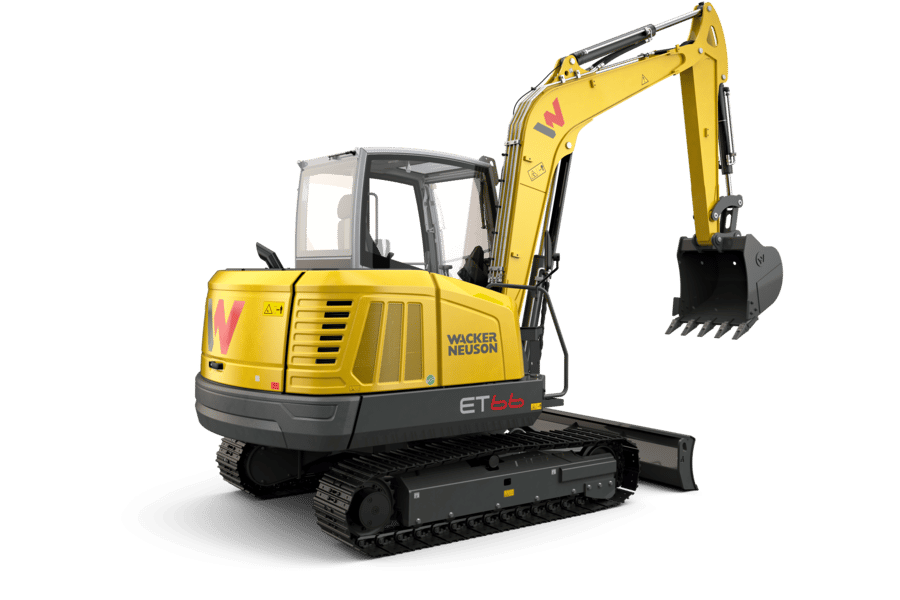

Wacker Neuson Tracked Excavator ET66 with Canopy

SKU 1000390886.01 Category Tag

Technical Specifications

Travel speed stage 12.6 km/hr
Travel speed stage 24.5 km/hr
Length6,105 mm
Operating weight (min.-max.)6,030 – 6,250 kg
Digging depth (max.)3,877 mm
Width2,104 mm
Height2,558 mm
Cylinder capacity3,054 cm3
Tank capacity109 L
Operating power35.9 KW
Operating Engine speed2,000 rpm
Starter battery Voltage12.0 V
Battery capacity (nom. value)120 Ah
Engine typeDiesel engine
Engine designation4TNV94L-ZWWN
Cooling fluid volume10 L
Hydraulic fluid volume100 L
Operating pressure hydraulics250 bar
Drive unitAxial piston motor with RGU
Length for shipping6,105 mm
Width for shipping2,104 mm
Height for shipping2,558 mm
Shipping weight5,875 kg


Tracked Conventional Excavator ET66: perfectly combining economic efficiency, power and durability

With the well-balanced LUDV hydraulic system, ET66 is best equipped for every application and every requirement. The ET66 offers different attachments based on requirement. Large rear flaps and side doors as well as quick spare part procurement make the maintenance and service easy.

Powerful drive system with LUDV

Powerful drive system with LUDV

  • The powerful drive system combines with a load-sensing hydraulic system (LUDV) to deliver quick working cycles, greater application flexibility, and easier control for comfortable and fatigue-free operation of the excavator. No matter what the load to be moved, the control movements on the joystick stay the same. Along with increased operating comfort, this results in a performance plus, while simultaneously reducing fuel consumption.
High degree of digging power

High degree of digging power

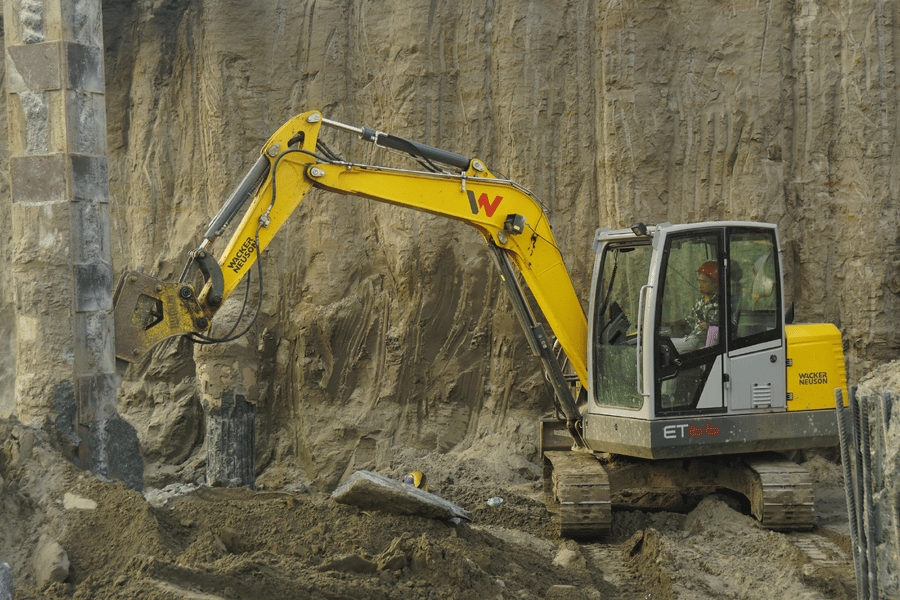

  • Exceptional digging power during excavation work saves time and money.

More Features

FOPS protective gratings

FOPS protective grating (class 1)

  • This visibility-optimized, durable cab guard provides even greater operator safety and reduces the likelihood of damage from falling objects.
