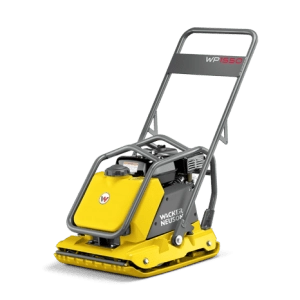

Wacker Neuson Vibration Plate BPS1550Aw 500mm Wide with Water Tank
– Excellent driving features: No matter whether used on asphalt or soil – the BPS is easy to manoeuvre and provides perfect surfaces.
– Clean finish to the kerb is easily generated due to the square side-profile of the base plate.
– The control handle addresses the steering movements clearly, yet nevertheless generates low hand-arm vibrations of less than 5 m/s², which enable a long, comfortable working conditions.
– Easy to transport: A large lifting eye and wide, ergonomically designed carrying handles make moving and loading the machine both easy and comfortable.
– Maintenance-free: The BPS series is equipped with an extremely sturdy fan belt and has storage with lifetime lubrication. As a result, it is practically maintenance-free.
– Accessories are available separately: Wheel set and paving stone sliding mechanism round off the application areas of the APS.
Technical Specifications
| ENGINE | |
| Fuel management | Carburettor |
| Inclined position max. | 20 ° |
| Engine manufacturer | Honda |
| Engine type | Four-stroke, petrol, air cooled, 1-cyl |
| Cylinder capacity | 163 cm3 |
| Power (max.) | 3.6 kW |
| Power (operating) | 2.9 kW |
| Operating engine speed | 3,600 rpm |
| Tank capacity | 3.6 L |
| Starter type | Recoil starter |
| MECHANICAL – OUTPUT DETAILS | |
| Vibrations | 5,880/min |
| Forward running | 25 m/min |
| Transmission | FKR |
| Gradeability | 36.40% |
| Centrifugal force | 15 kN |
| Vibrations | 98 Hz |
| Area capacity | 750 m2/h |
| ENVIRONMENT DATA | |
| Operating temperature range | -15 – 45 °C |
| Sound power LWA, guaranteed | 107 dB(A) |
| MECHANICAL DETAILS | |
| Operating weight | 89.1 kg |
| Ground clearance | 663 mm |
| Height | 663 mm |
| Width | 500 mm |
