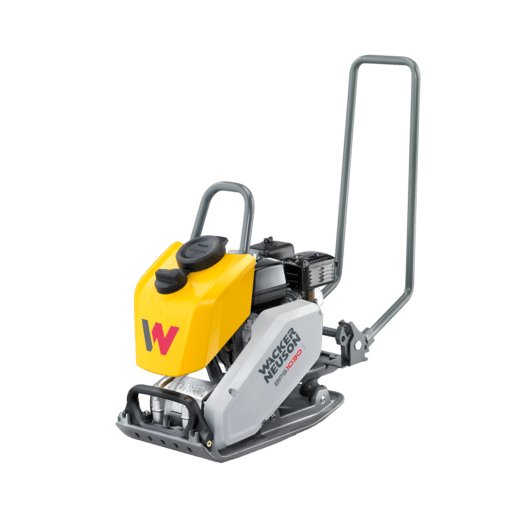

Wacker Neuson Vibration Plate BPS2050Aw 500mm Wide with Water Tank

– Excellent driving features: No matter whether used on asphalt or soil – the BPS is easy to manoeuvre and provides perfect surfaces.

– Clean finish to the kerb is easily generated due to the square side-profile of the base plate.

– The control handle addresses the steering movements clearly, yet nevertheless generates low hand-arm vibrations of less than 5 m/s², which enable a long, comfortable working conditions.

– Easy to transport: A large lifting eye and wide, ergonomically designed carrying handles make moving and loading the machine both easy and comfortable.

– Maintenance-free: The BPS series is equipped with an extremely sturdy fan belt and has storage with lifetime lubrication. As a result, it is practically maintenance-free.

– Accessories are available separately: Wheel set and paving stone sliding mechanism round off the application areas of the APS.

Technical Specifications

ENGINE
Fuel managementCarburettor
Inclined position max.20 °
Engine manufacturerHonda
Engine typeFour-stroke, petrol, air cooled, 1-cyl
Cylinder capacity163 cm3
Power (max.)3.6 kW
Power (operating)2.9 kW
Operating engine speed3,600 rpm
Tank capacity3.6 L
Starter typeRecoil starter
MECHANICAL – OUTPUT DETAILS
Vibrations5,880/min
Forward running25 m/min
TransmissionFKR
Gradeability36.40%
Centrifugal force20 kN
Vibrations98 Hz
Area capacity750 m2/h
ENVIRONMENT DATA
Operating temperature range-15 – 45 °C
Sound power LWA, guaranteed107 dB(A)
MECHANICAL DETAILS
Operating weight99.1 kg
Ground clearance663 mm
Height663 mm
Width500 mm
