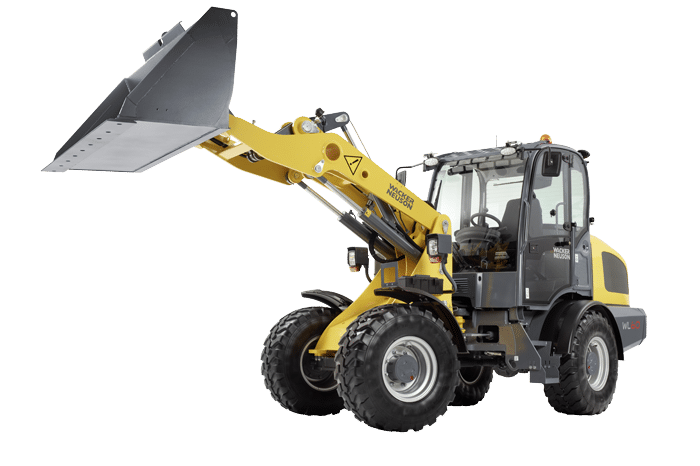

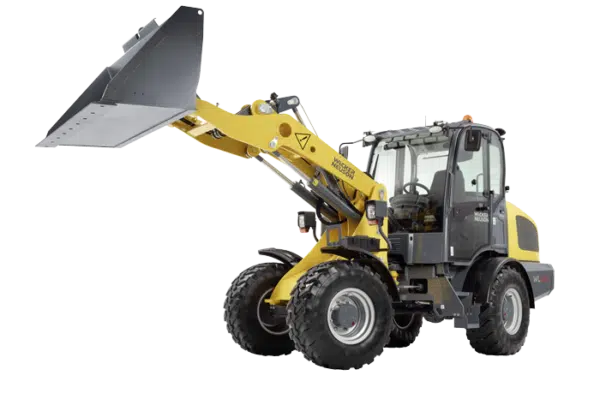

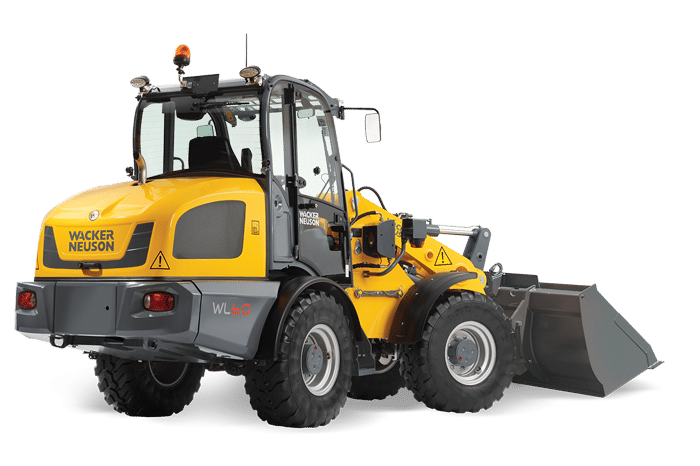

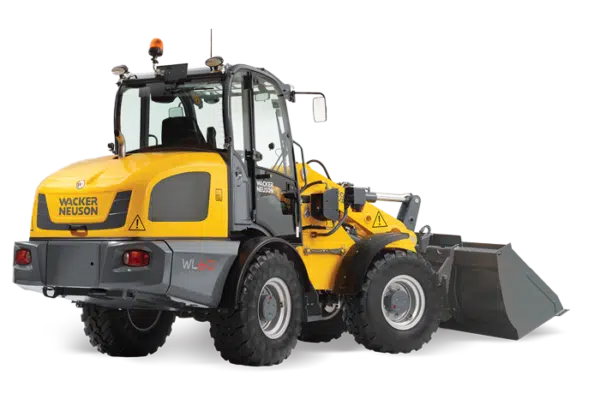

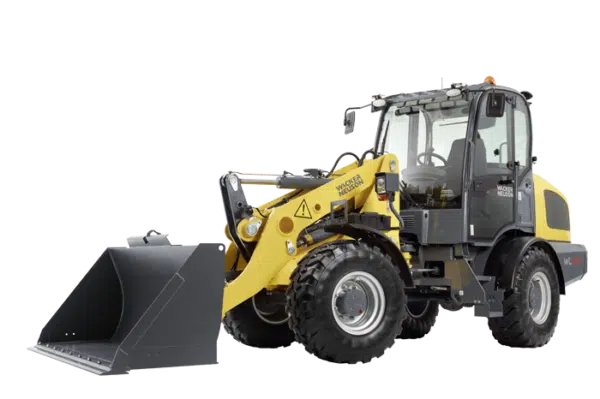

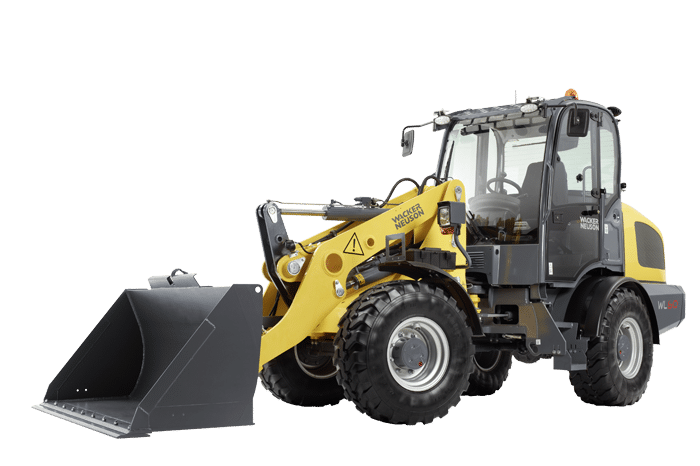

Wheel Loader WL60

SKU 1000348349 Category

Features

The WL60 is the most powerful compact wheel loader in its size class. Powered by a 102HP Tier 4 Final engine, the WL60 delivers unmatched power and performance.

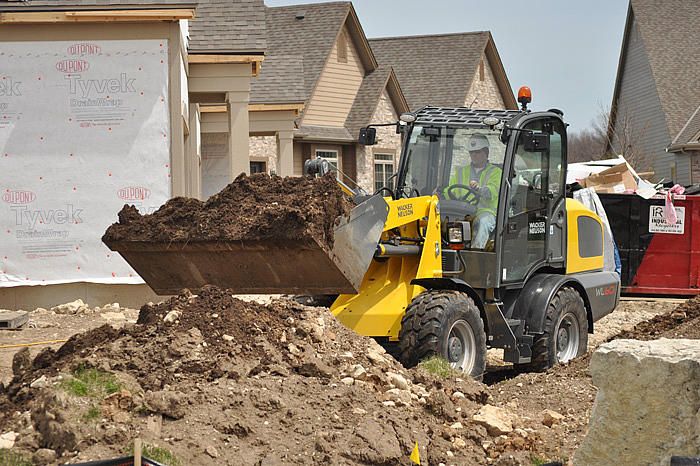

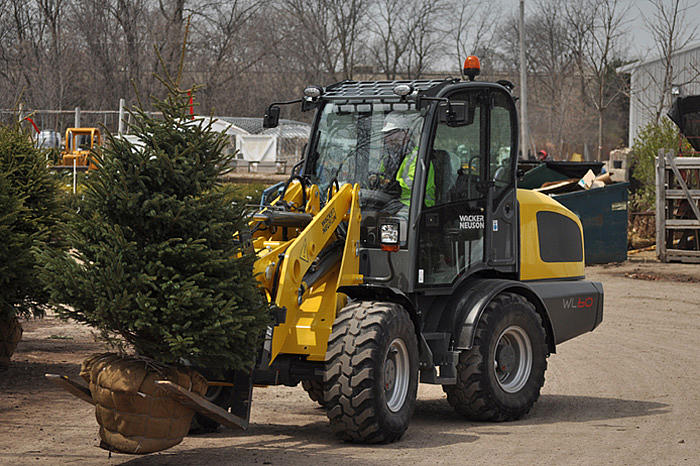

The WL60 offers the speed and payload to handle a variety of job site needs. With a universal hydraulic attachment plate and standard hydraulic flow (26 gpm) or high flow (40 gpm), changing and operating existing or new attachments is quick and easy.

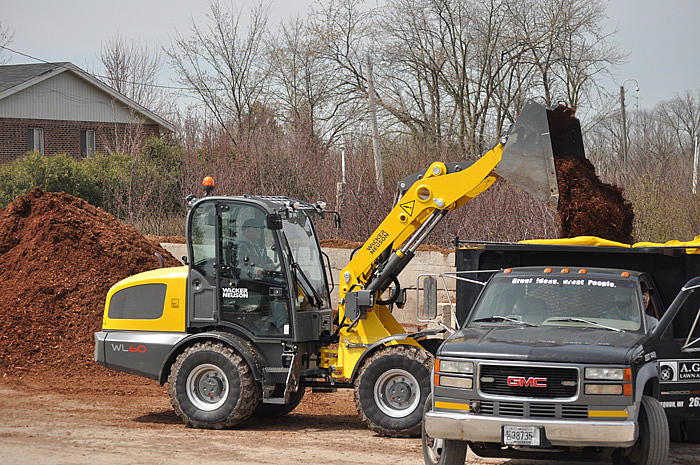

A class-leading hinge pin height of 12 feet allows for loading and unloading high sided dump trucks and hoppers. The articulated joint allows for the unit to be highly maneuverable especially in tight working conditions.

– Tier 4 Final Perkins engine offers a Selective Catalytic Reduction (SCR)/Diesel Oxidation Catalyst (DOC) as an after-treament which requires no diesel particulate filter, no regeneration and no maintenance.

– The spacious climate-controlled cab features multi-adjustable air-ride seat, impressive 360° visibility along with ergonomically designed joysticks and controls to maximize operator comfort.

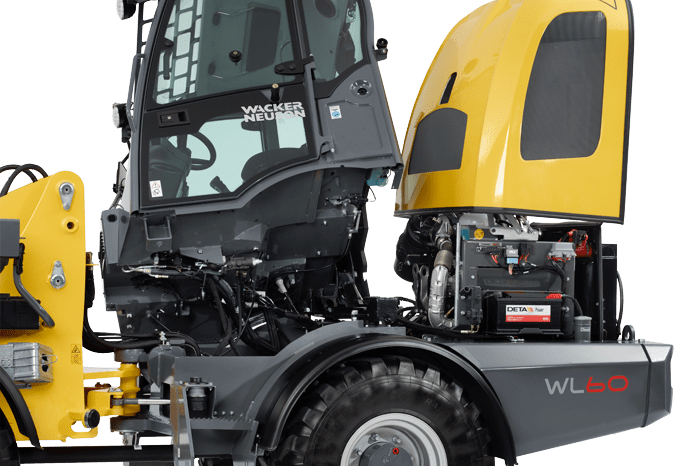

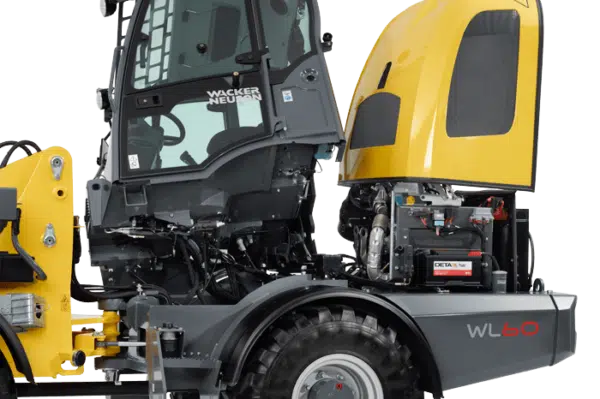

– Excellent service access with side tilting cab and rear engine hood minimizes time to perform daily maintenance and periodical service resulting in more time on the job.

– Class leading travel speeds up to 24.9 mph (optional) shortens travel time across job sites, improving cycle times.

– Universal hydraulic attachment plate with standard 26 gpm auxiliary hydraulic flow or high flow of 40 gpm accommodates most existing skid steer attachments.

ENGINE

Engine manufacturerPerkins, 854F-E34TA
Engine / Motor typeTurbo-Charged, water-cooled, 4-cylinder diesel engine
Cylinder4
Engine performance76 kW (@ 2,500 rpm)
Coolant typeWater

ELECTRICAL SYSTEM

Operating voltage12 V
Battery95 Ah
Alternator120 A
Weights
Operating weight Cab5,900 kg
Breakout force3,513 daN
Tipping load with bucket – machine straight3,674 kg
Tipping load with bucket – machine at angle3,031 kg

VEHICLE DATA

Bucket capacity1.1 m³
Speed Level 120 km/h
Speed Level 2 – Optional40 km/h
Standard tires405/70-18EM ET0

HYDRAULIC SYSTEM

Driving hydraulics – operating pressure445 bar
Operating hydraulics – operating pressure210 bar
Operating hydraulics – discharge capacity100 L/min
Operating hydraulics – discharge capacity150 L/min

FILLING CAPACITY

Tank capacity105 L
Hydraulic oil tank95 L

SOUND LEVEL

Average sound power level LwA101 dB(A)
Guaranteed sound power level LwA103 dB(A)
Specified sound pressure level LpA78 dB(A
