DPU110Leck970 - Vibrating Plate - 970mm Wide, Diesel

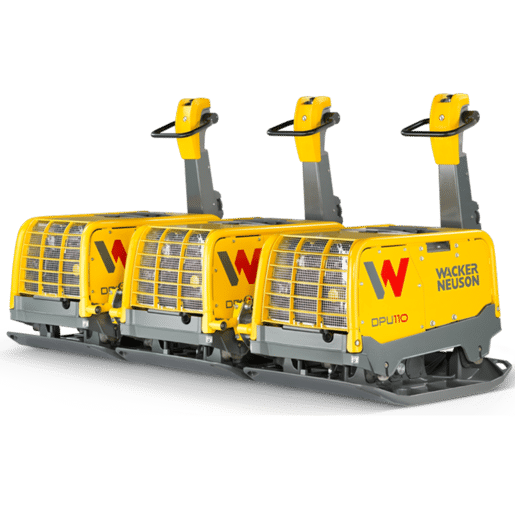

This DPU110 is specially equipped for use in the coupling set. Three of these machines, together with the supplementary package, form a 3rd coupling set. It can be used for soil compaction as well as for the compaction of railroad ballast.

Easy assembly of the coupling linkage (part of the supplementary package to be purchased separately)

“Plug and Play”: The integrated transmitter and receiver unit automatically establishes connection when three DPU110Lekc970s are coupled.

Remote control: Operator is away from noise and dust

Extreme surface and compaction performance, therefore time savings, both in railway construction and earthworks.

High operating width with light weight. Ideal for compacting track bed, since the coupling set does not sink into crushed stone.

Mechanical coupling can be quickly disassembled; thus, easy and cost-saving transport is possible.

Complete flexibility: As an individual machine, the DPU110Lekc970 can be used as a walk-behind vibratory plate as usual.

Standard outfitting with Compamatic: the compaction status is sent via mobile communications the EquipCare portal, where it is documented and attractively visualised. This offers a quick overview of the work progress and quality from the desk.

For a 3rd coupling set, 3 machines of DPU110Lekc970 and a supplementary package of 3rd coupling set are required. You can get the supplementary package here in the shop.

OPERATING FLUIDS

Cooling fluid typeSAE J1034:Wasser (1:1)
Hydraulic fluid typeRenolin MR 520
Exciter oil volume1.35 L
Hydraulic fluid volume21.9 L
Cooling fluid volume4.20 L
Exciter oil type75W-90 API GL-4

ENGINE

Inclined position max.25.0 °
Engine operating modeFour-stroke
Operating engine speed2,700 rpm
Fuel consumption3.3 L/Std
Standard (Power max.)ISO 3046 IFN
Standard (Effective power)ISO 3046 IFN
Nominal engine speed2,700 rpm
Tank capacity11.2 L
Effective power16.0 kW
Oil filling max.2.4 L
Battery capacity (nom. value)50 Ah
Air cleanerDry air filter
Power rating max.18.5 kW
CoolingWater-cooling
Exhaust-gas limitEU Stage V
Oil specificationSAE 10W-40
Starter battery Voltage12 V
Engine speed (Power max.)3,600 rpm
Starter typeE-starter
Upper idling speed ex load2,800 rpm
Oil filling min.2.4 L
Operating power12.0 kW
Engine typeDiesel engine
Cylinder3
Engine manufacturerKohler
Standard (Operating power)ISO 3046 IFN
Cylinder capacity1,028 cm3
FuelDiesel EN 590
Oil volume incl. filter change2.4 L

MECHANICAL – OUTPUT DETAILS

Vibrations3,600 rpm
Gradeability36.0 %
TransmissionELHY
Centrifugal force110,000 kN
Vibrations (Hz)60 Hz
Area capacity1,397 m2/h
Forward Running24 m/min

HYDRAULIC

Operating pressure hydraulics193.0 bar
Max. perm. hydraulic pressure230.0 bar

MECHANICAL DETAILS

Operating weight838.0 kg
Ground clearance830 mm
Height1,541 mm
Width970 mm
Length drawbar in op. pos.2,409 mm

ENVIRONMENT DATA

Operating temperature range-10 – 50 °C
Sound level LpA (Standard)EN 500-4
Sound power LWA, guaranteed109.0 dB(A)
Storage temperature range-20 – 50 °C
HAV summation (average value)< 2.5 m/s2
Uncertainty in measurement HAV0.5 m/s2
Sound level LpA95.0 dB(A)
Sound power LWA (Standard)EN 500-4, 2000/14/EG
Sound power LWA, measured108.0 dB(A)
Model seriesDPU
