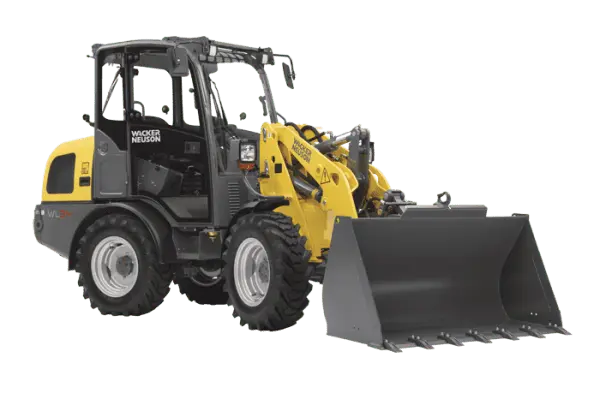

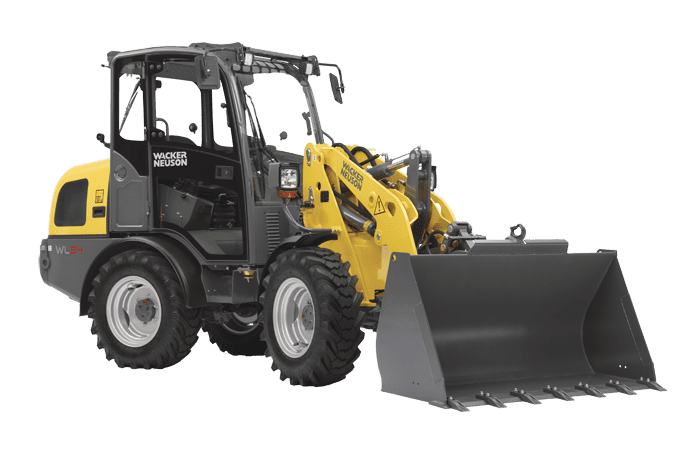

WL34 Articulated Wheel Loader – Cabin
The WL 34 is equipped with a powerful 48HP Perkins T4F diesel engine. With the universal attachment plate, Faster Hydraulic Block, and 14-pin auxiliary electrical harness all standard,operating attachments is quick and easy. The operator’s station is ergonomically laid out for comfort and convenience. The ergonomically designed multifunctional joystick with integrated auxiliary controls allows for easy attachment operation. Excellent 360° visibility, especially in confined areas
– Standard aux hydraulic flow of 73 L/min.
– Universal attachment plate makes this machine an ideal carrier for a variety of jobs.
– Faster quick connect hydraulic connections with 14-pin wiring harness is standard.
– Ergonomic and spacious cab provides comfortable operation.
– Fertilizer version includes standard kinematics adapter and optional anti-corrosion coating. Fertilizer edition also is available with M-Drive that provides constant engine rpm and no inch brake to deliver maximum power, reducing cycle times and increasing operator efficiency.
Engine / Motor | |
| Engine / Motor manufacturer | Perkins |
| Engine / Motor model | 404 D-22 |
| Number of cylinders | 4 |
| Engine performance | 35.7 kW |
| at rpm (max.) | 2,600 rpm |
| Displacement | 2,216 cm³ |
| Coolant type | Water |
Electrical system | |
| Operating voltage | 12 V |
| Battery capacity | 95 Ah |
| Alternator | 65 A |
Weights | |
| Operating weight | 3,440 kg |
| Tipping load with bucket – machine straight | 2,475 kg |
| Tipping load with bucket – machine at angle | 2,076 kg |
| Tipping load with pallet fork – machine straight | 2,067 kg |
| Tipping load with pallet fork – machine at angle | 1,725 kg |
Vehicle data | |
| Bucket capacity Standard bucket | 0.6 m³ |
| Traction drive | Hydrostatic via universal joint shaft |
| Axles | PA1200 |
| Drivers cab (optional) | FSD (cabin) |
| Speed (optional) | 0-20 (28) km/h |
| Speed level | 2 |
| Standard tires | 12.0/75-18 MPT ET-30 |
Hydraulic system | |
| Driving hydraulics – operating pressure | 450 bar |
| Operating hydraulics – operating pressure | 210 bar |
| Operating hydraulics – discharge capacity | 49 L/min |
| Operating hydraulics – discharge capacity (optional up to) | 64.4 L/min |
Filling capacities | |
| Fuel tank capacity | 55 L |
| Engine oil | 8 L |
| Hydraulic oil tank | 65 L |
| Hydraulic system | 75 L |
| Coolant | 10 L |
Sound level | |
| Guaranteed sound power level LwA | 101 dB(A) |
| Specified sound pressure level LpA | 75 dB(A) |
Standard bucket = digging bucket, 1,650 mm width
FSD = Operator’s canopy
Tipping load calculation according to ISO 14397-EN474-3
FSD = Operator’s canopy
Tipping load calculation according to ISO 14397-EN474-3
Wheel loader expertise down to the last detail.
 Maneuverable into the smallest anglesDue to the articulated pendulum joint, the machines are extremely maneuverable and always have good traction, even in uneven ground conditions. |  100 percent connectable differential lock Good traction, even on difficult substrate, allows you up to a 100% connectable differential lock. |
 Numerous connections for attachmentsUse the wheel loaders from Wacker Neuson as you need them – the matching hydraulic connections make it possible. |  Comfortable cabin designThe cabins of our wheel loaders offer plenty of comfort due to their spacious design and outfitting details. |
