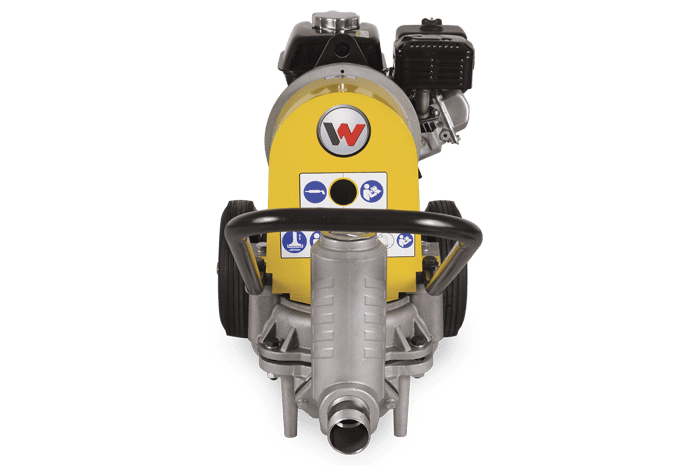

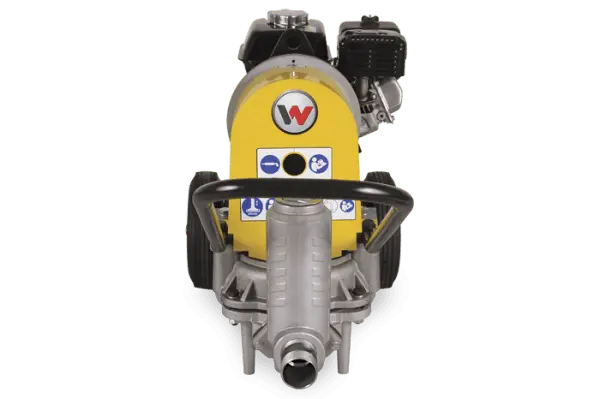

PDI2A - Diaphragm Pump 2" - Petrol

SKU 5000620772 Category

$3,719.00 Incl GST

Wacker Neuson’s diaphragm trash pumps can move almost anything that flows. The direct water flow design minimizes down times caused by blockages and permits unsupervised operation. The high-quality components of these machines guarantee optimal performance and a long service life. PDI pumps can handle the removal of liquids containing solids up to 45 mm, ideal for dewatering mud slurries and sumps.

– Safe to run dry: No damage is caused in “snore mode”, i.e. running intermittently due to lack of water.

– The surge chamber at the inlet absorbs pressure surges. That ensures a smooth pumping action and minimizes wear and tear.

– Oil-bath lubrication constantly greases all parts of the transmission system, thus reducing both maintenance costs and down time.

Technical Specifications

Dimensions (L x W x H)996 x 457 x 589 mm
Diameter ssuction and discharge50 mm
Operating weight59 kg
Discharge head7.6 m
Discharge capacity189 L/min
Suction height lift7.6 m
Solids diameter max. size38 mm

Engine / Motor

Engine / Motor type Air-cooled, single-cylinder
Engine / Motor manufacturer Honda
Engine / Motor modelGX 120
Displacement118 cm³
Max engine speed3600 rpm
Operating speed2800 rpm
Power (max. rated)2.6 kW
Engine oil0.6 L
Fuel type Petrol
Fuel consumption1.1 L/h
Fuel tank capacity2.5 L
Run time2.2 hrs
