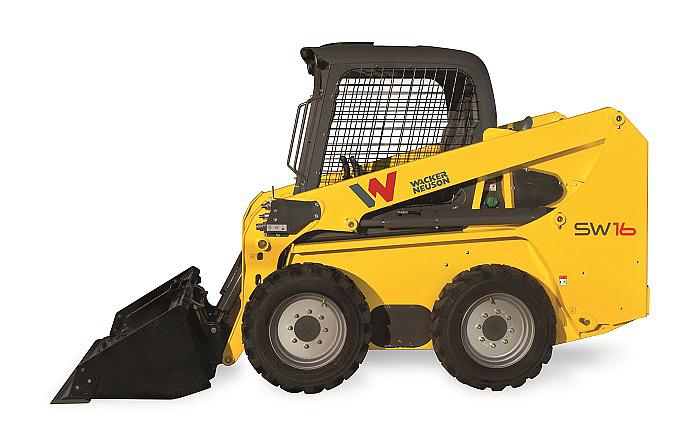

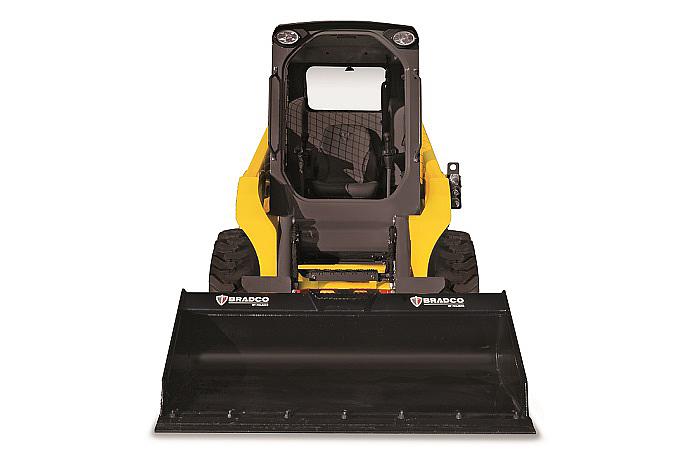

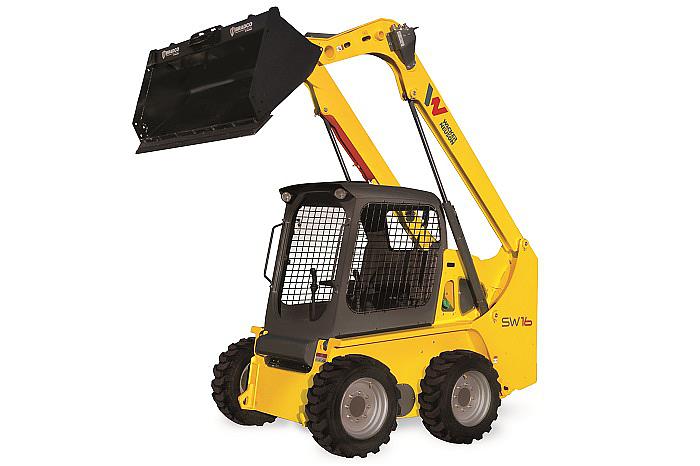

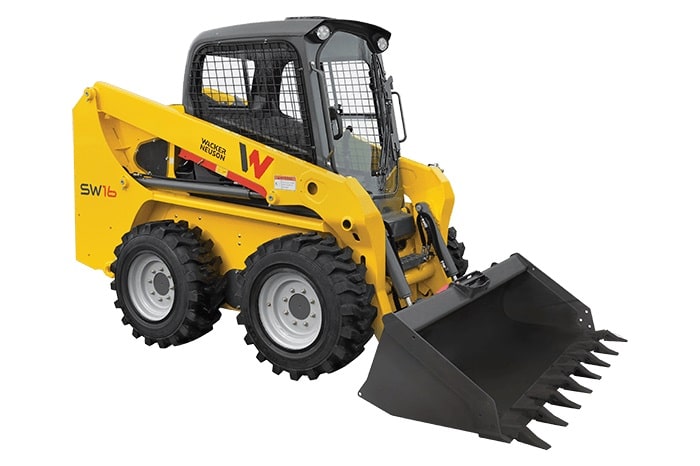

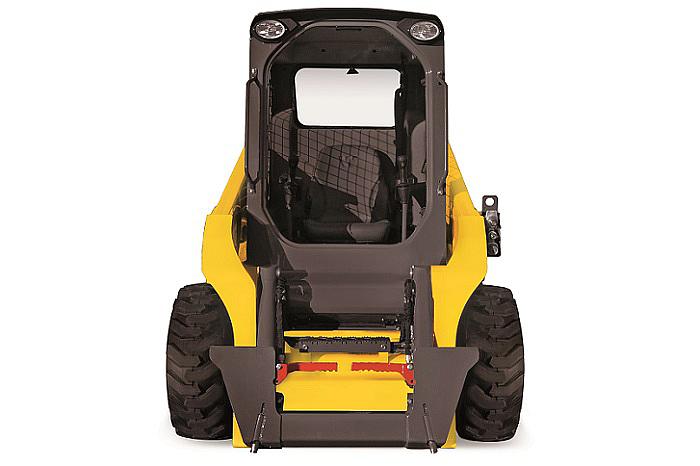

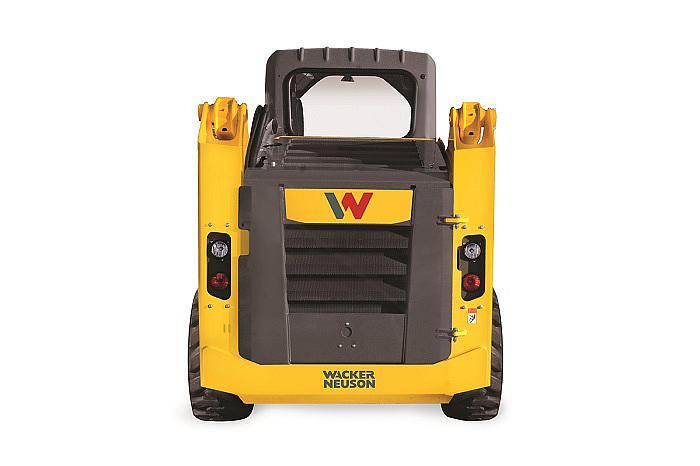

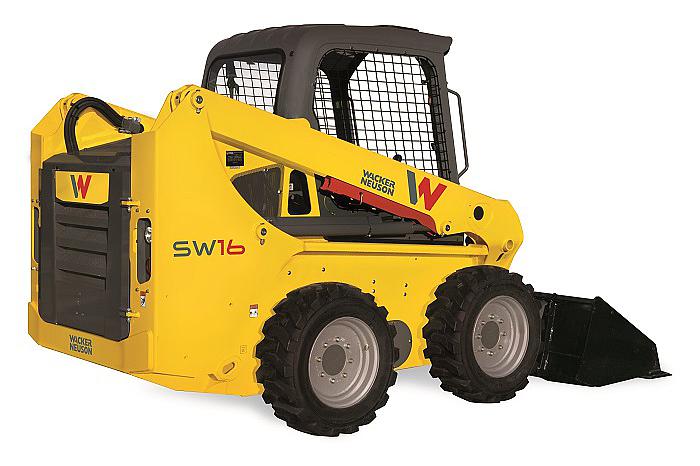

SW16 Skid Steer Loader

SKU 1000340735 Category Tag

The SW16 offers the power and torque needed for any job site. This unit delivers 1,600 pounds of rated operating capacity at 50% and a lift height over 118 inches.

The machine is equipped with a 56 hp turbo-charged Kohler Tier 4 Final engine offering class-leading engine torque.

Mechanical Hand-Foot and Selectable EH controls ensures operators with any control preference can efficiently operate the machine.

With spacious door width and height, visibility of the attachment and the surroundings is superior to the competition.

– Ergonomically designed operator station offers a wide door, angled pedals and foot-bed, and conveniently located switches, allowing for significantly reduced operator fatigue.

– Category leading hydraulic horsepower of 36.8 hp allows for the ability to maximize the efficiency of high-performance attachments.

– Tier 4 Final Kohler engines comes with industry-leading 4 year, 4,000 hour warranty. Maintenance free, filter free, and regeneration free aftertreatment eliminates extreme heat during regeneration and allows the operator to spend more time concentrating on the job site and less time changing filters.

– Designed with maintenance access in mind, engine checkpoints are within easy reach making daily maintenance quick and simple.

– The 30-gallon fuel tank gives operators 30% more time in the cab, and less time refueling.

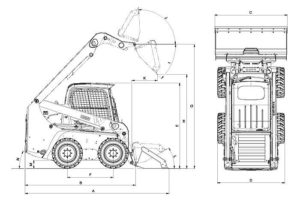

Operating data

Height top of ROPS2,070 mm
Overall length w/ bucket3,426 mm
Overall length w/o bucket2,708 mm
Operating weight2,799 kg
Height Hinge Pin Max3,000 mm
Rated Operating Capacity 50%725 kg
Dump reach866 mm
Dump height max. at max height2,301 mm
Angle of departure24 °
Tipping angle (bucket dump) w/bucket at max height42 °
Ground clearance193 mm
Breakout force max. – Bucket23.6 kN
Breakout force max. – Boom22.2 kN
Width1,674 mm
Wheelbase1,105 mm

Engine / Motor

Engine / Motor manufacturerKohler
Engine / MotorKDI 1903 TCR
Engine performance42 kW
Displacement1,861 cm³
RPM / speed2,750 rpm
Battery950 Ah
Fuel tank capacity114 L

Hydraulic system

Auxiliary Hydraulics- Standard Flow76 L/min
Pressure Aux. relief241 bar

Power transmission

Travel speed Low12.9 km/h
Travel speed High19.3 km/h
Standard tires10 x 16.5



Ergonomic Cab Design

– A wide door and step as well as ergonomically located handles make entry and exit easy regardless of the size of the operator

– Large, illuminated switches give quick accessibility to controls regardless of the time of day or whether the operator is wearing gloves.

With the low mounted tilt cylinders and the spaciously designed door, sloped rear engine compartment, and large side windows, operator visibility is maximized 360º.


– From switch location and layout to an angled foot rest in the floor board, the cab was purposefully designed to be stay in for long amounts of time and to significantly reduce operator fatigue.

– Joysticks are mounted to the suspension/air ride seat minimizing unwanted movements in rough conditions.
