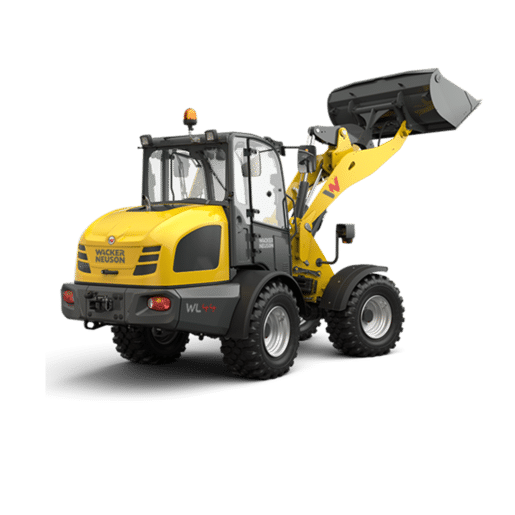

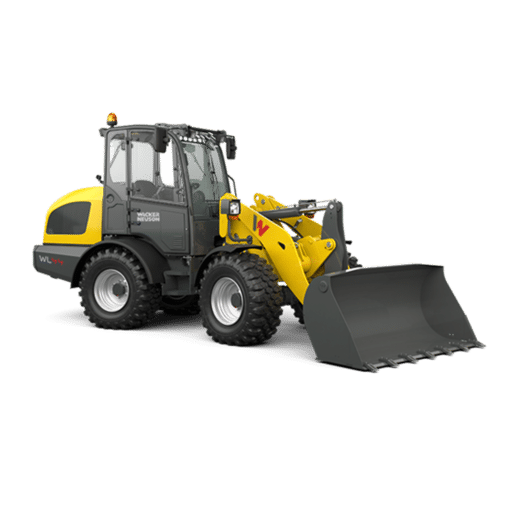

Wheel Loader WL44

SKU 1000414054.01 Category

Features

– Articulated pendulum joint ensures maximum tracking and maneuverability, even on uneven terrain

– High grade powder-coating for a long service life of the machine

– Simple and uncomplicated to replace attachments, thanks to the hydraulic quick-hitch system

– Two different driver’s cabins are available: operator’s canopy (low/high) and cab (low/high single and double-door))

– Easy service access thanks to various maintenance covers

– Good all-around visibility and ergonomic working area

– If necessary, the 100% connectable differential lock provide maximum traction, thrusting force, and footing – switched off during normal operation – low wear on tires

OPERATING FLUIDS

Fuel Tank capacity82 L
Oil volume10,000 L
Hydraulic fluid volume66 L
Cooling fluid volume8.0 L

ENGINE

Battery capacity (nom. value)100 Ah
Cylinders4
CoolingWater-cooling
Engine manufacturerPerkins
Cylinder capacity2,300 cm3
Operating engine speed2,800 rpm
Starter battery Voltage12 V
Engine Designation404F-22T
Operating power44.7 kW

MECHANICAL – OUTPUT DETAILS

Travel speed stage 20 – 20 km/h
Travel speed stage 10 – 7 km/h
Travel speed20 km/h

HYDRAULIC

Tank capacity66 L
Operating pressure hydraulics220 bar
Flow rate58 L/min

ENVIRONMENT DATA

Sound level LpA78 dB(A)

MECHANICAL DETAILS

Operating weight4,600 kg
Bucket capacity0.85 m3

CHASSIS

Flow rate128 L/min
Traction driveHydrostatic
Steering angle max.40
Tyres31
BrakeSurge brake
Operating pressure455 bar
AxlePlanetary axle
Hydraulic PumpDisplacement pump



WL44 features in an overview

The articulated pendulum joint

The guarantee for the best possible stability and maneuverability. Due to the joint, all four wheels remain in constant contact with the ground and the machine moves with maximum traction. In addition, the machine is therefore uniquely maneuverable. It is possible to turn curves at an angle of up to 40° degrees.



The best view thanks to the low front carriage

The WL44 with powerful Z-kinematics is equipped with a low front carriage. This provides an excellent overview of the attachments, the immediate working area, and the entire machine surroundings. In addition, the low front carriage allows for high tipping loads and break out forces.



Two lift cylinders

For even more stability of the loading system, all wheel loaders from Wacker Neuson are equipped with two lift cylinders. In this way, the hydraulic power is optimally distributed to the load arm. The size of the lift cylinder is adapted to the size of the respective machine.

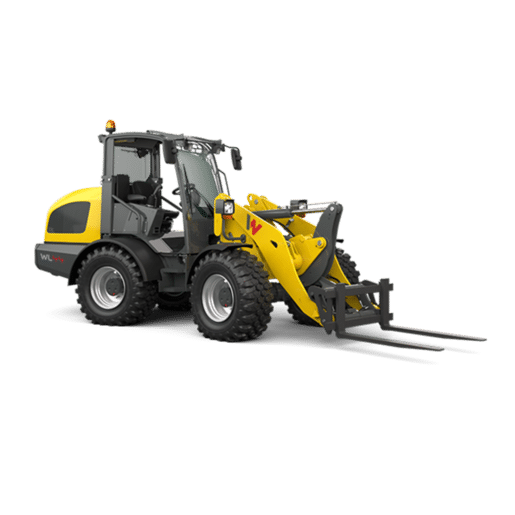

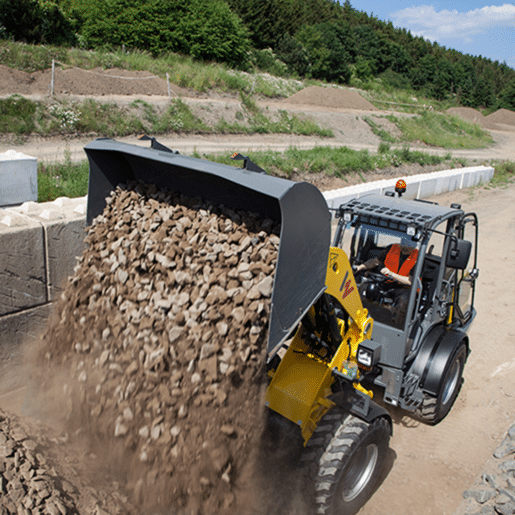

A multi-tool for different applications.

Regardless of whether you are transporting, sweeping, stacking or pushing: Thanks to the various attachments, your wheel loader becomes a universal device carrier.

Hydraulic equipment change directly from the operator’s seat

Thanks to the hydraulic quick-change system, attachments can be readily and easily exchanged. Your machine is thus always ready for use. This increases productivity and profitability. Attachments are exchanged using 2-hand operation, which makes an unintentional change impossible – safety always takes priority!



Uncomplicated maintenance

The removable seat, the wide-opening engine hood as well as various maintenance covers make all service accesses easy to reach. This saves time and money in maintenance.



100 % differential lock

The connectible 100 % differential lock provides maximum traction and thrusting power when needed. It also keeps the tire wear low (switched off during normal operation).



Choose your driver’s cabin

Operator’s canopy, low

Operator’s canopy, high

High 1-door cabin (premium)

High 2-door cabin



Comfort cabin

The 1-door comfort cabin is damped at four points. In this way, impacts are optimally absorbed. From the entry on the left to the fully glazed vent window on the right, the cabin offers an excellent view of the attachment and the entire working area.



Good all-round visibility and an ergonomic working area

Plenty of legroom, clearly arranged instrument panel, comfortable operator’s seat and optimal view of the attachment. A working area that motivates and fully supports the operator.



Inch brake pedal

– Full power for the hydraulics and at the same time reducing the travel speed: To do this, you only need one pedal with the Wacker Neuson wheel loaders.

– You can regulate both mechanical as well as hydraulic braking (“inching”) via the brake-inch pedal.

– The advantages are obvious: less wear of the service brake and optimal power distribution of the engine output.



No pressure on inch brake pedal: full power for the drive system

Slightly depressed brake-inch pedal: The speed is reduced, more power to the work hydraulics.

Further depressed brake-inch pedal: The speed is reduced further, even more power to the work hydraulics

Further depressed brake-inch pedal: The wheel loader stands still, full power to the work hydraulics.
