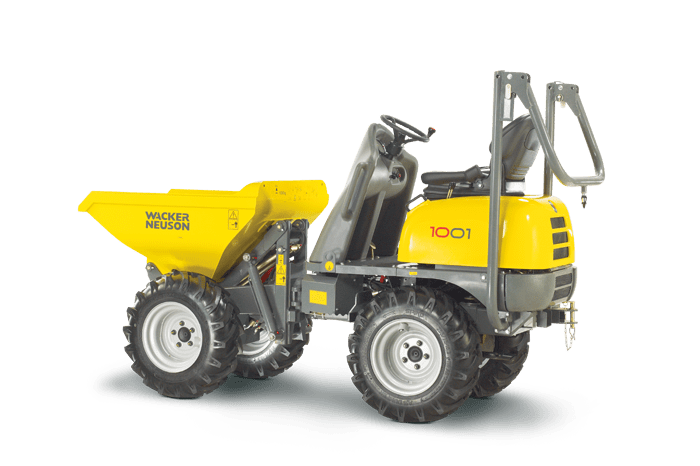

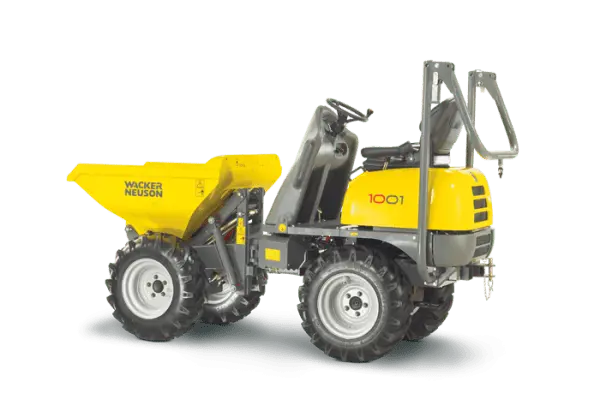

1001 Wheeled Dumper – High Lift – ROPS

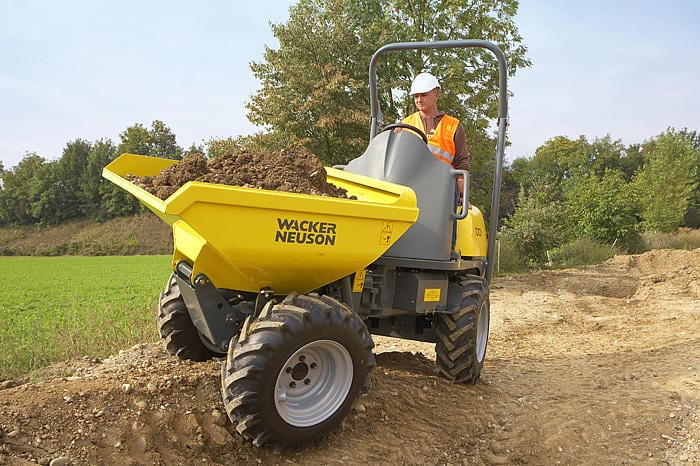

Fast, safe and easy transport even on the roughest of terrain and a discharge height of up to 1.56 m. The four-wheel dumper 1001 is particularly versatile, agile and extremely robust

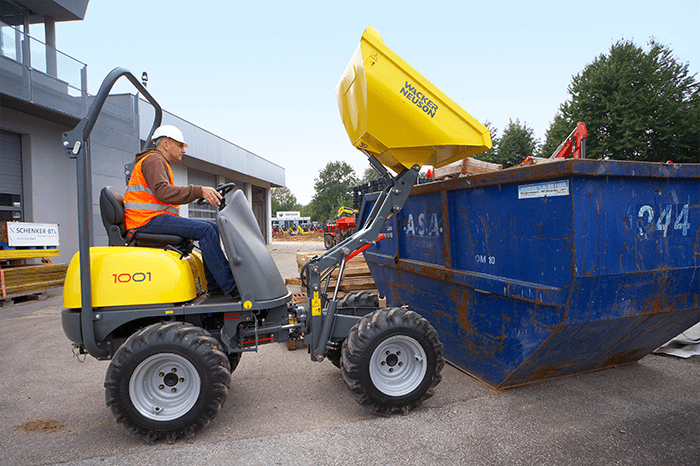

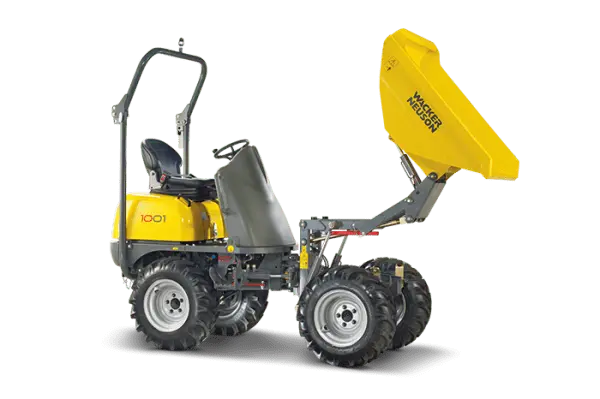

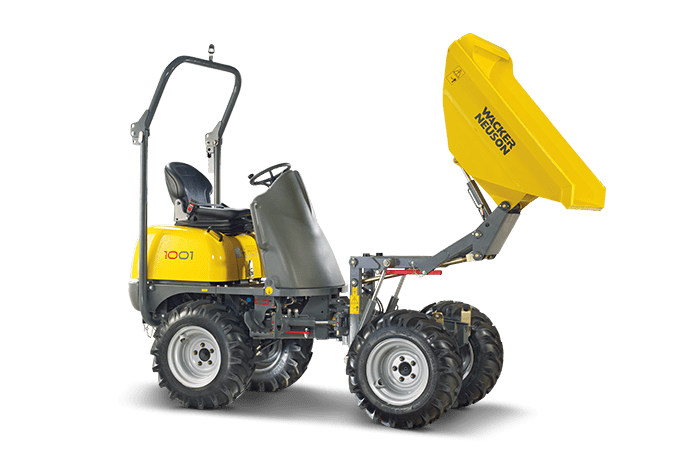

– High-tipping skip (1.56 m dumping height); maximum payload 1000 kg.
– Compact dimensions, optional narrow tires (990 mm machine width).
– Hydrostatic twin-lock four-wheel drive; continuously variable speed up to 14 km/h max.

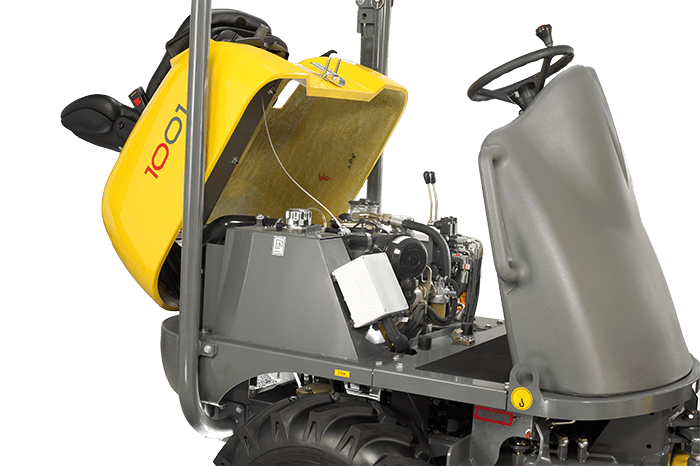

– Large service and maintenance access.

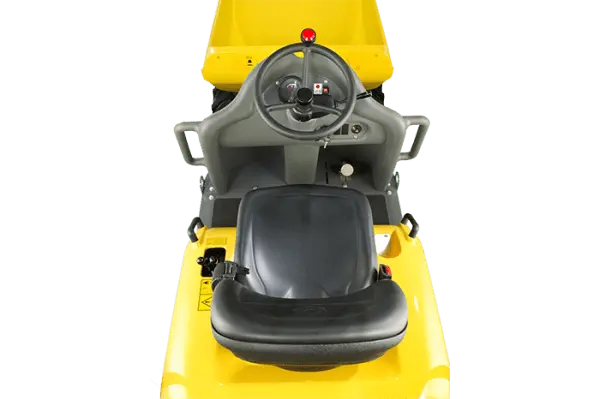

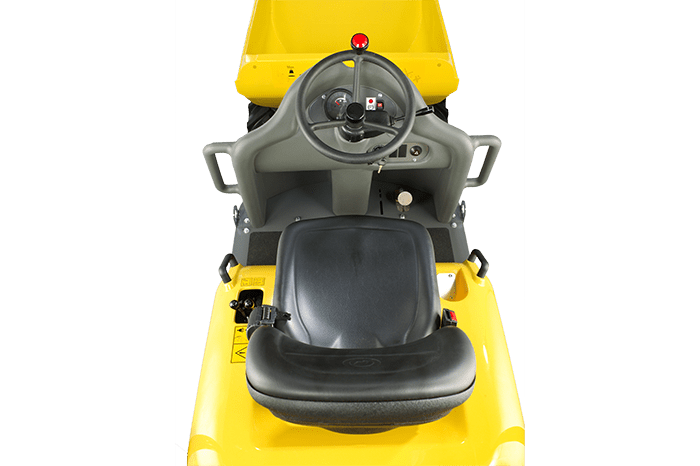

– Clearly laid out instrument panel and wide, robust leg protection.
Operating data | ||
| High tip skip | Narrow | |
| Payload | 1,000 kg | 850 kg |
| Skip capacity level | 415 L | 415 L |
| Skip capacity heaped | 525 L | 525 L |
| Skip capacity water volume | 275 L | 275 L |
Engine / Motor | ||
| Engine / Motor manufacturer | Yanmar | Yanmar |
| Engine / Motor model | 3TNV76 | 3TNV76 |
| Engine / Motor type | Diesel | Diesel |
| Engine performance acc. to ISO 3046/1 | 18.9 kW | 18.9 kW |
| Displacement | 1,116 cm³ | 1,116 cm³ |
| Engine RPM | 3000 rpm | 3000 rpm |
| Travel speed | 14 km/h | 14 km/h |

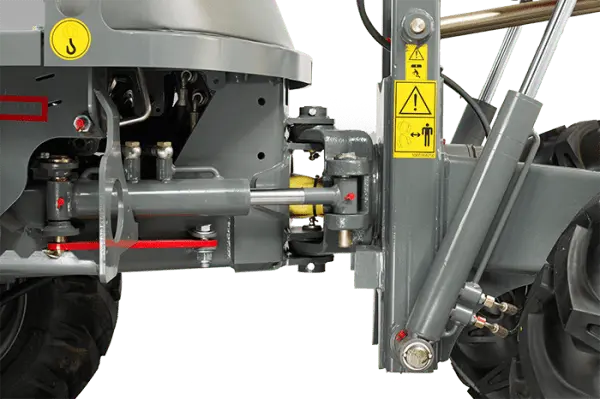

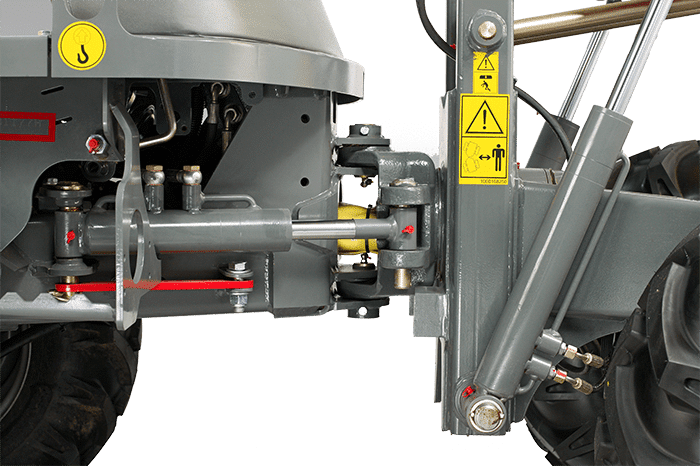

| Articulation angle | 33 ° | 33 ° |
| Pendulum angle | 15 ° | 15 ° |
| Turning radius | 3,200 mm | 3,200 mm |
| Gradeability | 45 % | 45 % |
| Tires | 10.00/75-15 | 6.00/16 |

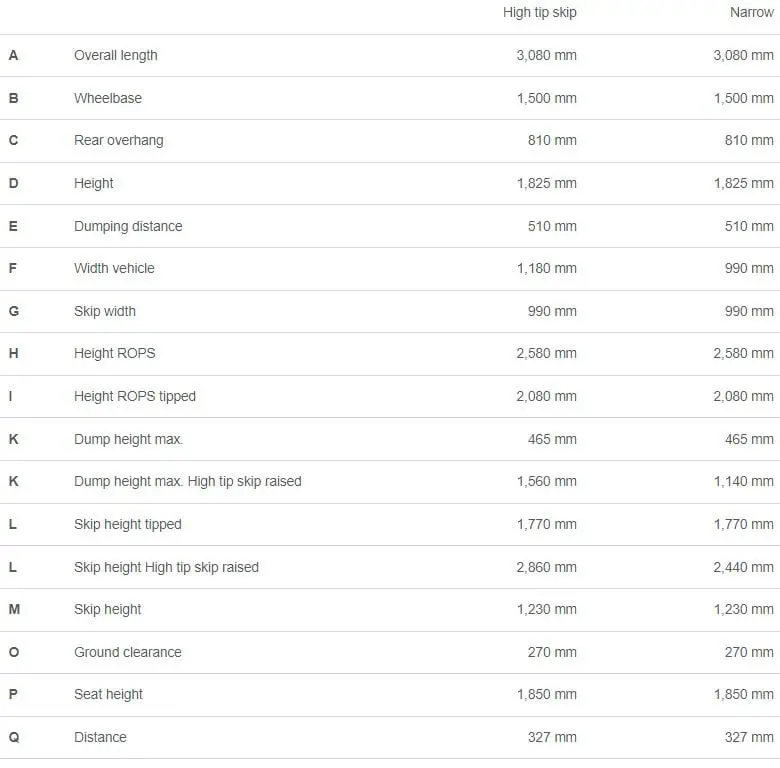

| Dimensions (L x W x H) | 3080 x 1180 x 2580 mm | 3080 x 990 x 2580 mm |
| Steering pump | Axial piston pump | Axial piston pump |
| Flow rate | 84 L/min | 84 L/min |
| Operating pressure | 360 bar | 360 bar |
| Duty pump | Gear pump | Gear pump |
| Flow rate | 25 L/min | 25 L/min |
| Operating pressure | 170 bar | 170 bar |
| Fuel tank capacity | 15 L | 15 L |
| Sound level (LwA) | 101 dB(A) | 101 dB(A) |
On highly uneven surfaces, one wheel loses traction at some point and rotates freely. The Twin Lock all-wheel drive system from Wacker Neuson responds quickly: as each of the four wheels has its own hydraulic motor, power is always optimally distributed.
– All-wheel drive with its own hydraulic motor.
– Easy maintenance and cost savings because no changing of gear oil and brake fluid is necessary.
