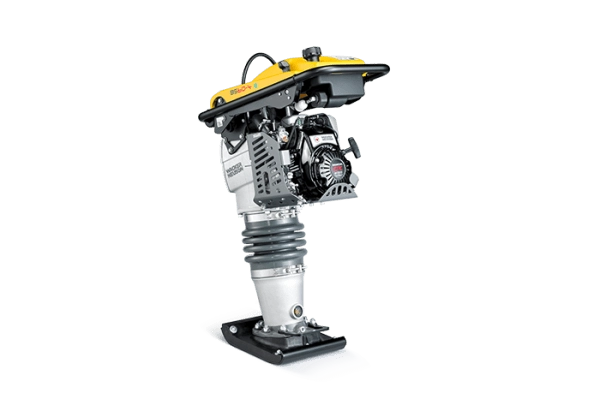

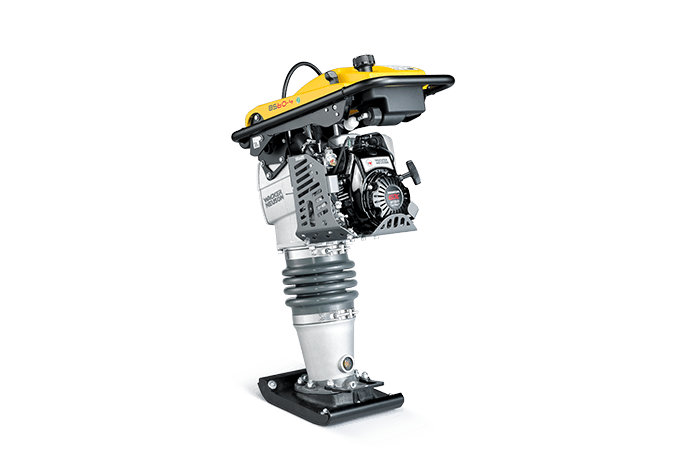

BS60-4As – Vibratory Rammer, 4-Stroke

SKU 5100030605 Category

Wacker Neuson’s 4-stroke rammers are classified by an excellent performance which is sustainably convincing. The high stroke energy, high percussion rate and long shoe stroke combined with a fast advance travel achieve excellent compaction results. Well thought-out features make the use of the 4-stroke rammers even more user-friendly, extend the service life and reduce maintenance to a minimum.

– Fast starting due to a small pump to the carburetor.

– Strong stroke for heavy, cohesive soils.

– Integrated oil deficiency protection with automatic shutdown when the engine is started with insufficient oil level.

– Premium air filter ensures an almost dust-free engine operation and provides three times longer change intervals.



Operating data

Operating weight 72 kg
Ramming shoe size (WxL) 280 x 340 mm
Dimensions (L x W x H)673 x 343 x 965 mm
Percussion rate max.
656 blows/min
Stroke at the ramming shoe65 mm
Impact force 18 kN
Operating speed8.8 m/min
Surface capacity – compaction148 m²/h

Engine / Motor

Engine / Motor type GXR 120
Engine / Motor manufacturer Honda
Engine / Motor Air-cooled single-cylinder four-cycle gasoline engine
Displacement 120 cm³
Rated performance (DIN ISO 3046-1)2.7 kW
at rpm 4,100 rpm
Fuel consumption 1 L/h
Fuel tank capacity2.9 L



  • Fast starting due to a small pump to the carburetor
  • Strong stroke for heavy, cohesive soils
  • Integrated oil deficiency protection with automatic shutdown when the engine is started with insufficient oil level
  • Premium air filter ensures an almost dust-free engine operation and provides three times longer change intervals



Comfortable transport

  • Large and flexible transport lug
  • Easy loading and stowing by transport rollers on the handle


1/min (rotation) / Operating hours

Innovative air filter system

  • Operate three times longer in the optimum speed range than without compensation
  • Three times longer service intervals

Not compensated
Compensated
Extension of the service-intervall


An engine with a strong reserve

The robust GXR 120 engine from Honda operates in normal operation well below its performance limit. This protects the engine and extends its service life.




Comfortable operation

  • Only one lever for idling, starting and stopping
