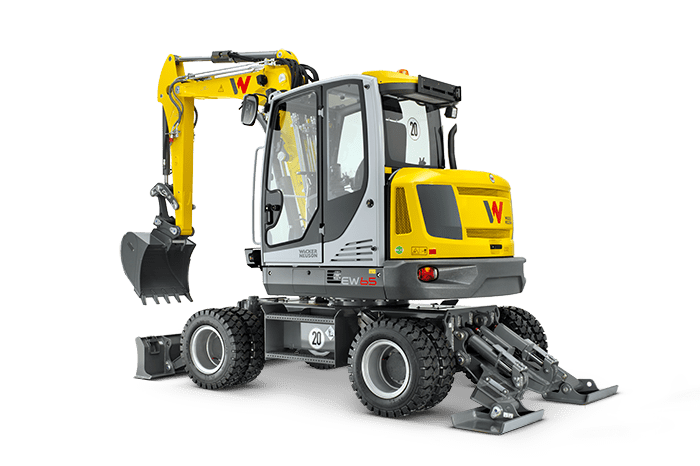

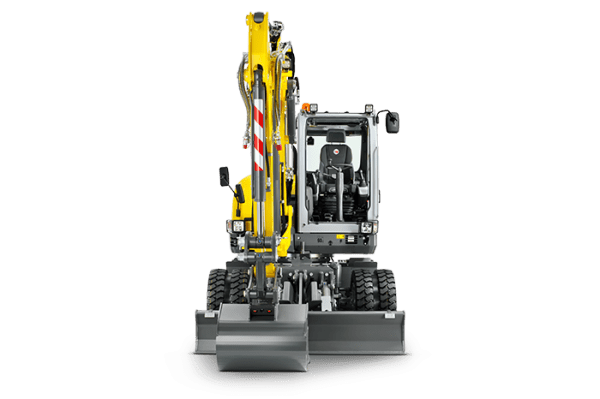

EW65 Wheeled Excavator - Incl. Easy Lock Hitch

SKU 1000313964 Category Tag

The wheeled excavator EW65 drives itself to the site of application thanks to the installed street driving mode and does not require a time and cost-intensive transport. The variable drive system with up to 20 km/h has low fuel consumption and with just one pedal drives almost like a car. The powerful load-sensing hydraulic system with LUDV* (load-independent flow control) also provides for the same speeds of several movements with different loads. With 5 control circuits — of which 3 are individually adjustable — and an articulated boom, the EW65 is very efficient and its way quickly.

– Precise and sensitive operation thanks to the load sensing hydraulic system with LUDV (load-independent flow control).

– Low consumption due to the economical ECO mode.

– Up to 5 auxiliary control circuits for the most varied attachments.

– Maintenance and service made easy due to the tiltable cabin as well as the diagnostic tool.

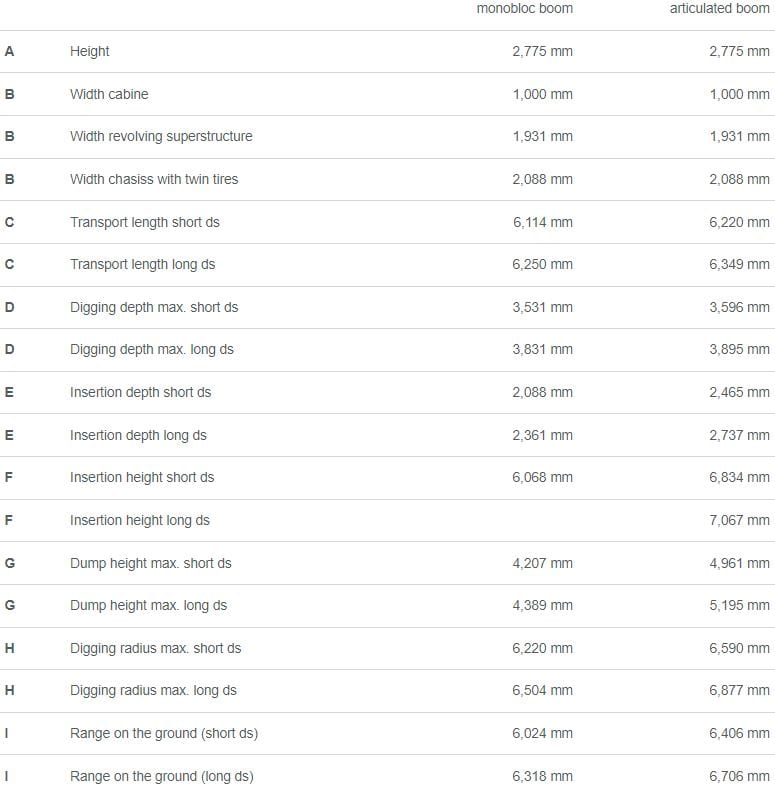

Operating data

Operating weight 6,755 – 8,003 kg
Biting force max. 30.8 kN
Breakout force max.50.7 kN
Digging depth max. 3,895 mm
Dumping height 4,207 – 5,195 mm
Digging radius max. 6,877 mm
Superstructure slewing speed 9 rpm

Engine / Motor

Engine / Motor manufacturer Perkins
Engine / Motor model404D-22T
Engine / Motor typewater-cooled 4-cylinder turbo diesel engine
Displacement 2,216 cm³
Operating speed 2,500 rpm
Engine performance according to ISO36.4 kW
Battery 88 Ah
Fuel tank capacity 85 L

Hydraulic system

Duty pump Variable displacement pump and double hydraulic gear pump
Max. flow rate 144 + 85.5 L/min
Operating pressure drive pump420 bar
Operating pressure working pump240 bar
Hydraulic oil tank 92 L

Undercarriage

Tires mono and dual tires
Track width 300 mm
Ground clearance 237 mm
Travel speed max.30 km/h

Dozer Blade

Width 2,085 mm
Height 429 mm
Stroke dozer blade above subgrade395 mm
Stroke dozer blade below subgrade301 mm

Sound level

Sound level (LwA) according to 2000/14/EC97 dB(A)

Economical and powerful

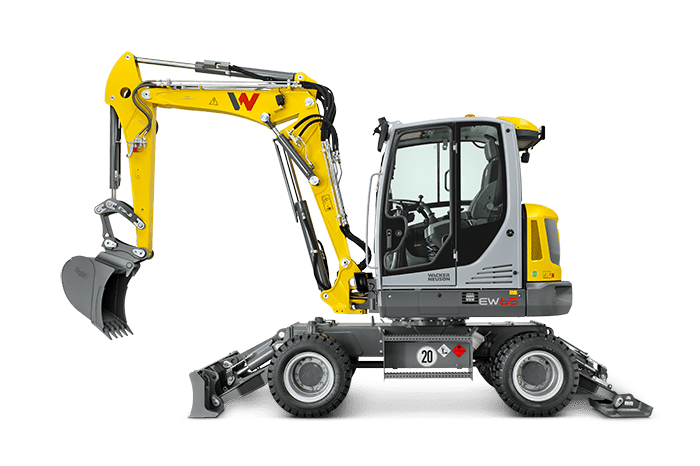

Efficient articulated boom

– Powerful drive system.

– ECO operating mode.

– Up to 20% less fuel consumption.

– Articulated boom for greater reach, digging depth and dumping height.

Reduced dimensions

– Significantly lower height and width than comparable competition models.

– Easily master tight construction sites and low passages.

– Higher level of stability due to the low center of gravity.

– Easy to transport.

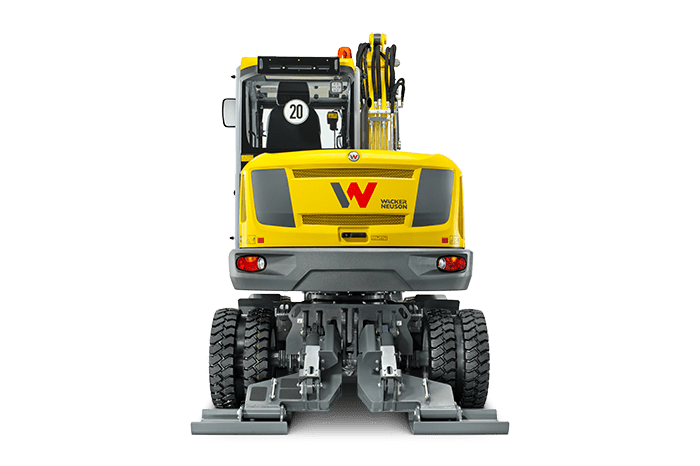

Different stabilizer versions

– More stability due to the different stabilizer versions.- Stabilizers optionally in front or rear.

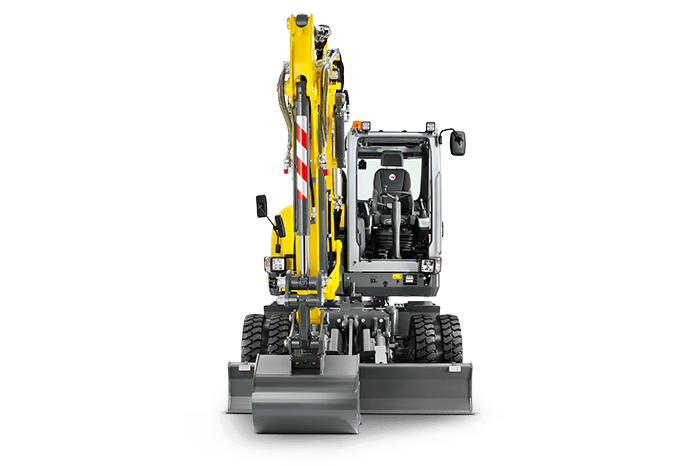

– Dozer blade.

– Counterweights.

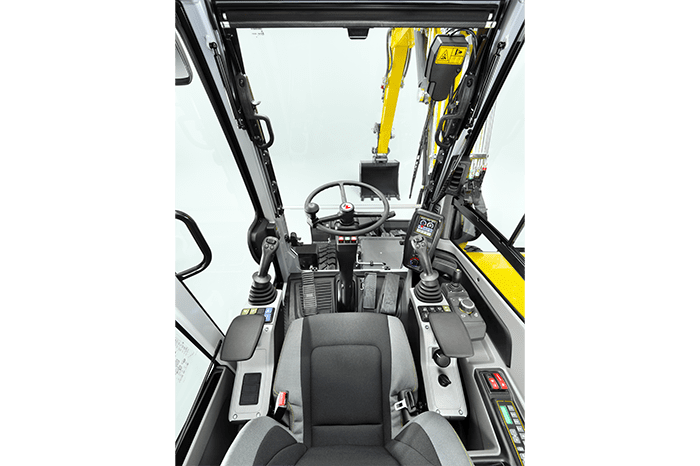

Cabin – sight and operating comfort



– Innovative solution for the optimal view – boom to the right next to the cabin.

– Operator comfort: spacious cabin, air cushioned seat and automatic air-conditioning system .

– Innovative front windshield system: two-part windshield can be slid up and moved – rain roof position.

– LED headlights for optimal illumination.

– Rear camera for more safety when in reverse operation.


Tiltable cabin:

Jog dial system

– For excellent service access– Technology from the automotive sector.

– For the direct control of central functions.

– Intuitive to operate.
